As the electronics manufacturing industry surges toward high-efficiency automation, the performance of surface-mount technology (SMT) components directly determines end-product reliability. Shenzhen Kinghelm Electronics Co., Ltd. introduces the KH-12X12X4.3H-SMT tactile switch, whose miniature 12×12×4.3mm footprint and ultralight 1.07g weight unlock new possibilities for high-density PCB designs. Its internal structure combines silver-plated stainless steel contacts with a PPA engineering plastic base, maintaining zero mechanical damage even under rigorous testing—withstanding 300g terminal lateral static loads and 3kg knob pull forces—establishing a safety barrier for assembly and usage.

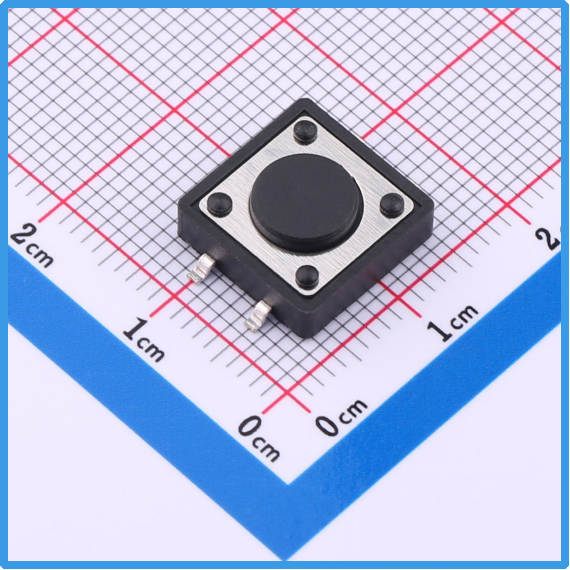

Kinghelm KH-12X12X4.3H-SMT Product Image

At the electrical performance level,this switch has a high stability: under 1kHz/50mA test conditions, contact resistance remains reliably below 100mΩ, ensuring silky-smooth signal transmission; when DC250V is applied between terminals and housing, insulation resistance consistently exceeds 100MΩ, eliminating leakage risks; and during AC250V withstand voltage tests, it endures 1mA induced current for one minute without breakdown. This electrical stability stems from its optimized 160±30gf operating force and 0.40±0.1mm travel distance, delivering crisp tactile feedback.

Confronting complex operating environments, the Kinghelm KH-12X12X4.3H-SMT delivers compelling results: material properties show no degradation within its -40℃ to 85℃ storage range; functional responses remain consistent in operating environments from -20℃ to 70℃. After enduring 96 hours of "sauna testing" at 60℃ with 95% humidity, or 4 hours of continuous corrosion in 5% salt spray, contact resistance remains firmly below 200mΩ. Particularly noteworthy is its 100,000-cycle no-load life test—operating continuously at 120 cycles per minute while maintaining actuation force variation within 30% of initial values—validating Kinghelm’s relentless pursuit of long-term reliability.

Optimized for modern production lines, this switch achieves deep SMT process compatibility: it withstands 260±5℃ reflow peak temperatures, with the precise 3±0.5s thermal window perfectly matching 1.6mm standard substrates. When terminals are immersed 0.5mm deep in 260℃ solder baths for 3 seconds, they achieve over 95% solder coverage. Lead-free construction further aligns with global green manufacturing trends, significantly reducing ecological burdens. Engineers should strictly observe three operational protocols: manual soldering temperatures must not exceed 350℃, overloading forces are prohibited, and corrosive gas environments should be avoided—these measures maximize switch performance potential.

From home appliances to industrial IoT, the Kinghelm KH-12X12X4.3H-SMT empowers diverse sectors: in television control panels, it serves as a precise channel selector; embedded in microwave timing systems, it becomes a silent commander of cooking duration; integrated into rice cooker interfaces, it transforms into a texture-adjusting magic dial. In industrial settings, it functions both as instrumentation start-stop hubs and machinery operation nerves; within IoT terminals, it shoulders dual missions of portable device power management and smart home triggering.

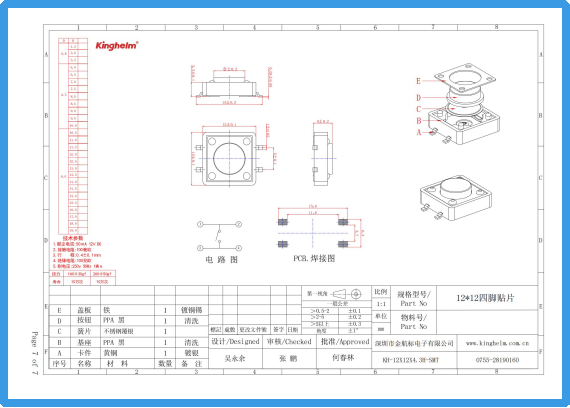

Kinghelm KH-12X12X4.3H-SMT Specification

Kinghelm has condensed two decades of electronic interconnect expertise into this micro switch. Its [敏感词]-grade environmental tolerance and high SMT line compatibility provide manufacturers with cost-effective yet reliable control solutions. Packaged in tape-and-reel format, the KH-12X12X4.3H-SMT continuously feeds into smart devices’ core control units via global automated placement equipment, embodying the technological philosophy of "tiny components driving monumental innovation" with every precise actuation.
