In the era where electronic devices pursue slim profiles and intelligence, the reliability of human-machine interaction often hinges on minute components. The KH-12X12X8H-SMT tactile switch from Shenzhen Kinghelm Electronics Co., Ltd. exemplifies a micro control core engineered to redefine precision. This surface-mount technology (SMT) switch, with its compact 12×12×8mm dimensions and ultralight 1.3898g design, seamlessly integrates into high-speed automated production lines, delivering efficient and stable touch solutions for consumer electronics, home appliances, and industrial equipment.

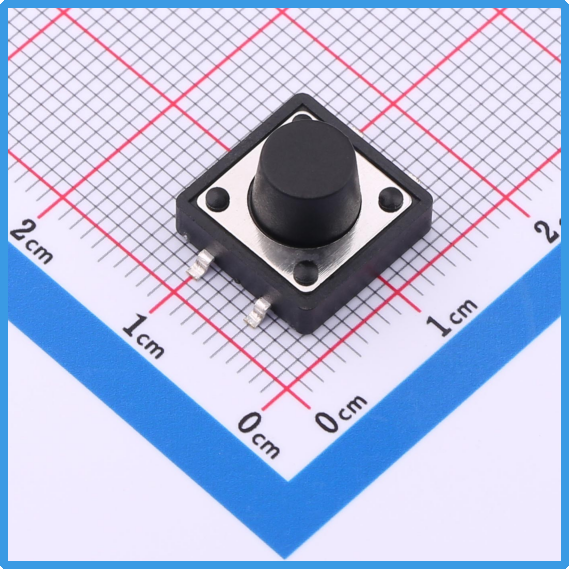

Kinghelm KH-12X12X8H-SMT  Product Image

Electrical excellence originates from its rigorous contact design. The switch adopts a single-pole, single-throw (SPST) structure, with contact resistance strictly controlled below 100mΩ when tested at 1kHz/50mA/20mV, minimizing signal transmission loss. Its insulation performance is equally exceptional, exceeding 100MΩ under DC250V and withstanding AC250V at 50/60Hz for one minute without breakdown, establishing a robust safety barrier for device circuits. This electrical stability ensures long-term reliability across applications from household appliances to precision instruments.

Mechanical mastery delivers an unparalleled user experience. Featuring dual operating force specifications of 160±30gf or 260±50gf, combined with a precise 0.40±0.1mm travel distance and optimized tactility ratio of 30-70%, each press provides crisp, definitive haptic feedback. The silver-plated stainless steel spring undergoes specialized reinforcement, successfully passing 300g terminal deflection and 3kg knob tensile tests to ensure durability in high-frequency scenarios. During 100,000-cycle unloaded lifespan testing, contact resistance remains stable below 200mΩ while operating force variation stays within 30% of initial values, validating its extended service life.

Environmental resilience underscores industrial-grade quality. The switch maintains stable performance across storage temperatures ranging from -40℃ to 85℃ and operating temperatures spanning -20℃ to 70℃. It has rigorously passed extreme tests including salt spray corrosion testing at 5% concentration for 4-hour exposures, 80℃ thermal aging, 60℃/95% RH humidity exposure, -40℃ deep-freeze cycles, and temperature cycling. Post-testing, contact resistance remains ≤200mΩ, insulation resistance ≥100MΩ, and mechanical integrity stays uncompromised, proving reliability in harsh environments.

Manufacturing compatibility stands as a core advantage. Switch terminals achieve over 95% tin coverage after 260±5℃ solder bath immersion at 0.5mm depth for 3 seconds, and withstand both reflow soldering at 260±5℃ for 3 seconds and hand soldering at 350±5℃ for 3 seconds without deformation or electrical degradation. This seamless SMT integration enhances production efficiency while reducing costs. Its standardized 12×12mm footprint is widely adopted in space-constrained applications like TV control panels, microwave function keys, and rice cooker program switches, making it ideal for high-density PCB layouts.

To ensure optimal performance, adherence to three critical principles is essential: strictly control soldering parameters by following recommended SMT (260±5℃ for 3 seconds) or hand soldering (350±5℃ for 3 seconds) specifications to prevent thermal stress damage; avoid overloading during operation; and implement protective measures when deploying in corrosive gas environments.

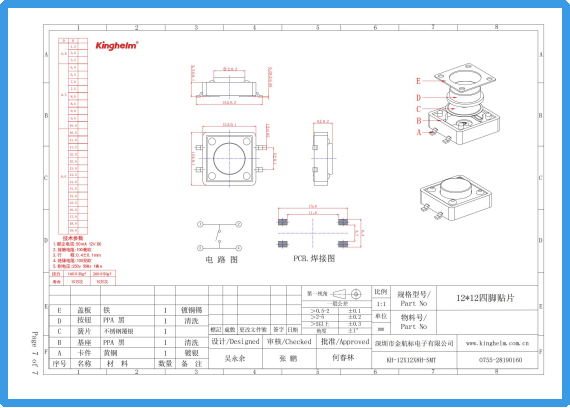

Kinghelm KH-12X12X8H-SMT Specification

The Kinghelm KH-12X12X8H-SMT tactile switch redefines micro-switch standards through material innovation and full-spectrum reliability validation. Beyond executing circuit switching functions, it safeguards smart-device interaction experiences, delivering trusted tactile solutions that support evolving consumer electronics and Industry 4.0 transformation initiatives.
