『Product Highlight』Kinghelm USB Type-A Right-Angle Female Socket KH-AF90WJ-14YG-BCu

Release date:2025-07-11Author source:KinghelmViews:14

In the realm of contemporary electronic device design, miniaturization and functional integration have become irreversible trends. The competition for internal space has intensified dramatically, with engineers meticulously planning layouts within millimeter-scale gaps. Traditional vertical USB Type-A female sockets, while structurally simple and reliable, stand like obstructive "pillars" within devices, consuming valuable Z-axis height and forming stubborn barriers to achieving ultra-slim designs. It is precisely under this severe spatial challenge that the Kinghelm KH-AF90WJ-14YG-BCu USB Type-A 90-degree right-angle female socket emerges. More than just a physical interface, it represents a significant breakthrough in connector engineering, balancing spatial optimization with electrical reliability. Through its ingenious structural design and rigorous manufacturing processes, this product provides electronic device manufacturers with a powerful tool to overcome spatial constraints while establishing a solid foundation of stable data transmission and power supply for end-users.

The most revolutionary core design of this connector lies in its 90-degree right-angle structure. This design fundamentally subverts the traditional layout of USB interfaces within devices. Unlike standard sockets requiring vertical installation space, the right-angle design allows cables or plugs to connect parallel to the device's motherboard. This spatial transformation delivers immediate benefits: the demand for space in the thickness direction (Z-axis) of the device is significantly reduced. In modern electronics striving for extreme compactness—whether it's ultra-thin smartphones designed to fit into pockets, lightweight tablets, laptops pushing physical limits, or space-constrained automotive head units—every millimeter saved carries strategic importance. Engineers can utilize this reclaimed space to enhance battery capacity for improved endurance, optimize thermal system layouts for increased performance stability, or free up room for other critical sensors and processors, thereby boosting the product's overall market competitiveness. The 90-degree right-angle design also offers substantial industrial design aesthetic value. It enables cable connections to follow the device contours more naturally, eliminating the visual disruption caused by traditional vertical ports. This results in smoother, cleaner product exterior lines, significantly enhancing the overall texture and user visual experience—a critical factor in design-driven consumer electronics markets.

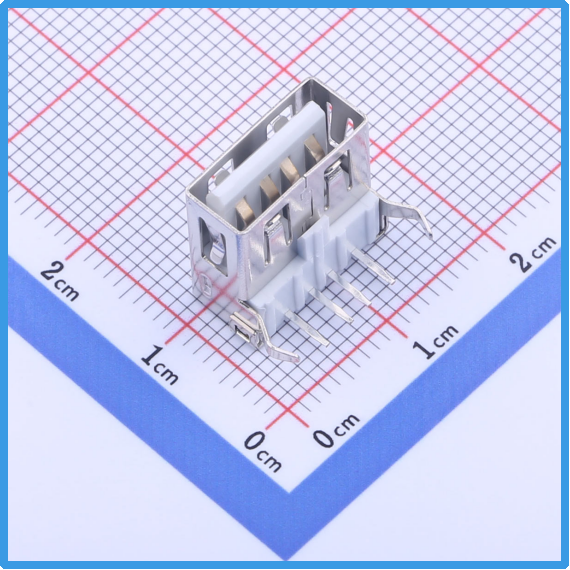

Kinghelm KH-AF90WJ-14YG-BCu Product Image



Outstanding electrical performance is the cornerstone of the KH-AF90WJ-14YG-BCu's market credibility. The "BCu" in the product model explicitly identifies the copper plating process (Brass with Copper Plating) applied to its contact points—a choice rooted in profound engineering considerations. Contact points are the critical pathway for the connector's electrical function; their performance directly determines data transmission speed, stability, and power delivery efficiency. The application of copper plating significantly enhances the conductive properties of the contact area. Copper, being an excellent conductor second only to silver, effectively reduces contact resistance through its plating. This advantage manifests in two key areas: In power delivery scenarios, lower contact resistance translates to reduced energy loss and heat generation, improving energy utilization efficiency—particularly advantageous in high-current fast-charging applications. In data transmission, low resistance characteristics help maintain the integrity of high-speed signals (such as those required by USB 2.0 specifications), minimizing signal attenuation and distortion. This ensures stable and reliable data transfer, effectively preventing errors or unexpected interruptions caused by poor connections. Furthermore, this uniform, dense copper layer provides a robust physical and chemical barrier. It effectively resists corrosion from environmental factors like moisture, salt spray, and sulfides, significantly delaying oxidation at the contact points. This ensures sustained contact reliability over long-term use—a vital characteristic for automotive electronics operating in variable conditions, industrial control equipment, and security surveillance systems demanding continuous, stable operation.

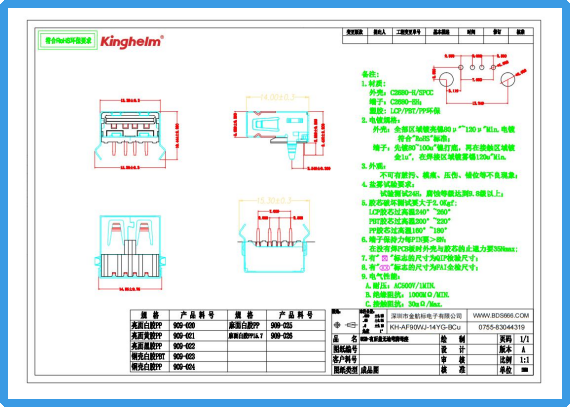

Kinghelm KH-AF90WJ-14YG-BCu Specification



Leveraging its unique space-optimized design and dependable electrical performance, the KH-AF90WJ-14YG-BCu right-angle female socket finds widespread applicability across multiple critical industry sectors. In the fiercely competitive consumer electronics field, it serves as a secret weapon for achieving product slimness: Smartphone manufacturers utilize it to save motherboard space for larger batteries or complex multi-camera modules; ultra-thin laptops leverage it to break through chassis thickness limitations; portable Bluetooth speakers, TWS earbud charging cases, handheld gaming consoles, and action cameras all benefit from its compact footprint. Within the computer and peripherals market, it is widely used in Ultrabooks, internal expansion ports of all-in-one PCs, keyboard/mouse receiver slots, USB hub modules in monitors, side interface panels on printers, and connection ports for external hard drive enclosures. The automotive electronics sector imposes extremely high demands on component reliability. Thanks to its robust construction and the corrosion resistance of its copper plating, this connector is integrated into in-vehicle infotainment (IVI) head units, high-definition dash cams, multi-port car chargers, rear-seat entertainment control modules, and OBD-II diagnostic interfaces, enduring vehicle vibration, extreme temperature fluctuations, and potential chemical corrosion. Industrial applications present even harsher environments. Within automation control cabinets, data acquisition terminals, precision test and measurement instruments, communication base station equipment, and outdoor monitoring devices, this connector, with its stable signal transmission and strong environmental resilience, serves as a reliable interface for connecting sensors, actuators, or local storage devices. Furthermore, in medical monitoring equipment (e.g., portable patient monitors), security systems (NVR/DVR hosts, network cameras), smart home central control units, and IoT gateway nodes requiring 24/7 stable operation, the KH-AF90WJ-14YG-BCu remains a trusted choice for engineers.

In summary, the Kinghelm KH-AF90WJ-14YG-BCu USB Type-A 90-degree right-angle female socket stands as a paradigm of connector engineering excellence in the synergistic optimization of spatial efficiency and electrical performance. Its 90-degree right-angle structure is not merely an innovation in physical form but represents a revolutionary breakthrough against the spatial bottlenecks inside electronic devices, providing crucial support for product slimness and miniaturization. The brass substrate with copper plating (BCu) process applied to the contact points ensures superior conductivity and long-lasting corrosion resistance from a materials science perspective, establishing reliable physical pathways for high-speed data transfer and high-current power delivery. Strict adherence to industry standard specifications grants it broad compatibility. Meanwhile, the end-to-end quality control—spanning raw material selection, precision manufacturing, and final testing—provides a solid foundation for the product's long-term, stable operation. Against the backdrop of an era demanding ultimate experiences in consumer electronics, intelligent upgrades in automotive electronics, and digital transformations in industrial equipment, this connector, with its exceptional spatial adaptability and electrical reliability, has become the preferred solution for engineers across numerous industries tackling interface layout challenges. It continuously propels electronic devices towards becoming more compact, powerful, and dependable.



About Kinghelm

Shenzhen Kinghelm Electronics Co., Ltd.www.kinghelm.nethas technical backbones from Tsinghua University and UESTC, and has introduced overseas returnee professionals. Kinghelm is able to develop highly reliable and high-performance antenna and connector products.KH series products of "Kinghelm" brand include Beidou/GPS antennas, RF adapter connectors, plug connector, electrical data connectors, terminals, and customized vehicle harnesses, industrial / medical connectors, and special antenna connectors."Kinghelm connects world", Kinghelm has grown with the development of China's Beidou industry. Starting from supplying Beidou/GPS dual mode antennas, IPEX terminals, and RF adapter cables for automotive manufacturers, Kinghelm has continuously developed products. Currently, it has a series of WiFi, Bluetooth, NB-loT, LoRa, Zigbee, UWB, and GSM antennas, RFID tags, RF adapter cables, standard microwave antennas, vehicle grade SMA, SMB, FAKRA holders, coaxial cables, and can customize non-standard antenna connectors based on customer drawings or samples.
