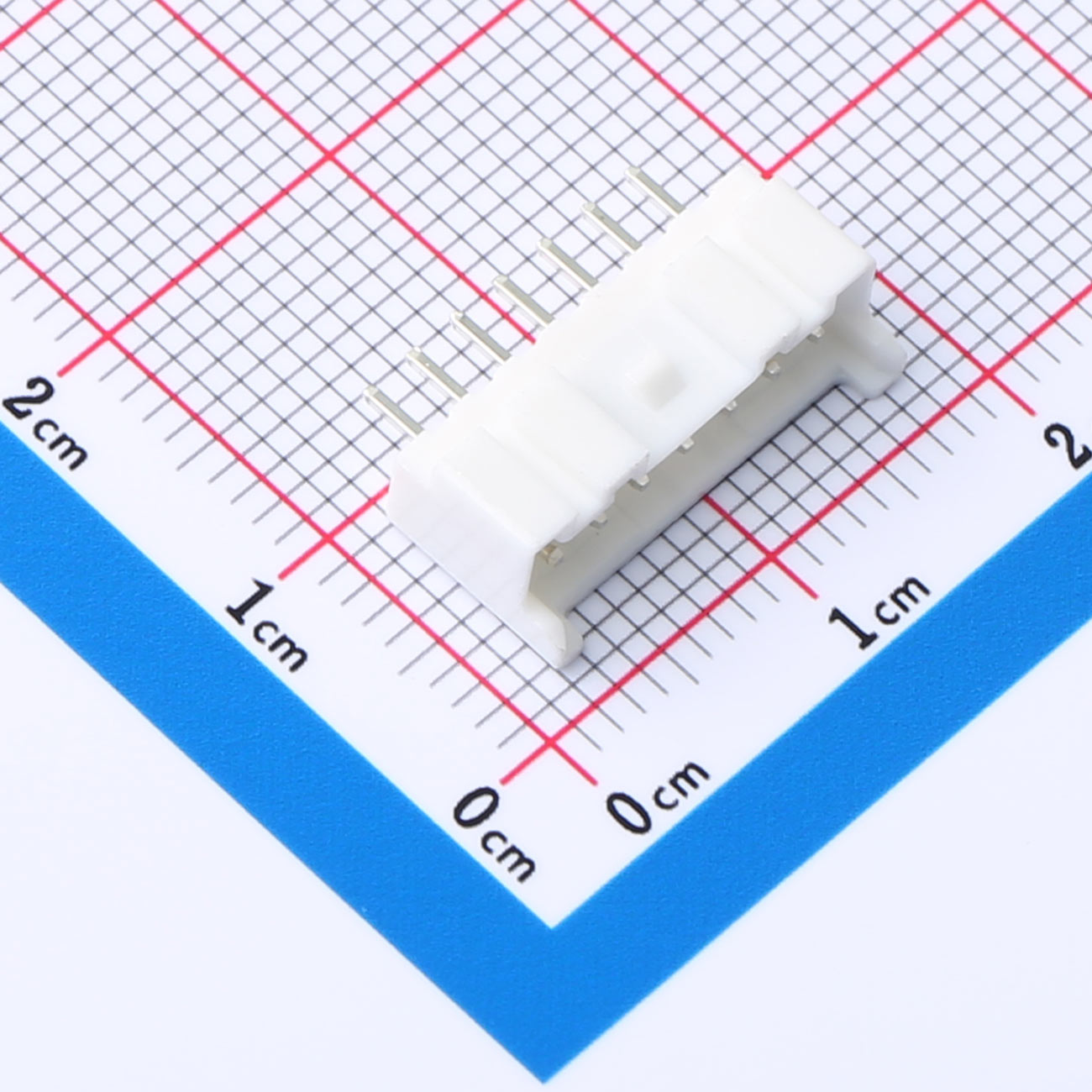

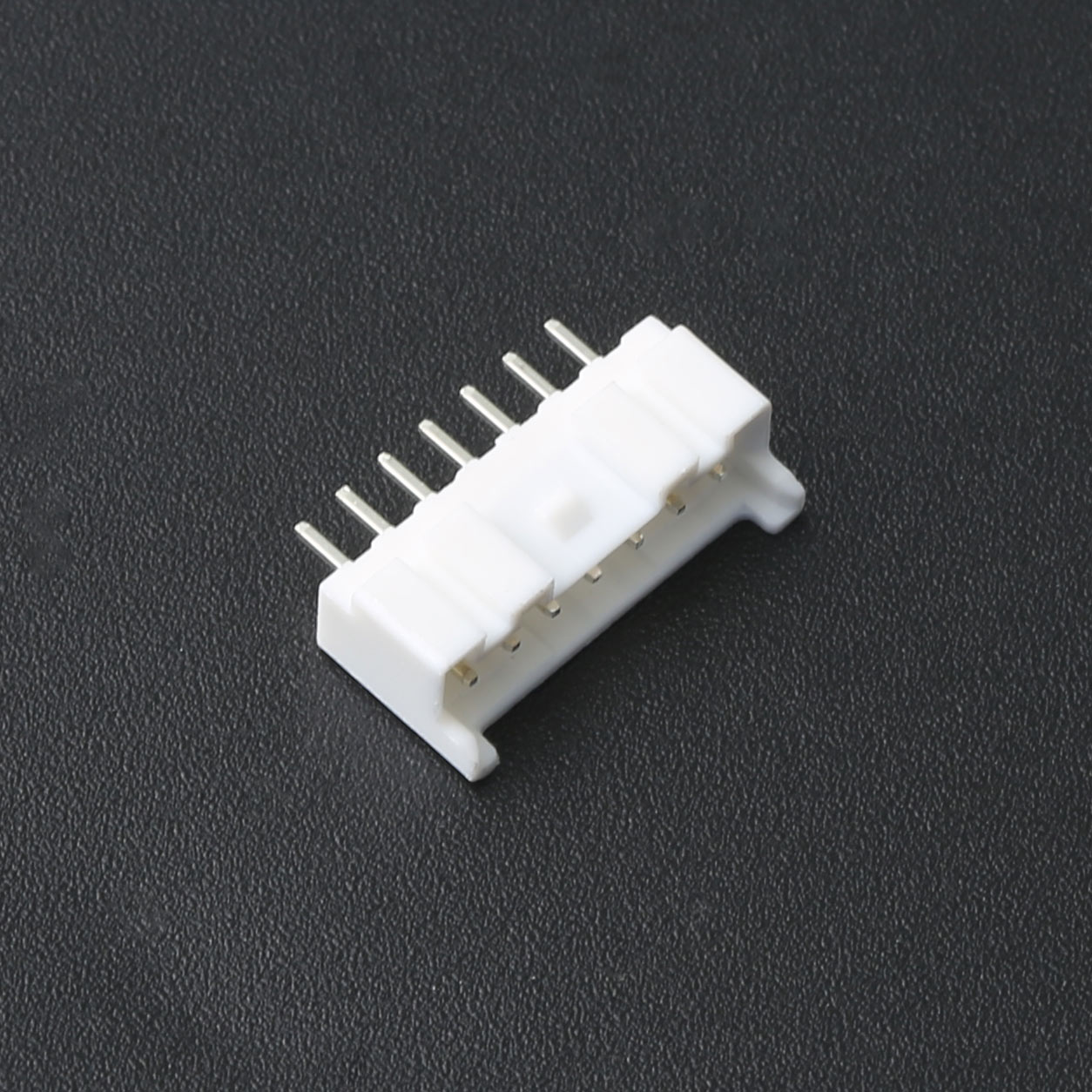

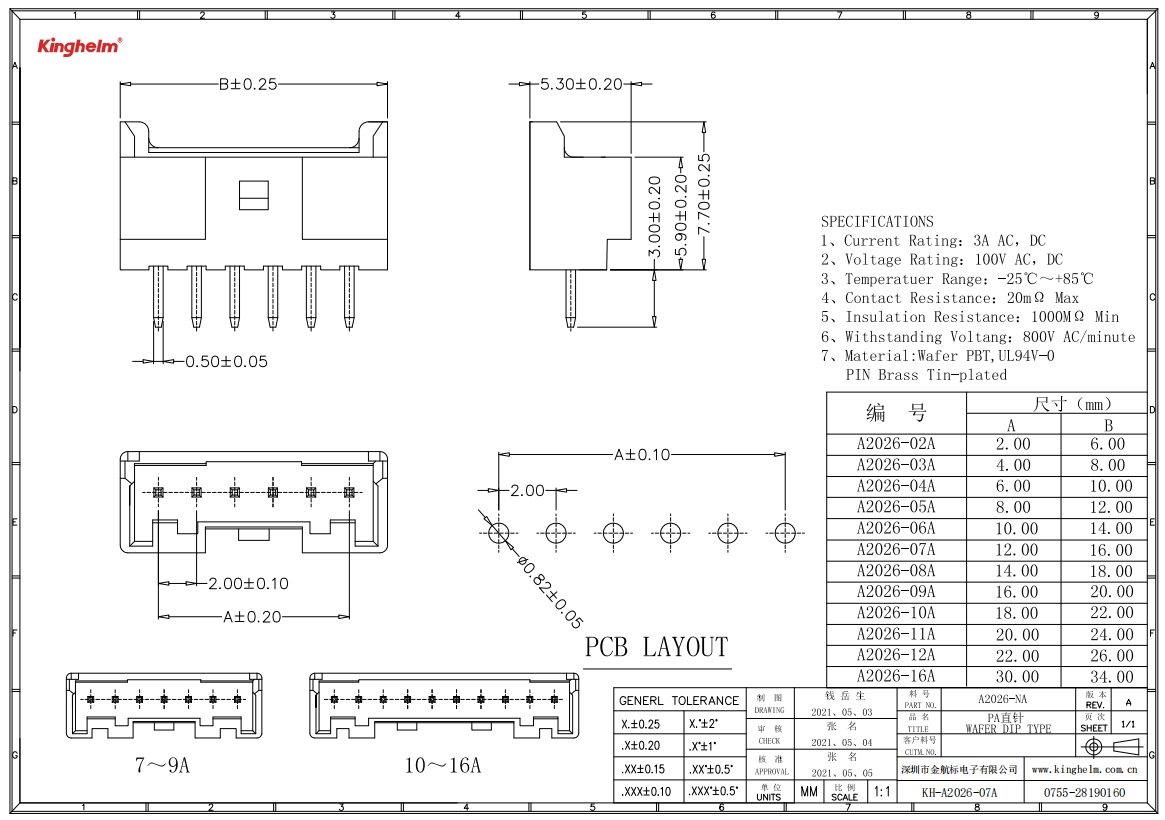

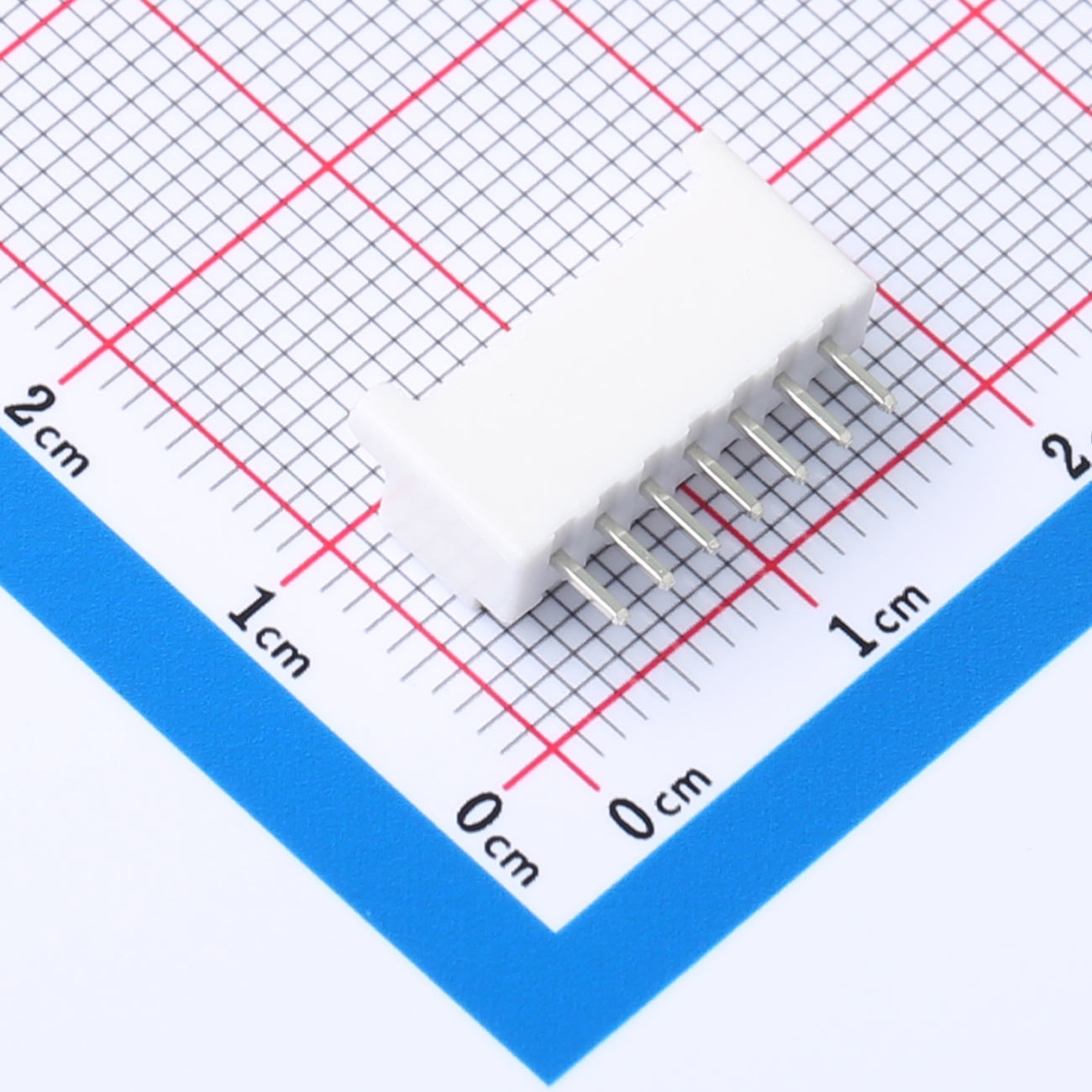

2mm Pitch Wire-to-Board Connector, 1x7P, Straight Pin, KH-A2026-07A
Current Rating: 3A AC/DC
Voltage Rating: 100V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.00mm pitch, wire-to-board connector
● 1x7P straight pin layout
● Rated current: 3A AC/DC
● Voltage rating: 100V AC/DC
● Operating temperature: -25℃ to +85℃
Product Benefits
● Stable and efficient electrical contact
● Compact 7-pin design saves PCB space
● Supports both power and signal lines
● Reliable in harsh environments
● Simple and secure PCB mounting
Product Applications
● LED drivers and modules
● Small appliances
● Communication equipment
● Industrial controllers
● Hobby and DIY projects
