Trimble's acutime 360 multi GNSS timing antenna provides a smooth path to support Beidou and Galileo

Release date:2021-12-28Author source:KinghelmViews:778

On February 25, 2016, Trimble launched its latest smart antenna, which integrates high-precision and precise timing applications of multiple GNSS receivers ™ The 360 smart antenna provides a pulse per second (PPS) output synchronized to UTC within 15 nanoseconds (a sigma).

The acutime 360 product has been deployed in the field for more than 20 years. It is the latest product of acutime series. GNSS smart antenna has the advantages of light weight, easy integration with host system and communication through user interface. It is well suited for critical infrastructure including wireless networks and utilities.


ShouldAcutime 360 GNSS smart antennaTrimble 360 with multi GNSS system and field verification ™ Technical platforms, including GPS, GLONASS, support Beidou and Galileo. The acutime 360 provides - 160dBm tracking sensitivity and - 148dbm acquisition sensitivity. The improvement of sensitivity is to maximize reliability and accuracy.

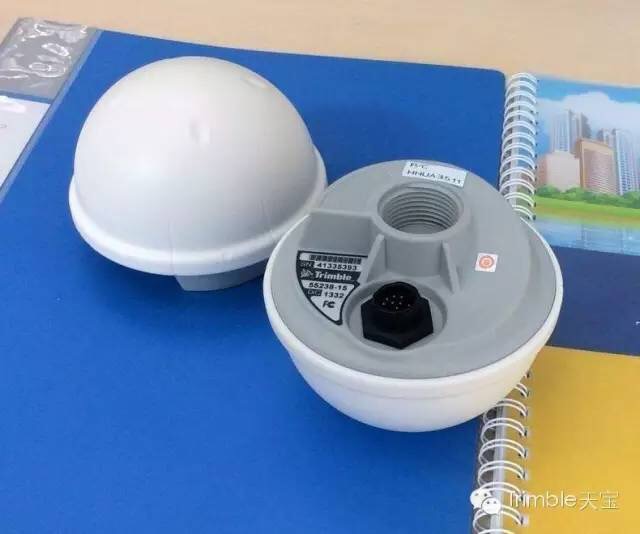

The acutime 360 smart antenna uses a standard 12 pin connector, which is compatible with the pins of previous generations of acutime antenna.

The acutime360 antenna provides an ideal solution for a wide range of applications with accurate timing and frequency synchronization, including:

• wireless and small cell network synchronization reference

• utilities - Smart Grid

• supervisory control and data acquisition (SCADA) system

• critical infrastructure

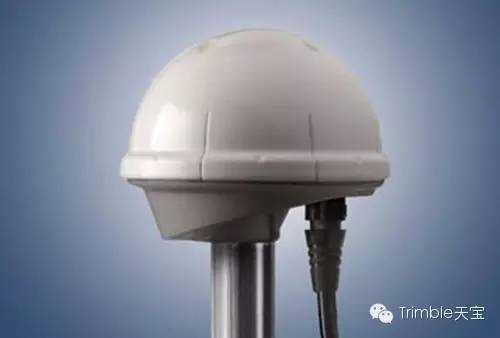

Acutime 360 meets IP67 grade, corrosion-resistant, waterproof and very stable design, which is conducive to long-term use. And the top design of its curved surface is conducive to the diversion of rainwater. It weighs less than 6 ounces and provides GNSS applications, in which easy installation and long-term reliability are a very key cost-effective solution.

Once the acutime 360 starts power supply, it will automatically track the satellite and investigate its position within a sub meter range. Then switch to the time mode and generate PPS, and output the mark to each time pulse. Smart antenna time receiving opportunity autonomous and intact de monitoring (t-raim) algorithm maintains the integrity of PPS.


The GNSS smart antenna can work under extreme temperature (- 40 & deg; C to 85 & deg; c), and is usually competent in hostile RF environment at wireless network transmitting station. It requires less than 1 watt of power to operate and outputs Trimble standard interface protocol (TSIP) or industry standard NMEA messages.

The acutime 360 smart antenna will go on sale in the second quarter of 2016.

About trimblegnss timing and domain

  Communication systems, financial networks, utilities and other important infrastructure areas rely on synchronous and accurate timing equipment. Tianbao GNSS receiver provides the world's largest communication and computer network company with high-precision time and frequency. Tianbao provides high-precision time and frequency products to 3G / 4G wireless, broadband and digital broadcasting networks. With more than 35 years of experience, Trimble GNSS receiver has higher clock integration and performance, providing excellent technology, quality and cost-effectiveness to customers.
