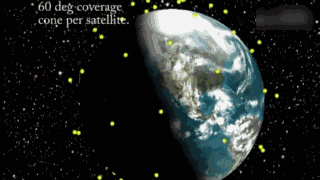

Under normal circumstances, after the positioning module is powered on, it searches the satellite through the antenna, analyzes the data transmitted by the satellite (navigation message), then internally generates the ephemeris, and then obtains the current accurate position (3D fix) through complex calculation. This process is called"Cold start"。 According to the signal strength and chip computing power, it usually takes tens of seconds to a few minutes.
In the process,Search for stars to generate ephemeris filesIt takes the longest.
However, some readers may ask, why sometimes the positioning module successfully locates in only a few seconds?There are two reasons: 1. Non "cold start" mode, i.e. "warm start" or "hot start";
2. AGPs assisted positioning is used.

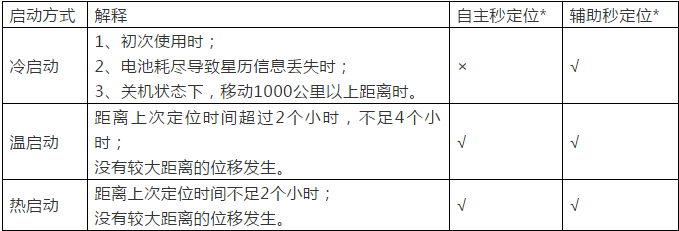

So what is the difference between "cold start", "warm start" and "hot start"? Perhaps you will think that the "x startup" here is similar to the startup, standby (sleep) and restart of the computer? Actually, that's not the case. Since the space position of the satellite and the surface position of the terminal equipment are not fixed, the "x start" here is based on the last positioning time and displacement distance:
Autonomous second positioning: fast star searching and positioning can be realized according to the ephemeris saved in the module.
Auxiliary second positioning: use AGPs to realize fast satellite search and positioning.
In other words, under the conditions of "warm start" and "hot start", the positioning module can realize autonomous second positioning.
So, what is "AGPs assisted positioning"? In the traditional GPS positioning mode, the positioning module needs full band search to find available satellites, so it takes a long time. The "AGPs assisted positioning" method is to directly download the available satellite ephemeris data in the current area through the network and send it to the positioning module. The positioning module only searches for specific satellites, so as to improve the satellite search speed and reduce the power consumption of equipment.
For example: cold start is like a multiple-choice question. You have to calculate all the options before you can find the correct answer; The "AGPs assisted positioning" is like a cheater, eliminating many wrong answers, as long as a few can be calculated. So as to improve efficiency and accuracy.
However, there is no Holy Grail in the world, "AGPs assisted positioning" is not a panacea. Its application conditions still need to be relatively harsh:
· The satellite signal receiving conditions must be good, and at least 4 satellites can be observed (if possible,Active antenna is recommended）；
-
Positioning chipAGPs assisted positioning must be supported；
-
Must beaccuracyObtain the ephemeris data of the current region;
-
In case of cold start, it is necessary to wait for the successful attachment of the communication chip and transmit the ephemeris data to the positioning module after receiving the ephemeris data;
-
If it is warm start / hot start, it is also necessary to search the star again;
It can be seen that the second positioning can be realized only when the above conditions are met. If it is cold start} GPRS attachment to transmit ephemeris data, the waiting time is actually not short (it is even possible that the positioning module has 3D fix and GPRS has just attached successfully and sent ephemeris data).
Taking the air8xx series module of Shanghai Hezhou Communication Technology Co., Ltd. as an example, its AGPs auxiliary positioning basic process is as follows:
1、The device obtains the cell information of the current location from the cellular base station;
2、The device transmits the current cellular cell information to the AGPs location server in the network through the cellular network;
3、The APGs location server queries the currently available satellite information (including satellite frequency band, azimuth, elevation and other relevant information) in the area according to the current cell information, generates the corresponding ephemeris file and returns it to the equipment;
4、The communication module transmits the received ephemeris file to the positioning module through the serial port;
5、According to the available satellite information obtained from the ephemeris file, the positioning module can quickly find the currently available GPS satellites and search for satellites, which greatly improves the positioning time.
Next, let's enter the "you ask and I answer" link of universal celebration:
Q: My module has no GPS chip. Can I use "AGPs assisted positioning" to realize positioning?
A: Of course not. This question is equivalent to "can I run 100 miles without a supercharger and an engine". "AGPs assisted positioning" is only used to assist accelerated positioning, rather than an independent and available positioning service.
Q: Can "AGPs assisted positioning" improve positioning accuracy?
A: No, it can only speed up positioning. Positioning accuracy cannot be improved.

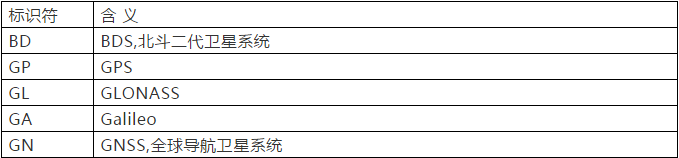

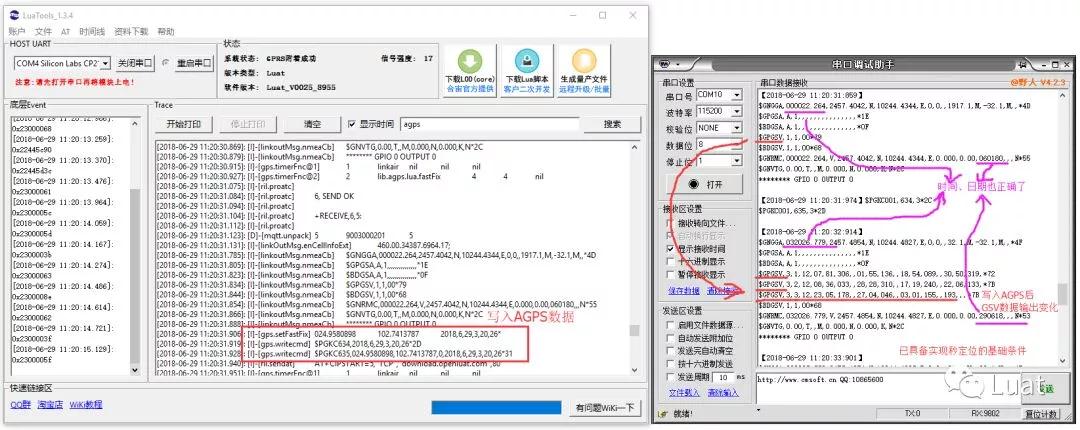

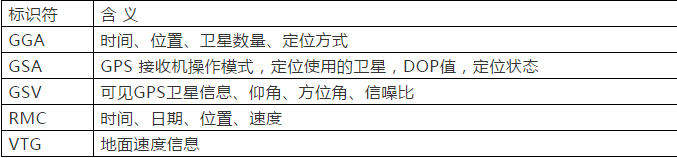

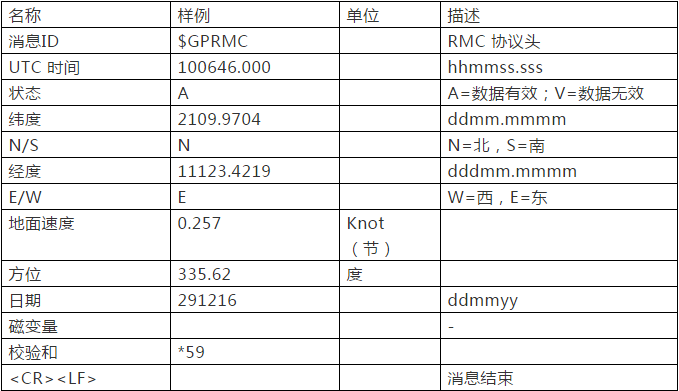

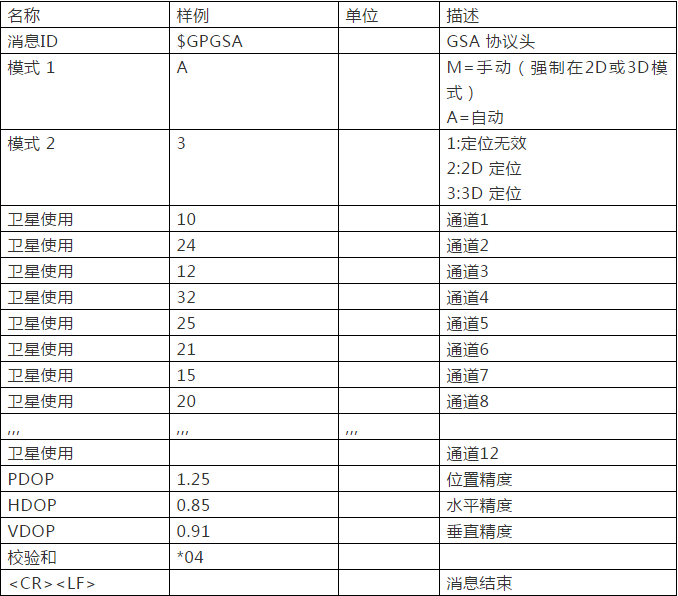

Q: How to judge whether AGPs is successfully written according to NMEA-0183?
A: Check whether the UTC time of GGA and RMC is corrected and whether the GSV data is generated;

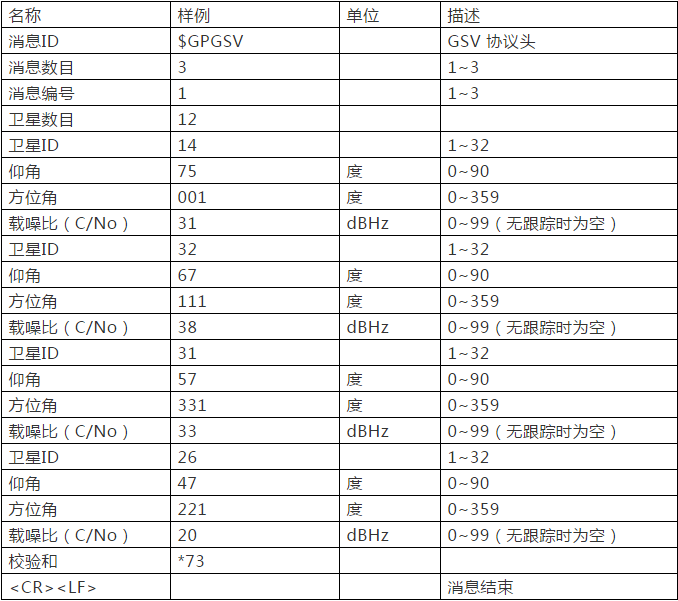

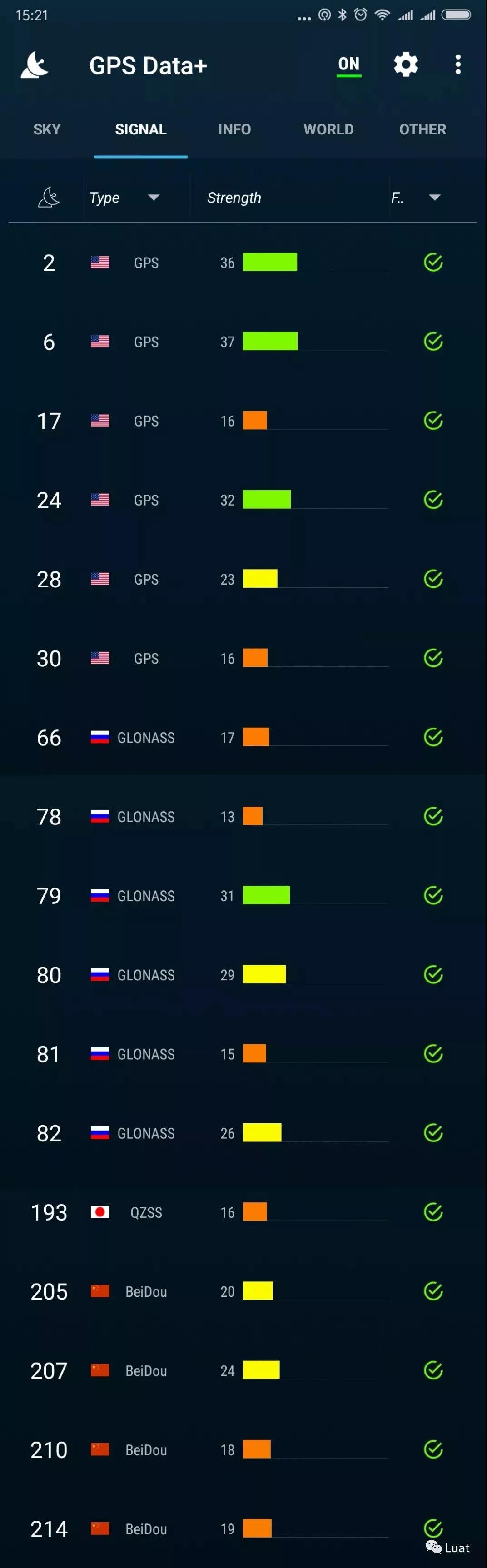

GSV：
Format:
$--GSV,x,x,x,x,x,x,x,...* hh
example sentence:
$GPGSV,3,1,12,14,75,001,31,32,67,111,38,31,57,331,33,26,47,221,20*73
Q: Does the ephemeris file of "AGPs assisted positioning" consume much traffic?
A: Very few, just a few K.
Q: Do ephemeris files need to be updated regularly? What is the update frequency?
A: It needs to be analyzed according to its own situation. If it is cold start, do not close the positioning module and download the "AGPs auxiliary positioning" data (ephemeris file) once. During operation, the corresponding ephemeris file will be automatically generated in the positioning module without repeated downloading;
If it is started and closed irregularly, it is not necessary to update it within 4 hours of shutdown ("warm start" category); If the ephemeris saved in the module is invalid after more than 4 hours, the ephemeris file must be updated (downloaded again), otherwise it is the same as "cold start".
Q: Can you build your own AGPs ephemeris data server?
A: Yes. But it's more troublesome. It is recommended to use the interface provided by our company (please refer to the code of agps.lua in the routine).
Briefly describe how to build. First, download the navigation message data of BRDC on that day at NASA (take February 1, 2018 as an example):
ftp://cddis.gsfc.nasa.gov/pub/gps/data/daily/2018/brdc/brdc0320.18n.Z
(standby) ftp://igs.ensg.ign.fr/pub/igs/data/2018/032/brdc0320.18n.Z
Almanac of GPS satellite is included in the fourth and fifth subframes of navigation message, which can be regarded as a simplified subset of satellite ephemeris parameters. The server receives the request from the client, extracts the ephemeris of the current day from the navigation message, and then sends it to the client.
Extended reading: GPS satellite ephemeris and Almanac
https://blog.csdn.net/Csdn_Darry/article/details/72052686
Q: Taking gk9501 positioning chip as an example, how to send the data of "AGPs assisted positioning" to it?
A: Please refer to the relevant documents provided by the manufacturer and send the data to the positioning chip through the serial port in the specified format (please refer to the code of agps.lua in the routine).
Extended reading: test case of air series GPS module
http://blog.sina.com.cn/s/blog_5b0121350102xy8w.html
Q: Why do you know so much?
A: Probably because I'm handsome.
Mars coordinates (correction)
After suffering, we finally succeeded in positioning and obtaining the correct output. But how does it seem that the format is not quite right? The longitude and latitude are 4 and 5. Isn't that going to circle the earth several times?
In fact, this is a misunderstanding caused by the difference between the NMEA-0183 output format and the format we use every day. Let's take another look at the GGA format:

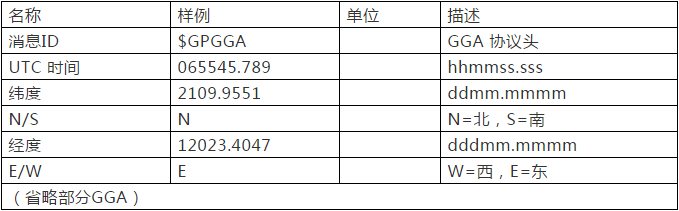

Format:
$--GGA,hhmmss. ss,llll. ll,a,yyyyy. yy,a,x,xx,x.x,x.x,M,x.x,M,x.x,xxxx*hh
Example:
$GPGGA,065545.789,2109.9551,N,12023.4047,E,1,9,0.85,18.1,M,8.0,M,,*5E
Have you found the problem?
GGA output format: ddmm Mmmm (degrees minutes)
Daily use format: dd.dddd (degree)
So how to convert the data output by GGA into the format we use every day? Xueba will say at a glance that this problem is very simple, Balabala ~ ~ ~ as a learning slag, I am confused.
Cough, I'd better apply the formula directly.
The formula is as follows:
ddmm. Mmmm → move the decimal point forward by two digits → dd.mmmm → DD 0 (mmmm/60) = dd.dddddd
give an example:
12023.4047 → 120.234047 → 120 0. (234047÷60) = 120.390078
After such conversion, we can put the obtained values into the map software.
Everything seems beautiful, but... Until... You used Baidu map... Shit, lying slot... Why is the error so big? Deviation of hundreds of meters?

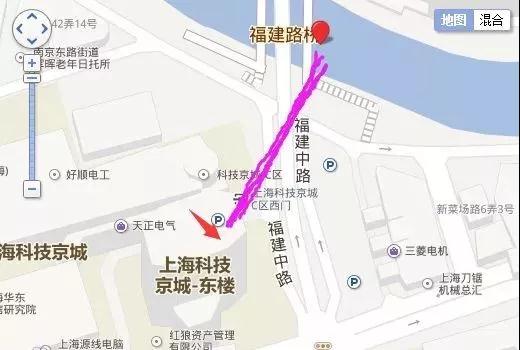

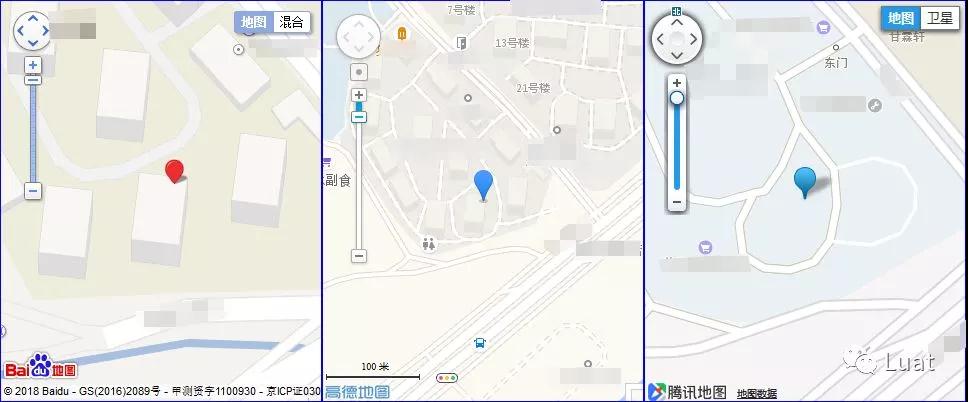

Clearly in the building, why does the map show me in the river? Why? Is there a problem with the positioning module? Or did mine write another bug? Or is the antenna faulty? Black question mark face.
The reason for the "Deviation" involves a problem related to coordinate system transformation: gcj-02 Mars coordinate system deviation correction.
As mentioned earlier, the format of module output data is NMEA-0183 and the coordinate system used is WGS-84. Usually, the map software of other countries in the world also uses WGS-84, which is safe and sound. However, China's State Bureau of Surveying and mapping requires all companies, units, institutions and individuals engaged in geographic survey and map drawing to use the gcj-02 coordinate system (g represents Guojia country, C represents Cehui surveying and mapping, and j represents Ju Bureau).
In other words, most domestic map software uses the gcj-02 coordinate system. Therefore, if developers / users fill the longitude and latitude of WGS-84 into domestic map software, there will be great deviation.
(all electronic maps and navigation equipment need to use gcj-02 coordinate system. First, the mapping company shall map and send it to the State Bureau of Surveying and mapping after mapping, and encrypt the electronic map of real coordinates WGS-84 into "gcj-02 Mars coordinates" , such a map can be published and published. In the second step, all customer-oriented equipment manufacturers should add the conversion algorithm to the software to convert the real WGS-84 coordinates output by the positioning module into gcj-02 coordinates. In this way, the coordinate system can be completely matched and there will be no "Deviation")
So, do all domestic maps use gcj-02 coordinate system? No... Baidu and Sogou have established their own system and independent coordinates.
|
Coordinate system
|
Map
|
|
WGS-84
|
Google Map
Bing Map
Here Map
etc.
|
|
CGJ-02
|
Gaude map
Tencent map
Google Maps (China)
etc.
|
|
BD-09
|
Baidu Maps
|
|
other
|
Sogou map
|
Among them, baidu is special, requiring two conversions of # WGS-84 → gcj-02 → bd-09 #.
Because the conversion algorithm is complex, it will not be repeated in this paper. The conversion algorithm involves floating-point operation. It is recommended that the developer hand over the operation task to the server or host computer.

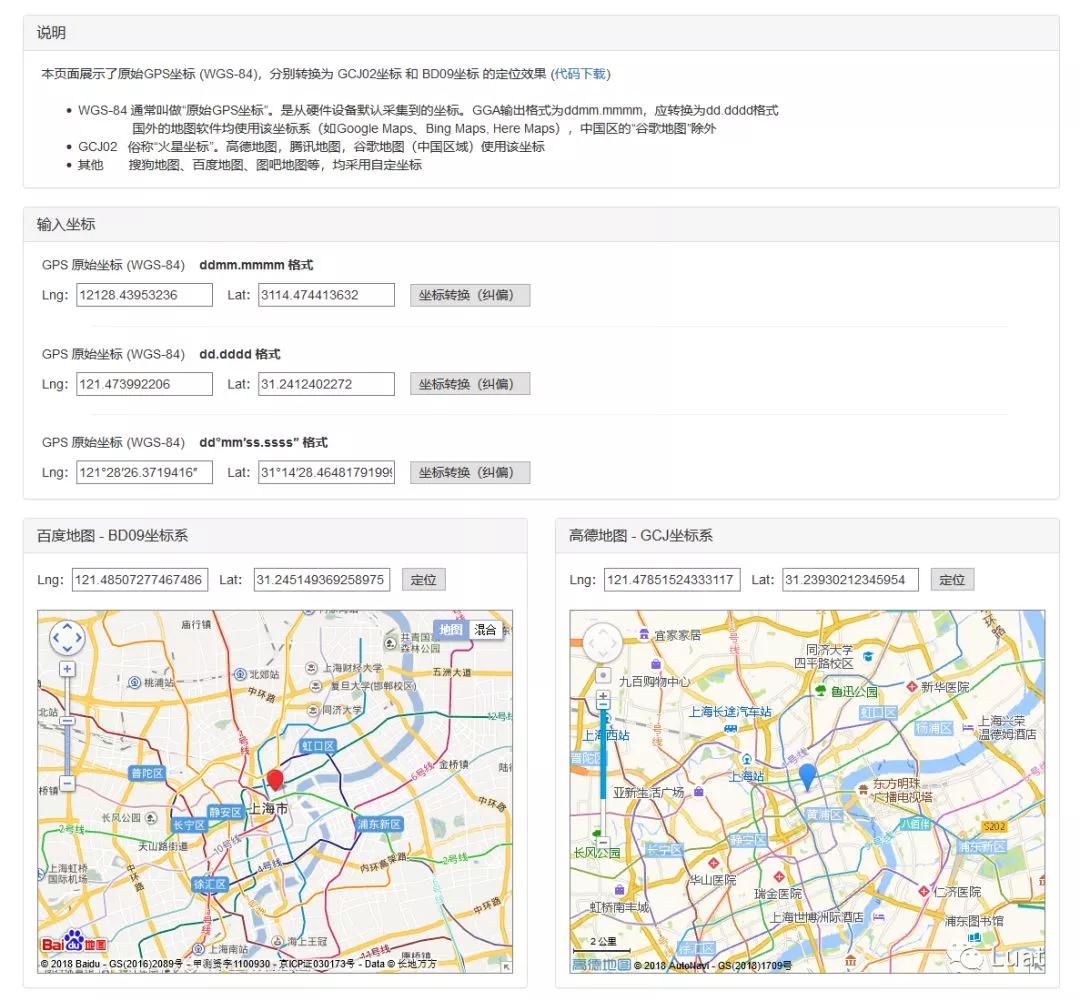

For the convenience of testing, developers can visit this website http://www.openluat.com/GPS-Offset.html Test the correction effect.
The developer fills in the corresponding latitude and longitude according to the data format (ddmm.mmmm, dd.dddd and DD & deg; mm ′ SS ″) and clicks the "coordinate conversion" button to see the effect after deviation correction. At the same time, this page also provides the download of coordinate conversion and coordinate axis correction algorithm.
Next, go to the "you ask me and answer" link:
Q: Why create a gcj-02 coordinate system out of nothing? Isn't it good to use WGS-84?
A: You oh, Tucson is broken. One charge for deviation addition and one charge for deviation correction of positioning equipment. The annual shipment volume of vehicle machines and positioning terminals is hundreds of millions, which can drive how much GDP.
Q: Can I use WGS-84 on foreign map software?
A: No problem, but in foreign map software, the update of mainland data lags behind and is incomplete.
Q: If I don't involve map deviation / correction, I only need speed, direction angle and other data. Is this affected?
A: Deviation correction is only the conversion of coordinate values and has nothing to do with other data.
Q: Why recommend developers to put the deviation correction algorithm on the upper computer?
A: Because MCU really -- can't calculate.
Q: Why do you feel that the longitude and latitude reported by the GPS chip float around in a small range?
A: This requires software static drift suppression. Technical means can be used for filtering, such as setting the speed threshold - when it is lower than a certain speed, it is considered to be stationary. Or know in advance what movement mode the user is in, whether stationary, walking or driving.
Q: I found that after correction, it is still not accurate enough and the positioning error is large. Can it be true & middot; Centimeter positioning?
A: Yes. See "detailed centimeter positioning" below.
Meticulous centimeter level positioning
Generally, GPS provides positioning accuracy of about 5m, which can meet the positioning requirements in most cases. However, there are some scenarios that require higher precision positioning. Such as surveying and mapping, landslide monitoring, UAV, driverless car, etc.
Based on the characteristics of GPS, it is difficult to provide sub meter positioning, so what to do? After n times of technological innovation and lasting construction of reference station, centimeter level positioning technology covering the whole country can now be achieved.
In fact, simply put, the core of high-precision positioning is to eliminate errors. The low accuracy of satellite positioning is due to the accumulation of errors. As long as the controllable errors are eliminated to the minimum, higher accuracy positioning results can be obtained.
The error sources of satellite positioning usually include:
|
|
|
|
|
Error source
|
Error term
|
Error reason
|
Influence of positioning error
|
|
satellite
|
satellite ephemeris error
|
In the ephemeris, the deviation between the satellite's spatial position and the satellite's actual position
|
-
|
|
Satellite clock error
|
It refers to the difference between GPS satellite clock and GPS standard time
|
The deviation and drift and the total drift are still within 1ms ~ 0.1ms, and the resulting equivalent error will reach 300km ~ 30km
|
|
SA interference error
|
SA error is a policy adopted by the U.S. military to reduce the system accuracy in order to restrict non licensed users from using GPS for high-precision point positioning
|
-
|
|
Influence of relativistic effect
|
The relative error between the satellite clock and the receiver clock caused by the different states (motion speed and gravity potential) between the satellite clock and the receiver clock
|
20~30km
|
|
propagation path
|
Ionospheric refraction
|
When the GPS signal passes through the ionosphere, like other electromagnetic waves, the path of the signal will bend and the propagation speed will change, resulting in the deviation of the measured distance
|
-
|
|
Tropospheric refraction
|
When GPS signal passes through the troposphere, it also bends the propagation path, resulting in deviation of the measured distance
|
-
|
|
Multipath effect
|
The satellite signal (reflected wave) reflected by the reflectors around the station enters the receiver antenna and will interfere with the signal (direct wave) directly from the satellite, so as to deviate the observed value
|
|
|
Receiver
|
Receiver clock error
|
GPS} receivers generally use high-precision crystal oscillators. The difference between the clock face time of the receiver and the GPS standard time is called the receiver clock difference
|
|
|
Position error of receiver
|
Error of receiver antenna phase center relative to the center of station marker
|
|
|
Phase center deviation of receiver antenna
|
During observation, the phase center of the antenna changes with the intensity and direction of signal input. This difference is called the position deviation of the antenna phase center
|
|
|
calculation error
|
Calculation error caused by algorithm, hardware instability, radiation or thermoelectric effect, etc
|
|
So, how to correct these errors to make the positioning results more accurate? It is necessary to transmit the carrier observation value and the reference station coordinate information to the user station through the data link. Simultaneous interpreting the carrier phase of the GPS satellite and the carrier phase from the reference station, and the phase difference observation value is processed in time, the location result of centimeter level can be given in time.

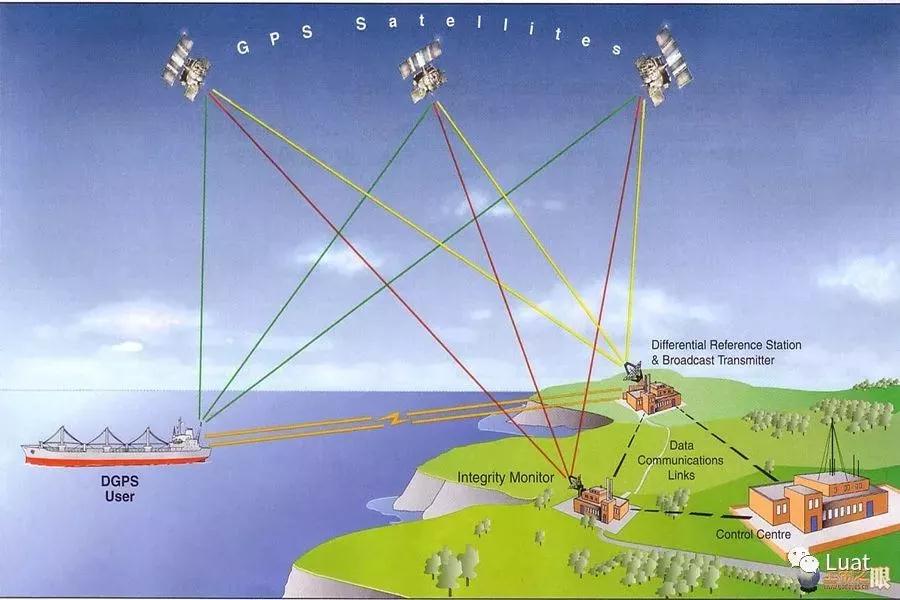

Generally, DGPS we mentioned refers to RTD, i.e. real time differential, pseudo range difference. On the reference station, observe all satellites, and calculate the real distance from each satellite to the reference station at each time according to the known coordinates of the reference station and the coordinates of each satellite. Compared with the measured pseudo range, the travel division correction number is obtained and transmitted to the user receiver to improve the positioning accuracy. So as to realize sub meter positioning.
For centimeter level positioning, RTK, i.e. real time kinematic, carrier phase difference, is required to process the carrier phase observation of two stations in real time. That is, the carrier phase collected by the reference station is sent to the user receiver for difference and coordinate calculation, so as to realize centimeter level positioning.
Text space hole, for example: the boss tells the manpower to pay you ￥ 8848.00. Manpower heard wrong and sent you ￥ 8844.00. After receiving the salary, I don't think it's quite right - the homonym of numbers. It's not a disguised curse.
You should log in to ERP and submit the actual salary of ￥ 8844 for inquiry. Oh, no, the system jammed for a while (in the background), and then Duan told you that ￥ 4.00 was missing. You go to the manpower and want to come back. The difference is ￥ 4.00. Xi Ti hammer R1.
In this story:
"Boss" is a satellite - responsible for conveying instructions and not dealing with specific things;
"Manpower" is the communication path - from the top to the bottom, resulting in errors;
"ERP query return value" is the base station - the "salary correction number" distributed according to the data uploaded by the "user station";
You, the user station, upload the "received value" (￥ 8844.00) to the "benchmark station" and get the "salary correction" (- ￥ 4.00), you will know that it is underpaid by ￥ 4.00. After calculation (￥ 8844.00 ￥ 4.00), the correct solution (￥ 8848.00) can be obtained.
It feels like a blockchain, doesn't it?
At present, the service covers the whole country, only Chihiro location & reg;.
(Chihiro location & reg; was jointly founded by China ordnance industry group and Alibaba group. Chihiro location is based on the basic positioning data of Beidou satellite system (compatible with GPS, GLONASS and Galileo), and uses more than 2000 ground-based enhancement stations and self-developed positioning algorithms throughout the country to calculate big data through Internet technology, Provide accurate positioning and extension services for users all over the country)
User in Chihiro location & reg; After purchasing the relevant package, you can use Chihiro location & reg; The provided SDK or ntrip protocol receives RTCM differential data.
|
Development mode
|
Support architecture
|
Account authentication
|
Upload statement
|
Mount point
|
Return data format
|
|
SDK
|
Android
iOS
Windows
STM32
|
automatic
|
GGA
|
-
|
RTCM
|
|
NTRIP
|
unlimited
|
Base64 encoded transmission
|
GGA
|
RTD
|
RTCM32_ GGB
|
RTCM3. two
|
|
RTCM23_ GPS
|
RTCM2. three
|
|
RTK
|
RTCM32_ GGB
|
RTCM3. two
|
|
RTCM30_ GG
|
The positioning effect is so outstanding, of course, the conditions are quite harsh:
-
The positioning chip must support differential data solution;
-
The clearance condition of the site is good, and try not to have any shelter (tall buildings, trees, etc.);
-
SNR shall be greater than 40;
-
The equipment has the ability to receive data (network access);
-
High flow consumption;
-
The measuring point is within the coverage of the reference station;
The fixed solution takes a long time.
We can judge the current positioning status through the GGA statement output by the module:
GGA：
Format:
$--GGA,hhmmss. ss,llll. ll,a,yyyyy. yy,a,x,xx,x.x,x.x,M,x.x,M,x.x,xxxx*hh
Example:
$GPGGA,065545.789,2109.9551,N,12023.4047,E,5,9,0.85,18.1,M,8.0,M,1,0999,*5E
|
name
|
Sample
|
Company
|
describe
|
|
Message ID
|
$GPGGA
|
|
GGA # protocol header
|
|
UTC time
|
sixty-five thousand five hundred and forty-five point seven eight nine
|
|
hhmmss. sss
|
|
latitude
|
two thousand one hundred and nine point nine five five one
|
|
ddmm. mmmm
|
|
N/S
|
N
|
|
N = north, s = South
|
|
longitude
|
twelve thousand and twenty-three point four zero four seven
|
|
dddmm. mmmm
|
|
E/W
|
E
|
|
W = west, e = east
|
|
Positioning indication
|
one
|
|
0 = not positioned
1 = fixed solution of GPS single point positioning
2 = RTD differential positioning
3 = PPS mode
4 = RTK fixed solution (positioning accuracy up to centimeter level)
5 = RTK floating point solution
6 = Inertial Navigation
7 = manual input mode
8 = analog mode
|
|
Number of satellites
|
nine
|
|
Range 0 to 12
|
|
HDOP
|
zero point eight five
|
|
Horizontal accuracy
|
|
MSL amplitude
|
eighteen point one
|
rice
|
|
|
Company
|
M
|
rice
|
|
|
earth
|
eight
|
rice
|
|
|
Company
|
M
|
|
-
|
|
Differential time
|
one
|
second
|
(the number of seconds since the differential signal is received. If it is not differential positioning, it will be empty)
|
|
Differential station ID
|
0999
|
|
Differential station ID No. 0000 - 1023 (if the leading digits are insufficient, fill in 0. If it is not differential positioning, it will be empty)
|
|
Checksum
|
*5E
|
|
|
|
<CR><LF>
|
|
|
End of message
|
If the GPS chip has been solved and the differential positioning result is output, the "positioning indication" in the GGA statement should be 2, 4, or 5; The scoring time should be greater than 0 (not null); Differential station ID should not be empty.
Only when the above conditions are met at the same time can accurate measurement results be obtained. Next, let's look at the actual test results. Test environment, in a cell:

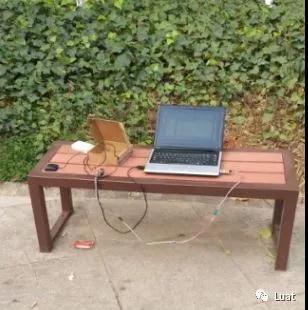

In the test, the air202 GPRS communication module provided by Shanghai Hezhou Communication Technology Co., Ltd. is used to control the GPS chip and connect the Chihiro position & reg; Platform. Report the original GGA statement output by the module to the Chihiro location & reg; Platform, transmit the data sent by the platform to the GPS chip, and then print the GGA output after the GPS chip is solved.
(mobile app output data)

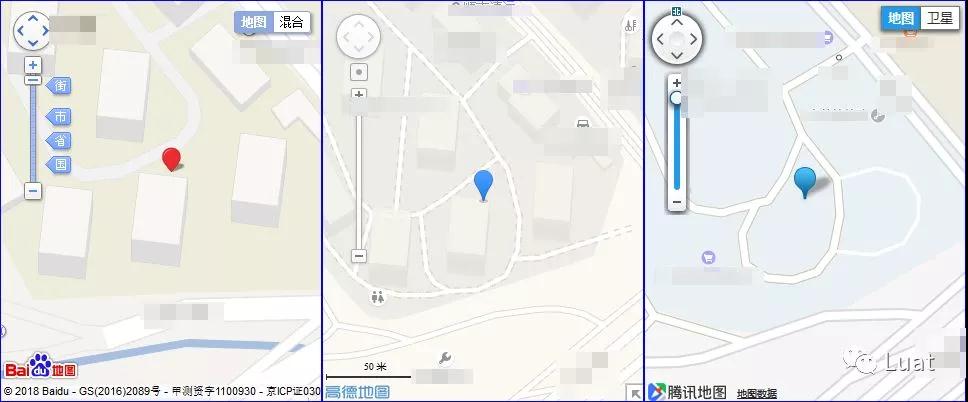

(differential positioning results)
(comparison)

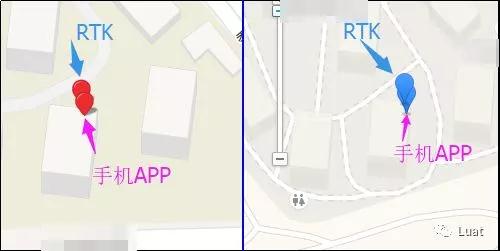

It can be seen from the comparison chart that the mobile phone positioning deviation is large (not tested on the roof), and the RTK test results are very accurate and meet the needs of Surveying and mapping.
Next, we will enter the "you ask me and answer" session:
Q: Are RTD and RTK services expensive?
A: You can go to the location & reg; Query on the official website. Reference price: RTD ￥ 6 / month / equipment; RTK ￥ 400 / month / equipment.
Q: How to judge whether my positioning result is the result of differential operation?
A: Observe the output value of positioning indication in GGA statement
Q: How much traffic is consumed?
A: RTCM data is sent once per second, about 0.5K each time, about 60m / day (calculated according to 24 hours).
Q: How long will it take to get the RTK fixed solution?
A: The fixed point measurement takes about 10 minutes.
Q: Is there any way to reduce traffic consumption?
A: You can modify the code according to the GPS status, and actively disconnect when the positioning mode is "RTK fixed solution". Change the GPS positioning status and reconnect the server.
Q: Why is the device always in the floating-point de positioning state and cannot be fixed.
A: Please ensure that the aerial observation environment of the terminal equipment antenna is good, not blocked, or near objects prone to multi-path signal reflection. Please also note that the navigation satellite signal reception is normal, cN0 is within the normal range and is not subject to radio interference.
Low power consumption
——What is the most important partner of the Internet of things in the 21st century?
——Batteries.
From common shared single vehicle and on-board locator to uncommon remote meter reading and charging pile management. In various Internet of things related applications, power supply is always an inseparable topic.
If you have regular electricity (such as cars and vending machines), it's OK. If you use batteries, every milliampere of electricity needs to be calculated carefully (even shared bicycles charged with solar panels often face the problem of "low electricity").
MCU, GPS and communication module are well-known power consumers. Among them, the power consumption of GPS chip can not be underestimated because it has to undertake the tasks of satellite search, calculation and output. So, is there any way to make GPS chip "energy saving and consumption reduction"?
Of course, the answer is yes. As mentioned earlier, the power consumption of GPS chip in satellite search is the largest. If the module can minimize the power consumption of satellite search and tracking, the purpose can be achieved. How to achieve these two points? Next, we take the most commonly used gk9501 GPS chip in the Internet of things industry as an example.
Search star
Ephemeris download and ephemeris forecast
As mentioned earlier, the ephemeris file is transmitted to the GPS chip through the 2G network, so as to achieve second positioning and save power. Everyone clapped and cheered. So, suddenly there is another "ephemeris prediction". What the hell is this?
Q: What is ephemeris prediction?
A: The software of gk9501 has its own "ephemeris prediction" function. It means that when the signal is normal (CN value is greater than 27), the hardware can automatically generate the ephemeris internally after running for 5 ~ 10 minutes, and predict the ephemeris in the next 2 ~ 3 days. This process does not need to consume any traffic. Realize "power on for 5 minutes and run for 72 hours".
Of course, there are conditions for realizing the function of "ephemeris prediction":
1、The ephemeris has been downloaded once (externally input to the GPS chip ephemeris file, or GPS chip independent 3D fix)
2、The CN value of GPS signal shall not be less than 27
3、Normal positioning once;
4、The RTC does not power down (when the main power supply is disconnected, the ephemeris prediction function can be used only when the RTC power supply is continuously disconnected, and the ephemeris prediction function will no longer work after the RTC is disconnected);

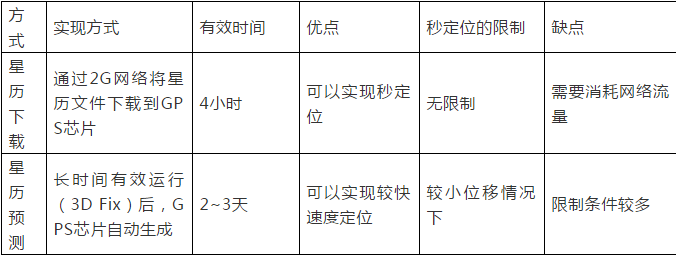

Q: What is the difference between "ephemeris forecast" and "ephemeris download"? How does it help the actual positioning?
A: This should start with the development history of AGPs.
In the early days, the ephemeris file issued by the server contained all the visible satellite data and sent it to the GPS chip, which then searched the stars according to the ephemeris file. The disadvantage is that the ephemeris file is large and the positioning effect is poor; Now, the first is to use the communication chip to locate the base station, obtain a rough geographical location in the background, query the navigation message, and then accurately issue the currently visible satellite ephemeris according to the geographical location. The GPS chip then searches the stars according to the accurate ephemeris file. The ephemeris file has smaller volume and better positioning effect.
It can be seen that "ephemeris prediction" is automatically generated by the chip and only contains the ephemeris of visible satellites; The "ephemeris download" is a ephemeris that contains all visible (but unavailable) satellites.
In any state, the better the CN value of GPS signal, the faster the positioning; When the ephemeris is downloaded and saved within 6 hours, the RTC power can be disconnected.
Q: If "ephemeris prediction" can be used, why "ephemeris download" through 2G network?
A: Because the premise of "ephemeris prediction" is that "when the signal is normal (CN value is greater than 27), it runs continuously for 5-10 minutes" with a current of 28ma, which is relatively power consumption. Therefore, most applications tend to "download ephemeris" every time instead of using "ephemeris prediction" -- not to mention the action of obtaining the approximate location through the positioning of the base station, which itself requires a 2G networked server.
Q: Why is the ephemeris data valid for up to 6 hours?

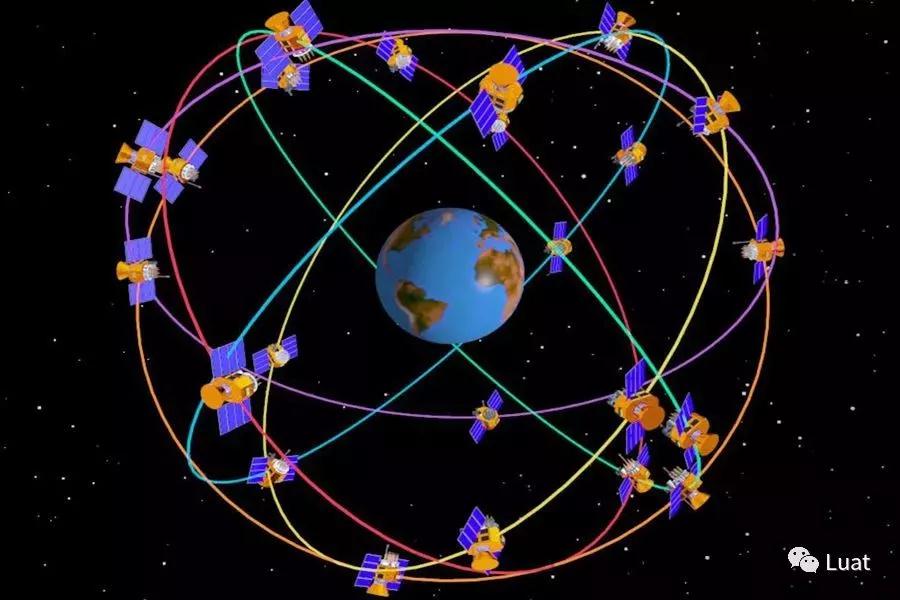

A: The effective saving time of ephemeris is related to the running track of satellite.
The longer the ephemeris is kept, the fewer visible satellites in the original ephemeris. Because GPS satellites orbit the earth for 12 hours, the validity period of ephemeris data of 6 hours is the limit value. After this time, the original ephemeris data is meaningless.
Since the shorter the ephemeris is saved, the more visible stars in the corresponding ephemeris, the ephemeris within 2 hours is more helpful for positioning than the ephemeris within 6 hours.
track

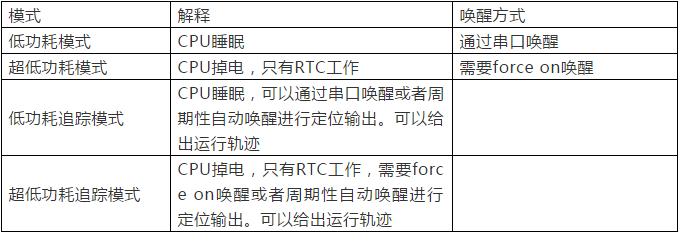

Dynamic tracking is also very power consuming, so is there any way to make the chip "half asleep and half awake"? Hey, there's a way. Gk9501 can "Da Vinci sleep".
Power saving tracking modeIn fact, it is periodic Automatic wake-up: gk9501 automatically sets the sleep time and running time according to the current motion state. For example, in the case of fast movement, it will automatically sleep for 30 seconds and run for 3 seconds; When the movement is slow, it will automatically sleep for 60 seconds and run for 3 seconds; It achieves the purpose of reducing power consumption when there is an approximate trajectory. If the master also needs synchronous sleep, the master can be notified through GPIO. Of course, this can also be achieved by periodically cutting off the power supply of gk9501 by the master control.
Q: It seems that other friends' chips also support AGPs second positioning. What's the difference between them and gk9501?
A: Ublox, Zhongke micro and leading support AGPs, while MTK and Guoke gk9501 support second positioning. The difference is that the former only downloads the ephemeris, while the latter not only downloads the ephemeris, but also speeds up the process of star finding and positioning in combination with base station positioning. This is the essential difference between AGPs and second positioning.
Q: Is there a recommended GPS IOT module?
A: Air8xx series of Shanghai Hezhou Communication Technology Co., Ltd. The rda8955 gk9501 platform supports 2G and GPS, which is stable and reliable.
This article is reproduced from“Internet of things think tank”, support the protection of intellectual property rights. Please indicate the original source and author for reprint. If there is infringement, please contact us to delete
.jpg)
.jpg)
.jpg)
.jpg)
