San'an integration accelerates the creation of a one-stop OEM platform for RF front-end solutions

Release date:2021-12-28Author source:KinghelmViews:182


      Recently, Sanan Integrated has obtained an order for surface acoustic wave (SAW) filters from the world-renowned mobile phone foundry, Fuzhikang Group, marking a comprehensive breakthrough in Sanan Integrated's filter business in module customers and mobile phone manufacturers. Since the fourth quarter of last year, Sanan's integrated SAW and TC-SAW filter shipments have risen rapidly, from quarterly shipments of 10kk to the second quarter of this year to more than 10kk per month. As mobile phone terminal manufacturers also begin to adopt Sanan filter products, more mobile phone models will achieve comprehensive "Sanan Inside" in the RF front-end components in the future.


     It is reported that this cooperation plan with Fuzhikang Group covers 2 Nokia models and 3 operators, a total of 5 4G models. Fuzhikang Group provides mobile phone products to many countries and regions around the world, covering the world's mainstream LTE frequency bands. With the gradual project design-in of its product line, the two parties are expected to continue in-depth cooperation. As of the publication date, Sanan integrated filter products have actively developed 41 customers, of which 17 mobile phone and communication module customers, such as Fuzhikang, Hezhou, Tianlong, etc., have successfully introduced Sanan products; including Guanghetong 24 potential customers have entered the product verification stage and will become official customers in the near future. Sanan Integrated said, "Unlike other newly established filter companies, Sanan prioritizes the development of difficult temperature-compensated filters. High-quality and high-performance products are one of the reasons why we can quickly introduce them to customers."


1. SAW filters enter the early stage of the industry outbreak, and vertical integration can only come first

      In the RF front-end module (FEM), the filter plays a vital role. In addition to supporting the 5G frequency band, the 5G mobile phone RF front-end also needs to be compatible with 4G/3G/2G modes. Each RF channel needs a filter. Compared with 4G mobile phones, the number of filters in the 5G mobile phone RF front-end has increased from 30-50. to 70-100. It is precisely because of this market prospect that in recent years, a number of SAW filter design and manufacturing enterprises have emerged in China. SAW filters use the electromechanical coupling effect of piezoelectric materials to filter out noise, which means that the demand for high-quality piezoelectric substrate materials in the Chinese market will also increase day by day.


      At present, the global annual demand for more than 50 billion SAW devices, 90% of which use lithium tantalate and lithium niobate piezoelectric materials. Shin-Etsu Chemical, Sumitomo Metal Industries and other companies have been occupying high-end lithium niobate and lithium tantalate substrates for many years. more than 95% share. Jingan Optoelectronics, a wholly-owned subsidiary of Sanan Optoelectronics (600703.SH), put into operation in 2016 ultra-thin, ultra-flat high-quality 4-inch lithium tantalate substrates, which have been widely used and verified in Sanan integrated filter products , to provide high-quality and stable supply for the vertical integration of Sanan Integrated and the whole industry.


2. Master the advanced manufacturing process and advanced packaging in order to escort the highly integrated RF front-end

      As early as 2017, Sanan Integration established an internationally advanced filter research and development center. By integrating high-end talents in filter research and development from around the world, it has fully mastered the research and development capabilities of filter design, process development and high-end packaging. At present, the filter product line has covered the mainstream frequency bands of FDD/TDD. For difficult products, the unique bonding sheet technology helps TC-SAW products to improve heat dissipation, Q value stability and temperature drift characteristics. Among them, the performance of TC-SAW Band 8 has been comparable to that of similar products from international manufacturers.



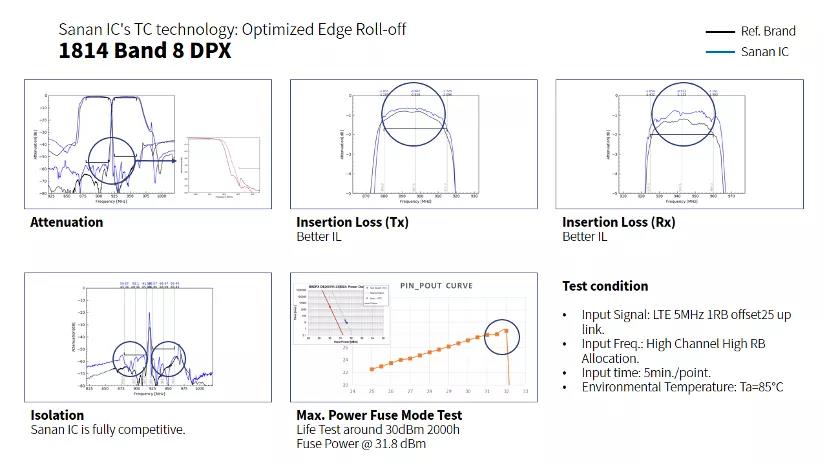

                                                                       Chart 1: Sanan Integrated TC-SAW Band 8 DPX Product Performance

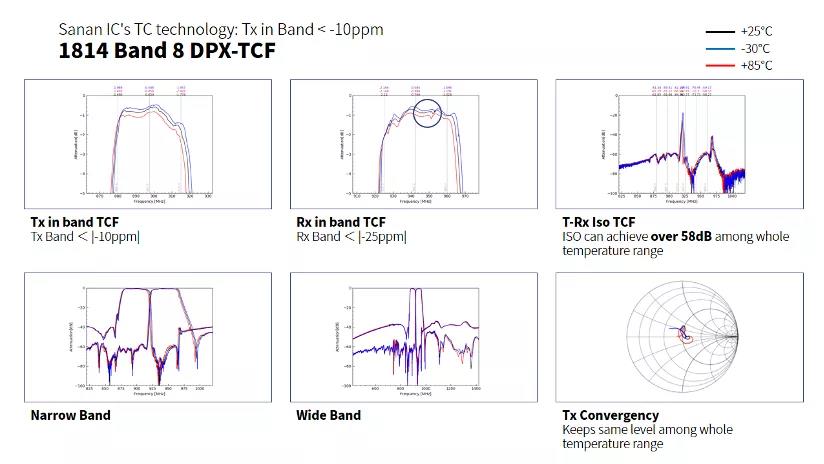

Figure 3: Sanan Integrated TC-SAW Band 8 DPX-TCF Product Performance



3. One-stop foundry platform for RF front-end solutions to promote the coordinated development of the industry

      Modularization, integration and miniaturization will become irreversible design trends in the RF front-end industry. The world's top five RF front-end manufacturers can provide integrated solutions for RF power amplifiers, PAs and filters, but with the impact of the COVID-19 epidemic, the current weak links in the global semiconductor industry chain are exposed, and their delivery capabilities are being greatly tested.


       Sanan Integrated said, "Based on years of experience in the compound semiconductor industry, Sanan has always positioned itself as a vertically integrated large-scale manufacturing platform, capable of providing customers with filter devices, GaAs wafer foundry, and advanced packaging and testing. The one-stop service solution not only guarantees the delivery capacity, but also optimizes the production efficiency of customers between the fab and packaging factory, and accelerates the product iteration speed of Sanan's customer group." Sanan Integrated's filter manufacturing base in Nan'an, Quanzhou has been put into mass production. By the end of 2021, the production capacity will exceed 100 million per month.
