1.Preparation

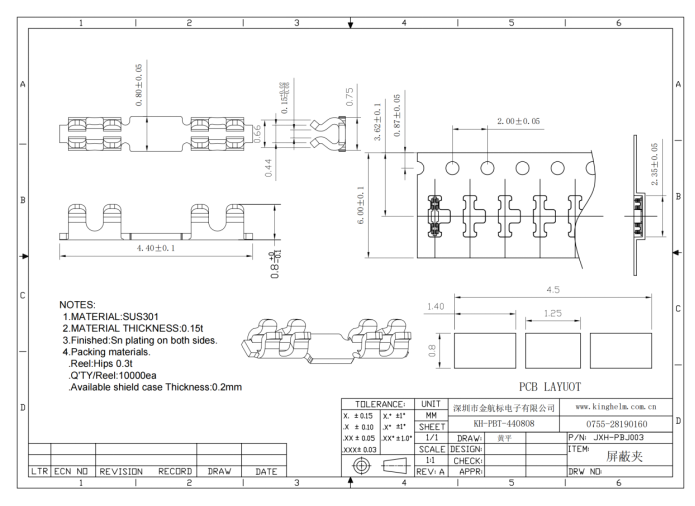

Verify Model and Specifications: Ensure the KH-PBJ-440808 shield clip matches the target component or circuit’s dimensions. Inspect for defects such as damage or deformation.

Tool Preparation: Prepare tools (e.g., tweezers, screwdrivers, wrenches) based on installation requirements.

2.Positioning

Surface Cleaning: Thoroughly clean the installation area to remove dust, grease, or debris, ensuring optimal contact and adhesion.

Location Determination: Position the shield clip per circuit design or equipment guidelines, typically near interference-prone areas or sources. Avoid conflicts with adjacent components or wiring.

3.Installation

Placement: Use tweezers to position the shield clip, aligning its opening with the target component or circuit for proper clamping.

Securing:

For clips with mounting holes: Fix using screws, nuts, or bolts.

For snap-on clips: Align with mating slots or protrusions and press gently until fully engaged. Avoid excessive force to prevent damage.

Inspection: Verify tight contact between the clip and shielded component, eliminating gaps or looseness. Adjust or reinstall if necessary.

4.Testing and Validation

Electrical Performance Test: Use a multimeter or oscilloscope to evaluate shielding effectiveness, including electromagnetic interference (EMI) reduction and signal stability.

Functional Test: Operate the system under real-world conditions to confirm normal functionality post-installation.
