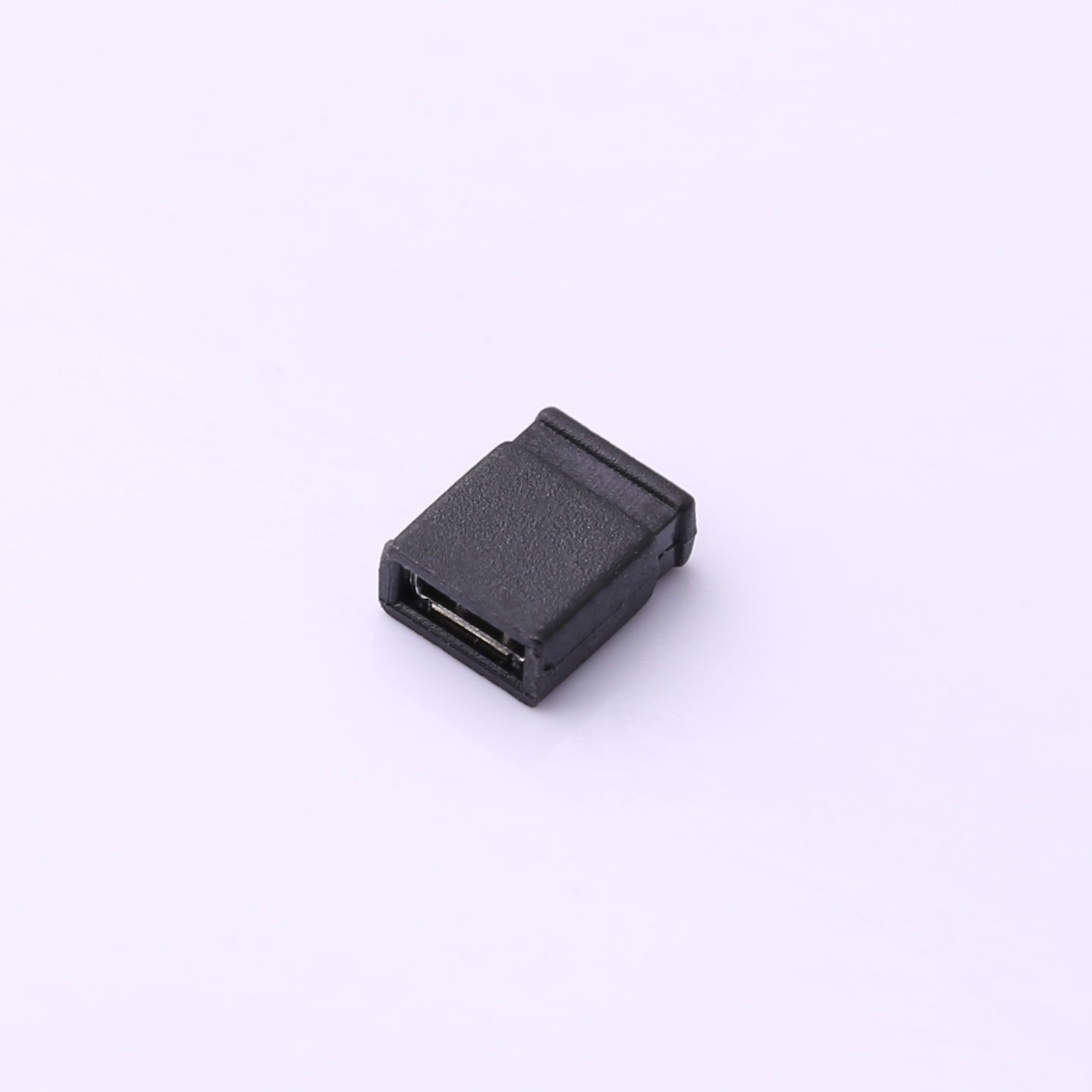

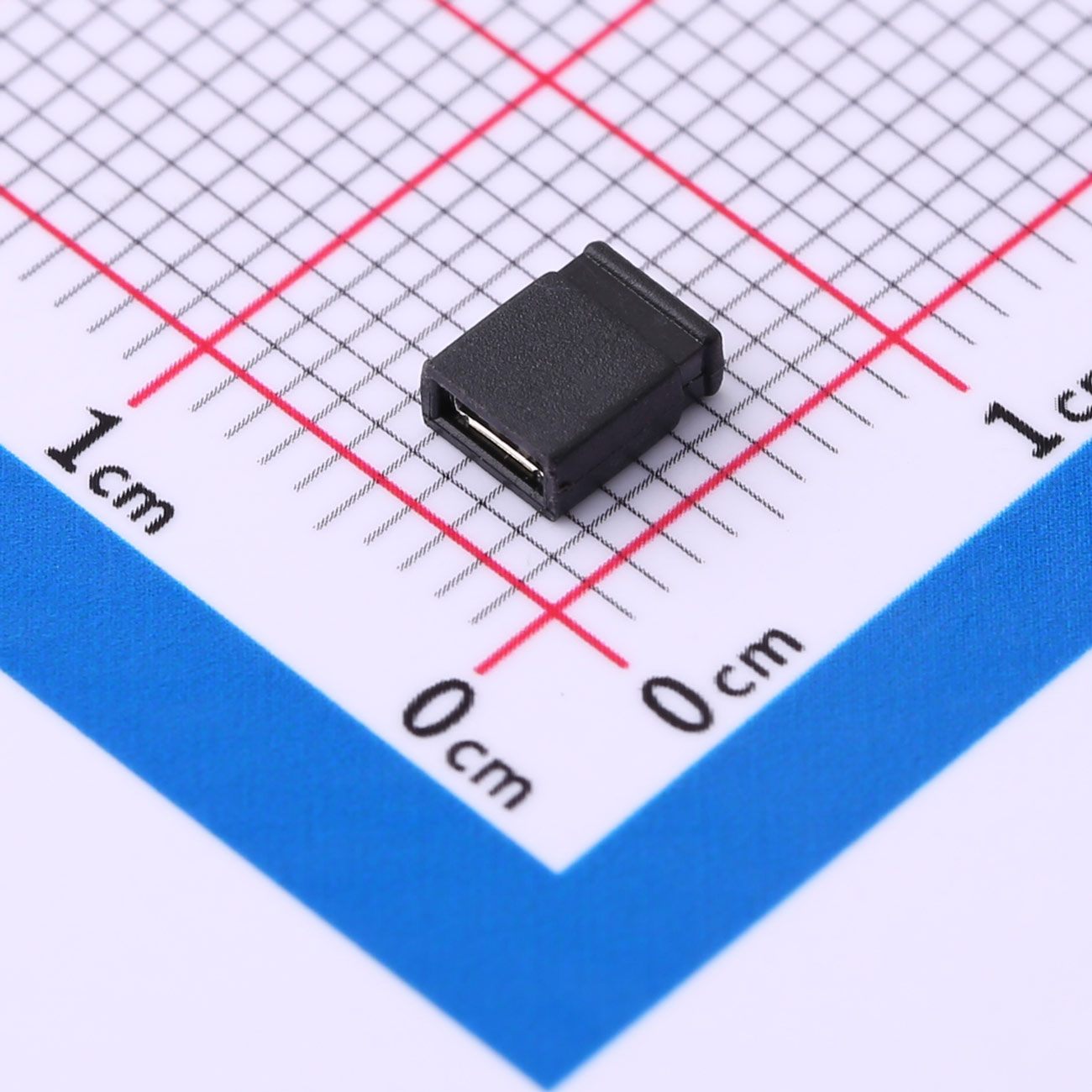

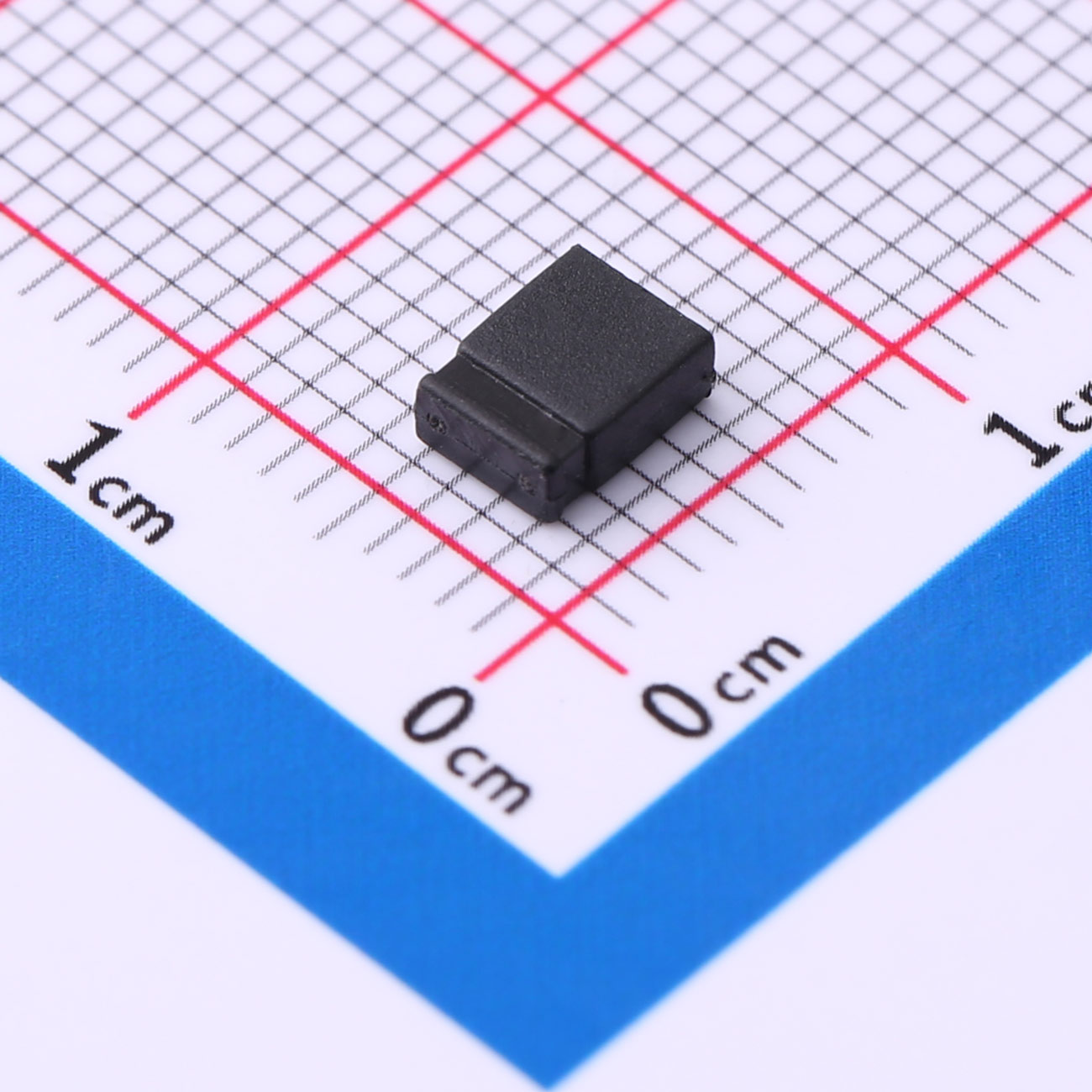

2mm Short Circuit Cap/Jumper Cap, Closed Top, KH-2.0TXM-BK-H5.0

2mm Short Circuit Cap/Jumper Cap, Closed Top, KH-2.0TXM-BK-H5.0

Current Rating: 3A
Insulation Resistance: 5000 MΩ min
Dielectric Withstanding Voltage: AC 500V
Operating Temperature: -40°C to +105°C
Max Processing Temperature: 160°C for 30–60 seconds

Inquiry Datasheet

Product Details

Product Benefits
● 2mm pitch for precise connection
● 3A current rating for stable operation
● High insulation resistance 5000 MΩ minimum
● AC 500V dielectric withstand voltage for safety
● Wide temperature range -40°C to +105°C
● Max processing temperature of 160°C for short durations
● Closed top design ensures secure contact

Product Application
● Short circuit jumper for PCB connections
● Used for pin header bridging and signal routing
● Power and ground circuit testing
● Electronics repair and maintenance
● Industrial control systems
● Development and prototype applications
