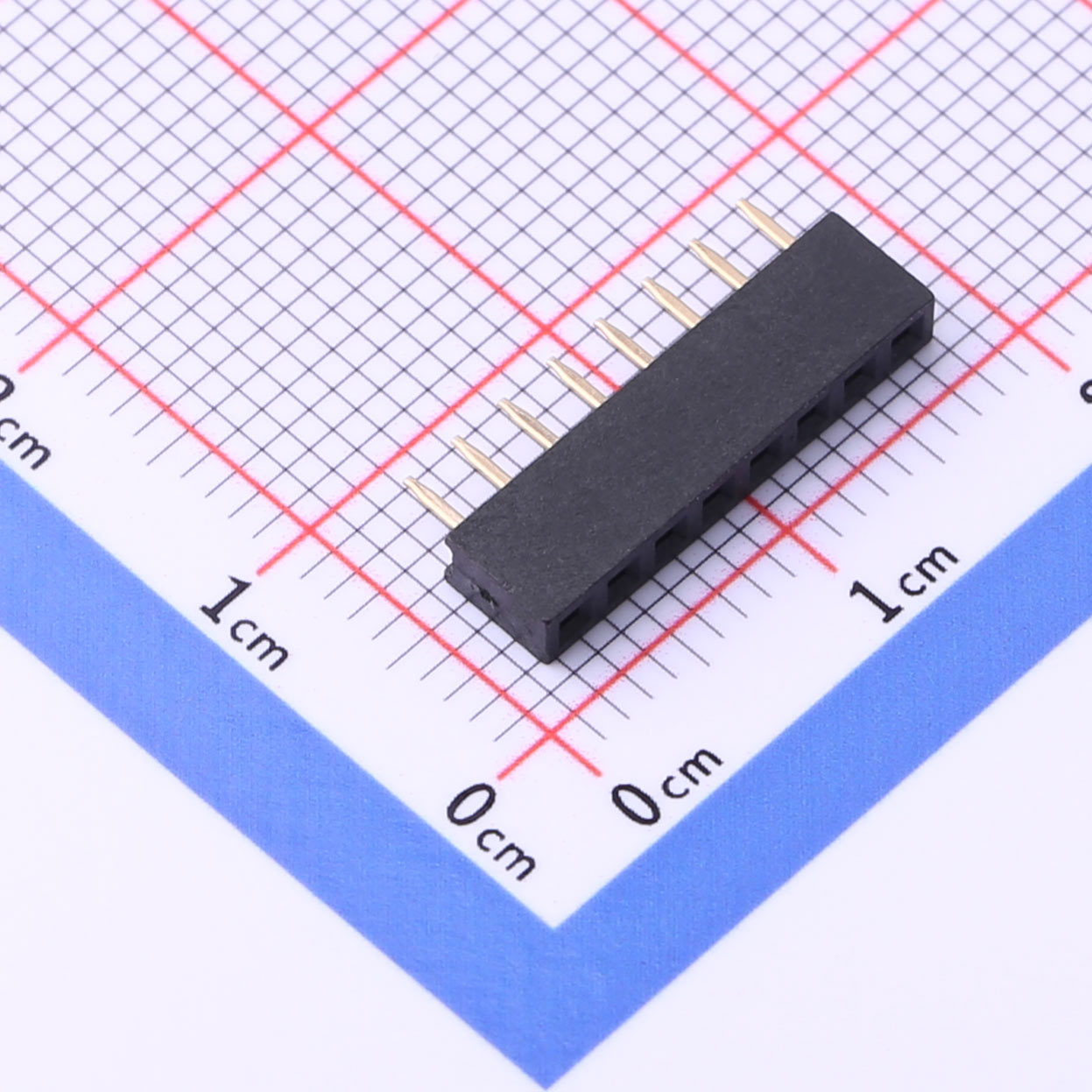

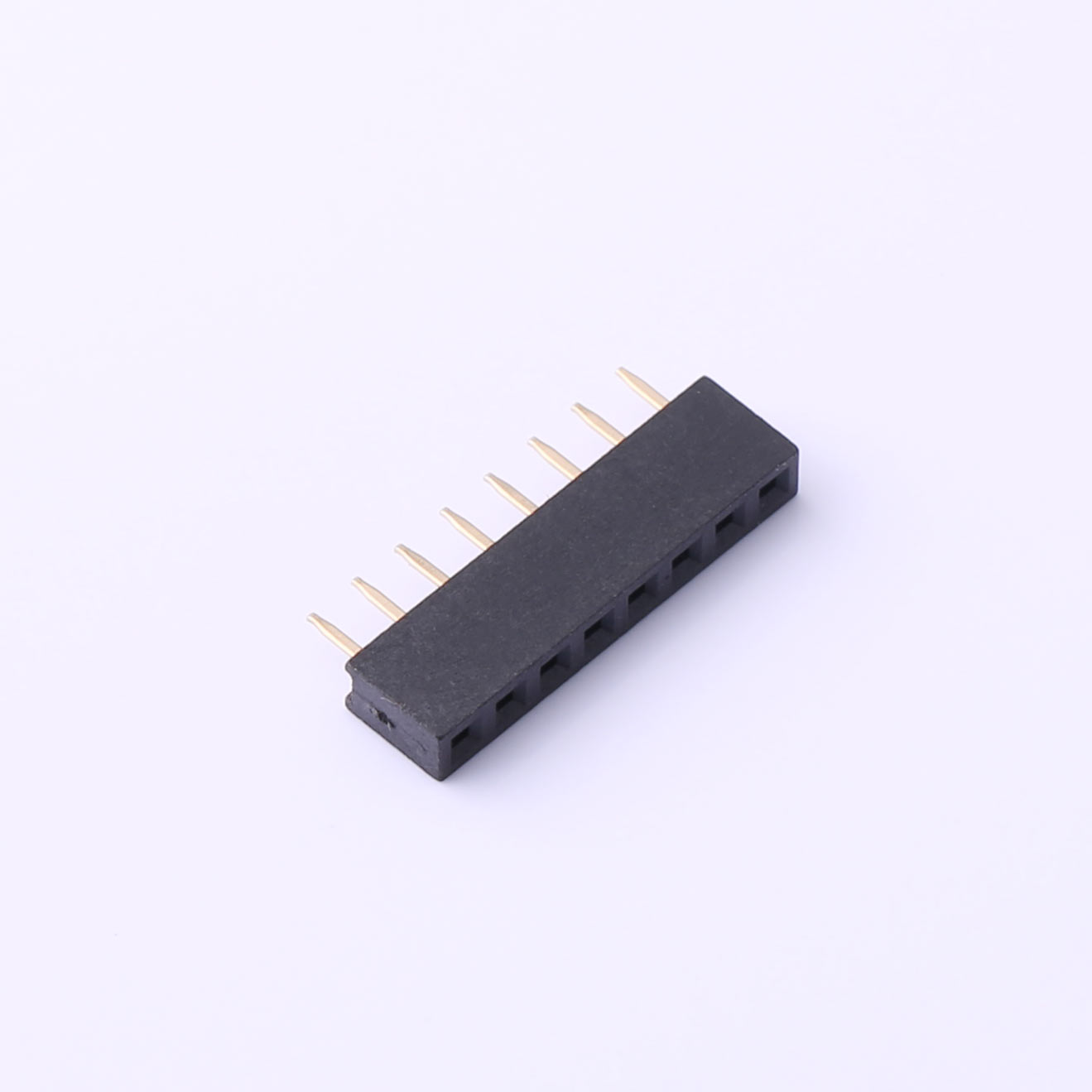

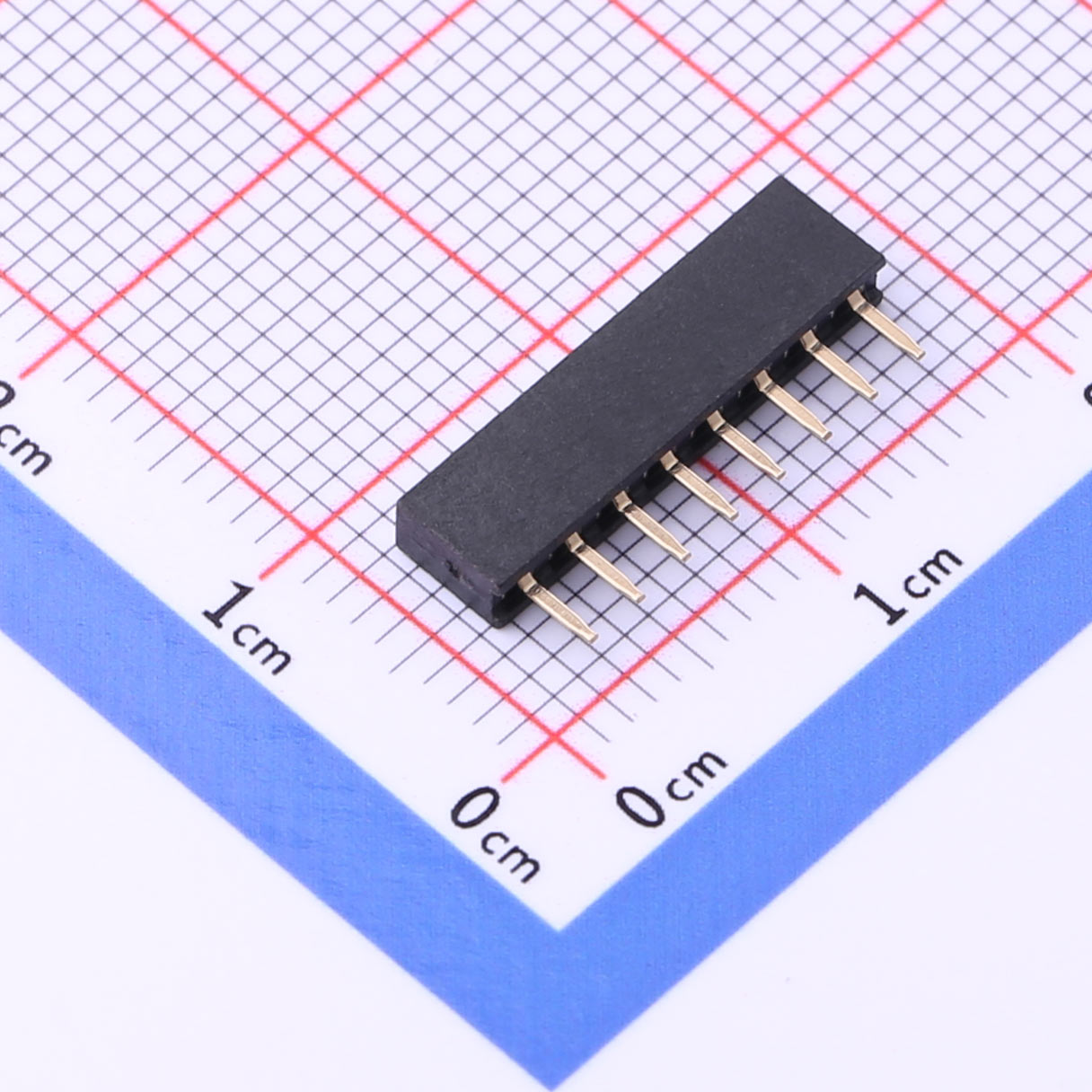

2mm Female Header Connector, 1X8P, 1.5A, KH-2FH-1X8P-H4.3

2mm Female Header Connector, 1X8P, 1.5A, KH-2FH-1X8P-H4.3

Current Rating: 1.5A
Insulation Resistance: 1000MΩ Min
Contact Resistance: 20mΩ max
Withstanding Voltage: AC 500V
Operating Temperature: -40°C to +105°C

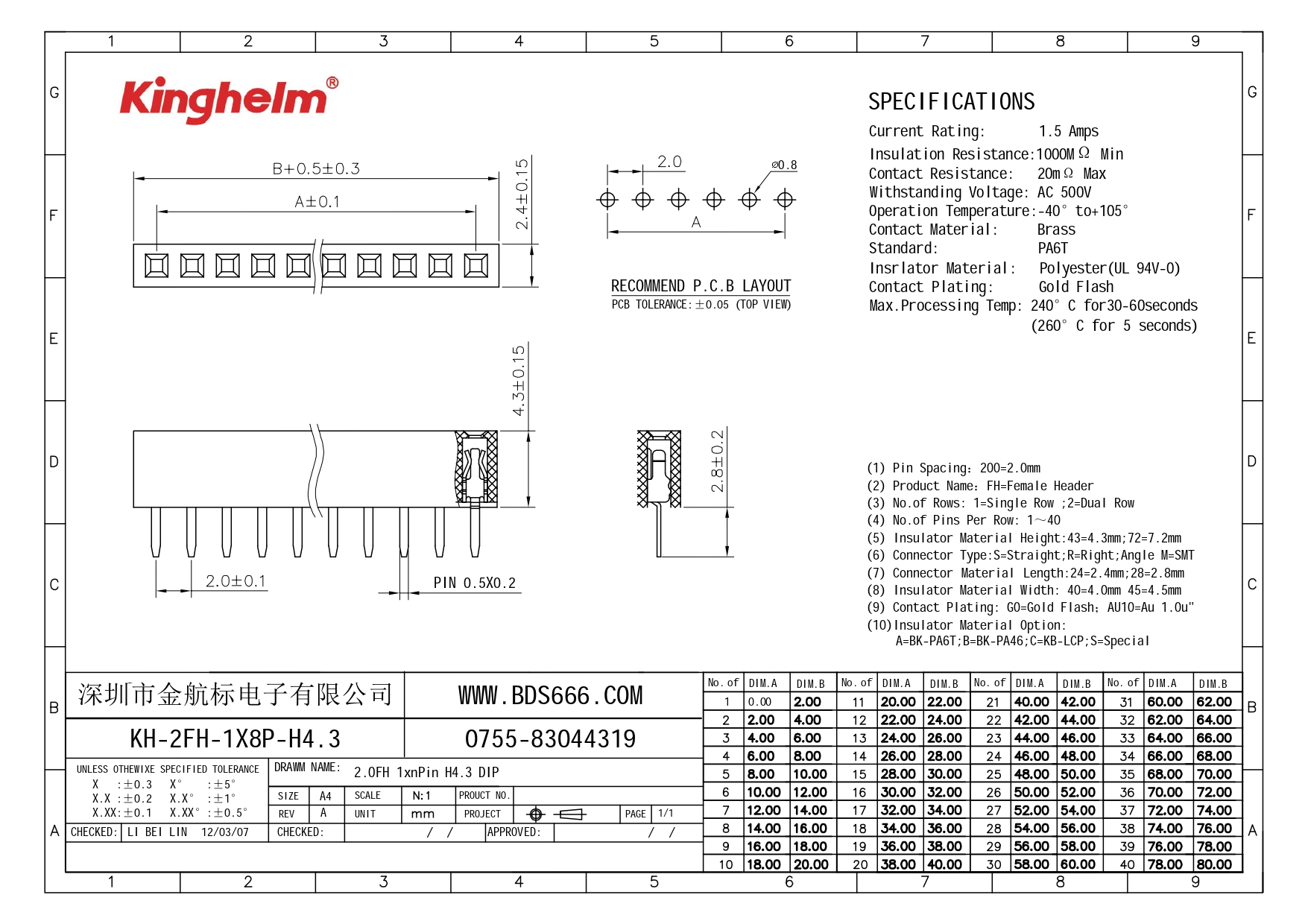

Inquiry Datasheet

Product Details

Product Benefits
● Single row 8 pins
● 2mm fine pitch design
● 1.5A rated current
● 1000MΩ high insulation
● Through hole assembly

Product Application
● Industrial automation
● Networking devices
● Smart meters
● Consumer electronics
● Embedded modules


Prev：2mm Female Header Connector, 1X6P, 1.5A, KH-2FH-1X6P-H4.3
Next：2mm Female Header Connector, 1X4P, 1.5A, KH-2FH-1X4P-H4.3
