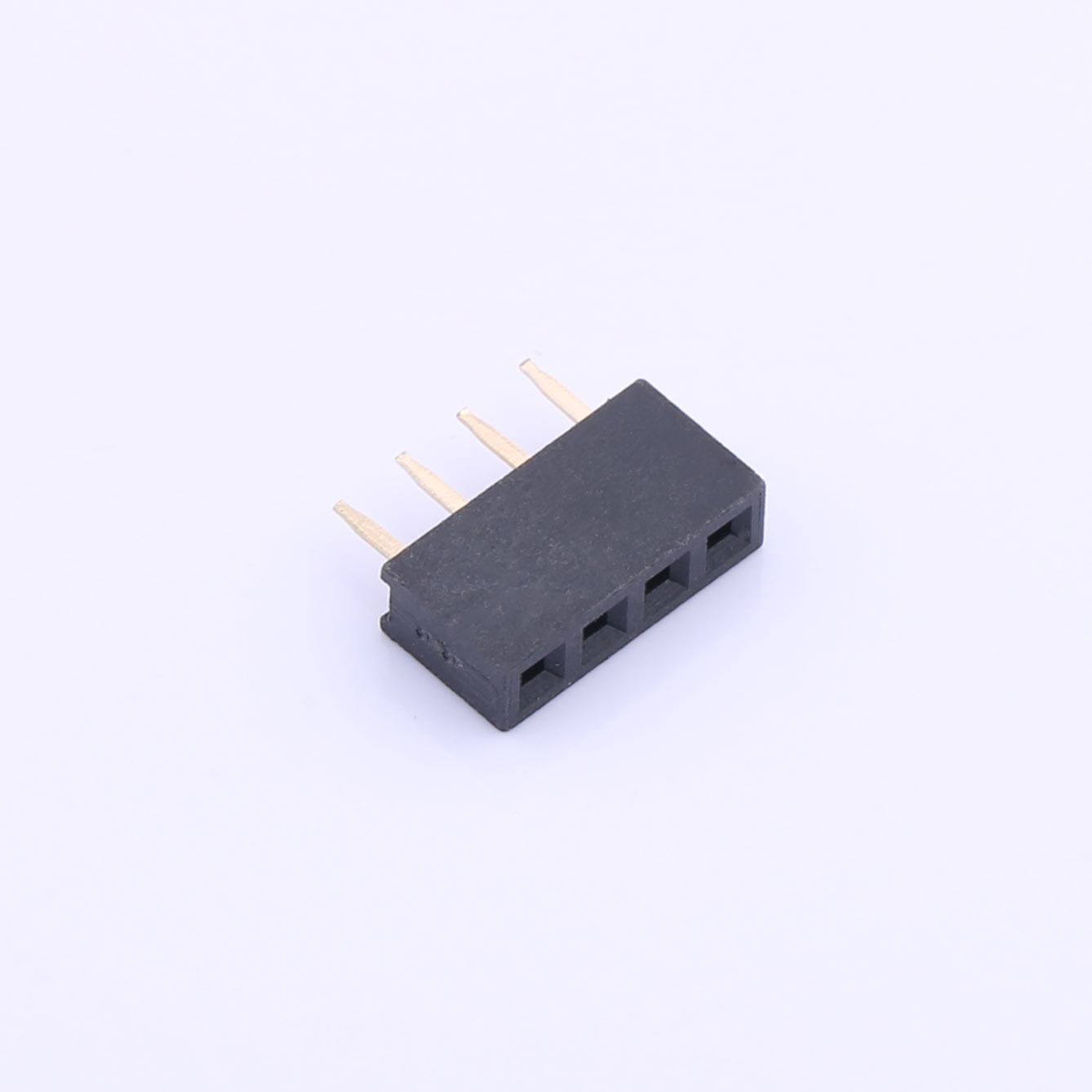

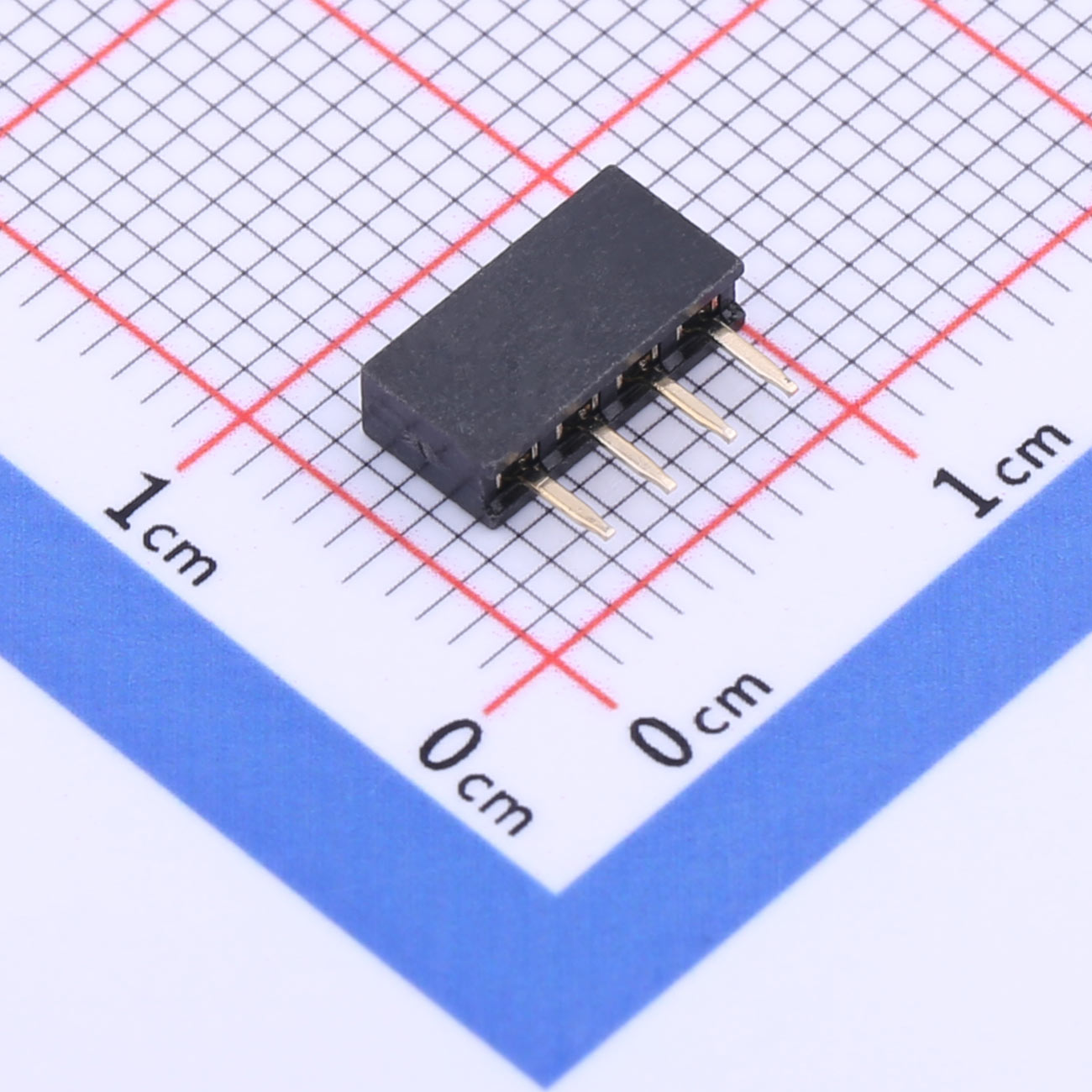

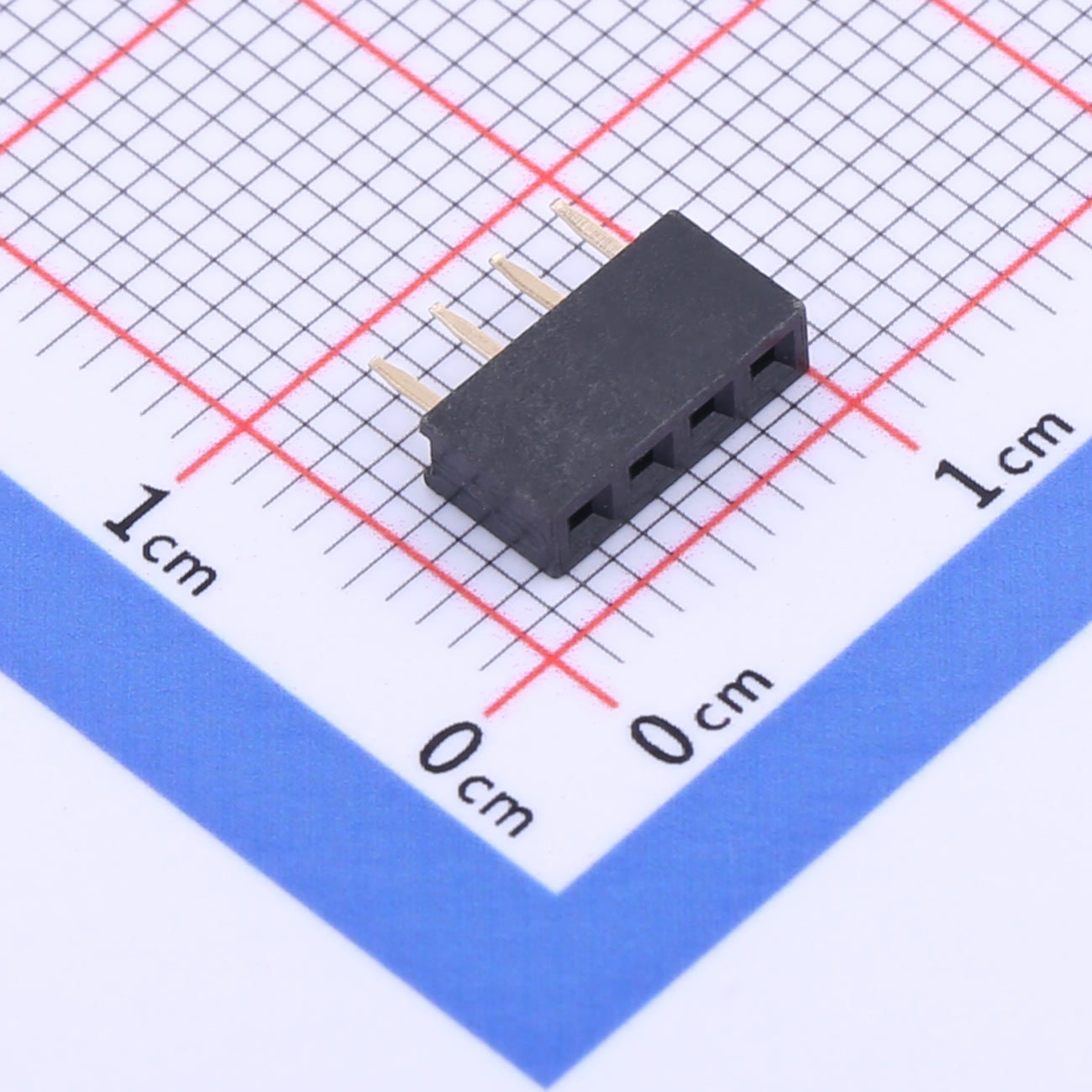

2mm Female Header Connector, 1X4P, 1.5A, KH-2FH-1X4P-H4.3

2mm Female Header Connector, 1X4P, 1.5A, KH-2FH-1X4P-H4.3

Current Rating: 1.5A
Insulation Resistance: 1000MΩ Min
Contact Resistance: 20mΩ max
Withstanding Voltage: AC 500V
Operating Temperature: -40°C to +105°C

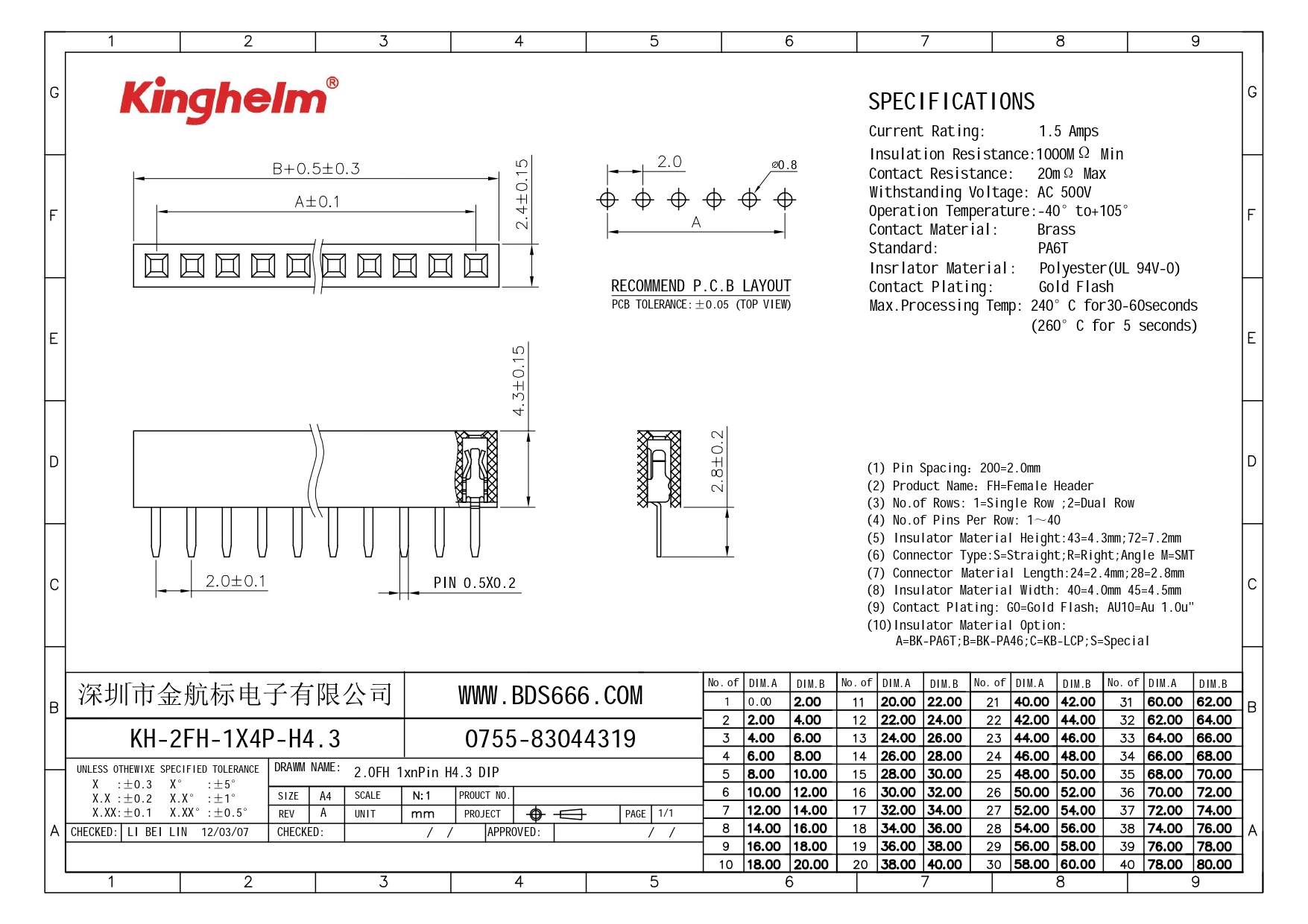

Inquiry Datasheet

Product Details

Product Benefits
● 2mm compact pitch
● Single row 4 pins
● High insulation 1000MΩ
● Low contact resistance 20mΩ
● Through hole configuration

Product Application
● Wearable devices
● Medical monitoring
● Sensor interfaces
● IoT connectivity
● Small electronic devices


Prev：2mm Female Header Connector, 1X8P, 1.5A, KH-2FH-1X8P-H4.3
Next：2mm Female Header Connector, 1X20P, 1.5A, KH-2FH-1X20P-H4.3
