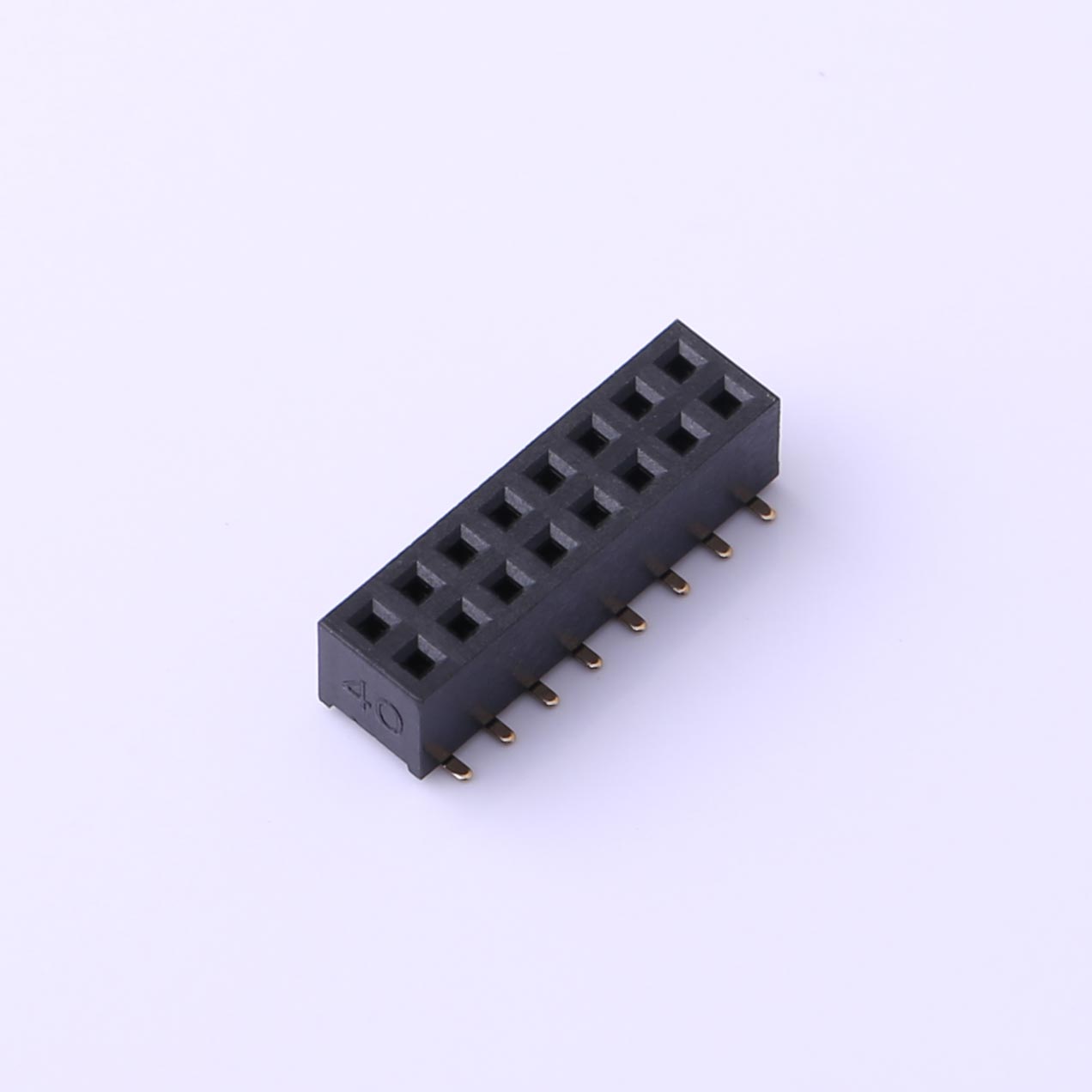

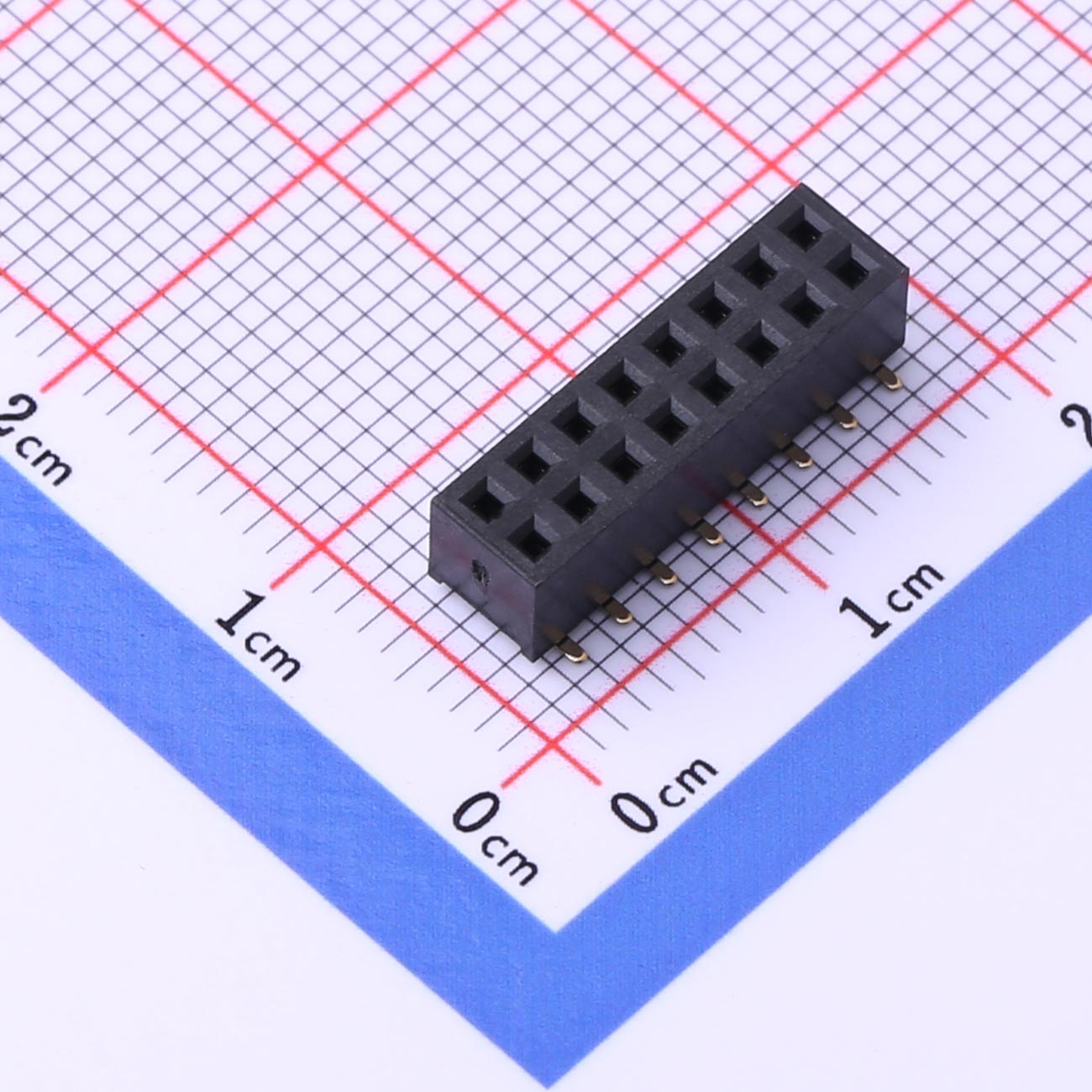

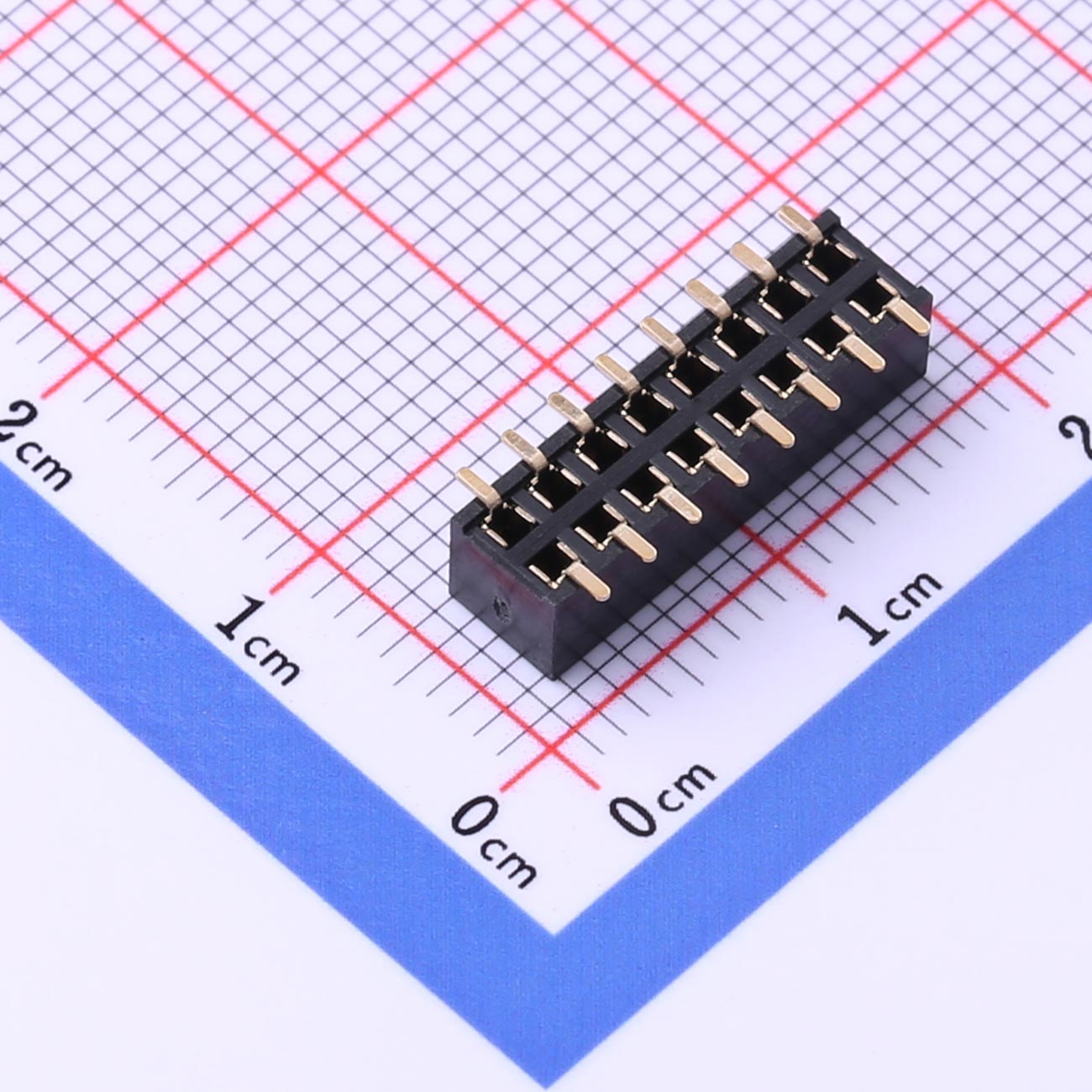

2mm Female Header Connector, 2X8P, 1.5A, KH-2FH-2X8P-H4.3-SMT

2mm Female Header Connector, 2X8P, 1.5A, KH-2FH-2X8P-H4.3-SMT

Current Rating: 1.5A
Insulation Resistance: 1000MΩ Min
Contact Resistance: 20mΩ max
Withstanding Voltage: AC 500V
Operating Temperature: -40°C to +105°C

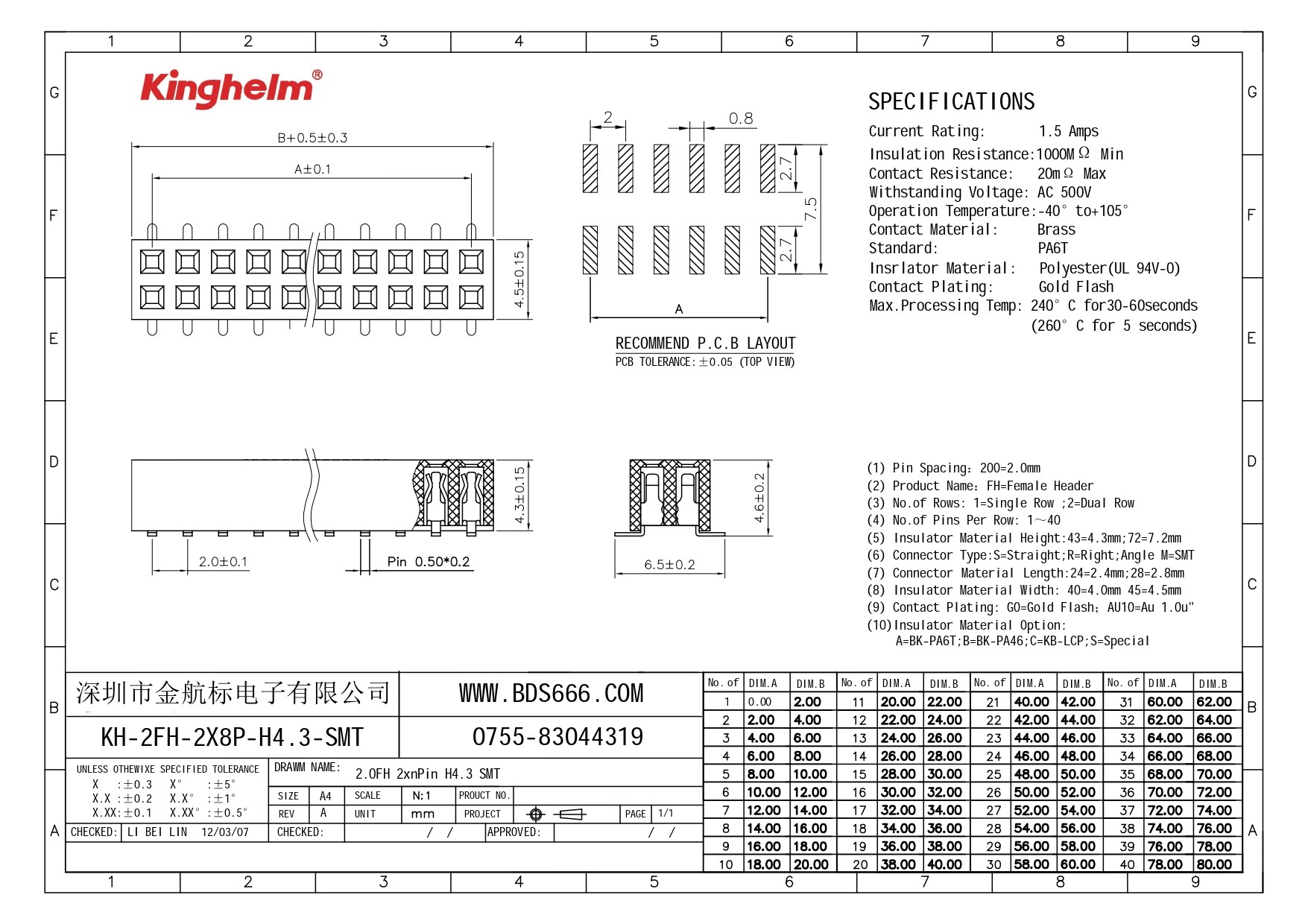

Inquiry Datasheet

Product Details

Product Benefits
● 2mm pitch compact size
● Dual row 2x8P layout
● 1.5A rated current
● High insulation 1000MΩ
● SMT mounting

Product Application
● Consumer electronics
● Industrial equipment
● Medical devices
● Automotive electronics
● IoT products


Prev：2mm Female Header Connector, 2X4P, 1.5A, KH-2FH-2X4P-H4.3-SMT
Next：2mm Female Header Connector, 2X2P, 1.5A, KH-2FH-2X2P-H4.3-SMT
