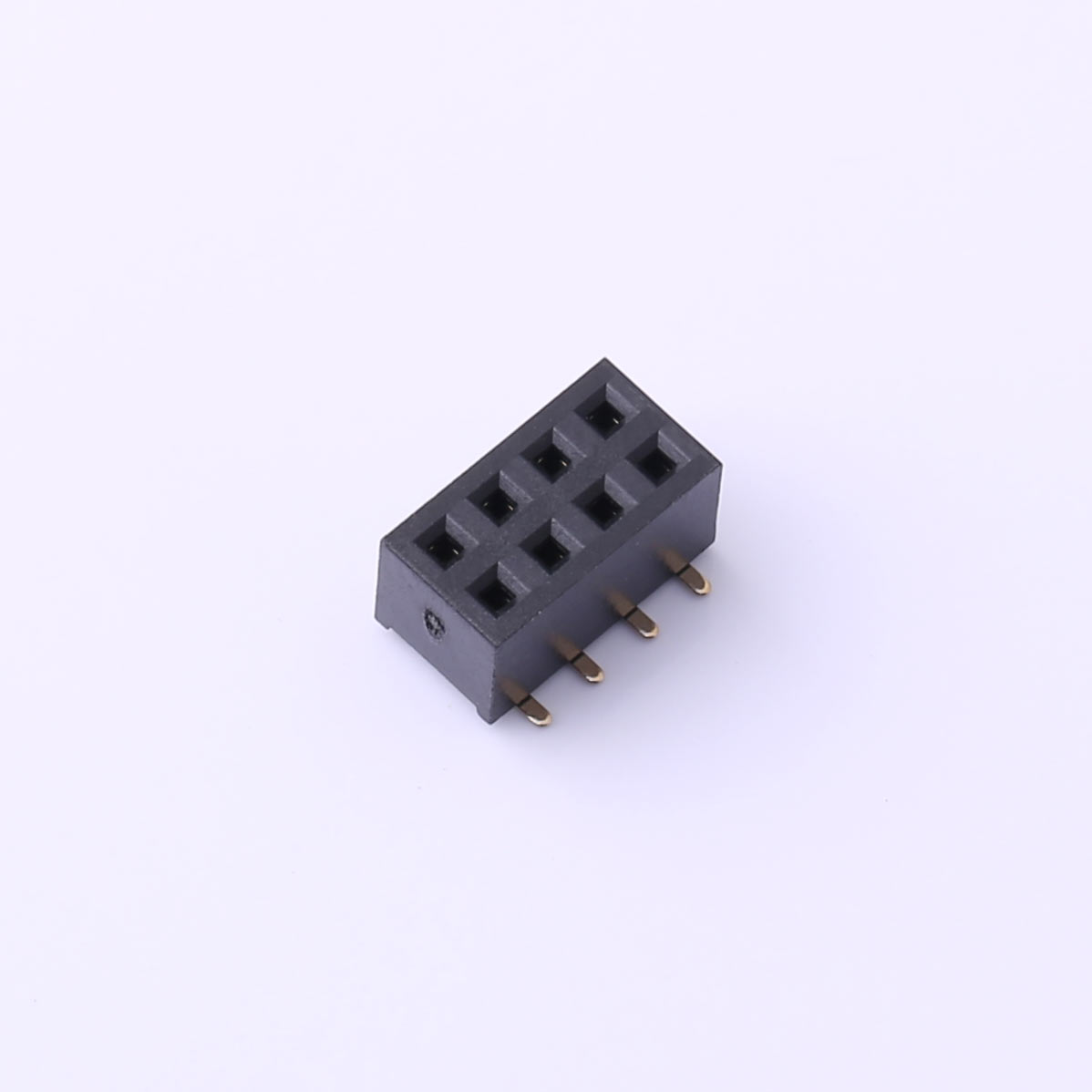

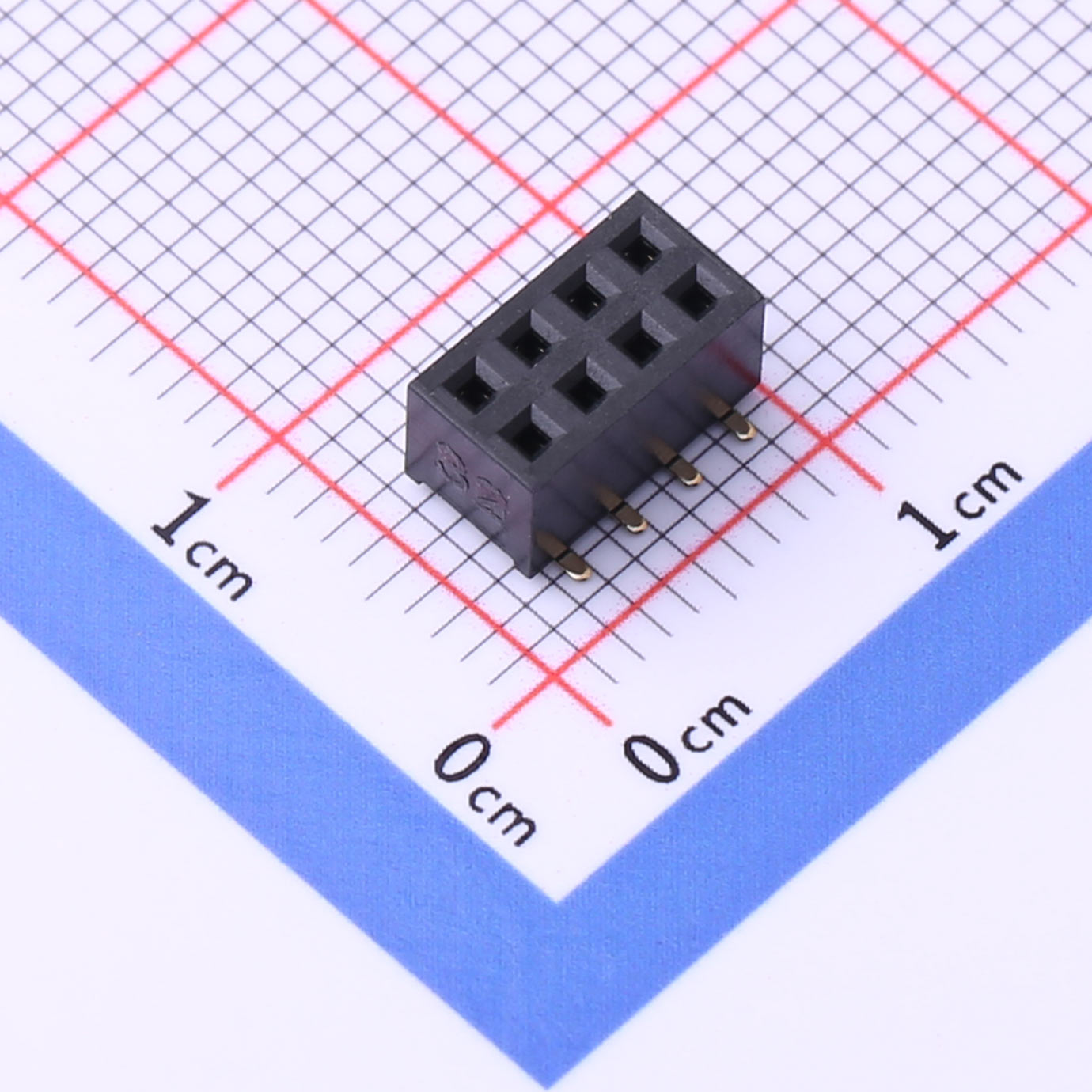

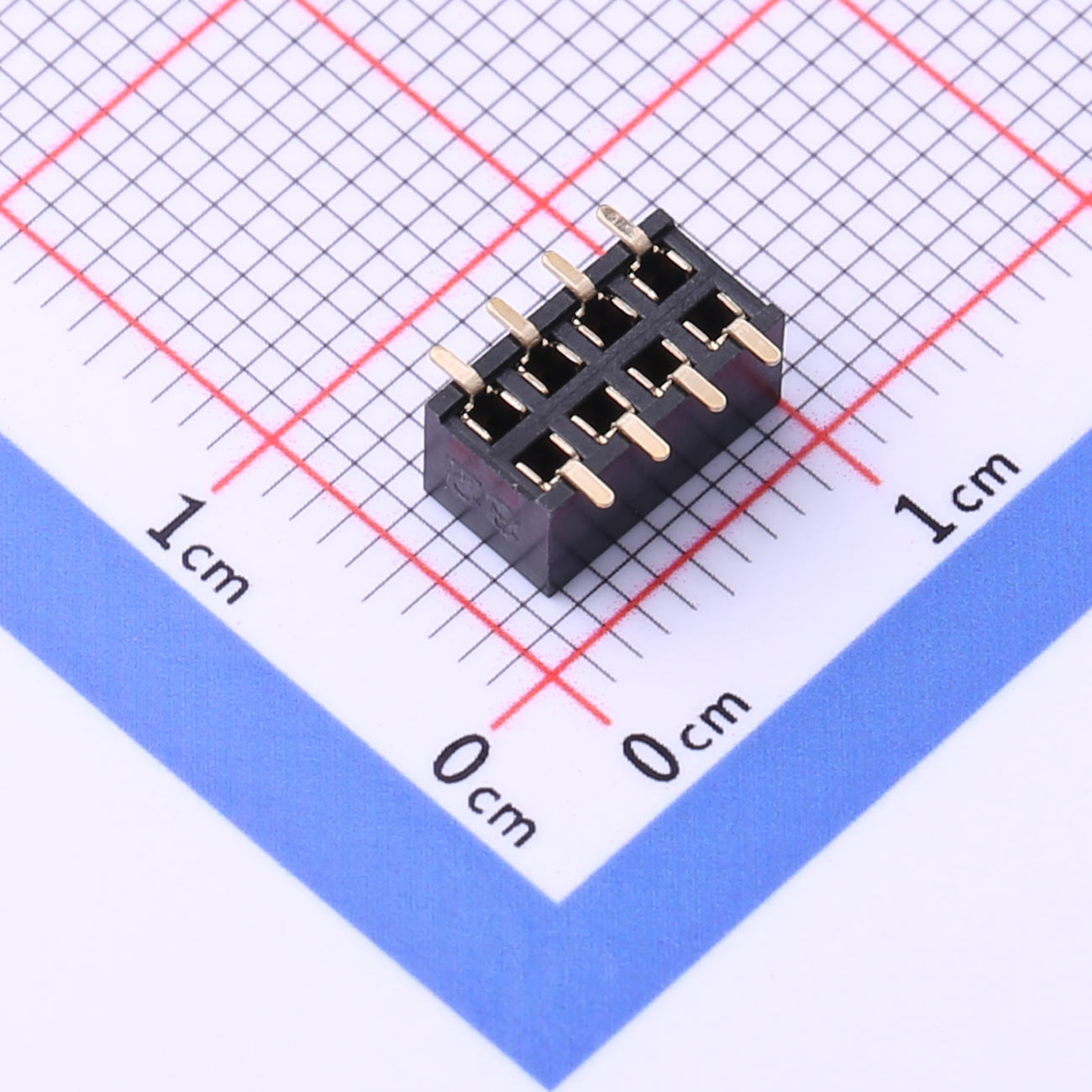

2mm Female Header Connector, 2X4P, 1.5A, KH-2FH-2X4P-H4.3-SMT

2mm Female Header Connector, 2X4P, 1.5A, KH-2FH-2X4P-H4.3-SMT

Current Rating: 1.5A
Insulation Resistance: 1000MΩ Min
Contact Resistance: 20mΩ max
Withstanding Voltage: AC 500V
Operating Temperature: -40°C to +105°C

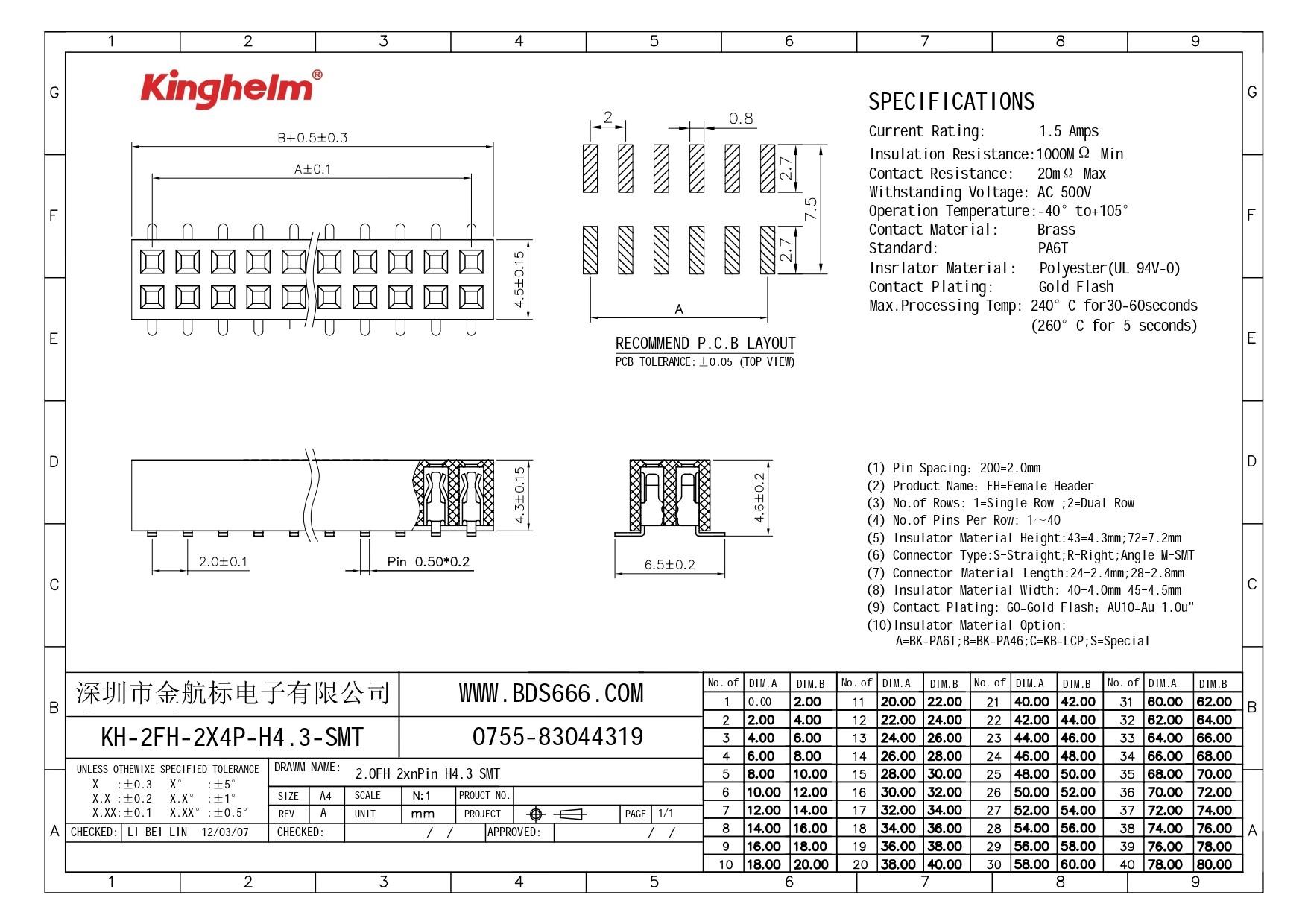

Inquiry Datasheet

Product Details

Product Benefits
● 2mm pitch compact size
● Dual row 2x4P design
● 1.5A stable current
● 1000MΩ insulation resistance
● SMT surface mount type

Product Application
● Consumer electronics
● Industrial control
● Medical devices
● Automotive systems
● IoT equipment
