Home -Product -Connector/Plug-in Unit -Pin Socket -Female Header -2.54mm Female Header Connector, 1X10P, 3A, KH-2.54FH-1X10P-H8.5
2.54mm Female Header Connector, 1X10P, 3A, KH-2.54FH-1X10P-H8.5 2.54mm Female Header Connector, 1X10P, 3A, KH-2.54FH-1X10P-H8.5 2.54mm Female Header Connector, 1X10P, 3A, KH-2.54FH-1X10P-H8.5

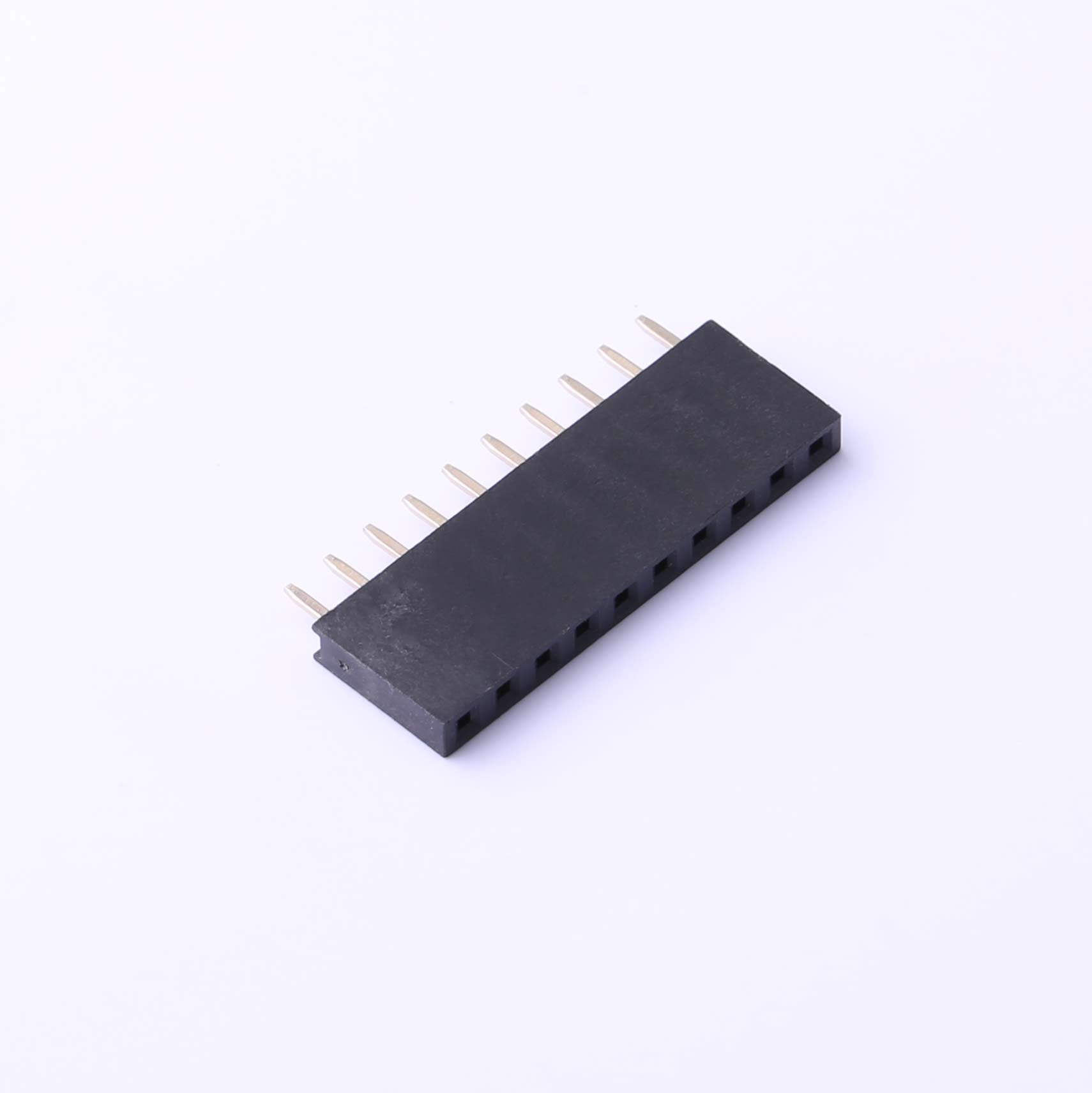

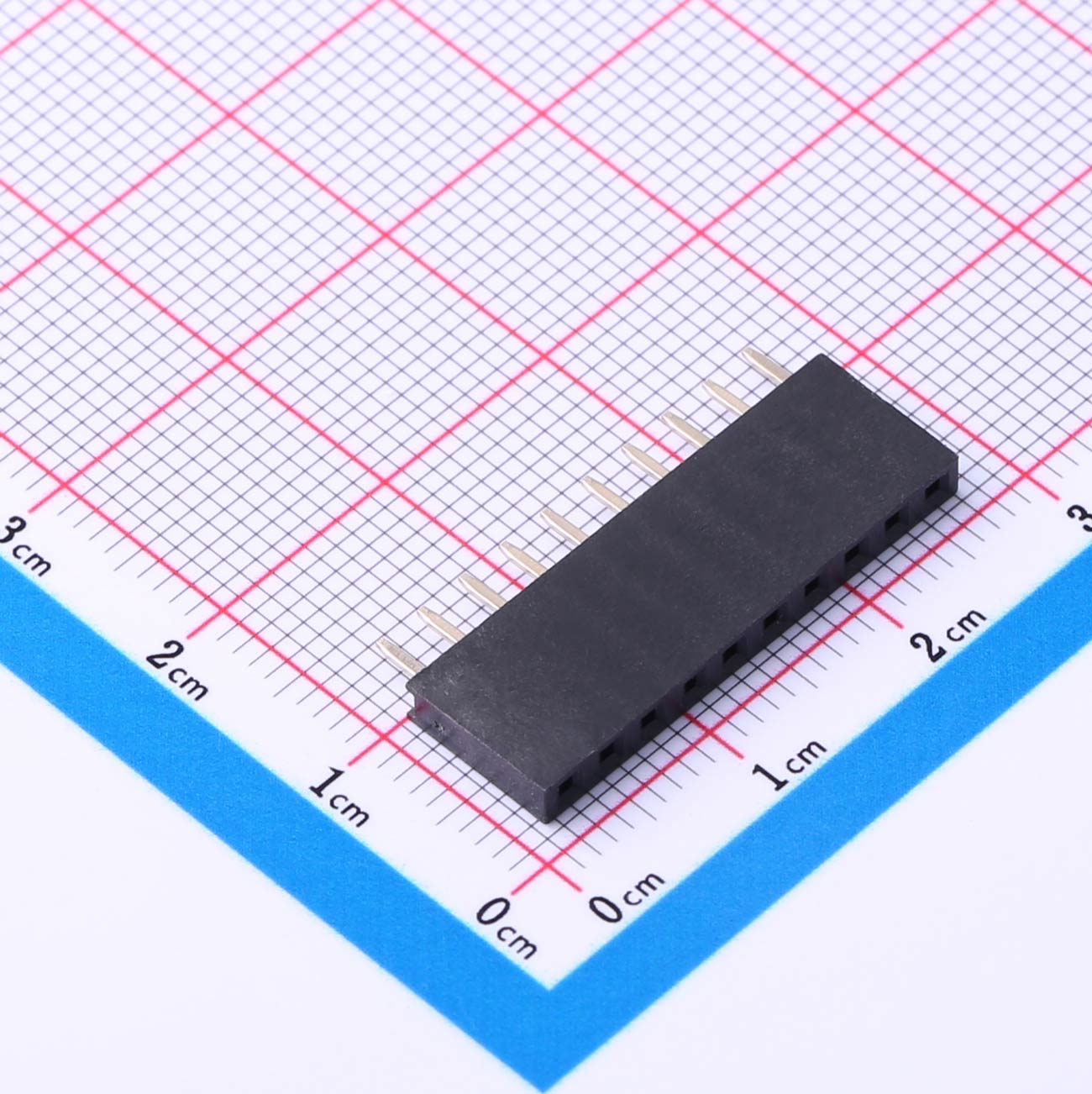

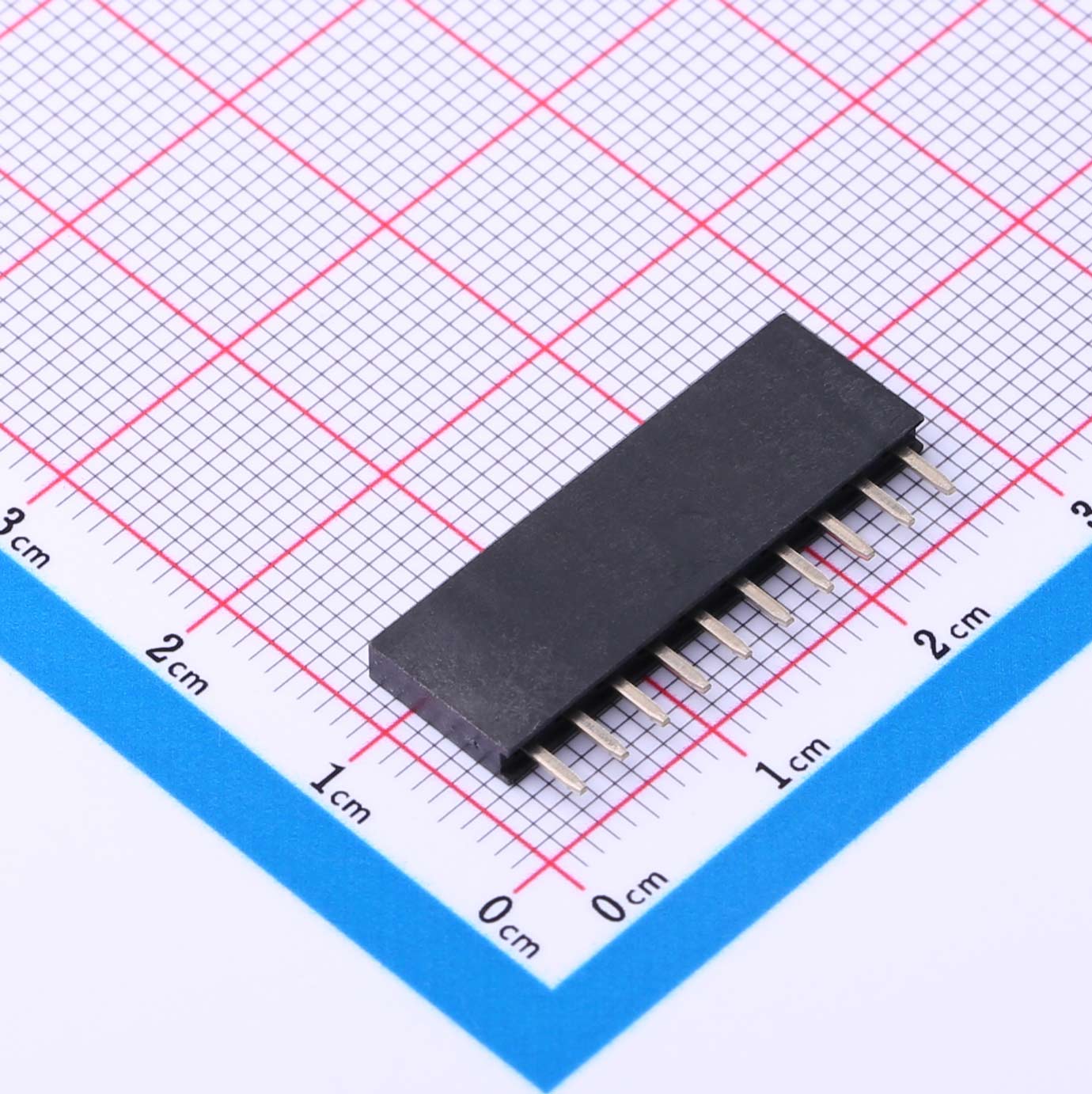

2.54mm Female Header Connector, 1X10P, 3A, KH-2.54FH-1X10P-H8.5
Current Rating: 3 A
Insulation Resistance: 1000MΩ Min
Contact Resistance: 20mΩ max
Withstanding Voltage: AC 1000V
Operating Temperature: -40°C to +105°C

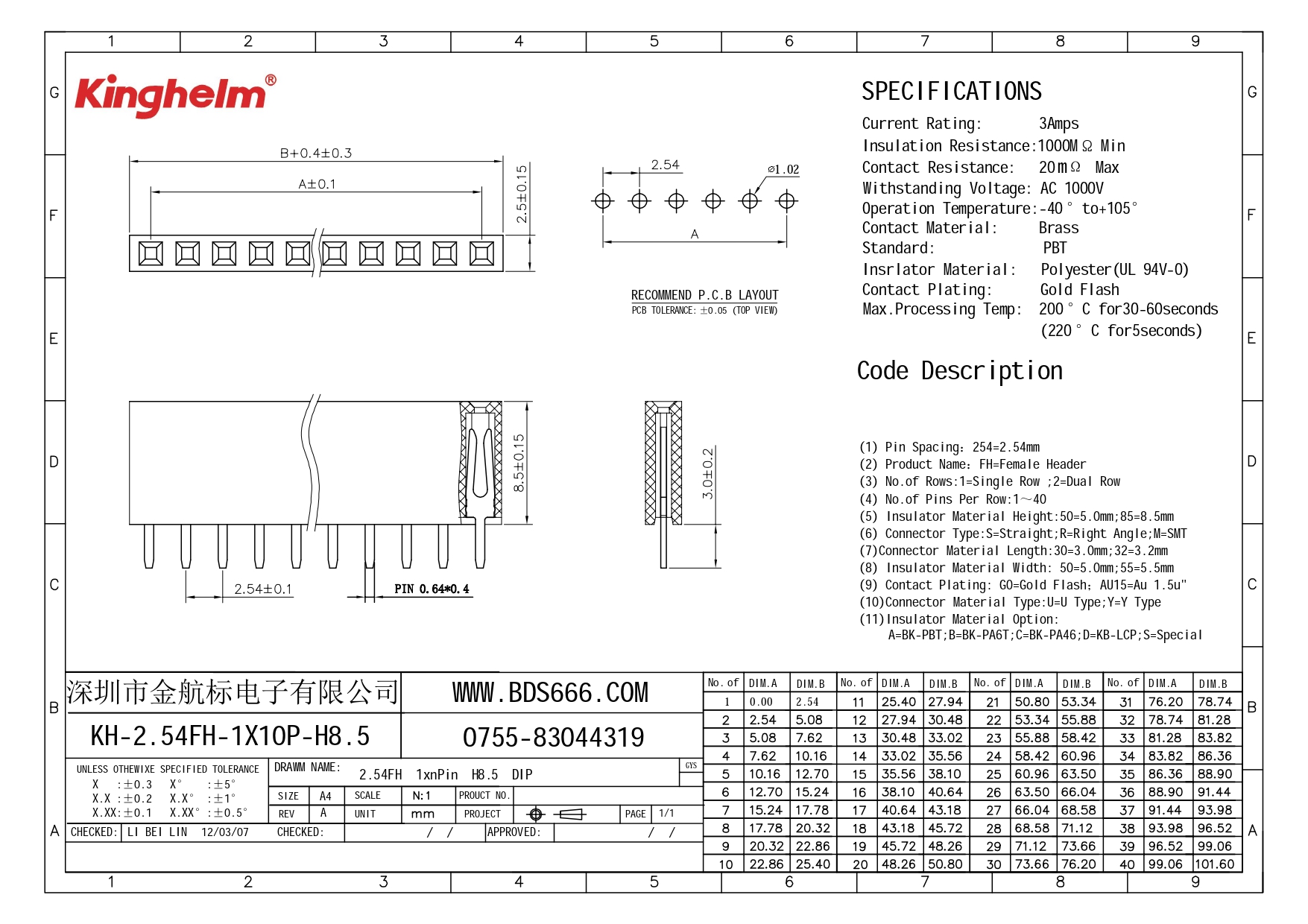

Inquiry Datasheet

Product Details

Product Benefits
● 2.54mm pitch
● 8.5mm height
● 3A rated current
● Strong insulation 1000MΩ min
● Low contact resistance 20mΩ max
● Reliable for medium-size connections

Product Application
● Control panels
● Communication equipment
● Industrial automation
● Automotive control units
● Consumer electronics


Prev：2.54mm Female Header Connector, 1X20P, 3A, KH-2.54FH-1X20P-H8.5
Next：2.54mm Female Header Connector, 1X19P, 3A, KH-2.54FH-1X19P-H8.5
