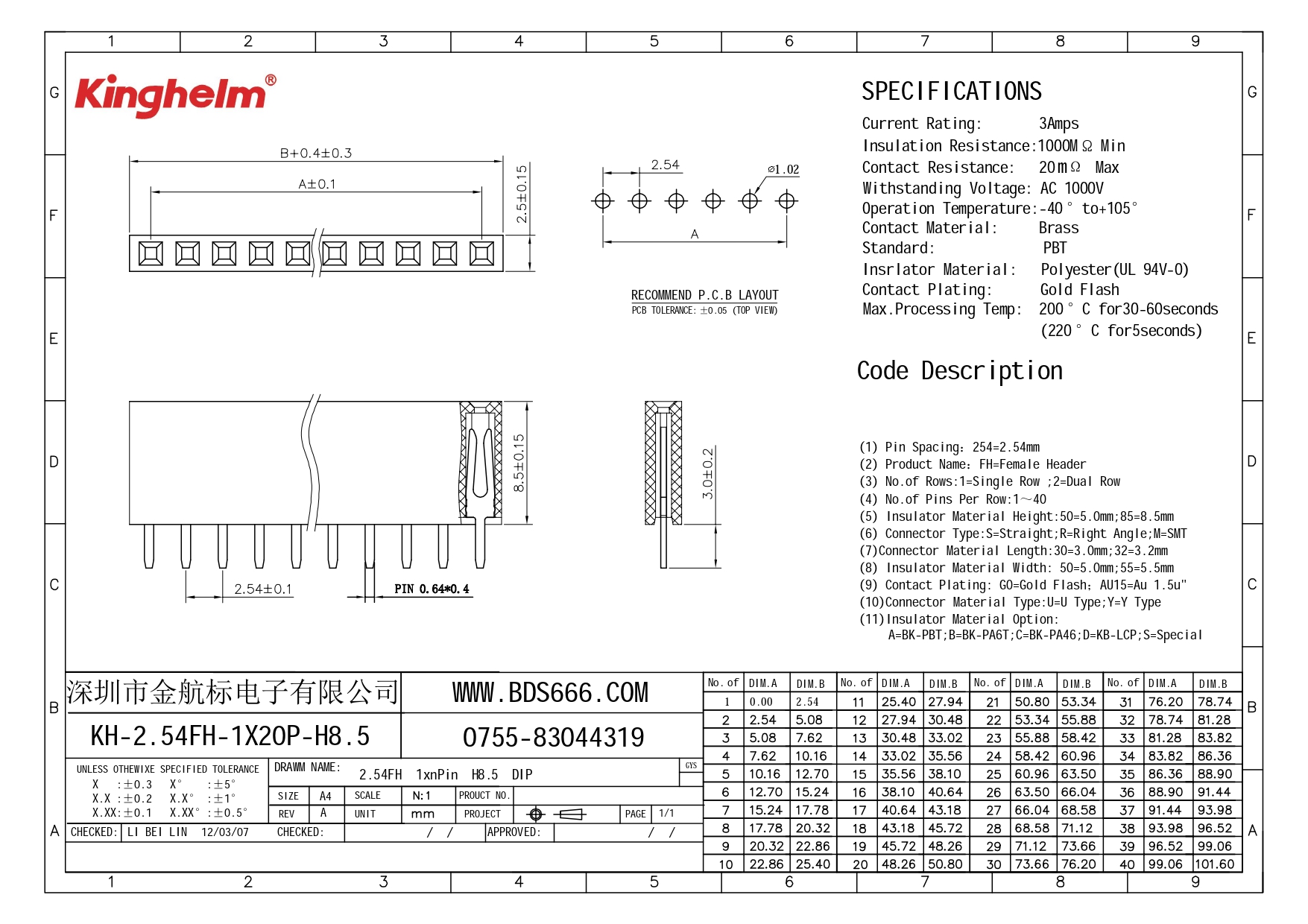

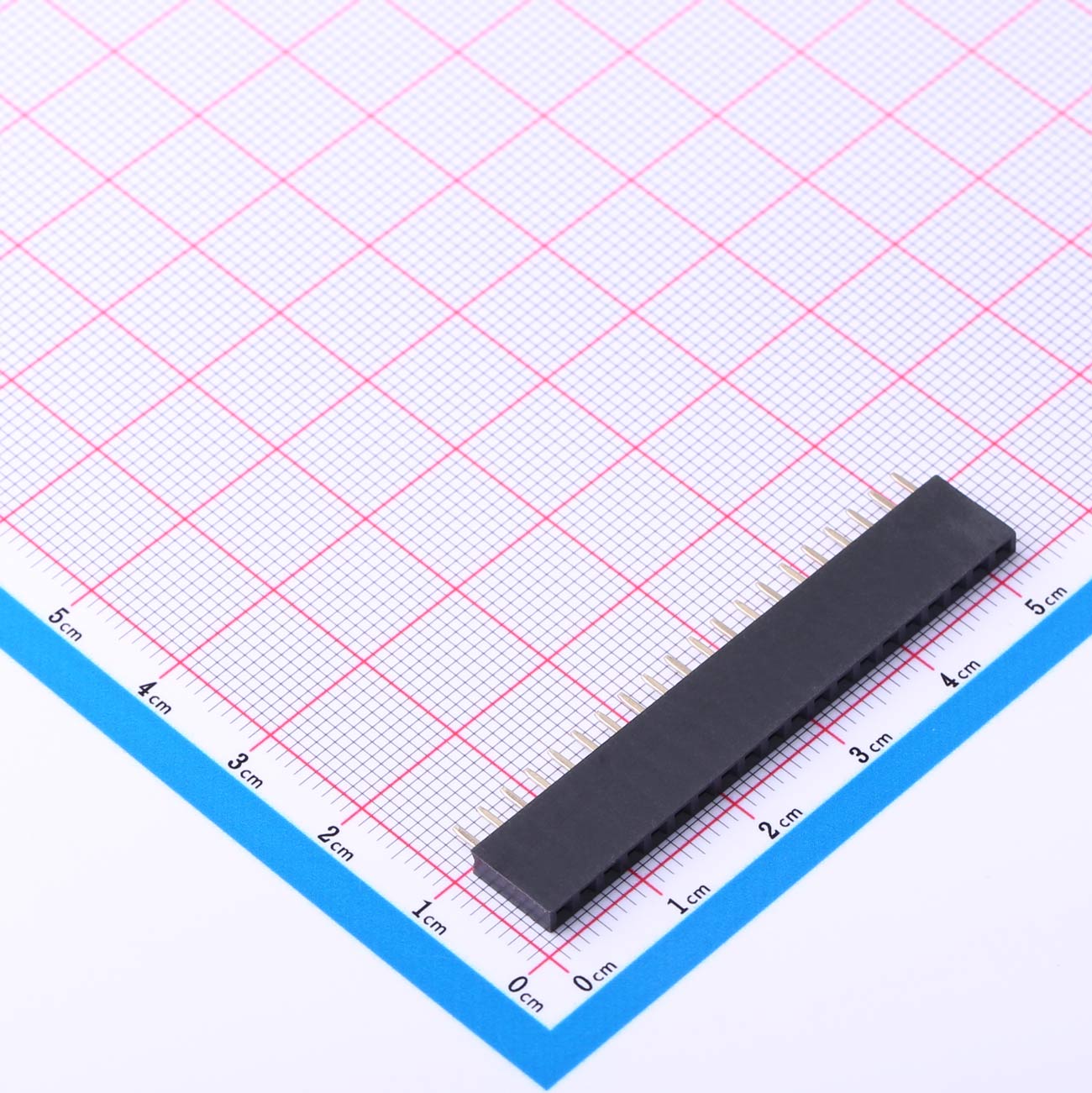

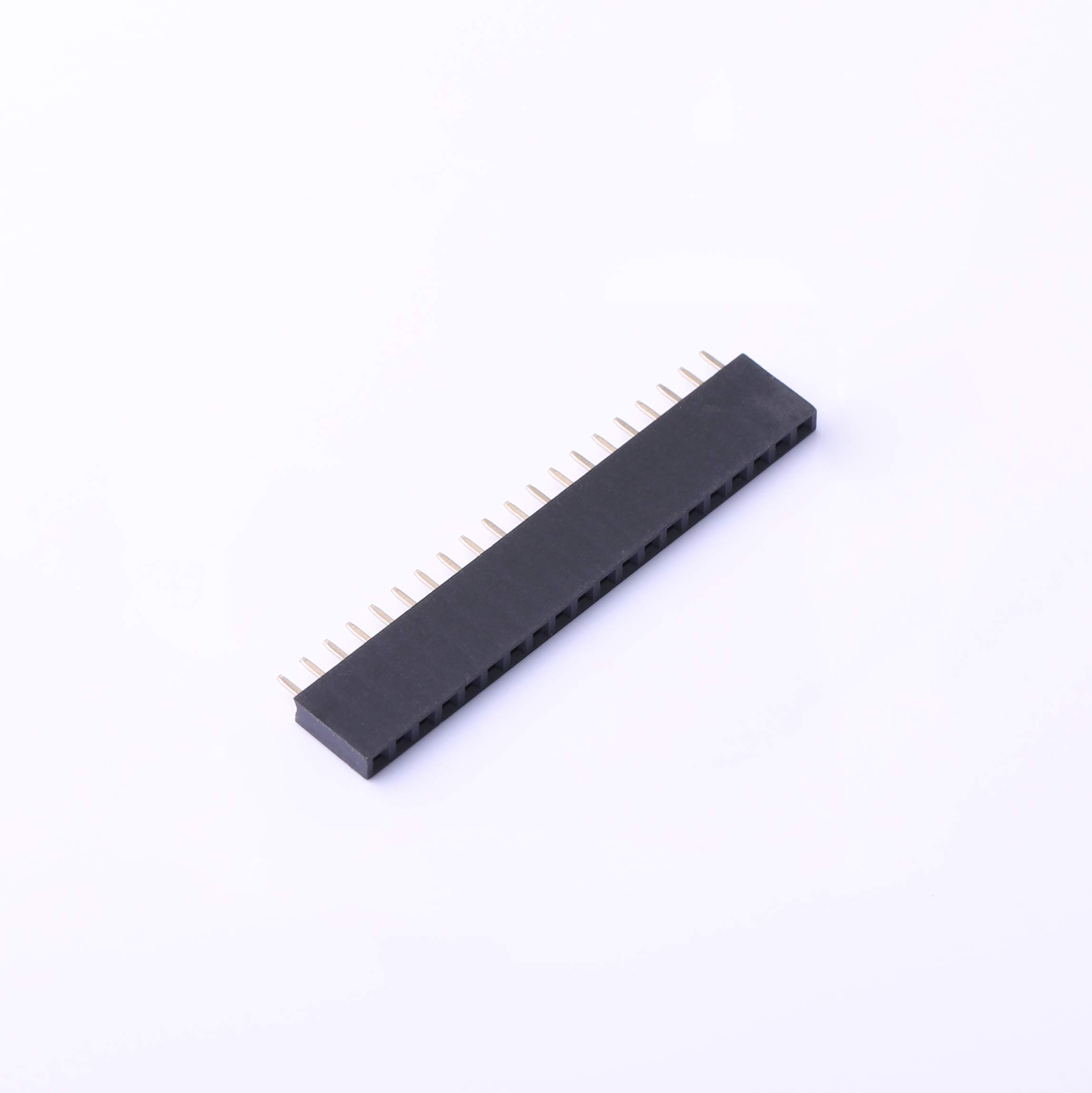

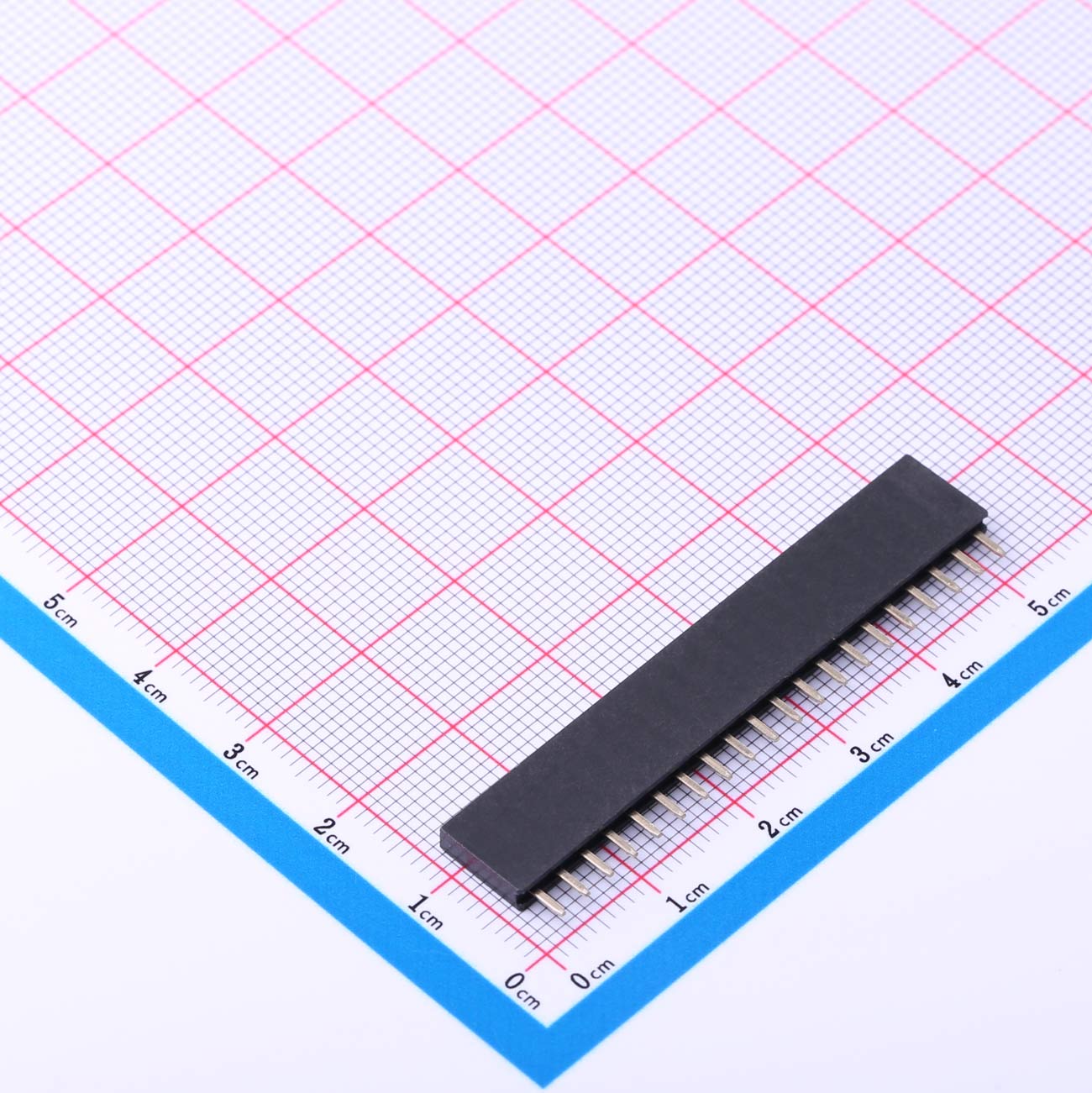

2.54mm Female Header Connector, 1X20P, 3A, KH-2.54FH-1X20P-H8.5
Current Rating: 3 A
Insulation Resistance: 1000MΩ Min
Contact Resistance: 20mΩ max
Withstanding Voltage: AC 1000V
Operating Temperature: -40°C to +105°C
Product Benefits
● 2.54mm standard pitch
● Supports up to 3A current per contact
● High insulation resistance 1000MΩ min
● Low contact resistance 20mΩ max
● High voltage endurance AC 1000V
● Wide temperature tolerance -40°C to +105°C
● Suitable for multi-pin high-density connections
Product Application
● Multi-channel signal transmission
● Industrial automation systems
● Automotive electronic modules
● Communication base stations
● Medical device interfaces
