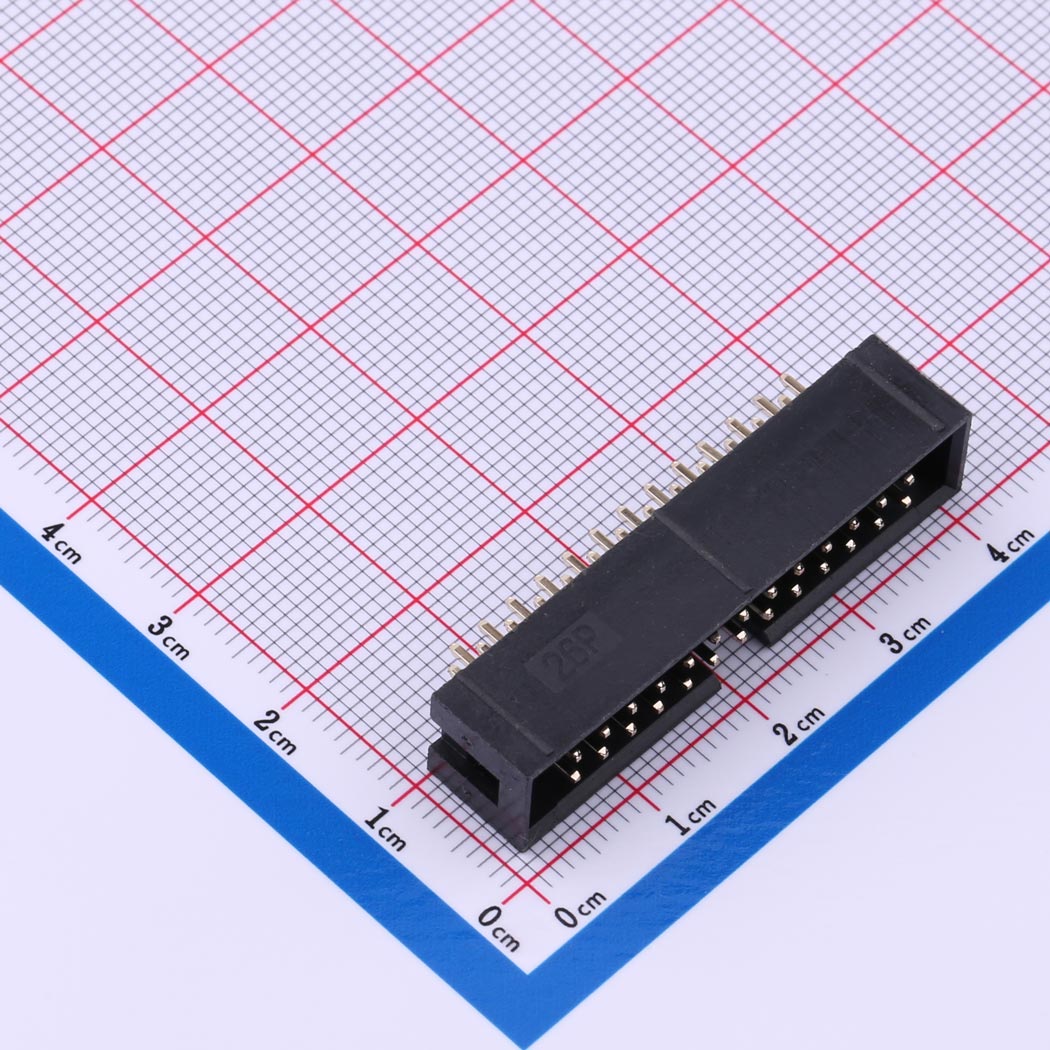

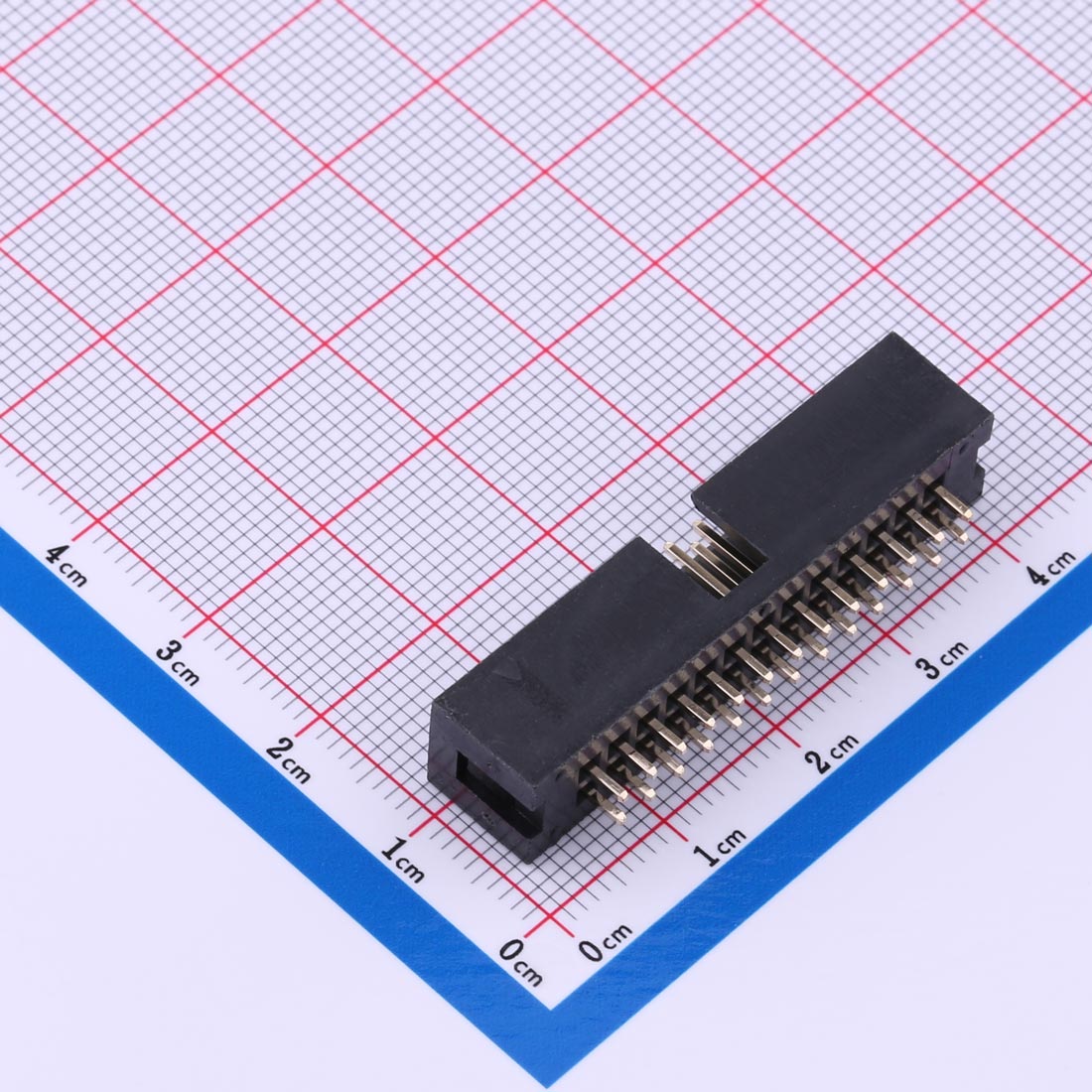

IDC Connector, 2.54mm Pitch, 13-Pin, 2-Row, KH-2.54PH180-2X13P-L8.9
Current Rating: 3A
Insulation Resistance: 5000 MΩ Min
Dielectric Withstanding Voltage: AC 500V
Operating Temperature: -40℃ to +105℃
Insulator Material: PBT
Contact Plating: Gold Flash
Product Benefits
● 2.54mm pitch with 2-row 13-pin configuration
● 180° straight insertion for easy PCB mounting
● Gold flash plating for stable signal transmission
● Durable PBT material for high heat resistance
● Reliable performance across wide temperature range (-40℃ to +105℃)
Product Application
● IDC cable connections
● Industrial control and automation
● Consumer electronics
● Embedded systems
● Signal and data interfaces
