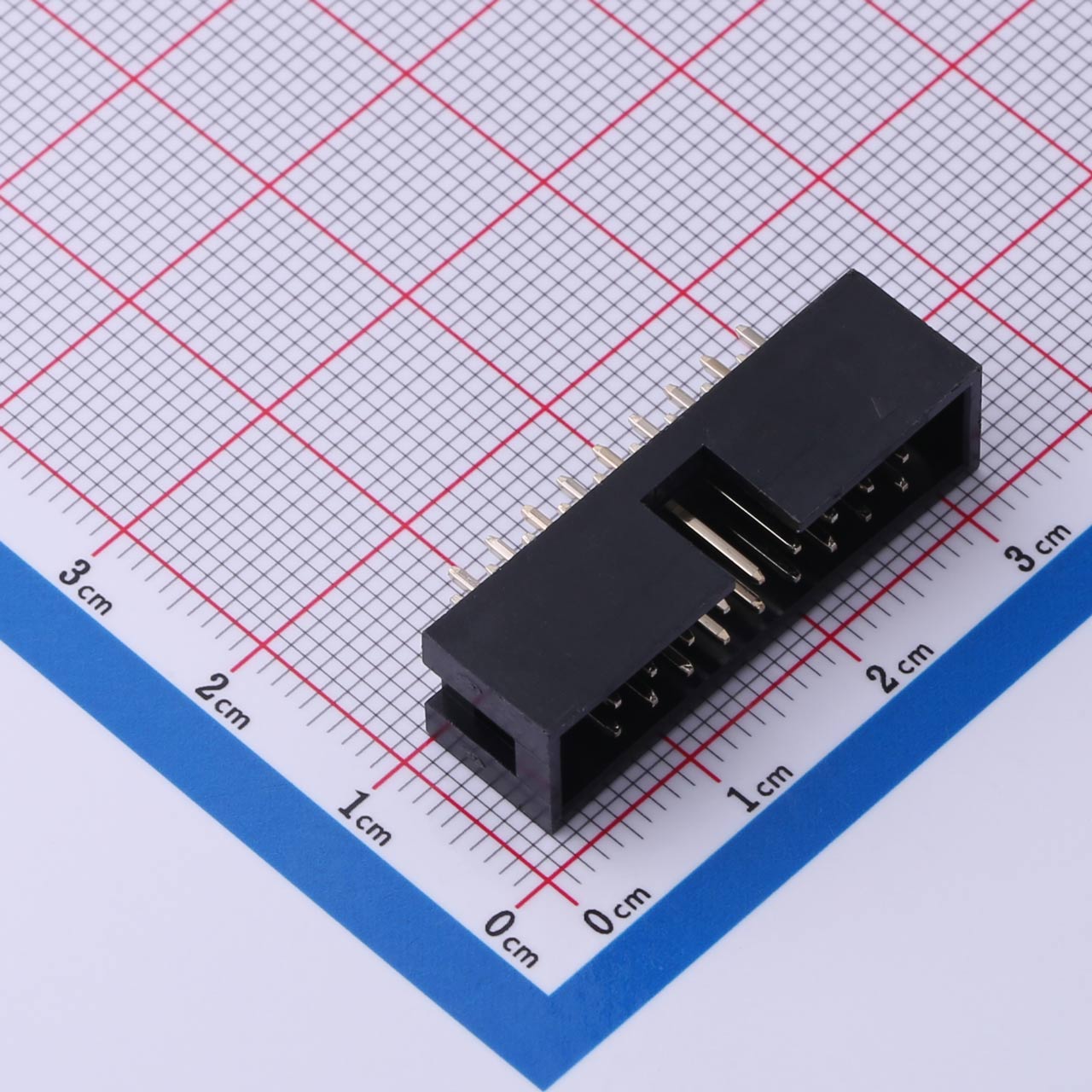

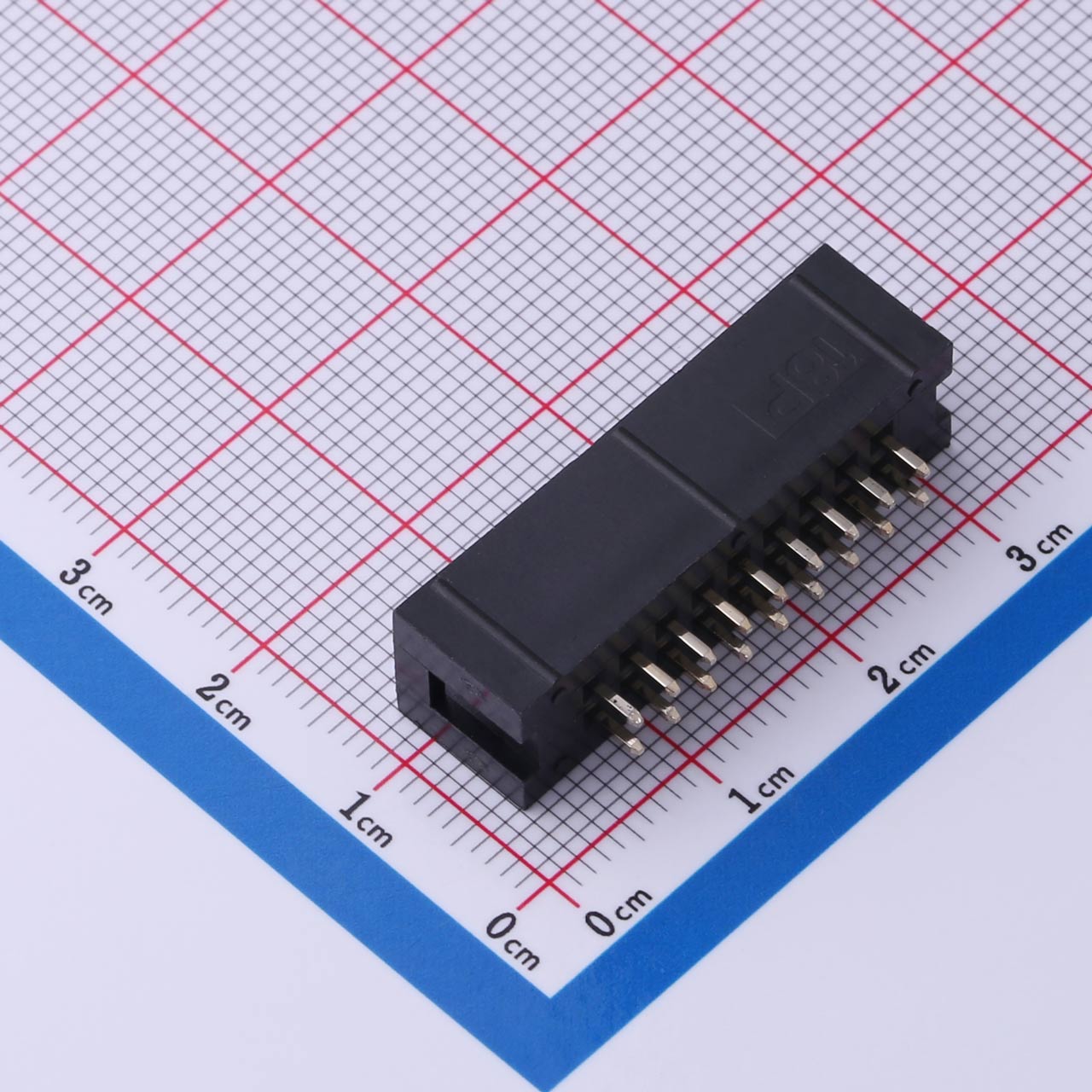

IDC Connector, 2.54mm Pitch, 9-Pin, 2-Row, KH-2.54PH180-2X9P-L8.9
Current Rating: 3A
Insulation Resistance: 5000 MΩ Min
Dielectric Withstanding Voltage: AC 500V
Operating Temperature: -40℃ to +105℃
Insulator Material: PBT
Contact Plating: Gold Flash
Product Benefits
● 2.54mm pitch with 180° straight insertion
● 8.9mm insulator height for stable mounting
● Gold flash plating for enhanced conductivity
● High insulation resistance (5000 MΩ Min)
● Wide operating temperature range (-40℃ to +105℃)
Product Application
● IDC cable-to-board connections
● Industrial and automation systems
● Consumer and embedded electronics
● Communication equipment
● Signal and power transmission
