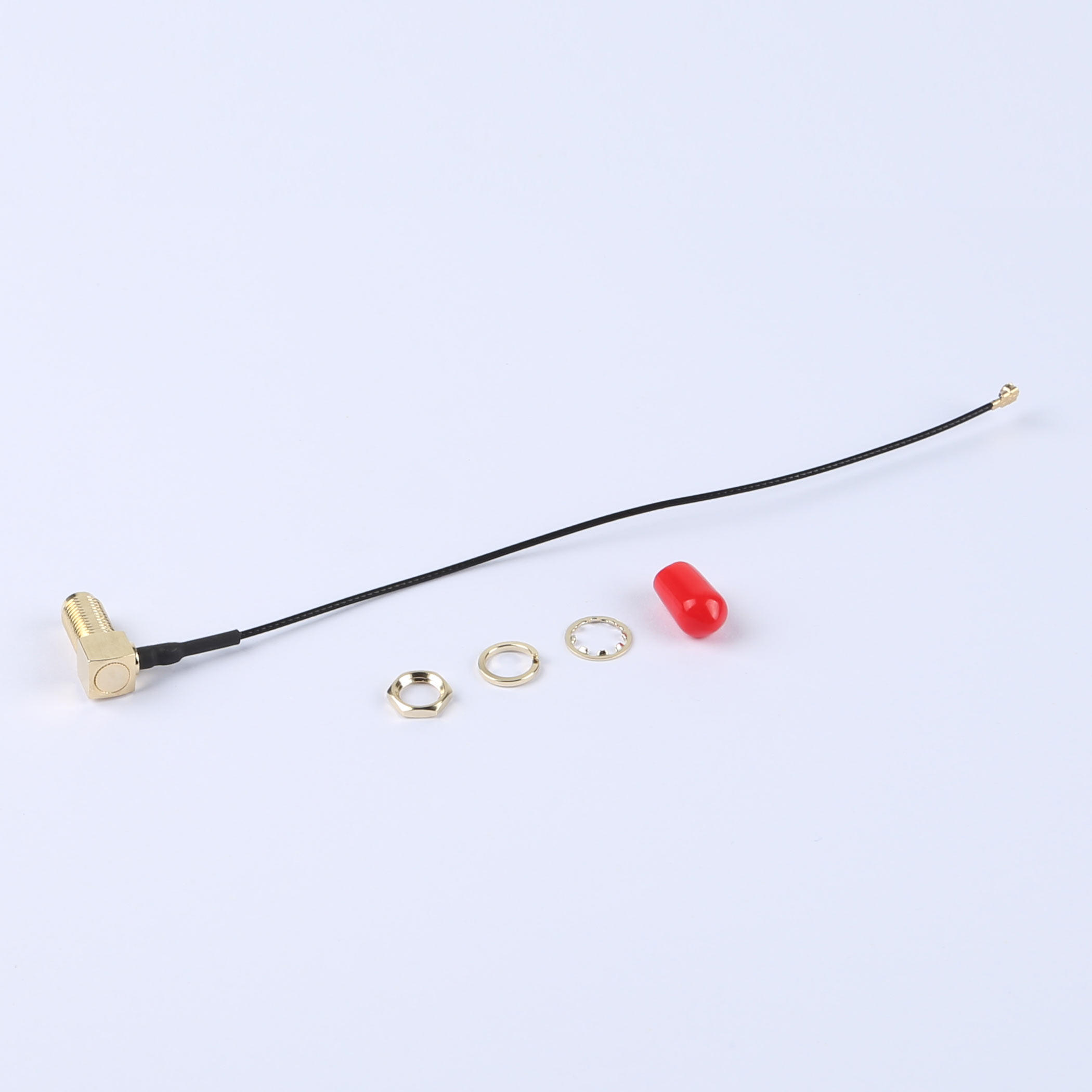

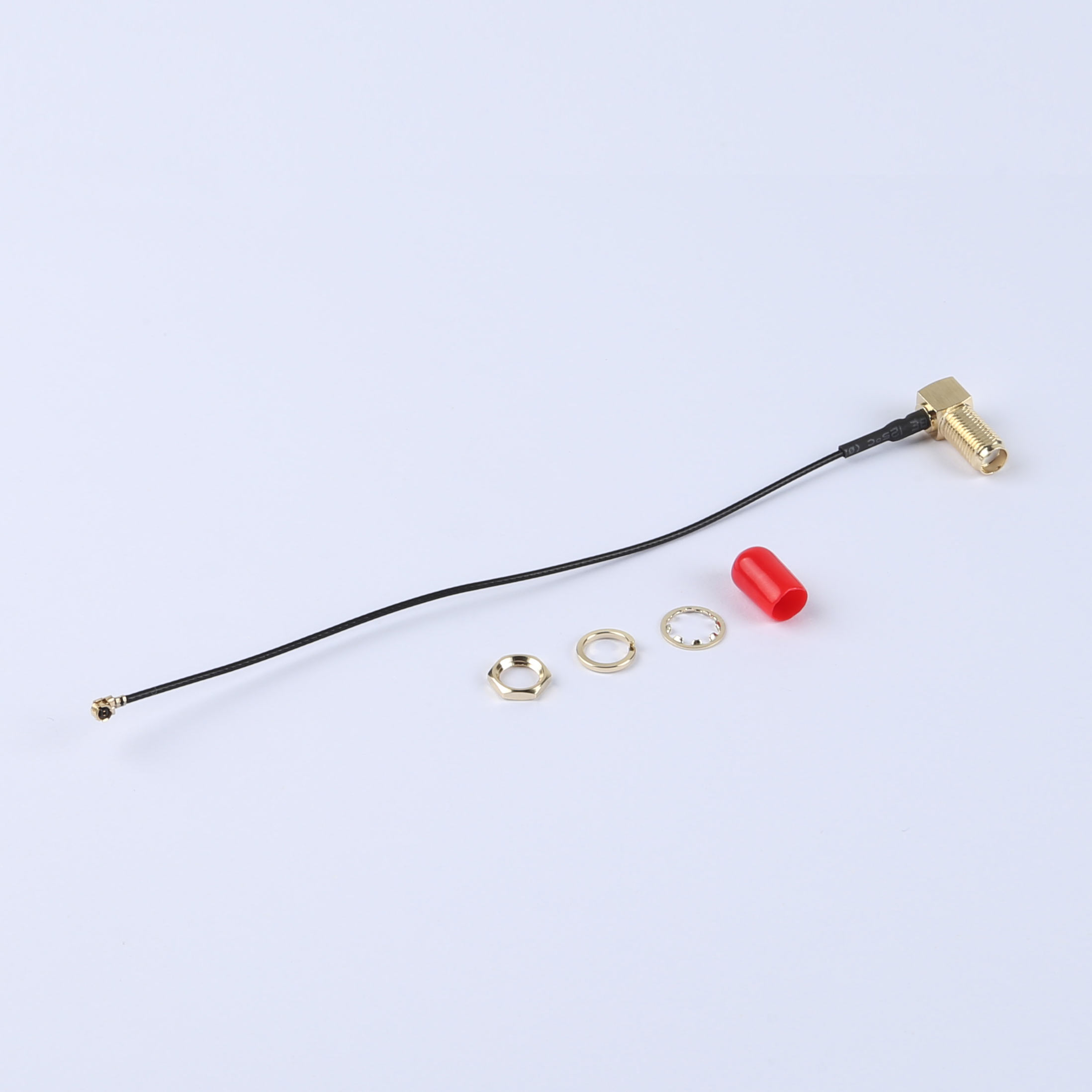

RF Cable Assembly, IPEX to SMA, RF1.13, 140mm, KH-IPEX-SMA-W-140

Voltage Rating: DCV 100V 10MS
Conductance Resistance: 3.0 Ω Max
Insulation Resistance: 20 MΩ Min
Coaxial Cable: RF1.13 Black, OD: 1.10 mm

Inquiry Datasheet

Product Details

Product Description:

1. ELECTRICAL:

●VOLTAGE RATING: The cable has a voltage rating of DC 100V for 10 milliseconds, ensuring safe operation within this range.

●CONDUCTANCE RESISTANCE: The maximum conductance resistance of the cable is 3.0 ohms, minimizing signal loss and optimizing electrical conductivity.

●INSULATION RESISTANCE: The cable has a minimum insulation resistance of 20M ohms, providing effective insulation to prevent leakage or short circuits.

●100% ELECTRICAL TEST: The cable undergoes a comprehensive electrical testing process to ensure its performance and reliability.

●NO OPEN/SHORT, MISWIRING, AND INTERMITTENT FAILURES: The cable is thoroughly inspected to ensure there are no open circuits, short circuits, miswiring, or intermittent failures, guaranteeing its proper functionality.

2. MATERIAL:

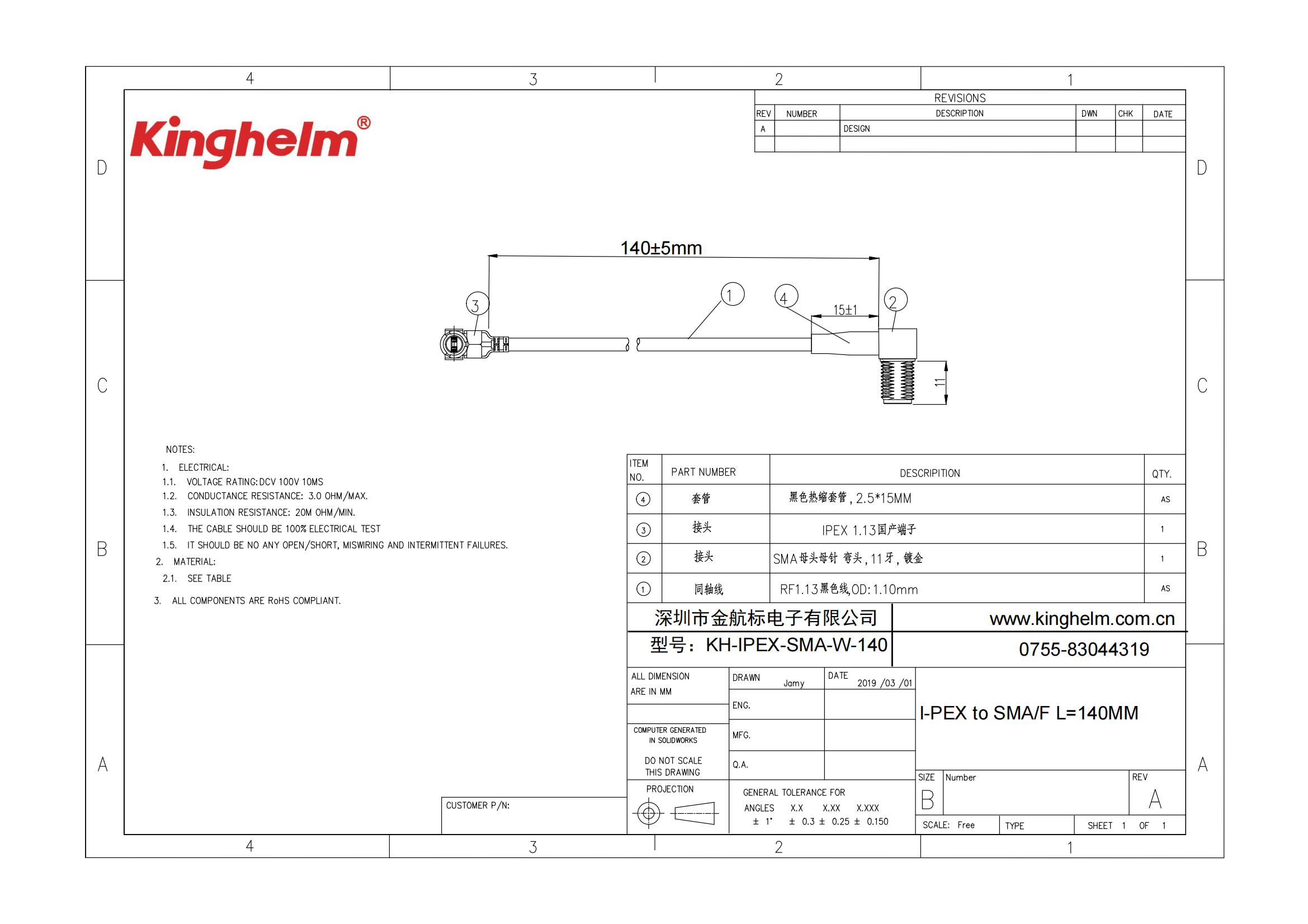

●Please refer to the table for details regarding the materials used in the construction of the cable.

3. ADDITIONAL:

●All components used in the cable are compliant with RoHS regulations, ensuring environmental sustainability and safety.
