In modern electronic devices, DC power sockets play a crucial role as the key component for power connections. The Kinghelm KH-DC-005B-2.0 is a DC power socket with high stability and reliability, widely used in low-voltage, small-power electronic devices. With its excellent design and performance, the Kinghelm KH-DC-005B-2.0 has become one of the most popular choices on the market. This article will provide a detailed introduction to the features and advantages of this model, helping consumers better understand its value in applications.

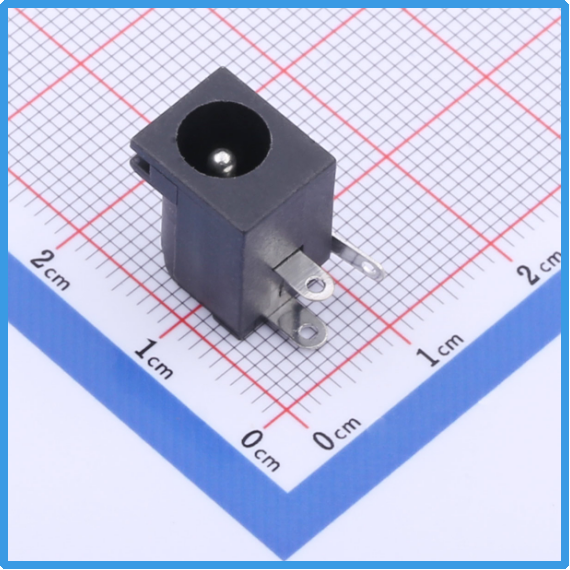

Kinghelm KH-DC-005B-2.0 Product Image

Firstly, the design of the Kinghelm KH-DC-005B-2.0 DC power socket strikes a balance between compactness and stability. It adopts a right-angle (bent) installation method, greatly improving the convenience of installation. For circuit boards that require high-density layout, the bent installation saves space, making the overall design of electronic devices more compact. In practical applications, the bent installation not only simplifies the soldering process but also ensures the socket remains stable during long-term use. Whether for production line assembly or DIY projects, this easy installation method increases efficiency and reduces error rates.

Secondly, the contact design of the KH-DC-005B-2.0 DC power socket is highly precise, with a standard 2.0mm inner diameter and 6.3mm outer diameter. This size ensures stable contact between the plug and socket, preventing power interruptions or device malfunctions caused by poor contact. Additionally, the contact material uses high-conductivity materials and is specially treated for enhanced wear resistance and anti-oxidation, ensuring low contact resistance over long-term use and stable current flow.

In terms of electrical performance, the KH-DC-005B-2.0 DC power socket features an operating voltage of 30V and a rated current of 500mA, making it suitable for providing a stable power supply to small-power electronic devices. This makes the socket particularly suitable for low-voltage electronic devices such as consumer electronics, portable devices, industrial control systems, surveillance systems, and some DIY electronics projects. The voltage and current match ensures that the socket operates without overloading in practical use, reducing the risk of circuit board damage or overheating, thus improving safety and durability.

Furthermore, the KH-DC-005B-2.0 DC power socket is packaged in a bag, ensuring the product remains moisture-free and undamaged during transportation and storage. The product itself weighs only 1.538g, making it lightweight and ideal for bulk purchasing and large-scale production line applications. The bag packaging also facilitates storage and management, effectively avoiding contamination or damage during unpacking. This packaging method meets the logistical needs of modern electronic components, particularly suitable for mass production and fast delivery.

Kinghelm, a well-established brand in the electronic components industry, adheres to high manufacturing standards and rigorous quality control. The KH-DC-005B-2.0 DC power socket is a prime example of this craftsmanship, featuring excellent performance and stable quality, making it highly favored by consumers and engineers. For businesses involved in power connections or developing low-power electronic devices, this socket is undoubtedly a reliable choice. Its reliability, stability, and convenience make it an ideal component in various devices and products.

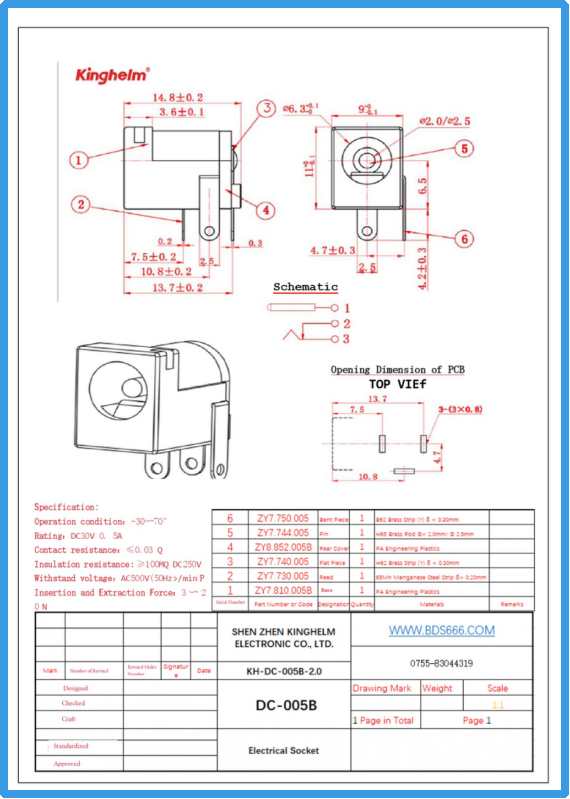

Kinghelm KH-DC-005B-2.0 Specification

Overall, the Kinghelm KH-DC-005B-2.0 is a stable, easy-to-install, and cost-effective DC power socket. Its compact design, excellent electrical performance, and lightweight nature make it widely used in modern electronic devices, particularly in scenarios where space is limited and high stability is required. For electronic manufacturers, designers, and DIY enthusiasts, choosing the Kinghelm KH-DC-005B-2.0 as a power interface will greatly enhance the reliability and performance of their devices.

About Kinghelm

Shenzhen Kinghelm Electronics Co., Ltd.（www.kinghelm.net）has technical backbones from Tsinghua University and UESTC, and has introduced overseas returnee professionals. Kinghelm is able to develop highly reliable and high-performance antenna and connector products.KH series products of "Kinghelm" brand include Beidou/GPS antennas, RF adapter connectors, plug connector, electrical data connectors, terminals, and customized vehicle harnesses, industrial / medical connectors, and special antenna connectors."Kinghelm connects world", Kinghelm has grown with the development of China's Beidou industry. Starting from supplying Beidou/GPS dual mode antennas, IPEX terminals, and RF adapter cables for automotive manufacturers, Kinghelm has continuously developed products. Currently, it has a series of WiFi, Bluetooth, NB-loT, LoRa, Zigbee, UWB, and GSM antennas, RFID tags, RF adapter cables, standard microwave antennas, vehicle grade SMA, SMB, FAKRA holders, coaxial cables, and can customize non-standard antenna connectors based on customer drawings or samples.
