Wire-to-Board Connector, 2mm Pitch, 2x5P, Vertical SMT, KH-A2009-2X05AB Wire-to-Board Connector, 2mm Pitch, 2x5P, Vertical SMT, KH-A2009-2X05AB Wire-to-Board Connector, 2mm Pitch, 2x5P, Vertical SMT, KH-A2009-2X05AB

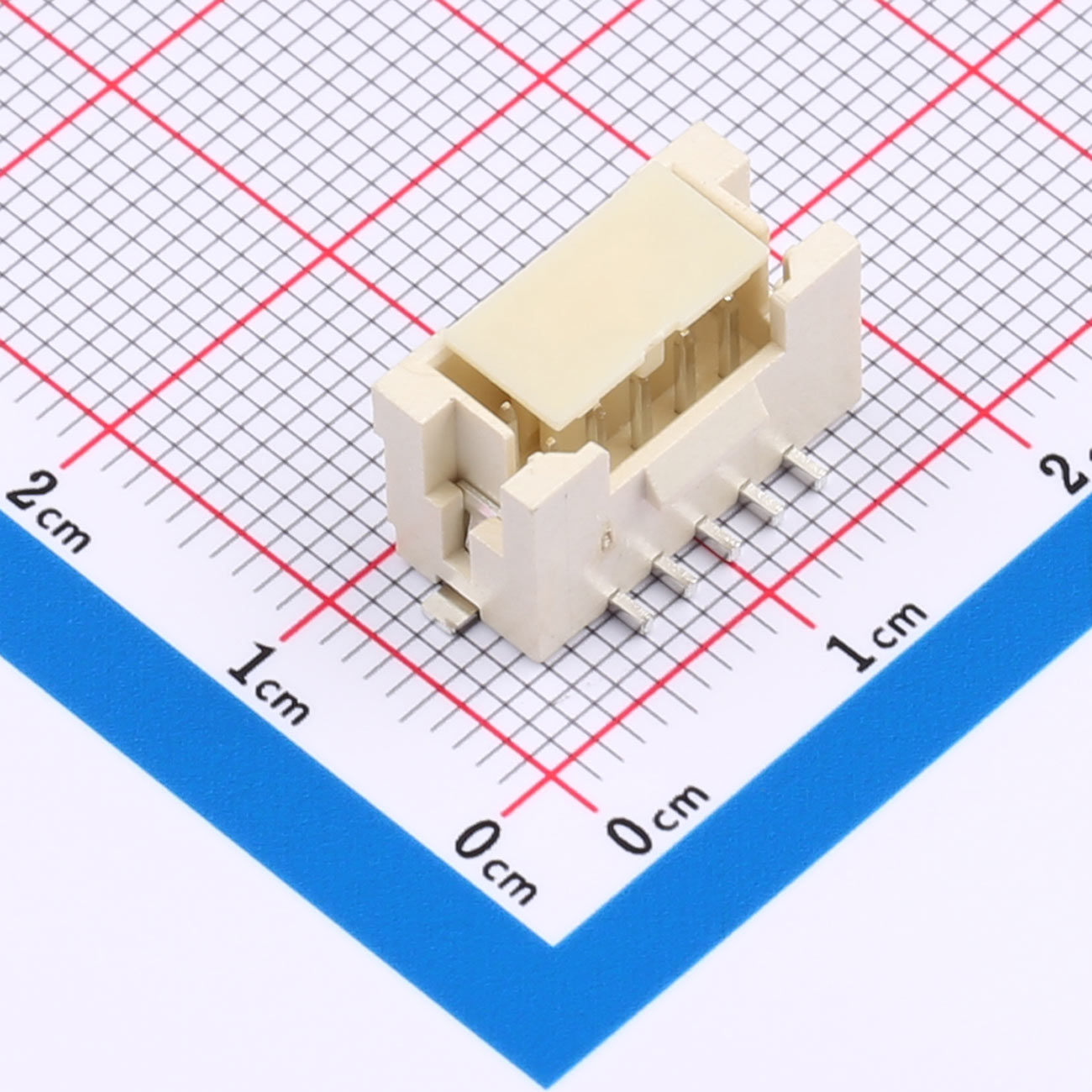

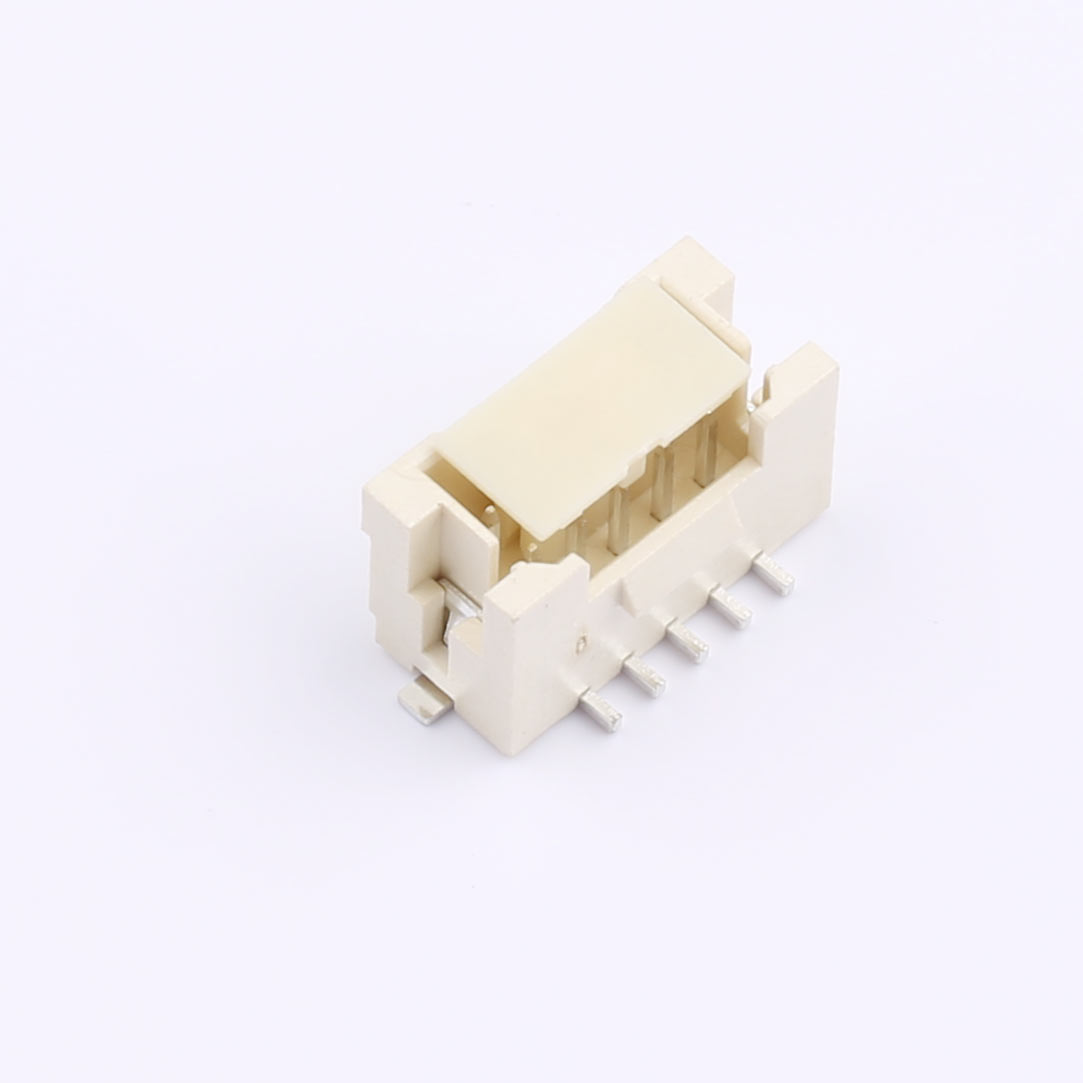

Wire-to-Board Connector, 2mm Pitch, 2x5P, Vertical SMT, KH-A2009-2X05AB
Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Minel
Inquiry Datasheet

Product Details

Product Features
● 2.00mm pitch
● 2x5 pin configuration
● 10 pins total
● Dual-row layout
● Vertical mounting type
● SMD package

Product Benefits
● Ideal for compact signal transmission
● Clear row separation for easy tracing
● Small footprint fits micro PCBs
● Vertical SMT suits stackable designs

Product Applications
● Control signal headers
● Portable sensor systems
● Data sync lines


Prev：Wire-to-Board Connector, 2mm Pitch, 2x6P, Vertical SMT, KH-A2009-2X06AB
Next：Wire-to-Board Connector, 2mm Pitch, 2x4P, Vertical SMT, KH-A2009-2X04AB
