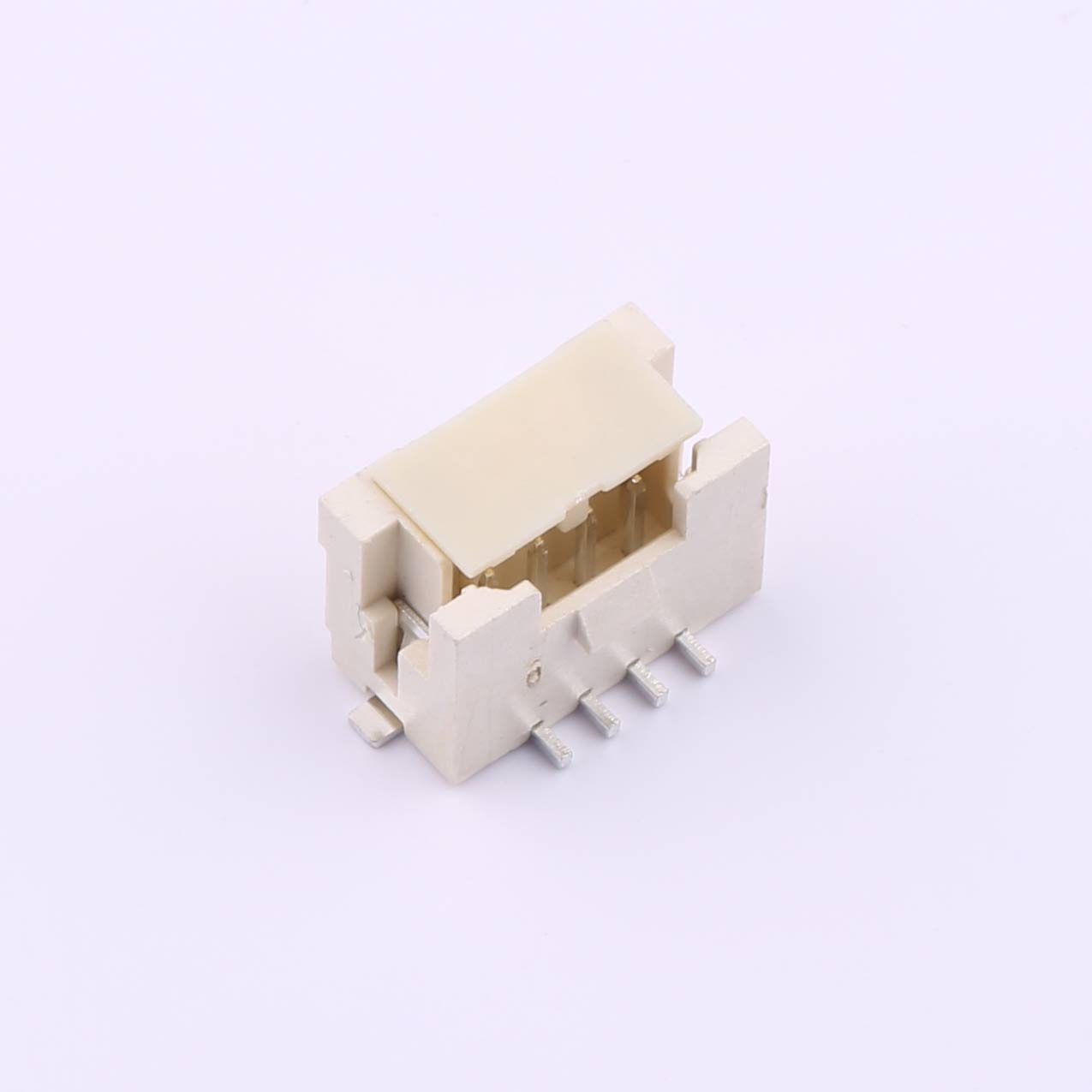

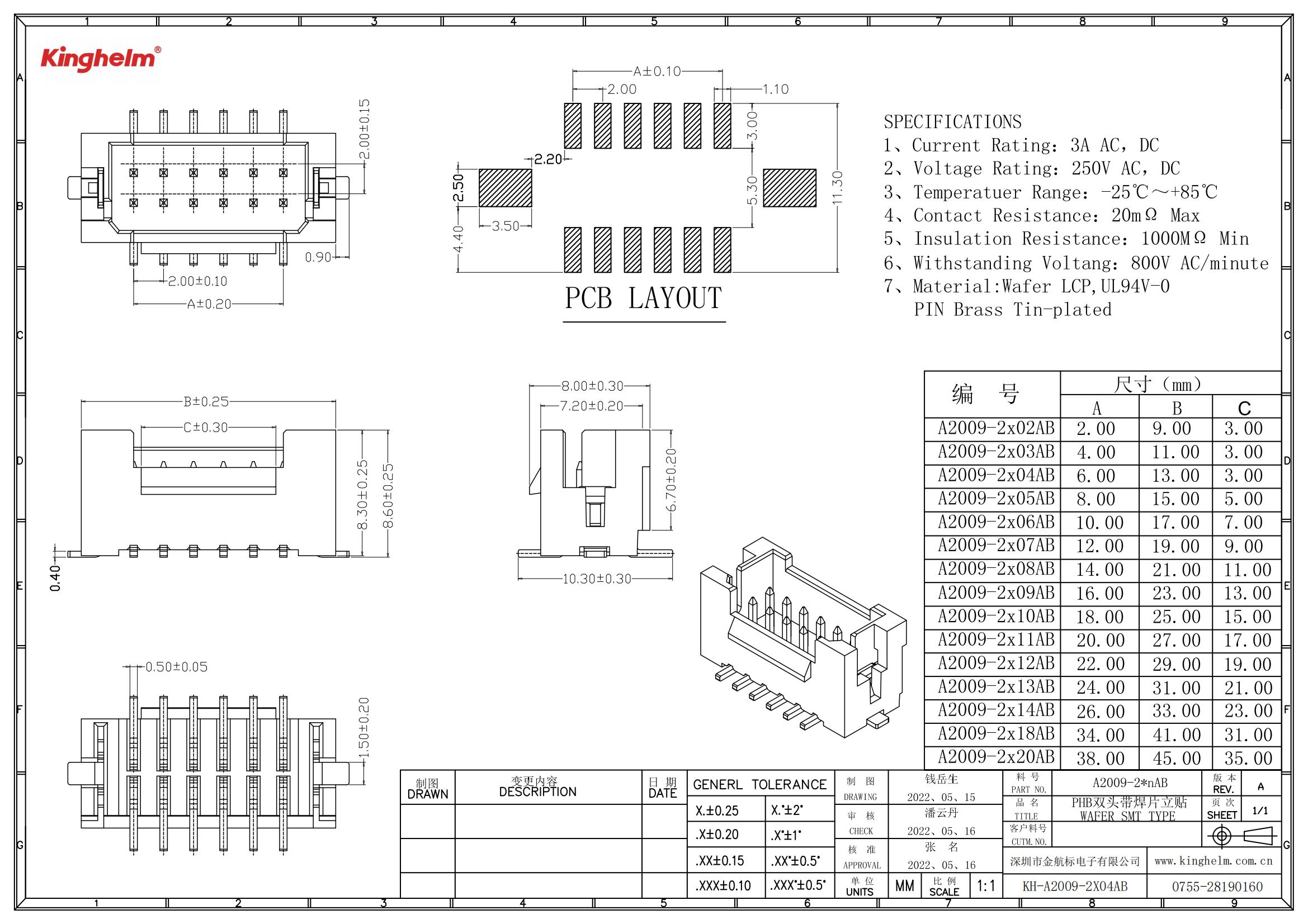

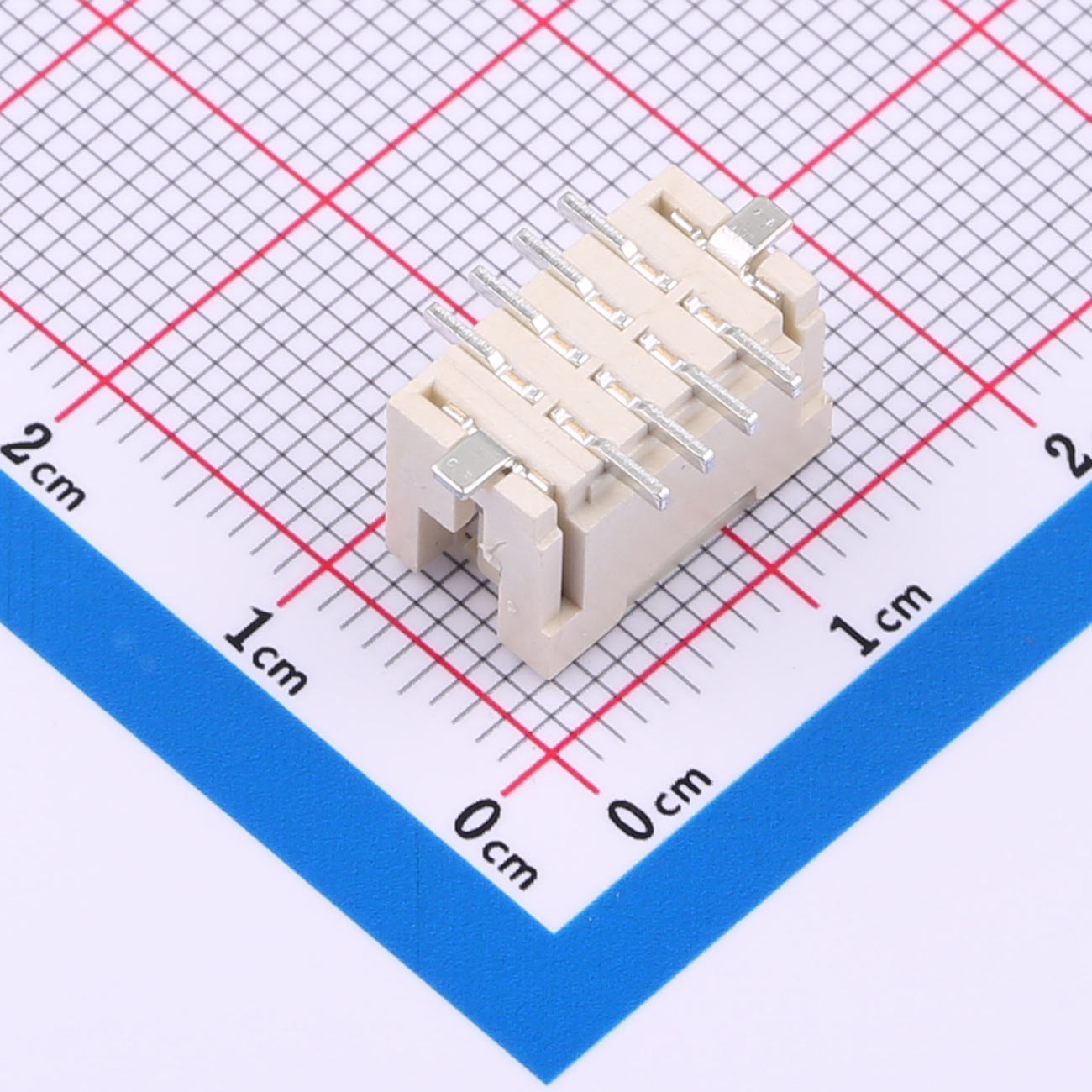

Wire-to-Board Connector, 2mm Pitch, 2x4P, Vertical SMT, KH-A2009-2X04AB
Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.00mm pitch
● 2x4 pin configuration
● 8 pins total
● Dual-row layout
● Vertical mounting type
● SMD package
Product Benefits
● Minimal pin count for focused connections
● Dual-row ensures sturdy interface
● Vertical SMD reduces layout complexity
● Easy to solder and replace
Product Applications
● Power-signal split interfaces
● Button/LED connectors
● Compact relay modules
