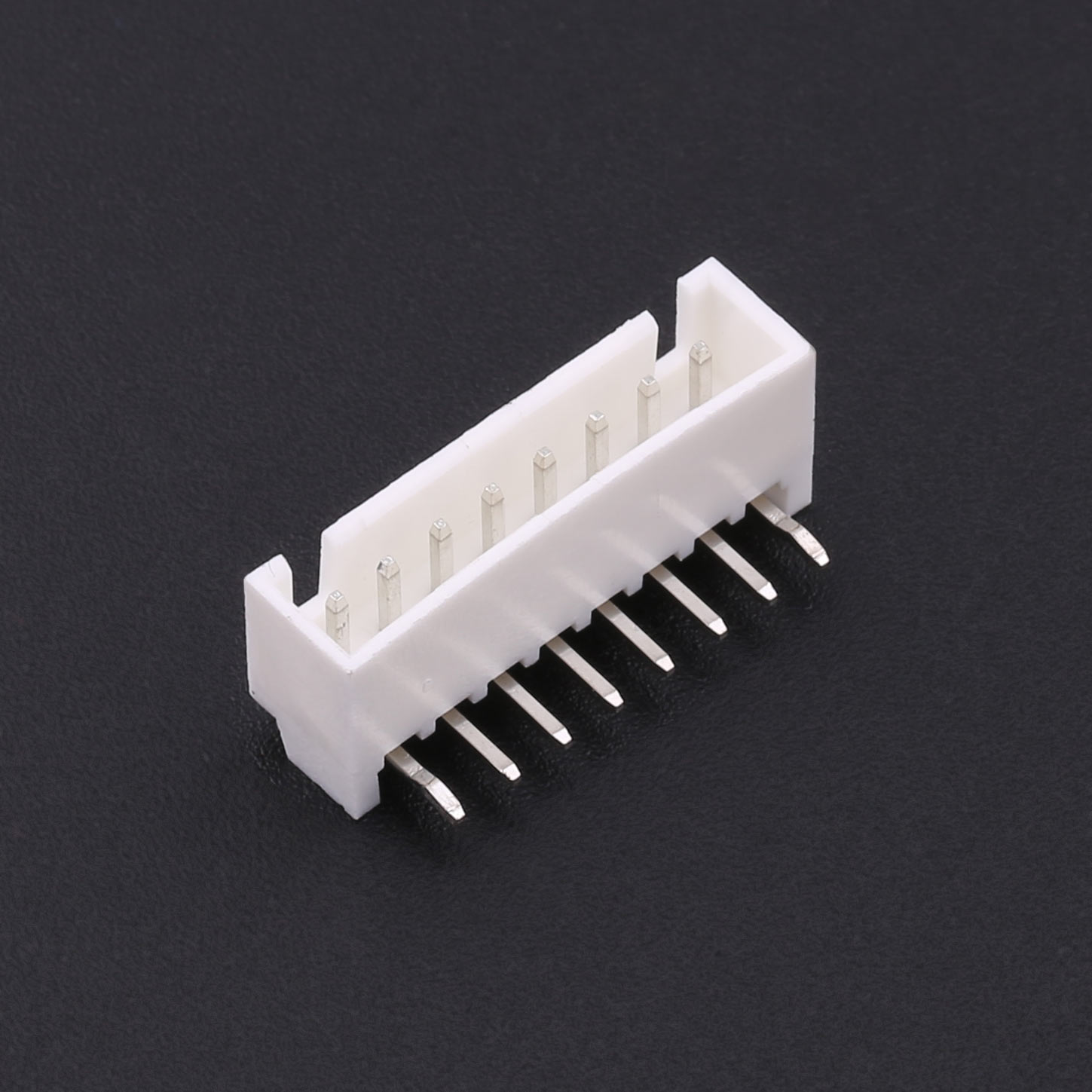

2.54mm Pitch Wire-to-Board Connector, 1x8P, Locating Angled Pin, KH-A2504-R-08AWD

Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ ~ +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

Product Details

Product Features
● 2.54mm pitch for secure wire-to-board connection
● 1x8P configuration for compact design
● Angled locating pin for secure positioning
● DIP type for easy PCB mounting
● 3A AC/DC current rating
● 250V AC/DC voltage rating
● Temperature range from -25℃ to +85℃
● 20mΩ Max contact resistance
● 1000MΩ Min insulation resistance

Product Benefits
● Reliable and stable connection
● Compact form factor
● Suitable for high-power applications
● Wide operating temperature tolerance
● Low contact resistance for efficiency
● Strong insulation for electrical protection

Product Applications
● Consumer electronics
● Automotive systems
● Industrial machinery
● Power distribution
● Household appliances
● Medical equipment
