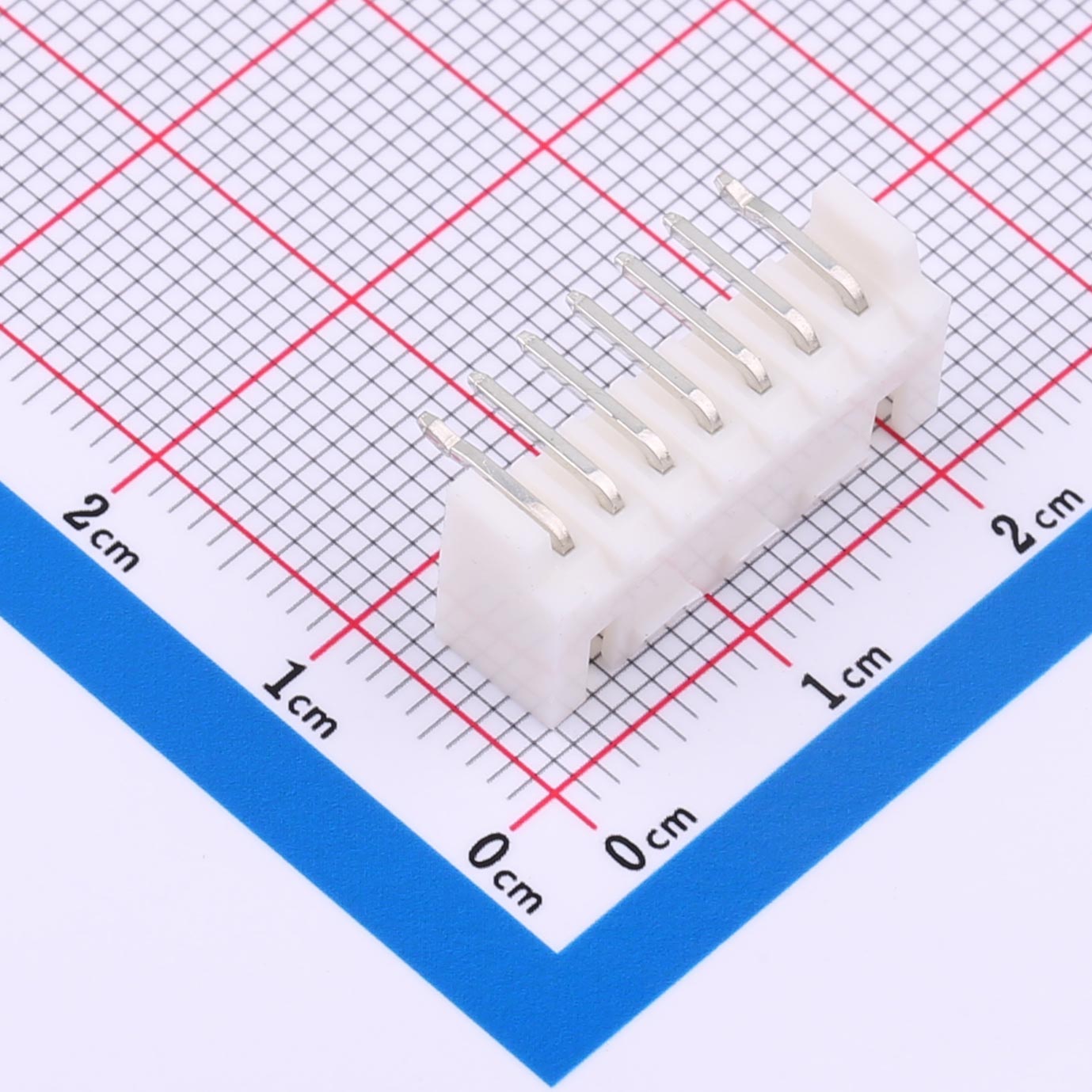

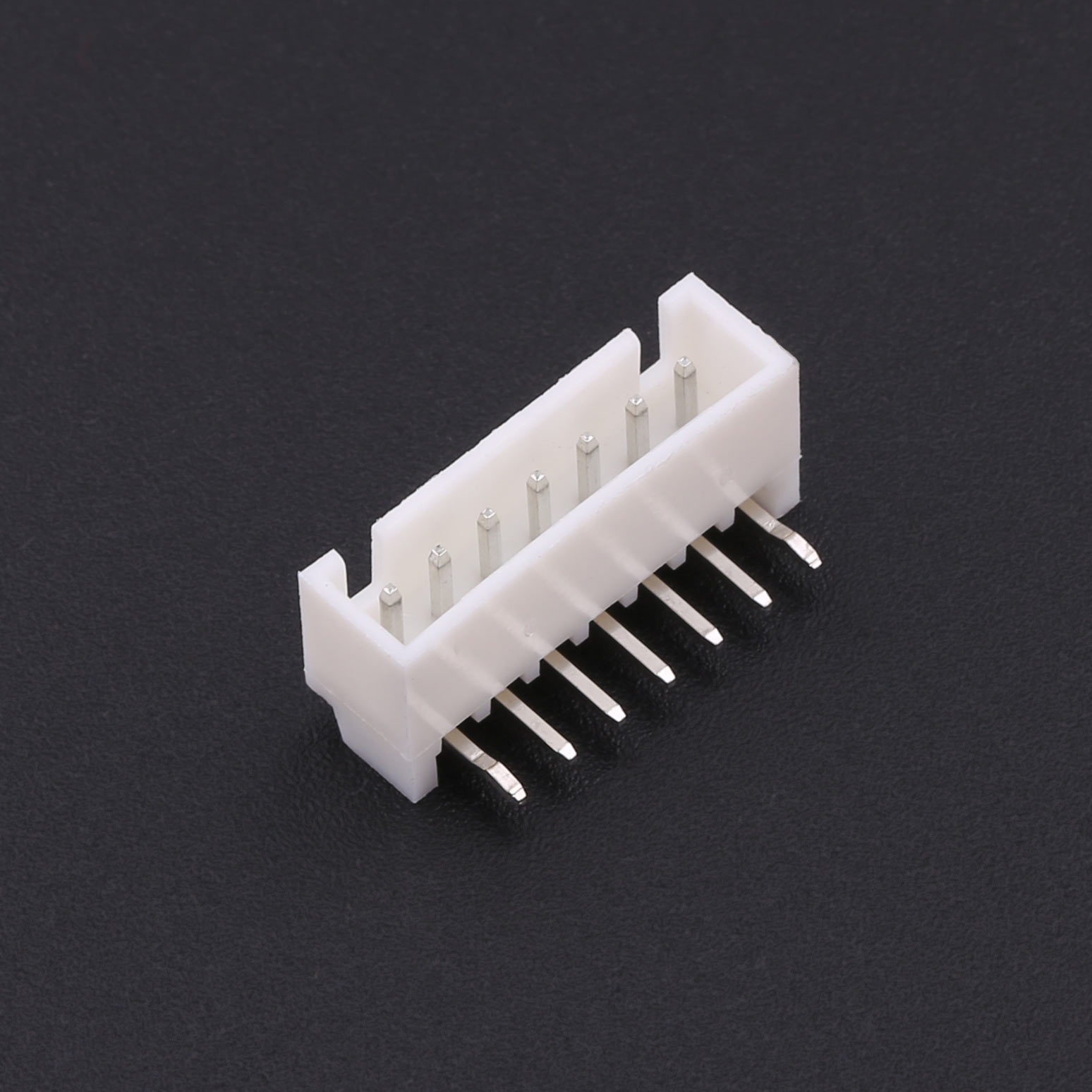

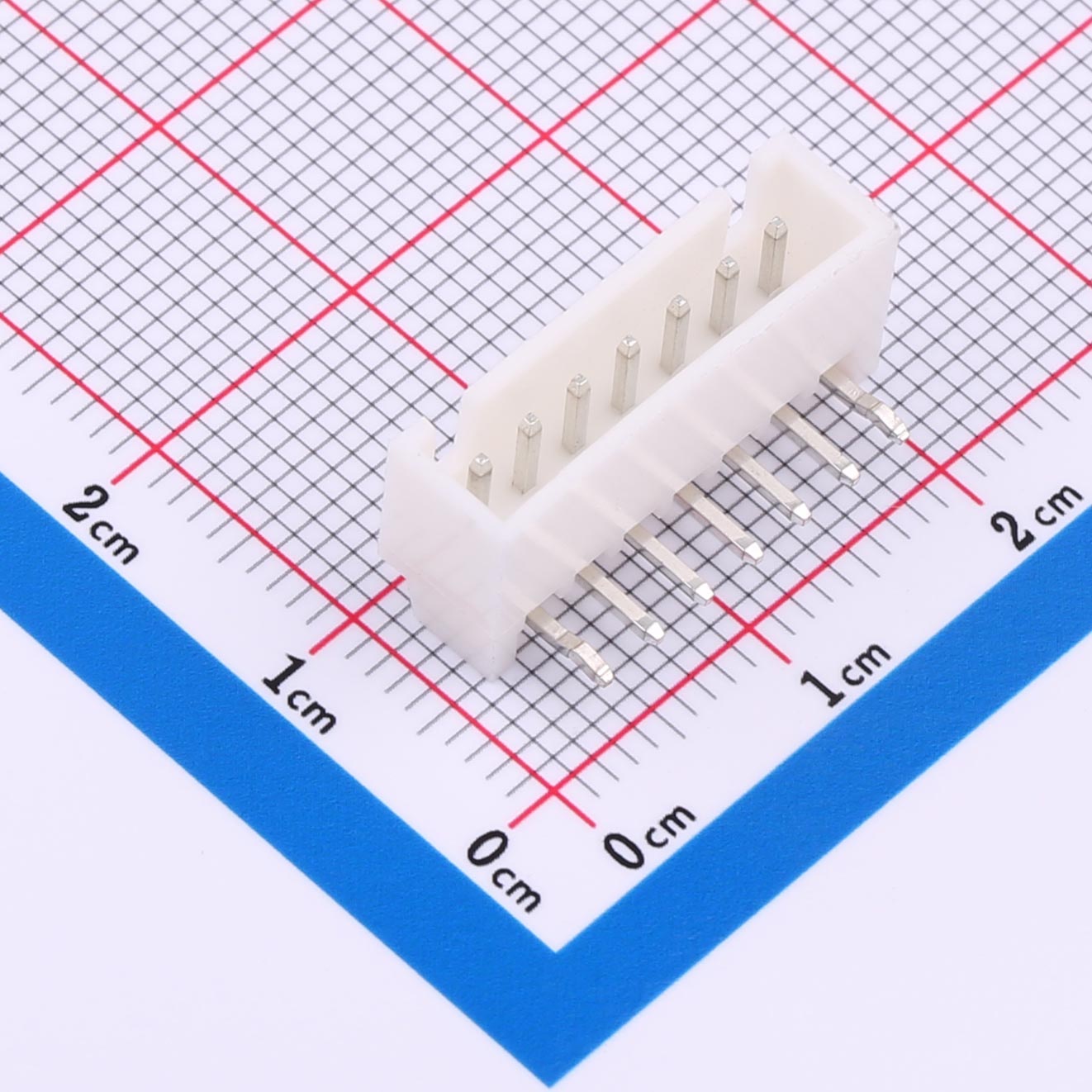

2.54mm Pitch Wire-to-Board Connector, 1x7P, Locating Angled Pin, KH-A2504-R-07AWD

2.54mm Pitch Wire-to-Board Connector, 1x7P, Locating Angled Pin, KH-A2504-R-07AWD

Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ ~ +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

Inquiry Datasheet

Product Details

Product Features
● 2.54mm pitch for robust wire-to-board connection
● 1x7P configuration for optimized space usage
● Angled locating pin for alignment accuracy
● DIP type for easy mounting on PCB
● 3A AC/DC current rating
● 250V AC/DC voltage rating
● Operational temperature from -25℃ to +85℃
● 20mΩ Max contact resistance
● 1000MΩ Min insulation resistance

Product Benefits
● Stable and secure connections
● Compact and efficient design
● Supports high current and voltage needs
● Wide temperature range compatibility
● Low contact resistance for better power transfer
● Enhanced insulation resistance for safety

Product Applications
● Consumer electronics
● Automotive control systems
● Industrial automation
● Power supply solutions
● Home appliances
● Medical devices
