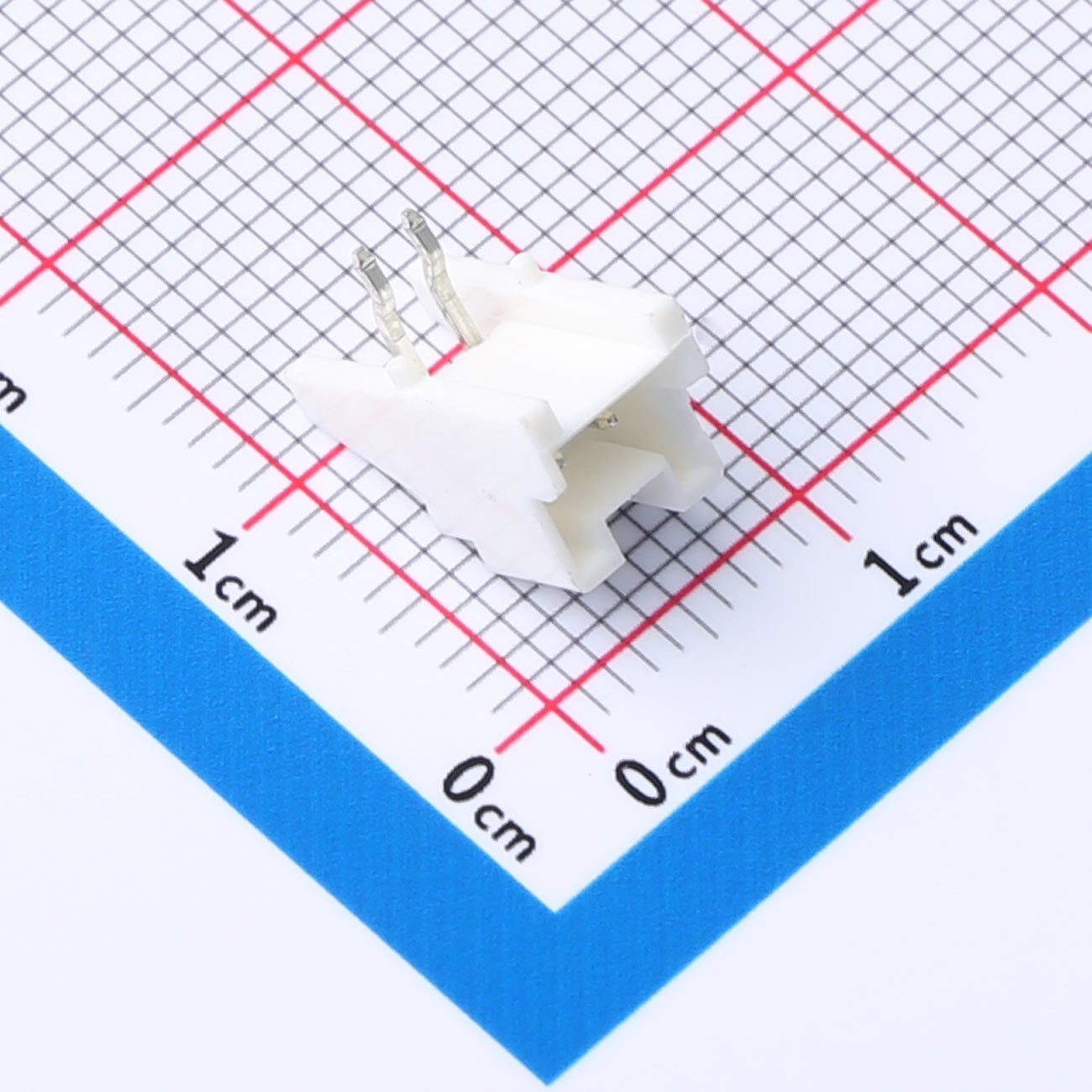

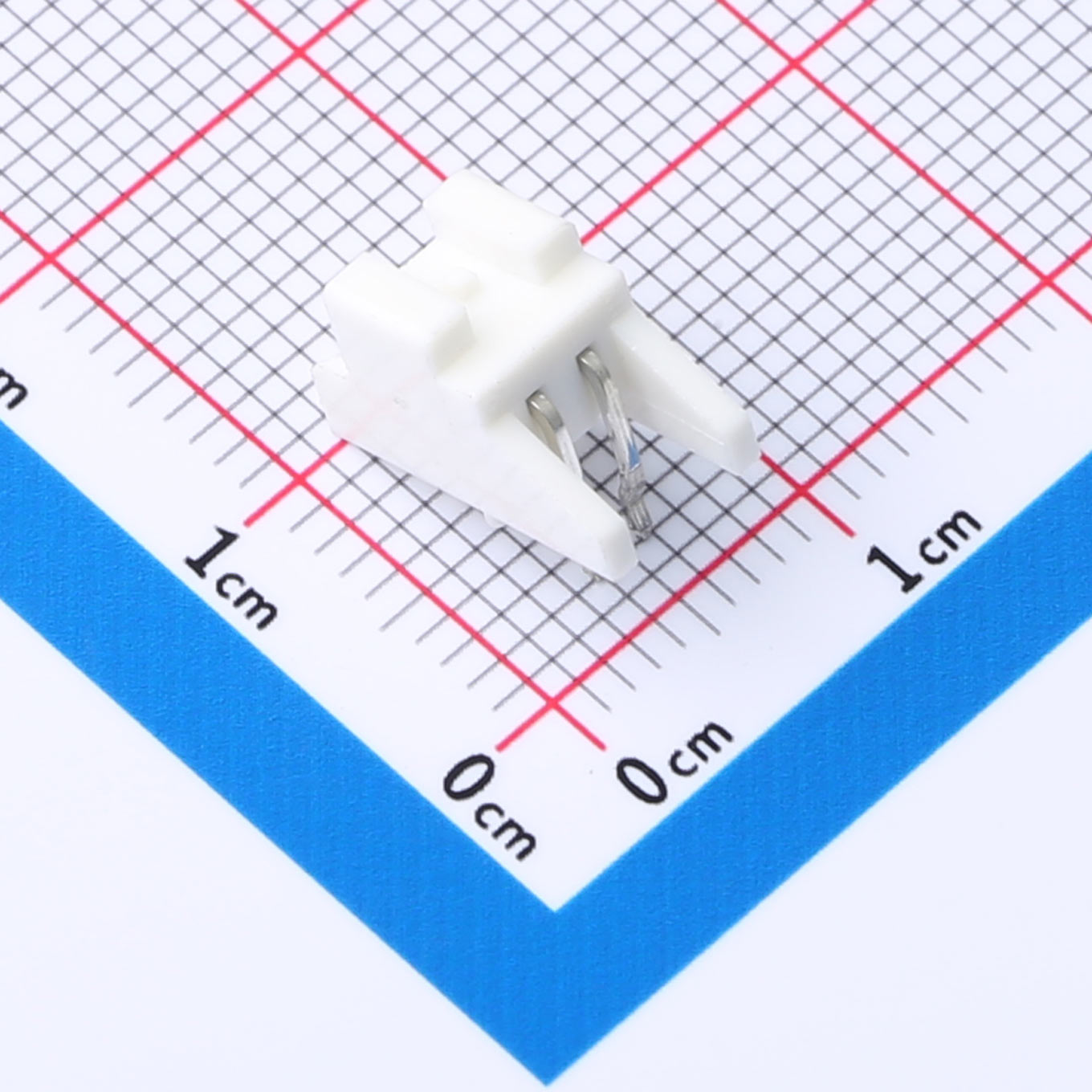

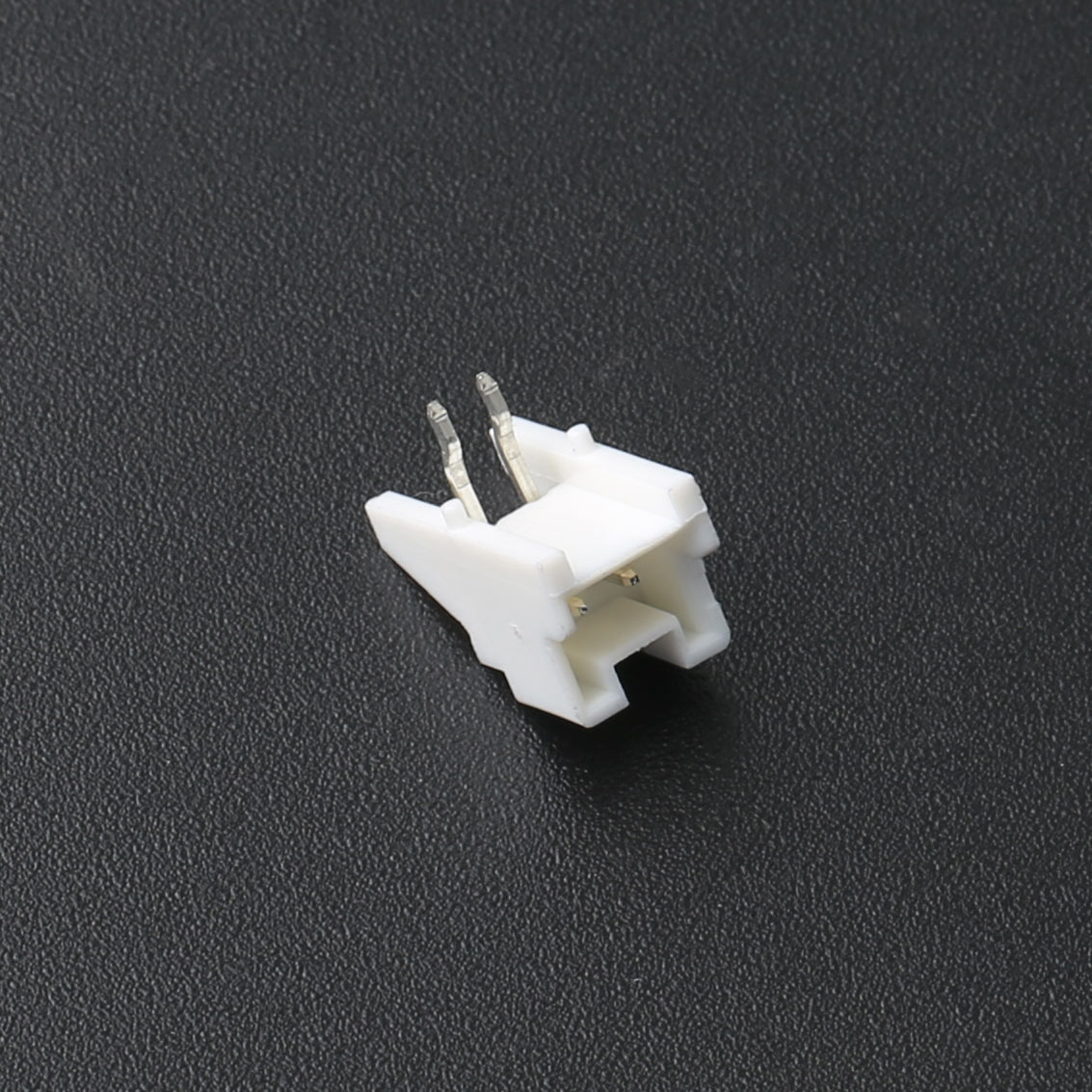

2mm Pitch Wire-to-Board Connector, 1x2P, Locating Angled Pin, KH-A2026-02AWD

2mm Pitch Wire-to-Board Connector, 1x2P, Locating Angled Pin, KH-A2026-02AWD

Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

Inquiry Datasheet

Product Details

Product Features
● 2.00mm pitch, 1x2P right-angle header
● Through-hole, bent-pin structure
● Tin-plated contact terminals
● Minimal pin count for basic signaling
● Fits PA series sockets

Product Benefits
● Ideal for ON/OFF or reset functions
● Simplest wiring for binary circuits
● Minimal space usage on PCB edge
● Easy manual soldering
● Stable connection for small devices

Product Applications
● Reset switch headers
● Logic-level signal pins
● Tiny interface boards
● DIY low-current applications
● 2-pin jumper configurations
