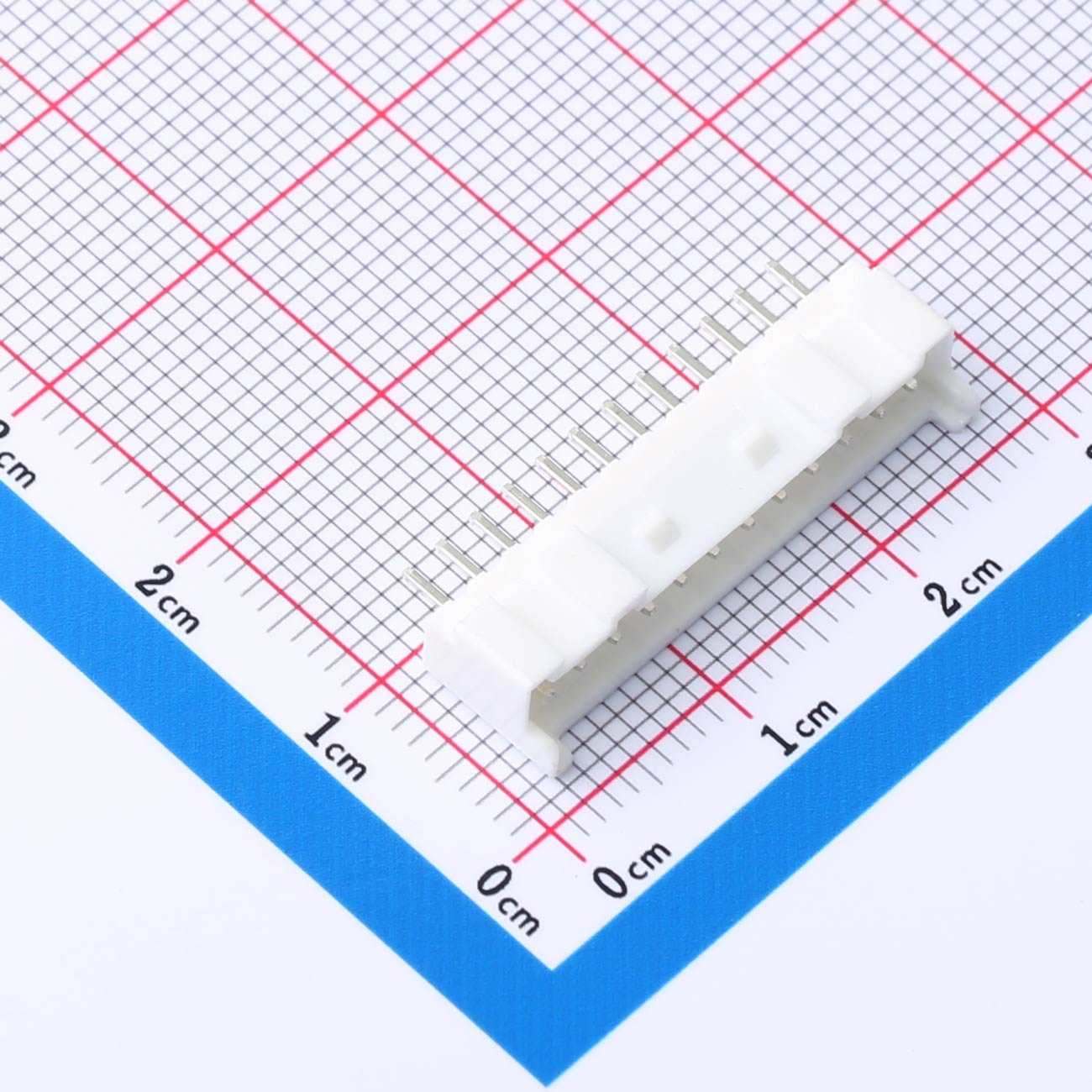

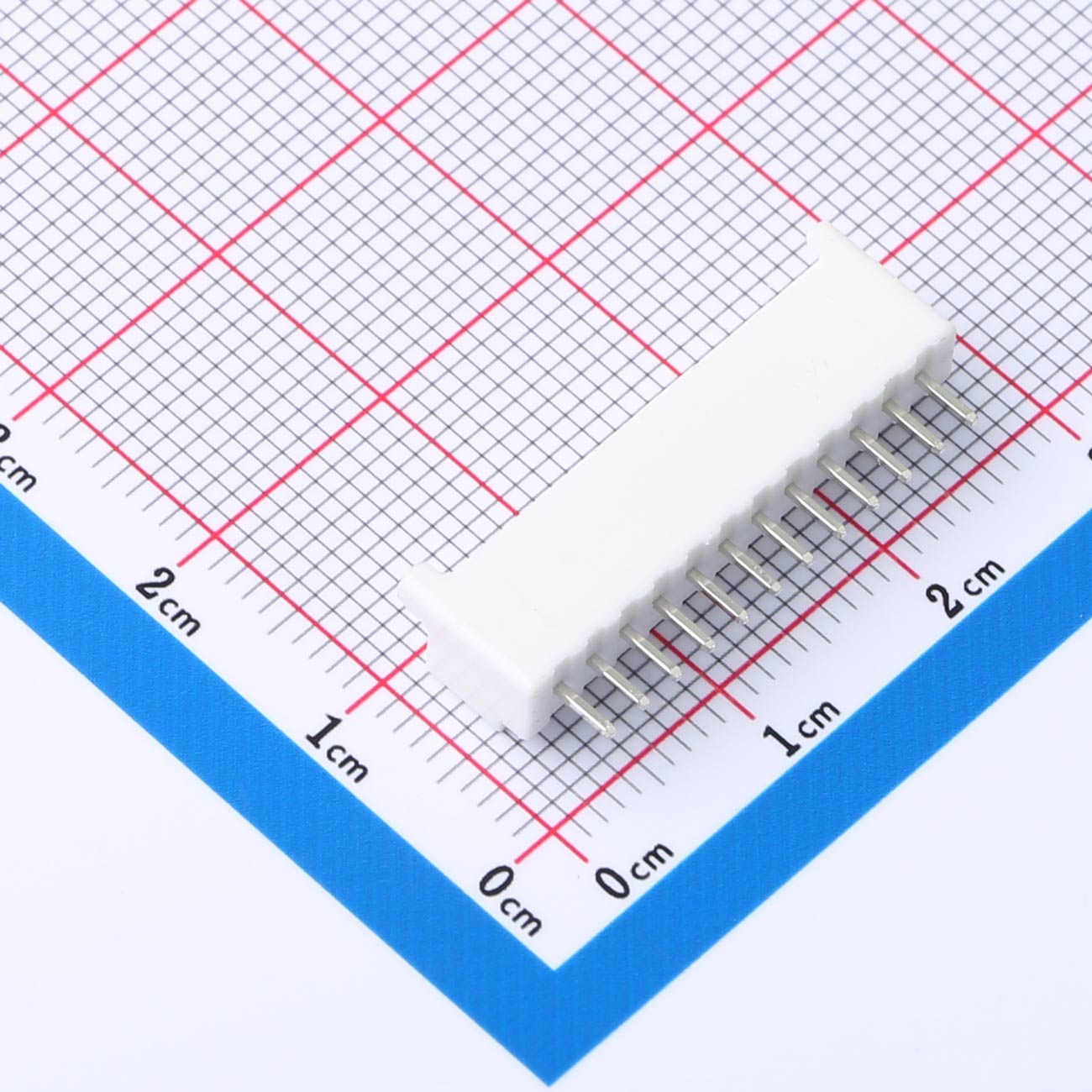

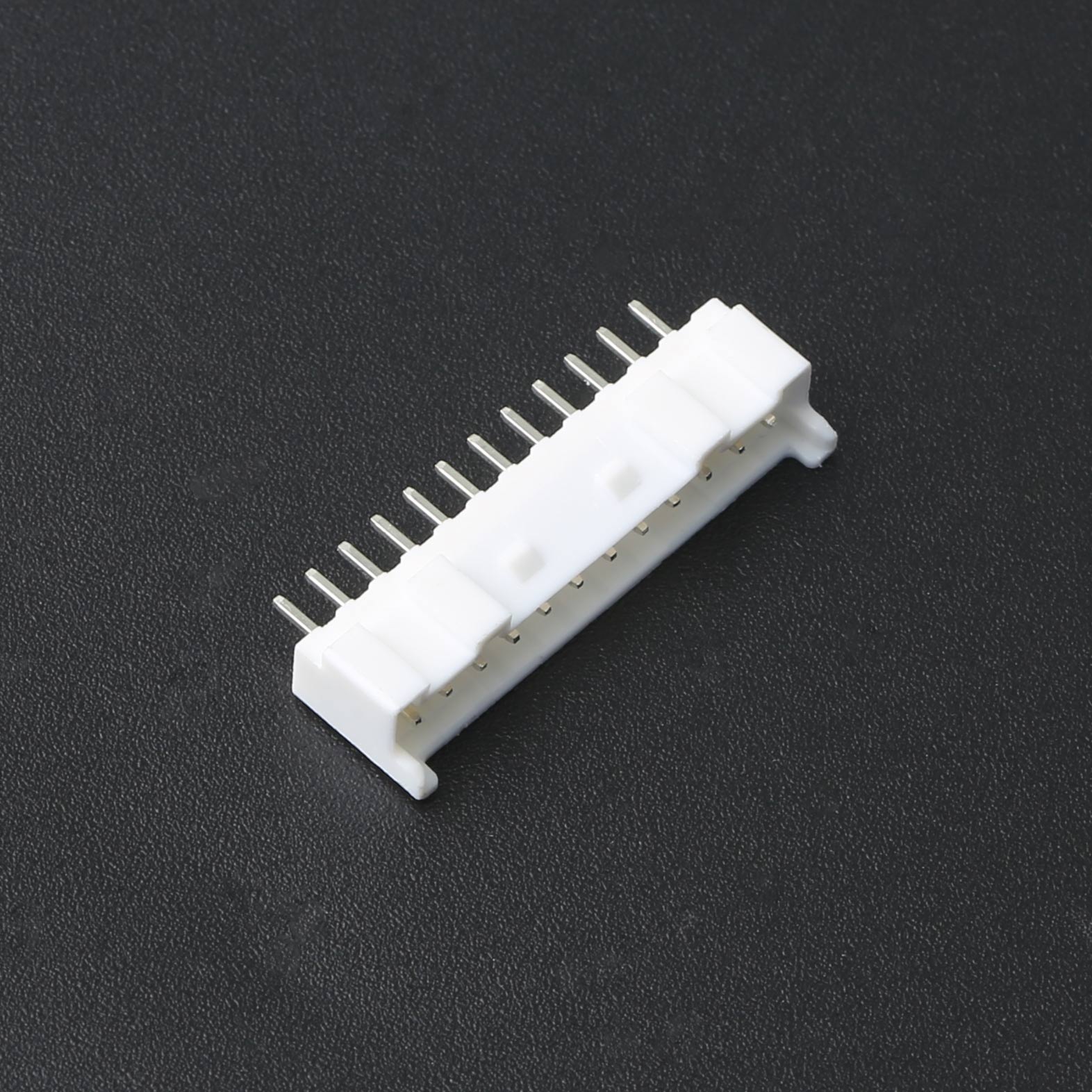

2mm Pitch Wire-to-Board Connector, 1x12P, Straight Pin, KH-A2026-12A

2mm Pitch Wire-to-Board Connector, 1x12P, Straight Pin, KH-A2026-12A

Current Rating: 3A AC/DC
Voltage Rating: 100V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

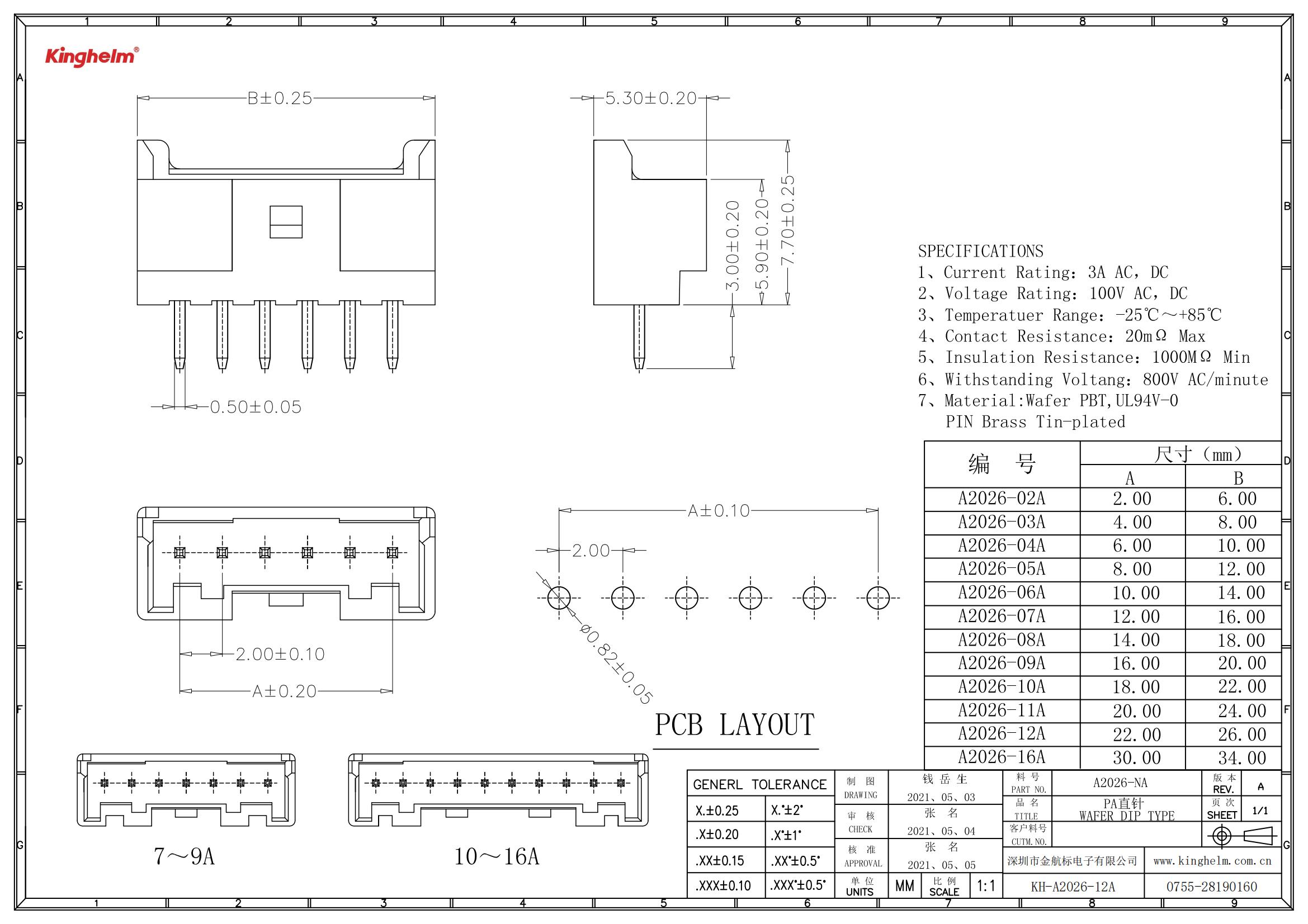

Inquiry Datasheet

Product Details

Product Features
● 2.00mm pitch, single-row 1x12P structure
● Straight pin type for vertical PCB mounting
● Through-hole configuration for secure installation
● Brass contacts with tin plating for conductivity
● Compatible with PA series housings

Product Benefits
● Provides reliable vertical connections
● Easy alignment and direct soldering
● Stable performance in signal transmission
● Lightweight, ideal for compact modules
● Strong contact integrity over time

Product Applications
● Power and signal interface boards
● Consumer electronics modules
● Embedded system connections
● Vertical input/output ports
● General-purpose PCB assemblies
