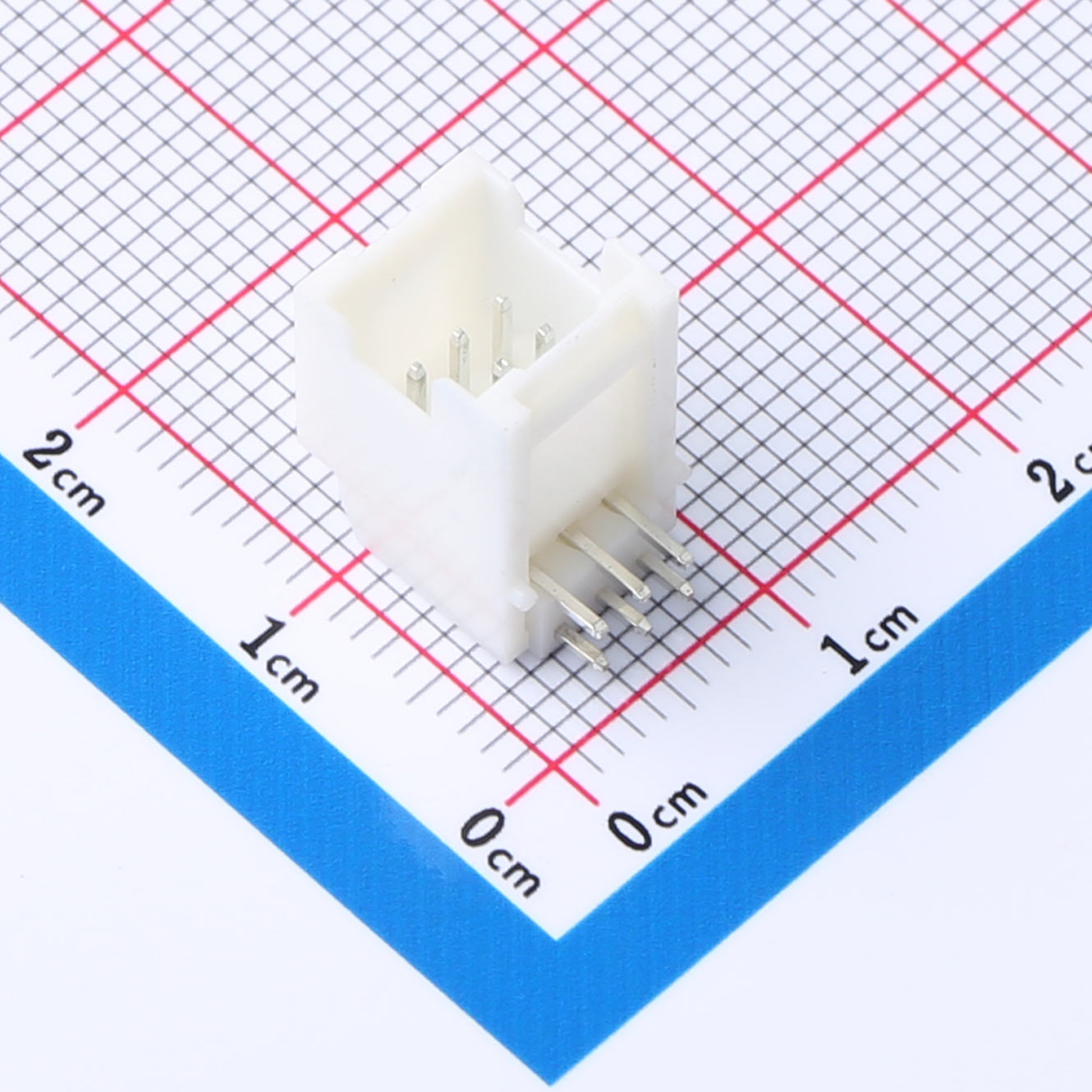

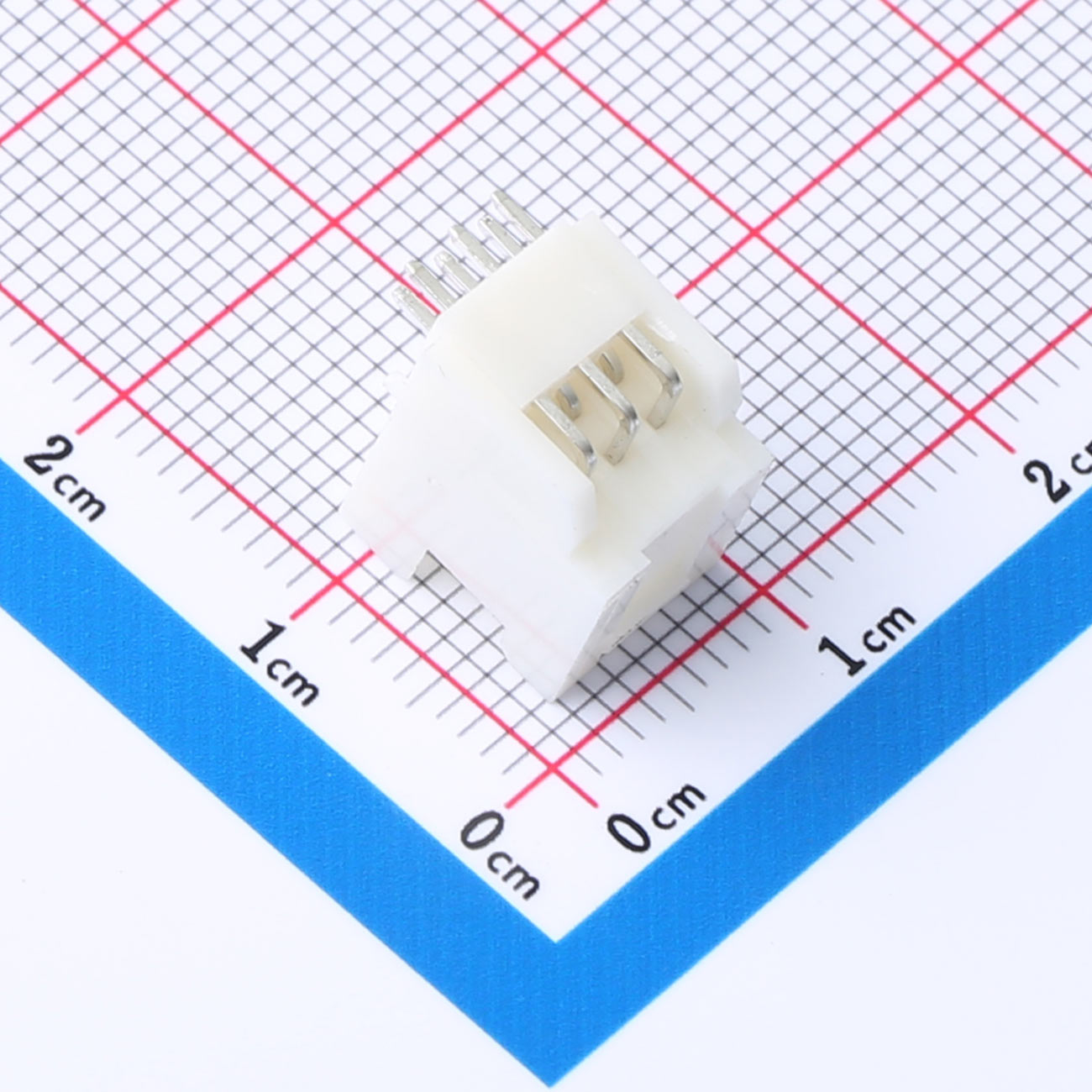

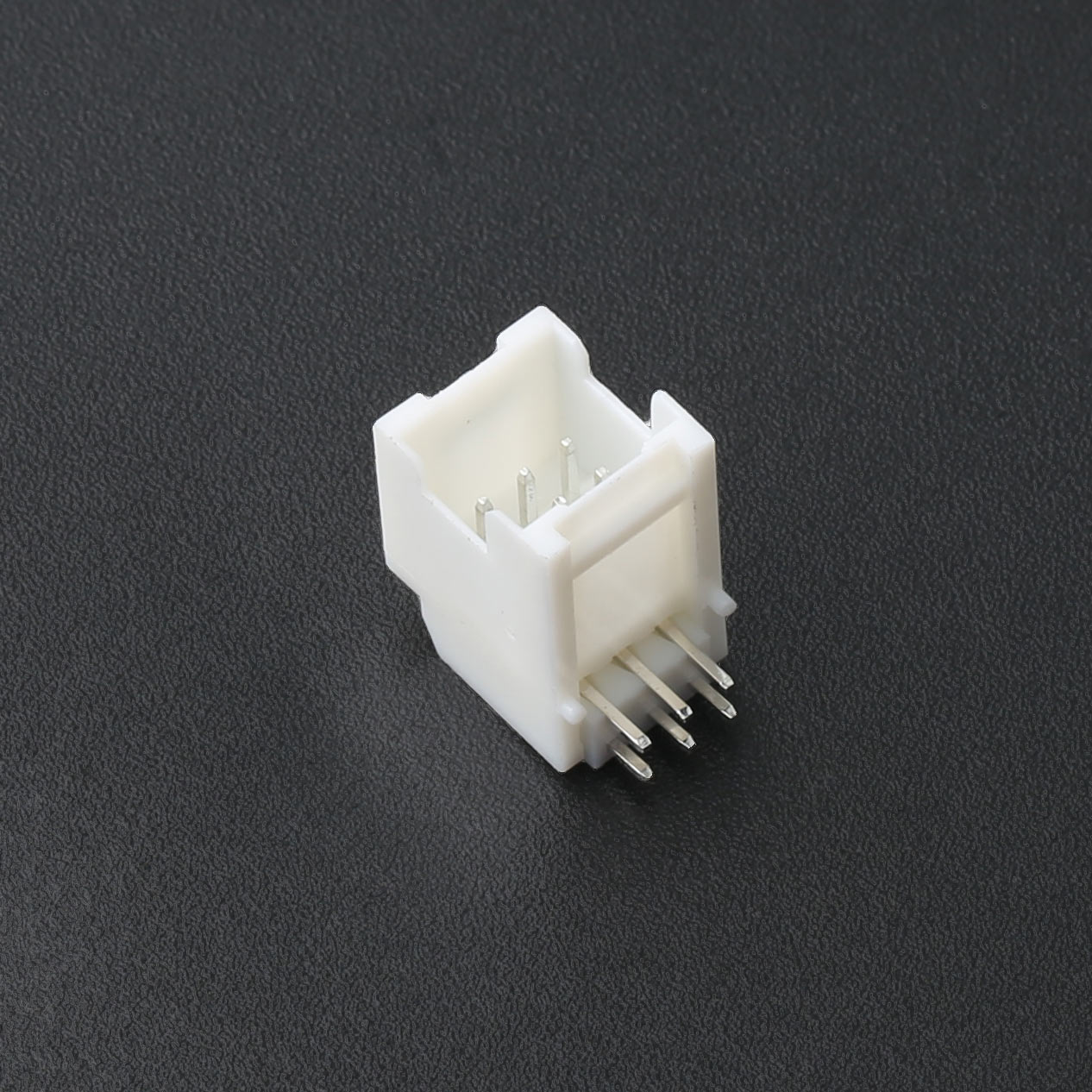

2mm Pitch Wire-to-Board Connector, 3-Pin 2-Row Angled Pin, KH-A2015-2X03AW

2mm Pitch Wire-to-Board Connector, 3-Pin 2-Row Angled Pin, KH-A2015-2X03AW

Current Rating: 3A (AC/DC)
Voltage Rating: 250V (AC/DC)
Temperature Range: -25°C to +85°C
Contact Resistance: ≤ 20 mΩ
Insulation Resistance: ≥ 1000 MΩ

Inquiry Datasheet

Product Details

Product Features
● 2x3 pin layout, total 6 pins
● 2.00mm spacing
● Through-hole, bent pins
● Durable structure
● Bag packaging

Product Benefits
● Great for minimal interfaces
● Strong solder retention
● Fits tight layout requirements
● Low-cost solution

Product Applications
● Tiny sensor boards
● Data transmission lines
● DIY electronics kits
