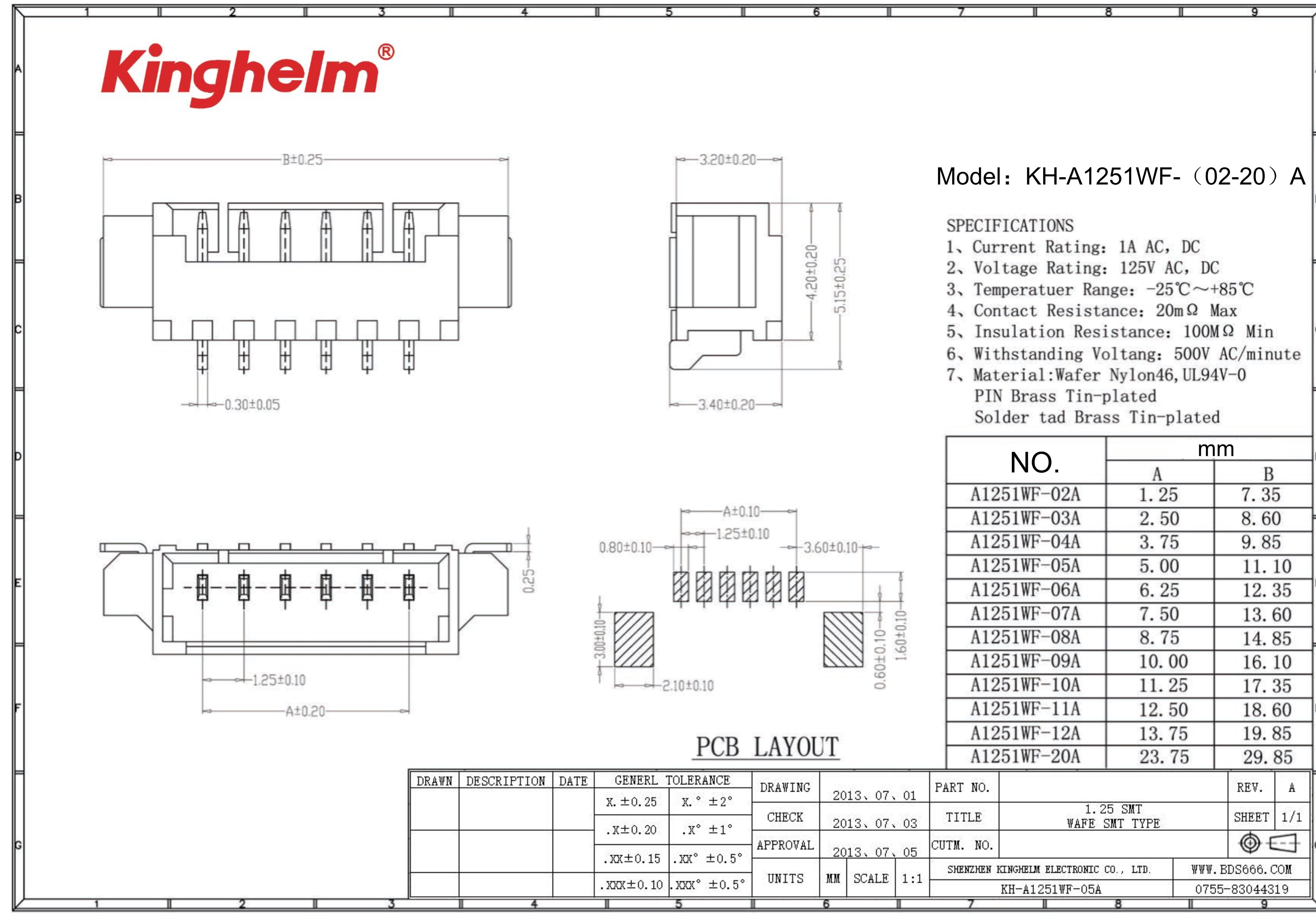

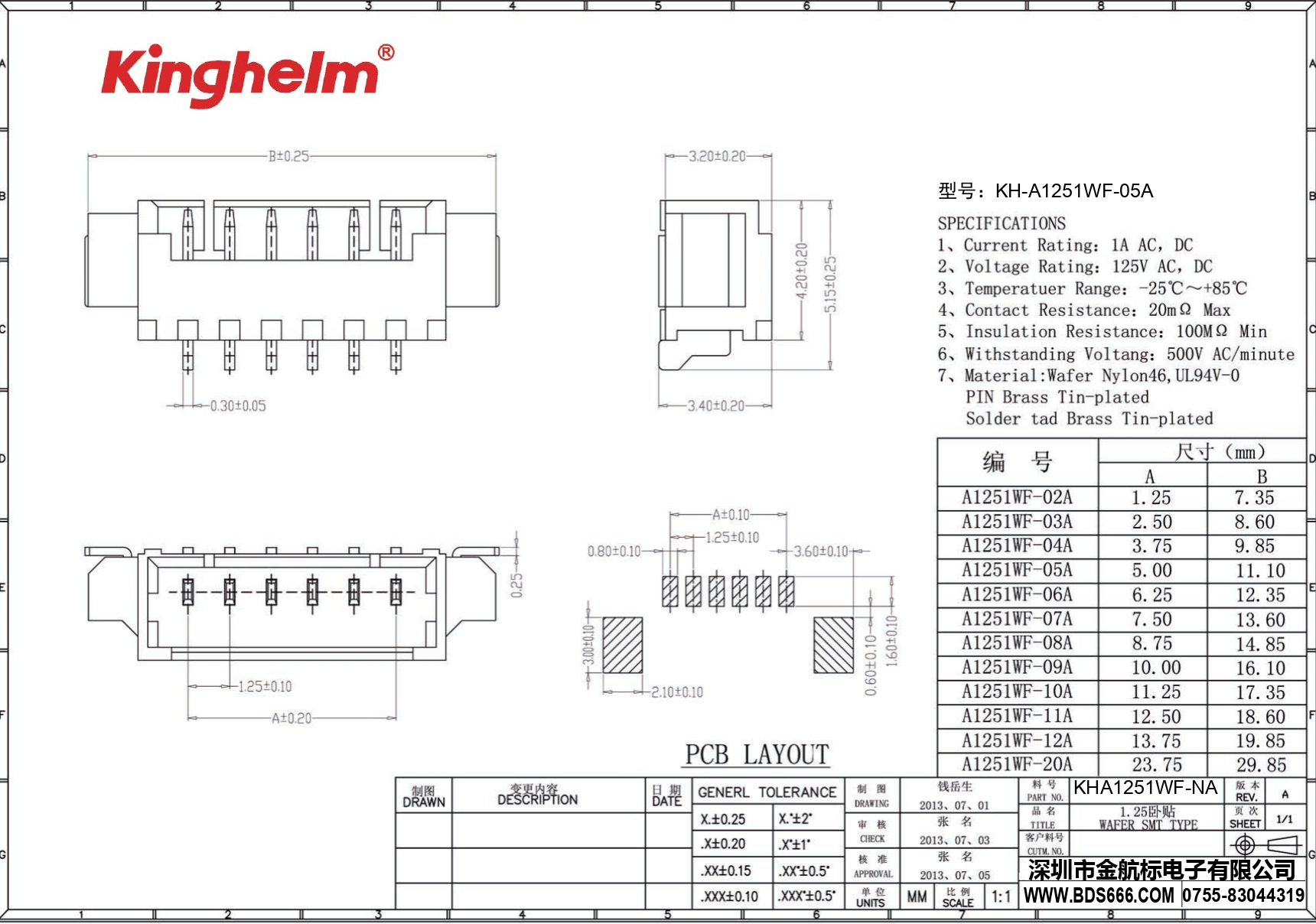

Wire to Board Connector, 1.25mm Pitch, 1x5P, SMD, KH-A1251WF-05A

Wire to Board Connector, 1.25mm Pitch, 1x5P, SMD, KH-A1251WF-05A

Current Rating: 1A AC/DC
Voltage Rating: 125V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 100MΩ Min

Inquiry Datasheet

Product Details

Product Features
● 1.25mm fine pitch
● 1x5P single row
● Right angle surface mount design
● Compact structure for space-saving
● Operating temperature: -25℃ to +85℃
● 1A current rating

Product Benefits
● Suitable for high-density PCB layouts
● Horizontal mating for low-profile applications
● Compatible with SMT production lines
● Maintains stable electrical connection
● Performs reliably in varying environments

Product Applications
● Portable electronics
● LED drivers
● Smart sensors
● IoT modules
● Consumer devices
