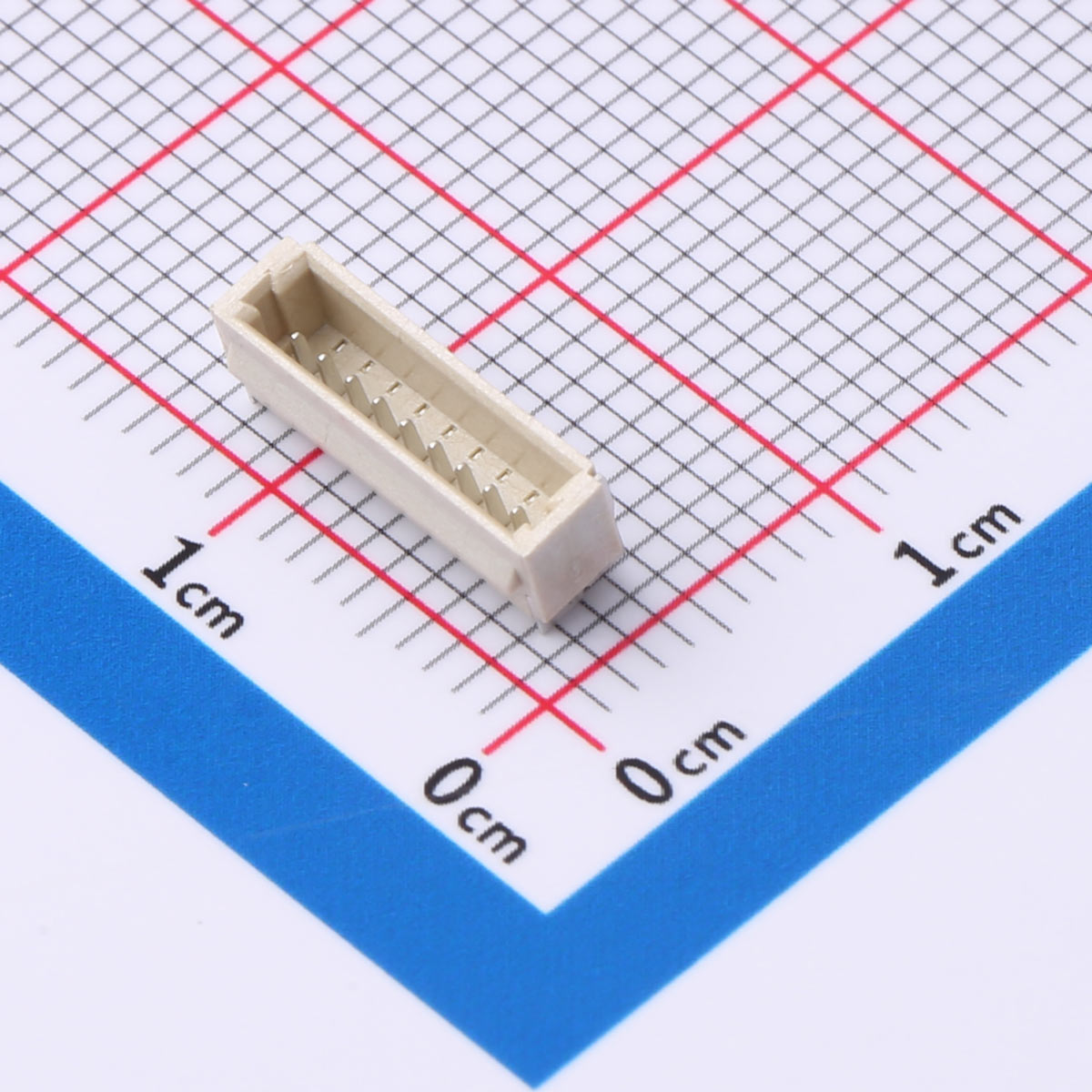

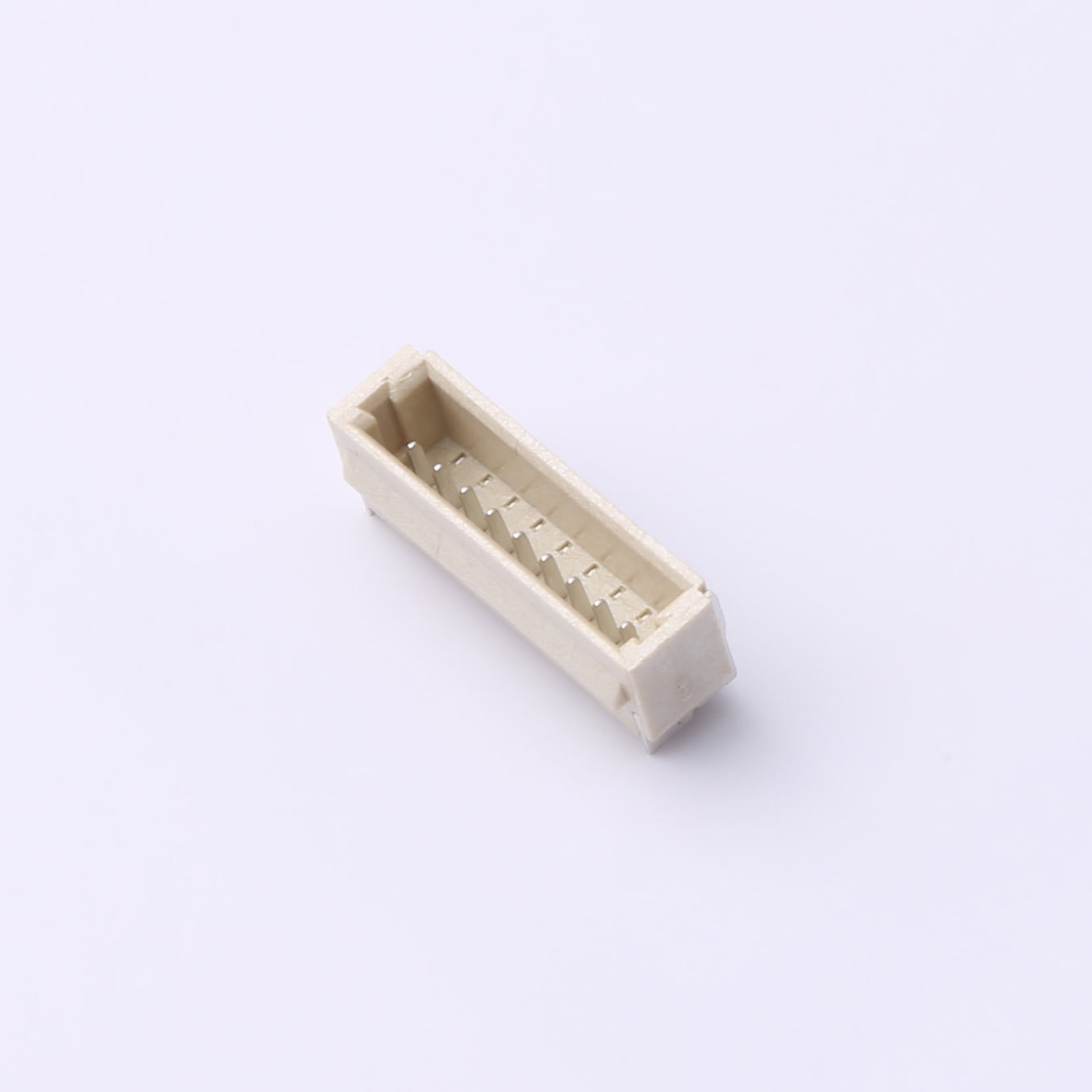

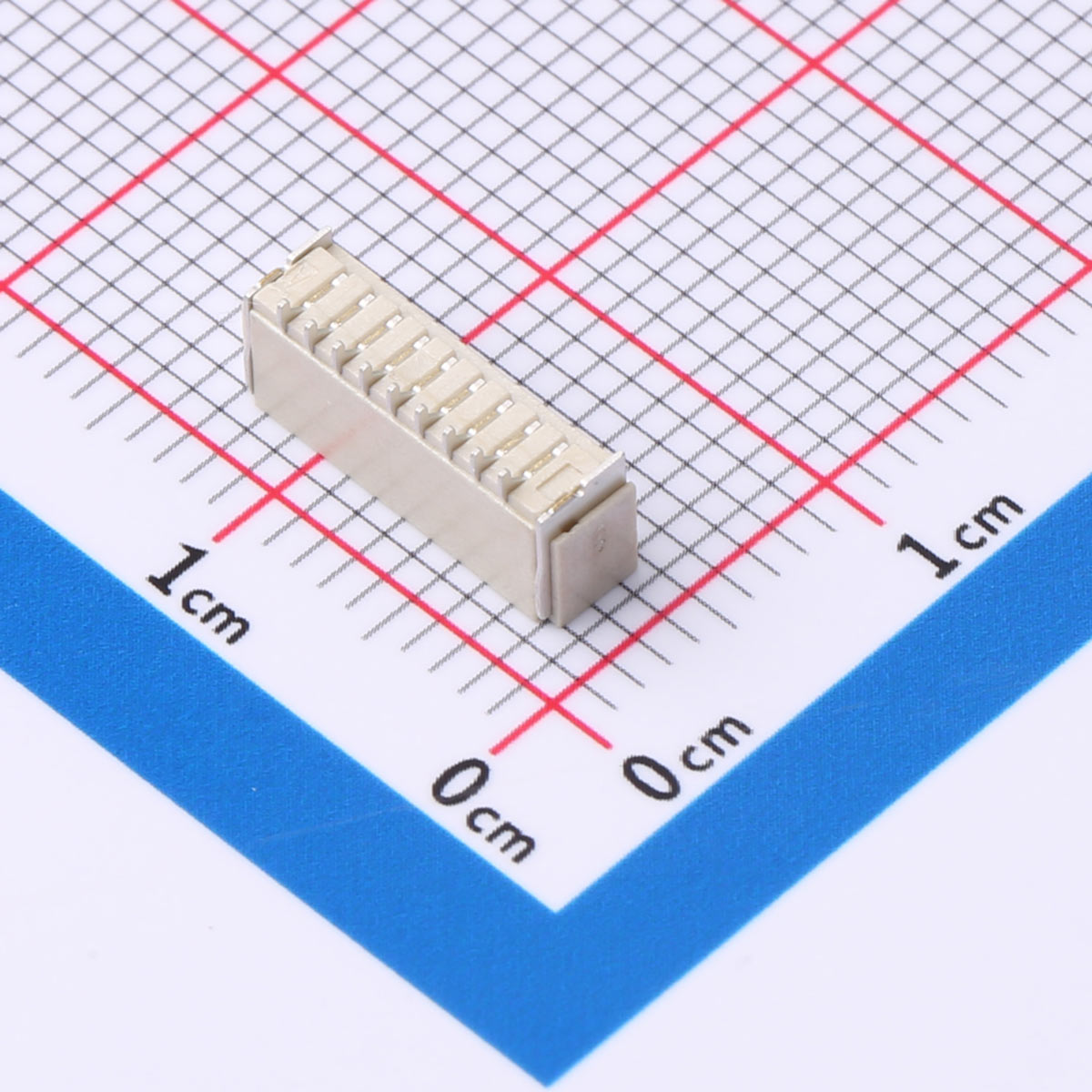

Wire-to-Board Connector, 1mm Pitch, 1x9P, SMD, KH-A1000RSL-9P

Wire-to-Board Connector, 1mm Pitch, 1x9P, SMD, KH-A1000RSL-9P

Current Rating: 1A AC/DC
Voltage Rating: 50V AC/DC
Temperature Range: -25°C to +85°C
Contact Resistance: ≤ 20mΩ
Insulation Resistance: ≥ 100MΩ

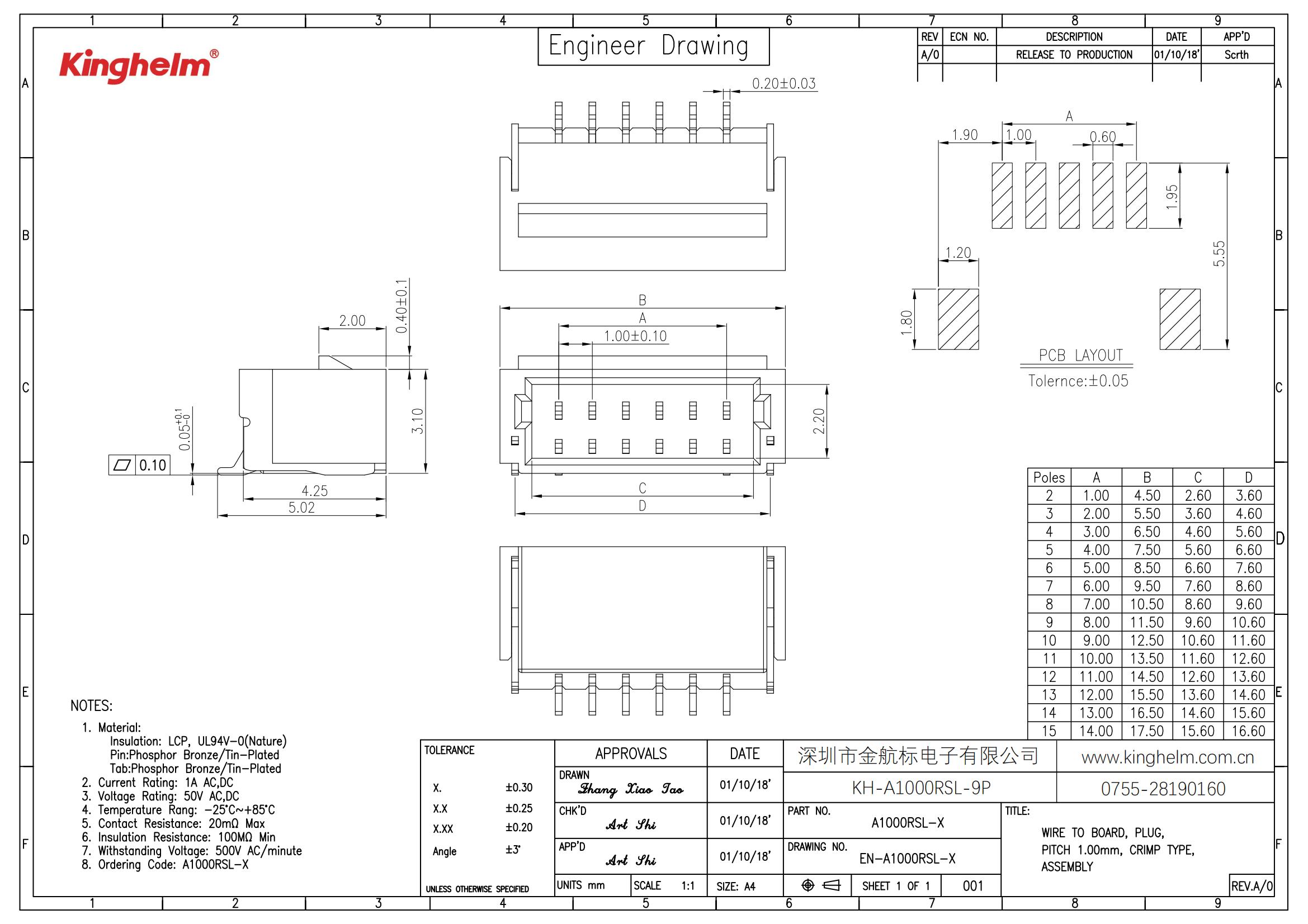

Inquiry Datasheet

Product Details

Product Features
● 1.00mm pitch, 1x9 positions
● Horizontal mount (right-angle) SMD design
● Compact and low-profile structure
● Current rating: 1A AC/DC
● Voltage rating: 50V AC/DC
● Operating temperature range: -25°C to +85°C
● Contact resistance ≤ 20mΩ
● Insulation resistance ≥ 100MΩ
● RoHS and lead-free compliant

Product Benefits
● Space-saving for tight PCB layouts
● Suitable for low-profile applications
● Ensures stable and reliable electrical connections
● Compatible with automated SMT assembly processes
● Efficient signal and power transmission
● Low height for applications with limited vertical space
● Affordable for low-pin count interconnect needs

Product Applications
● Consumer electronics
● Wearable devices
● Mobile communication equipment
● Smart home gadgets
● Portable industrial equipment
● Embedded systems
● IoT and sensor applications
