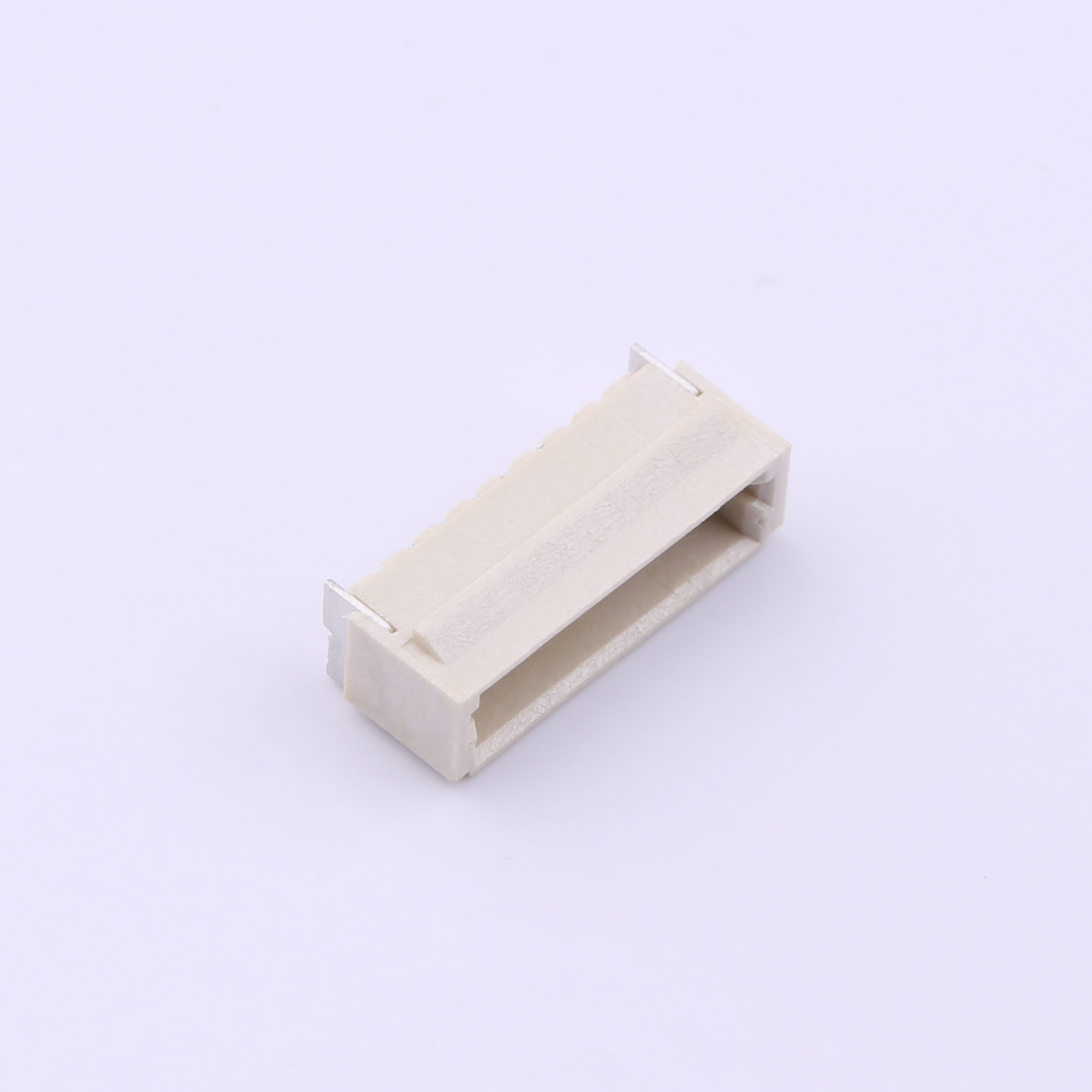

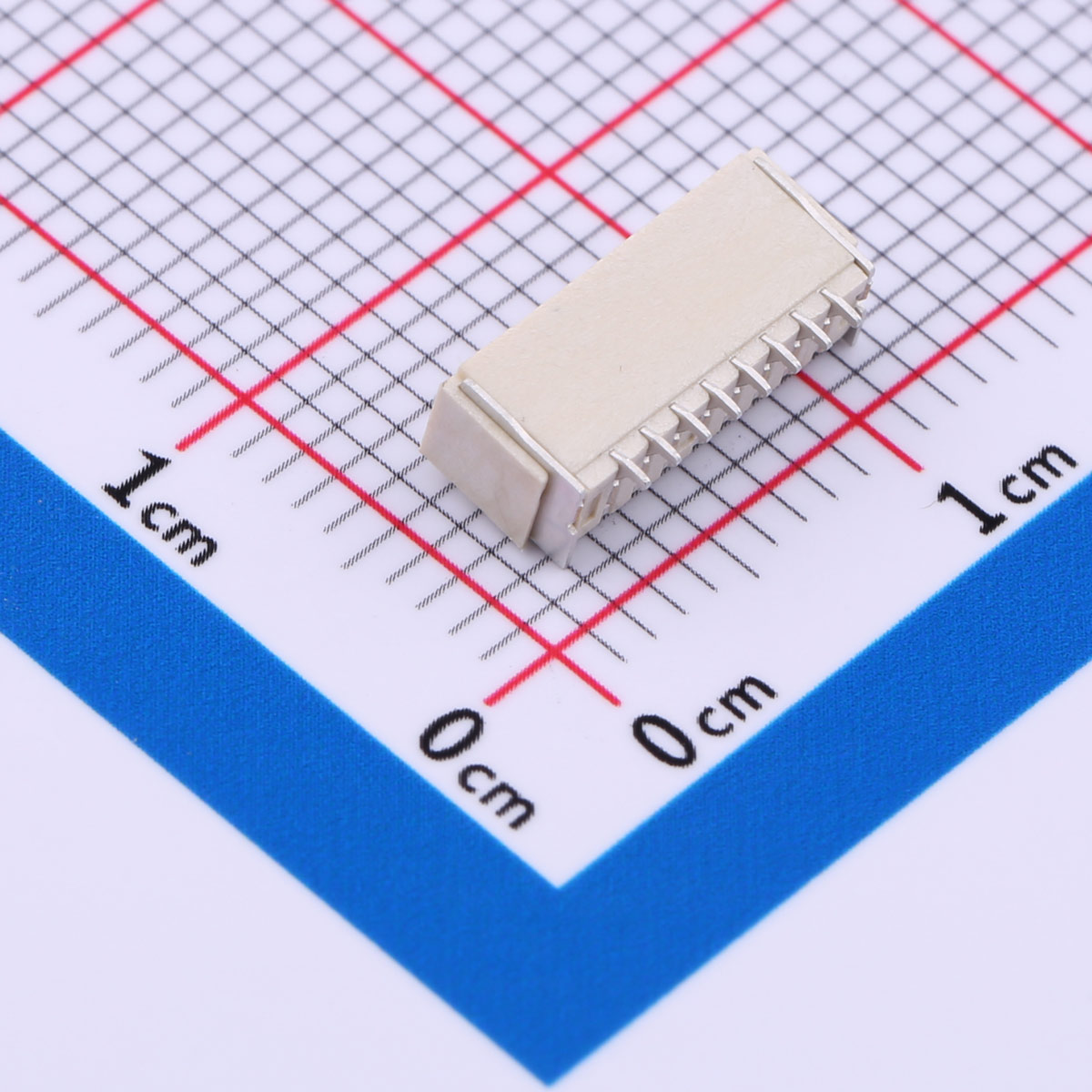

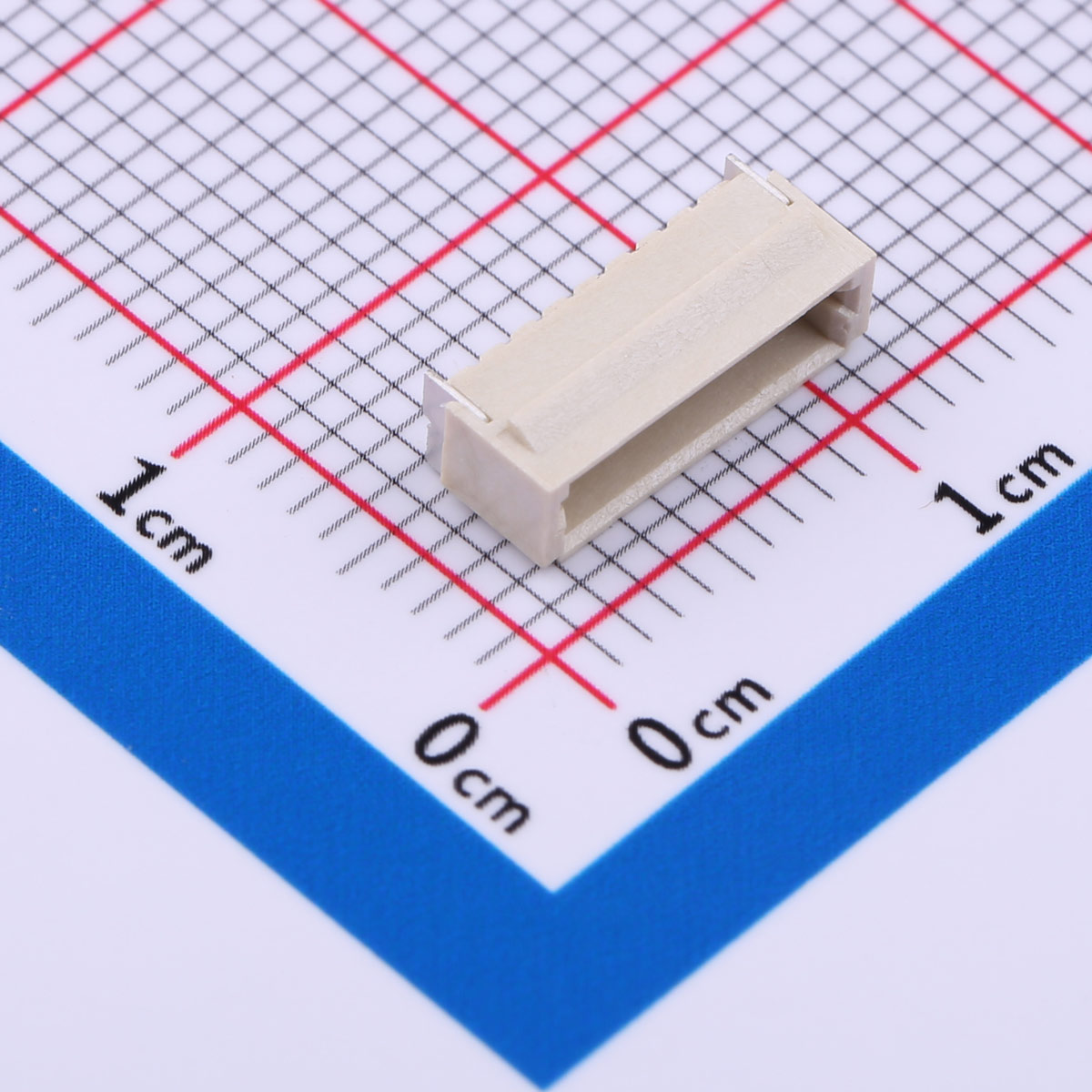

Wire-to-Board Connector, 1mm Pitch, 1x8P, SMD, KH-A1000RSL-8P

Wire-to-Board Connector, 1mm Pitch, 1x8P, SMD, KH-A1000RSL-8P

Current Rating: 1A AC/DC
Voltage Rating: 50V AC/DC
Temperature Range: -25°C to +85°C
Contact Resistance: ≤ 20mΩ
Insulation Resistance: ≥ 100MΩ

Inquiry Datasheet

Product Details

Product Features
● 1.00mm pitch, 1x8 positions
● Horizontal mount (right-angle) SMD design
● Compact, low-profile construction
● Current rating: 1A AC/DC
● Voltage rating: 50V AC/DC
● Operating temperature range: -25°C to +85°C
● Contact resistance ≤ 20mΩ
● Insulation resistance ≥ 100MΩ
● RoHS and lead-free compliant

Product Benefits
● Ideal for tight and compact PCB layouts
● Suitable for slim and space-constrained designs
● Reliable and stable electrical connection
● Compatible with automated SMT assembly
● Efficient for power and signal transmission
● Low-profile for applications with height restrictions
● Cost-effective for low pin count applications

Product Applications
● Consumer electronics
● Wearable devices
● Communication systems
● Smart home technologies
● Industrial control systems
● Portable devices
● IoT and sensor networks
