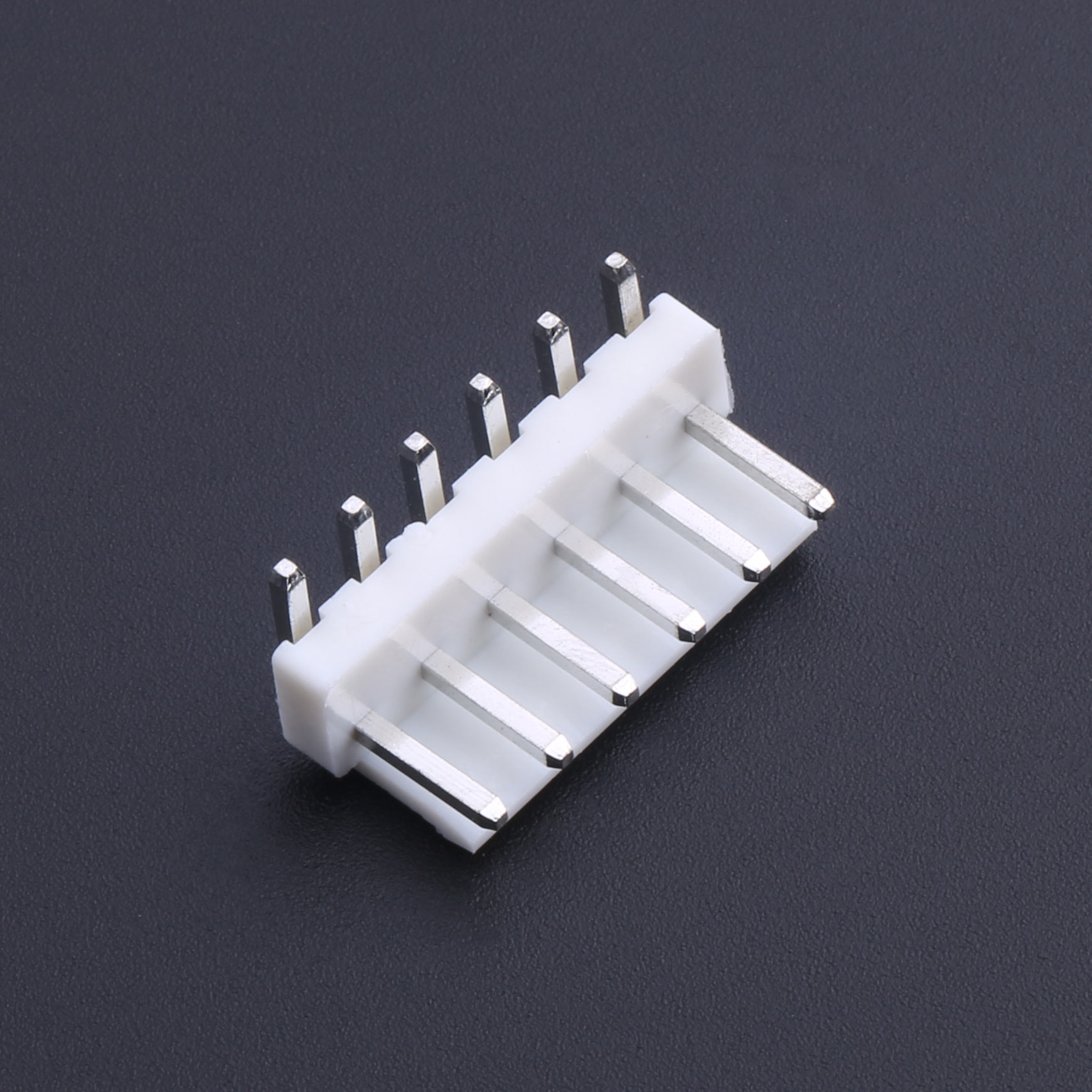

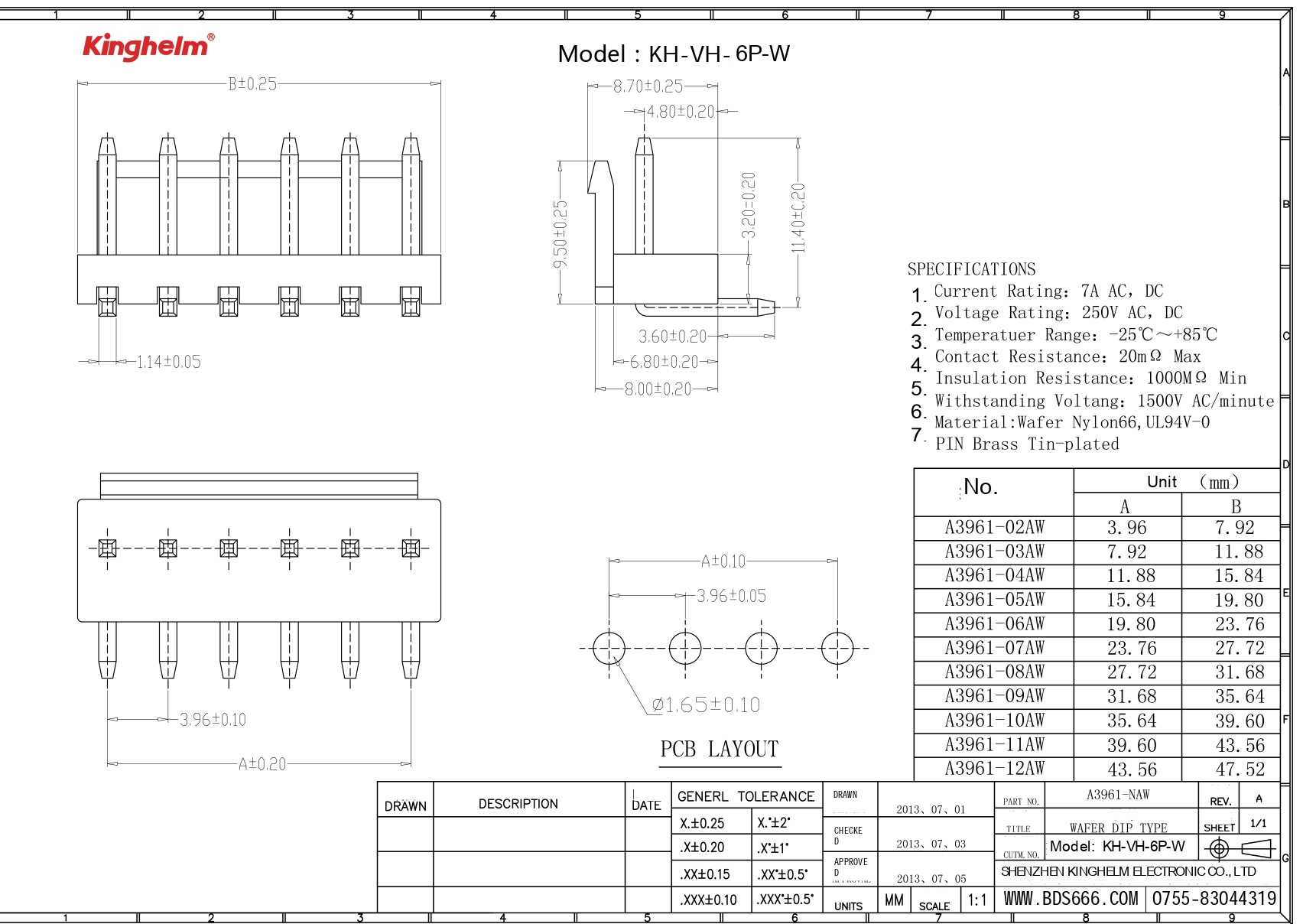

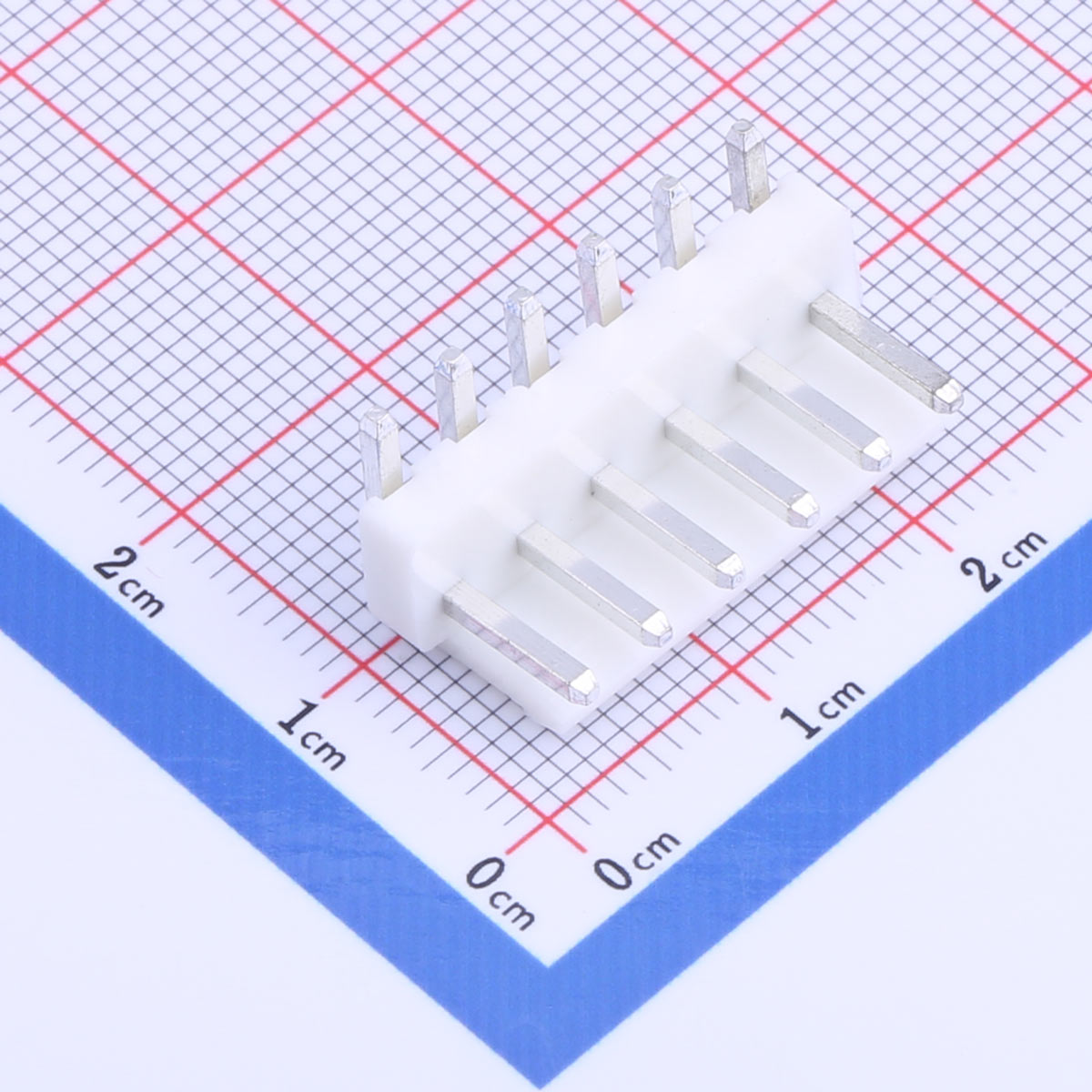

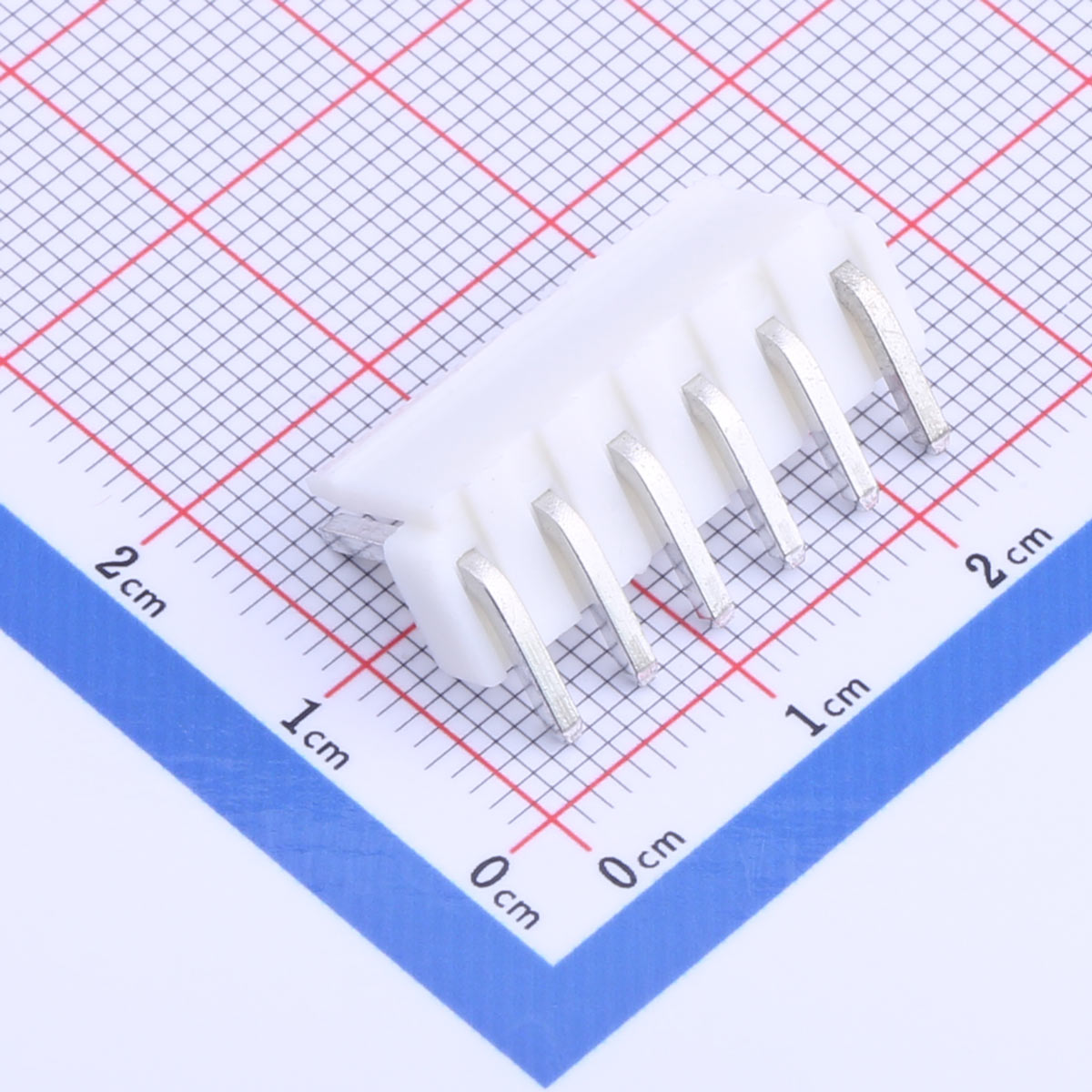

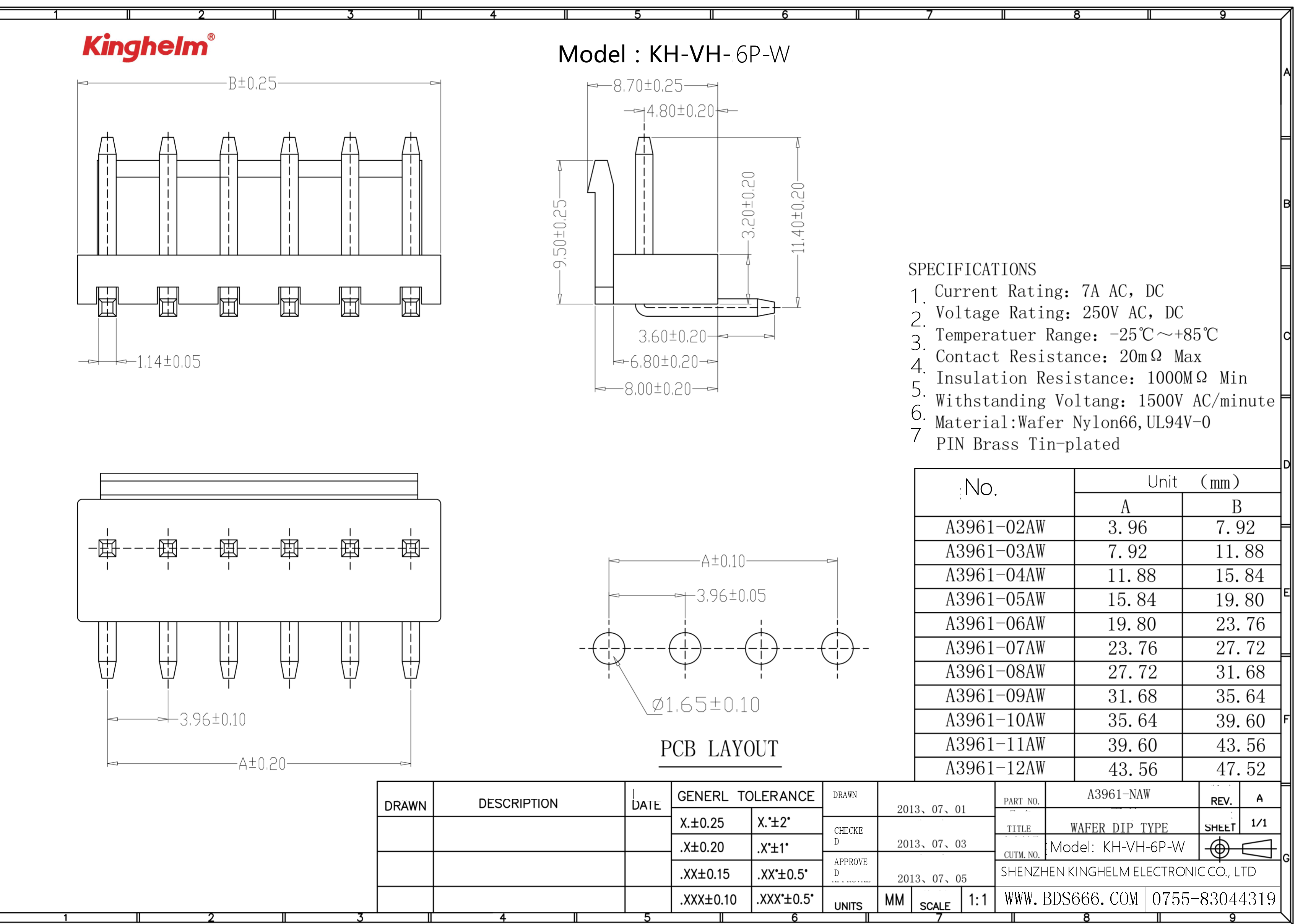

Wire to Board Connector, VH connector, 3.96mm Pitch, 1x6P, KH-VH-6P-W
Current Rating: 7A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● Push-pull package, 3.96mm pitch
● 1x6P, single row
● Right-angle mounting
● VH series connector
● 7A current, 250V AC/DC
● Operating temp: -25℃ to +85℃
Product Benefits
● Secure locking
● Easy PCB mounting
● Stable current & voltage
● Reliable contact
● Cost-effective
Product Applications
● Robotic vacuum cleaners
● Humidifier control boards
● HVAC wiring
● LED lighting modules
● Kitchen appliance wiring
