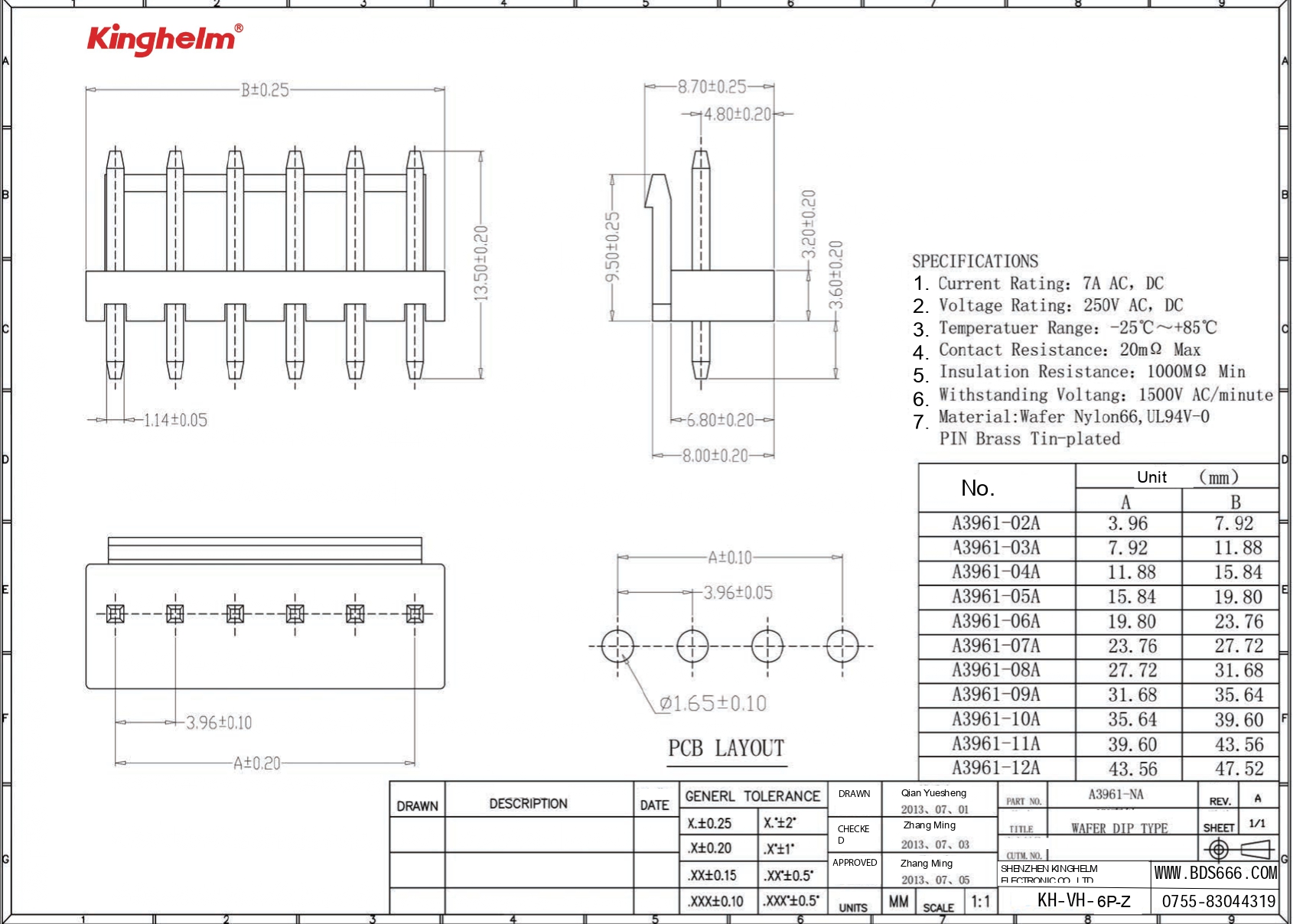

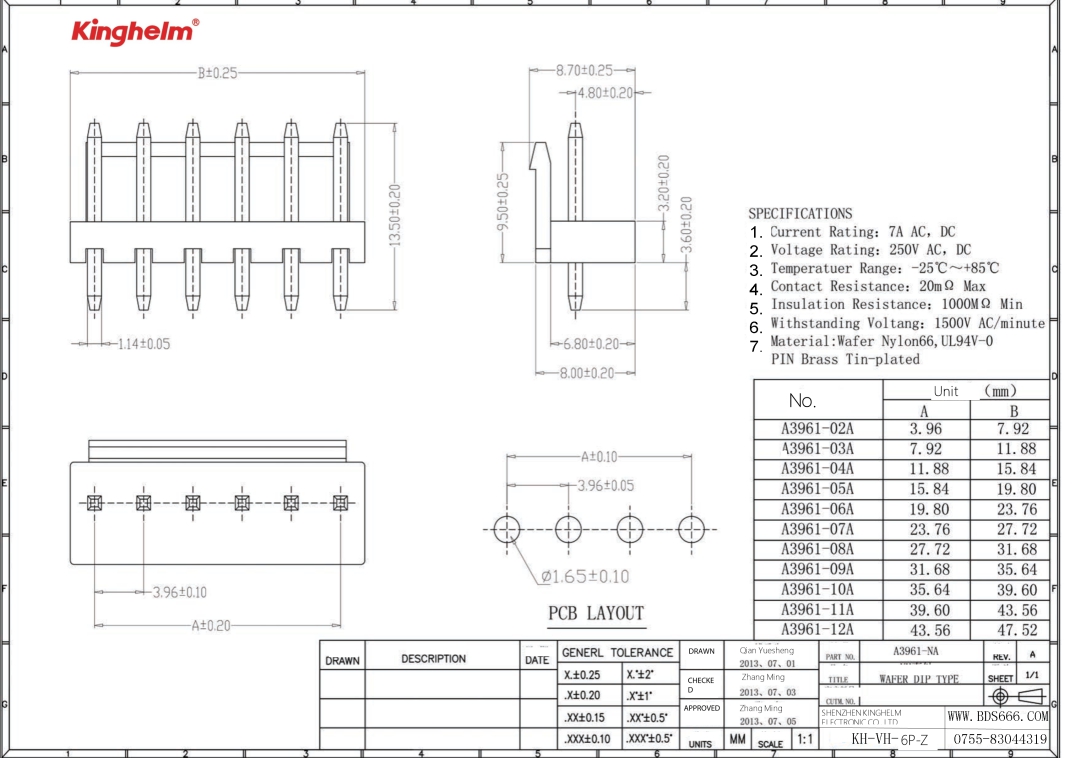

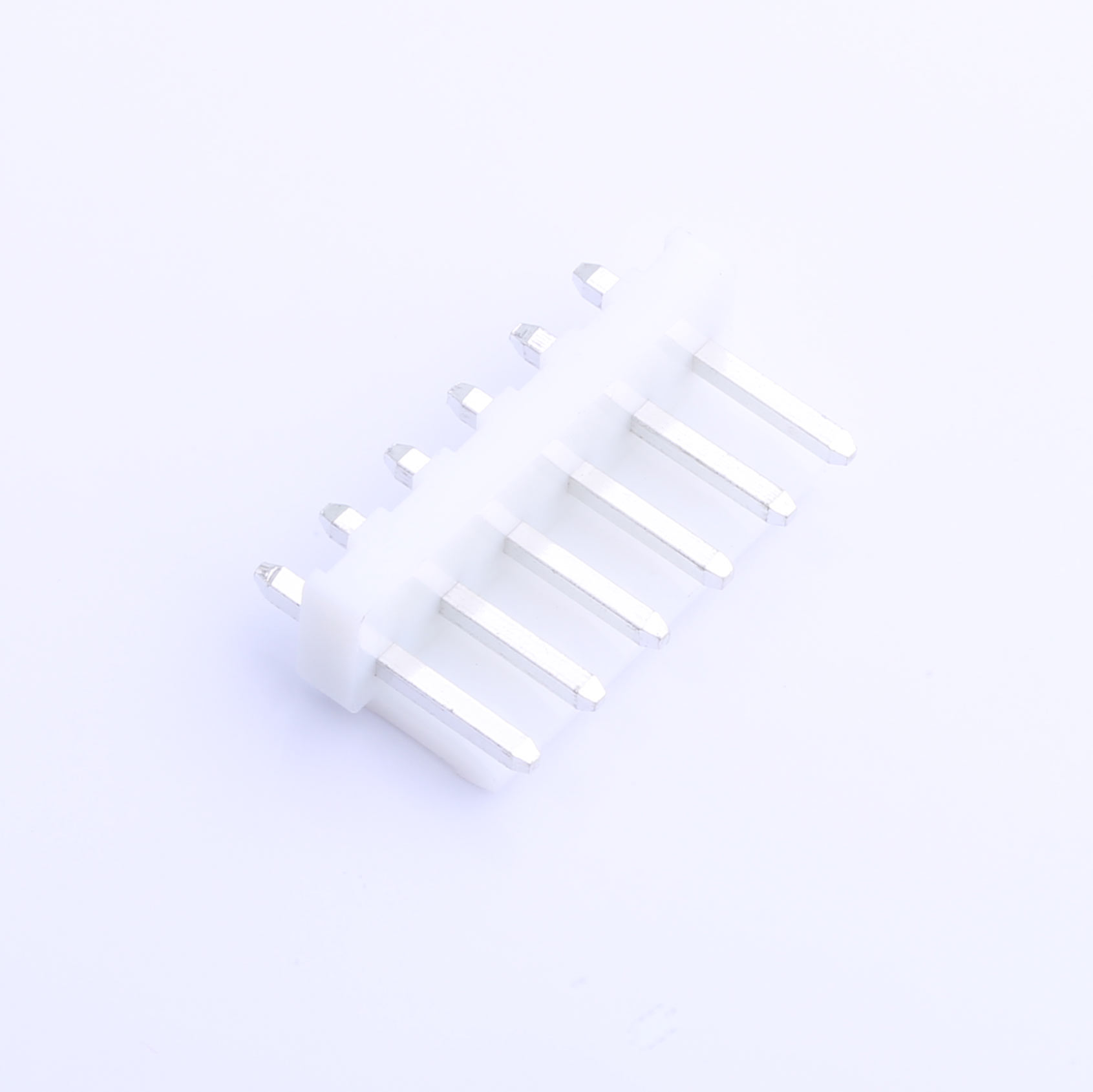

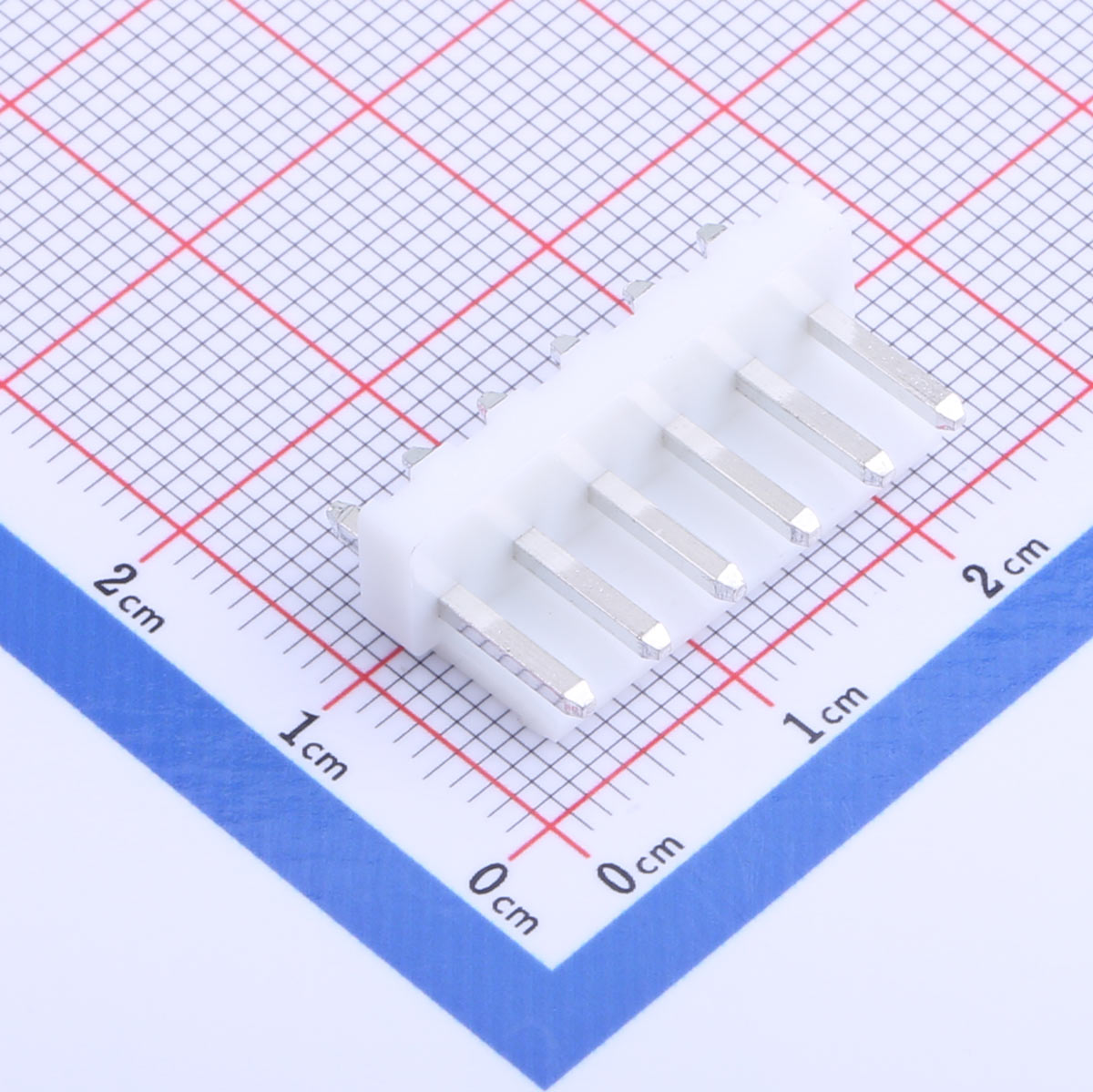

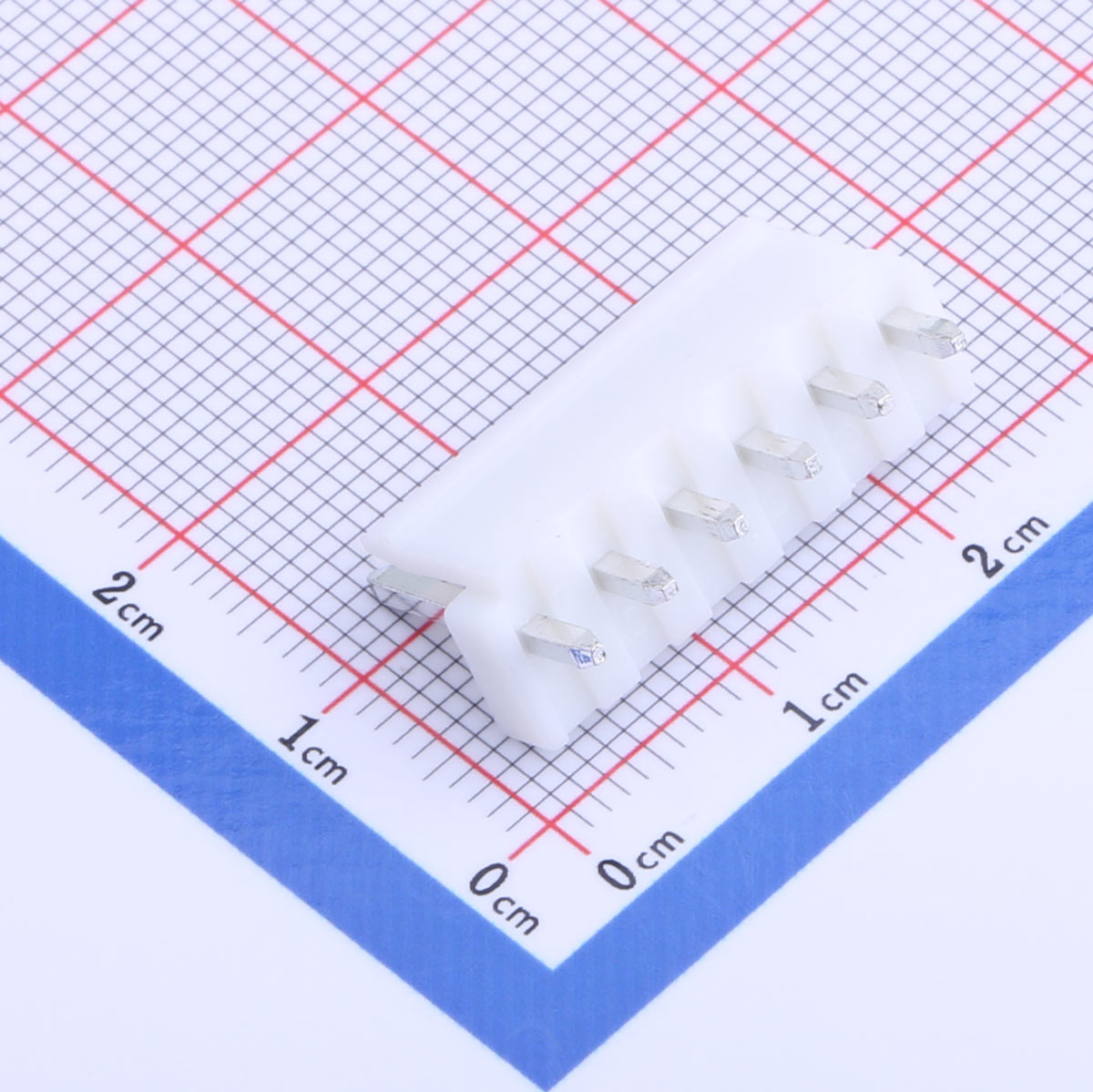

Wire to Board Connector, VH connector, 3.96mm Pitch, 1x6P, KH-VH-6P-Z

Wire to Board Connector, VH connector, 3.96mm Pitch, 1x6P, KH-VH-6P-Z

Current Rating: 7A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

Inquiry Datasheet

Product Details

Product Features
● 3.96mm pitch, VH series
● 1x6P, single row
● Straight mount type
● Plugin style connector
● 7A current rating
● -25℃ to +85℃ operating range

Product Benefits
● Supports stable high current
● Easy to install on PCB
● Compact 6-pin layout
● Reliable electrical contact
● Cost-effective connector

Product Applications
● Power connection in robotic vacuum cleaners
● Control boards in humidifiers
● Signal wiring in HVAC systems
● LED lighting modules
● Internal wiring in kitchen appliances
