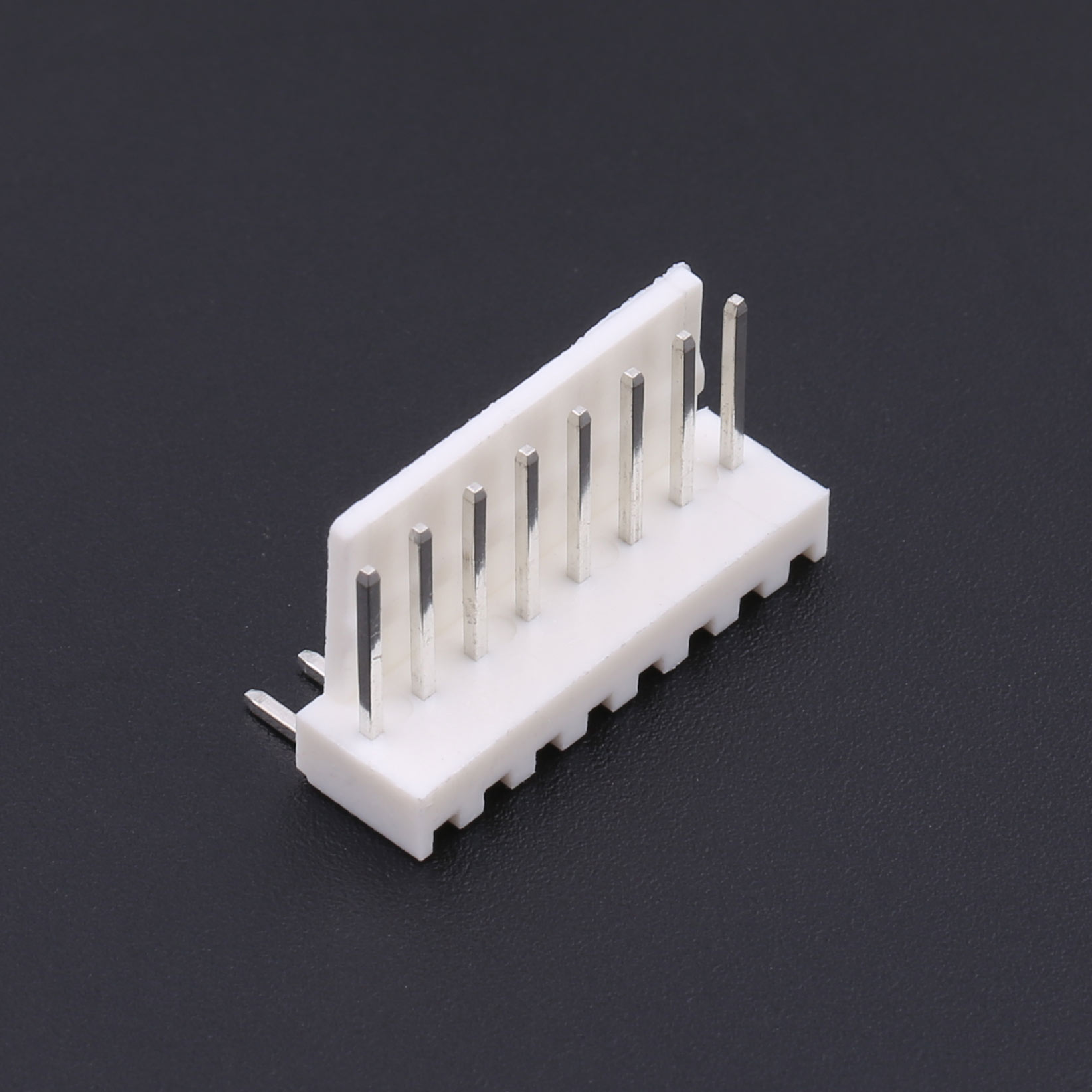

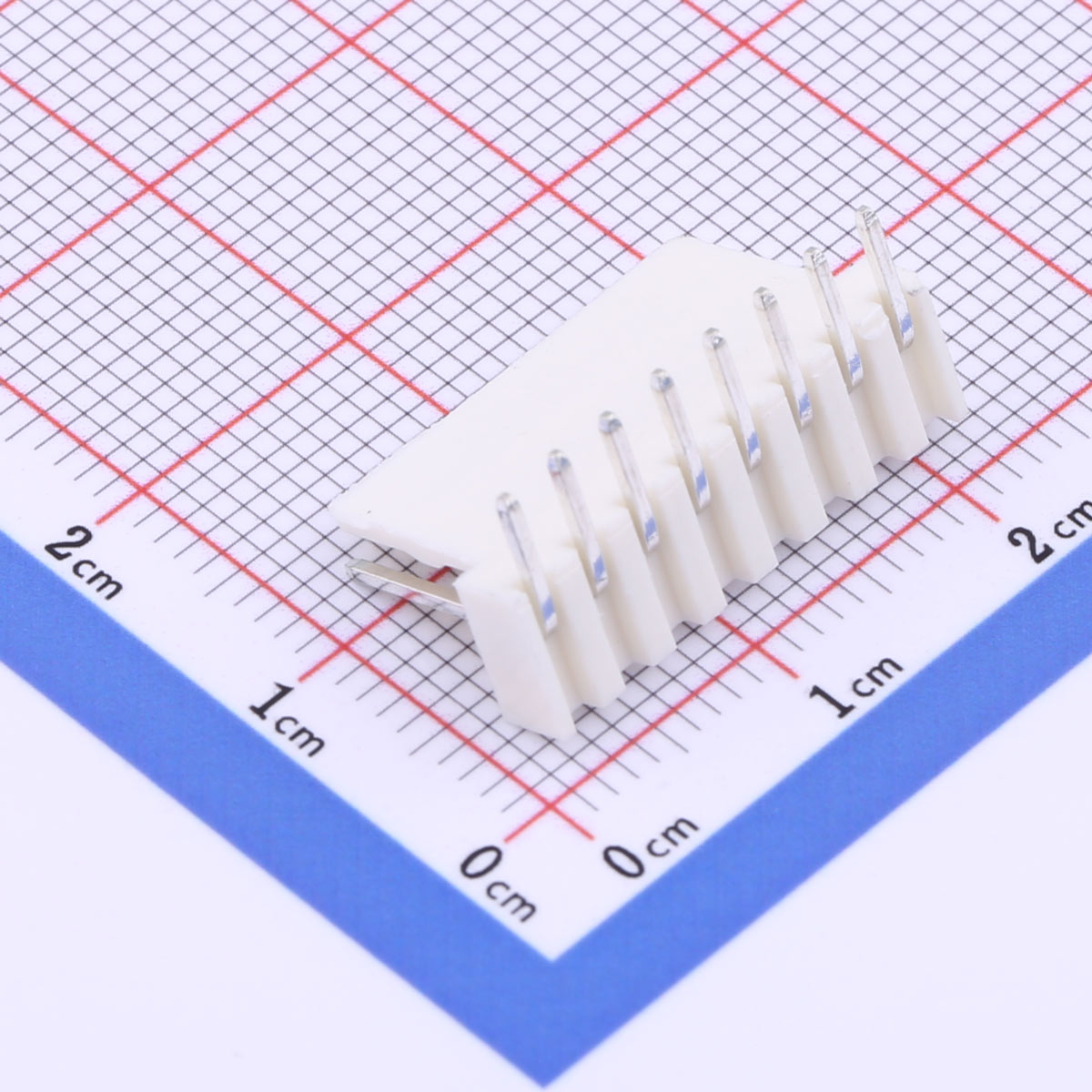

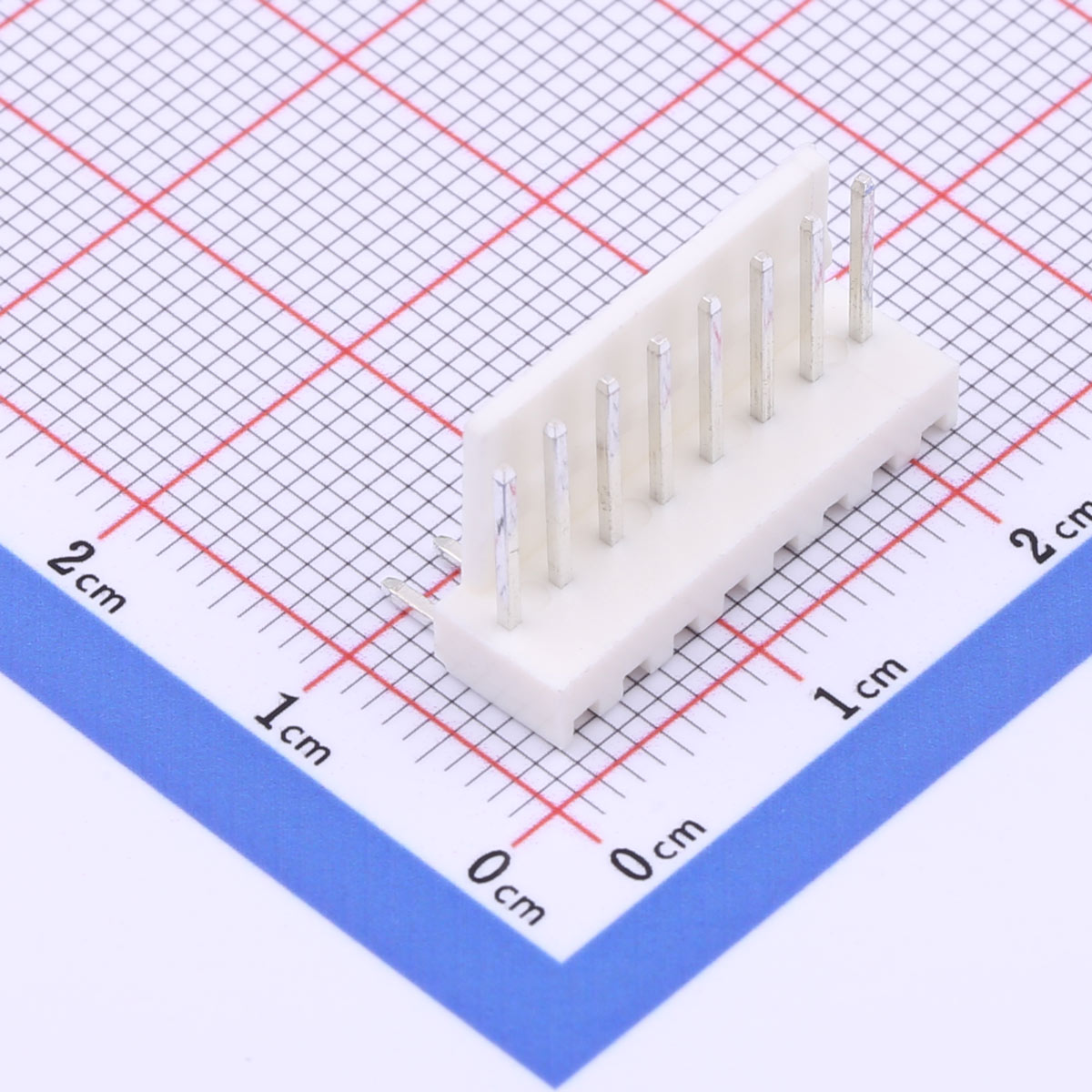

Wire-to-Board Connector, 2.54mm Pitch, 1x8P, KH-HX2.54-08PW

Wire-to-Board Connector, 2.54mm Pitch, 1x8P, KH-HX2.54-08PW

Current Rating: 4A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ ~ +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

Inquiry Datasheet

Product Details

Product Features
● 2.54mm pitch
● 1x8 single-row layout
● Right-angle mounting
● 4A / 250V AC/DC rating
● Operating range: -25℃ to +85℃

Product Benefits
● Space-efficient design
● Consistent signal transmission
● Withstands harsh conditions
● Low contact resistance (≤20mΩ)
● High insulation resistance (≥1000MΩ)

Product Applications
● Consumer electronics
● Industrial controls
● Communication systems
● LED drivers and strips
● DIY development boards
