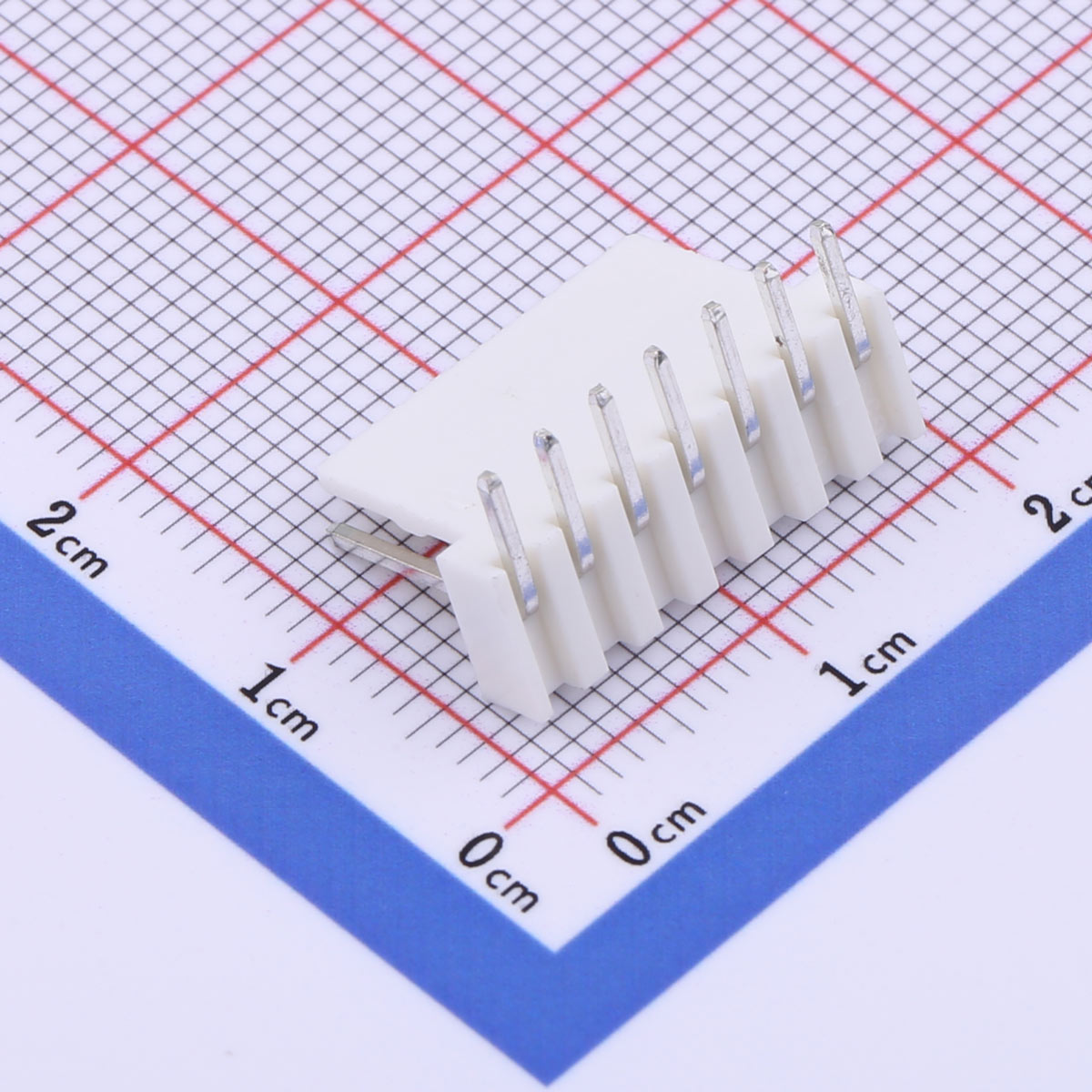

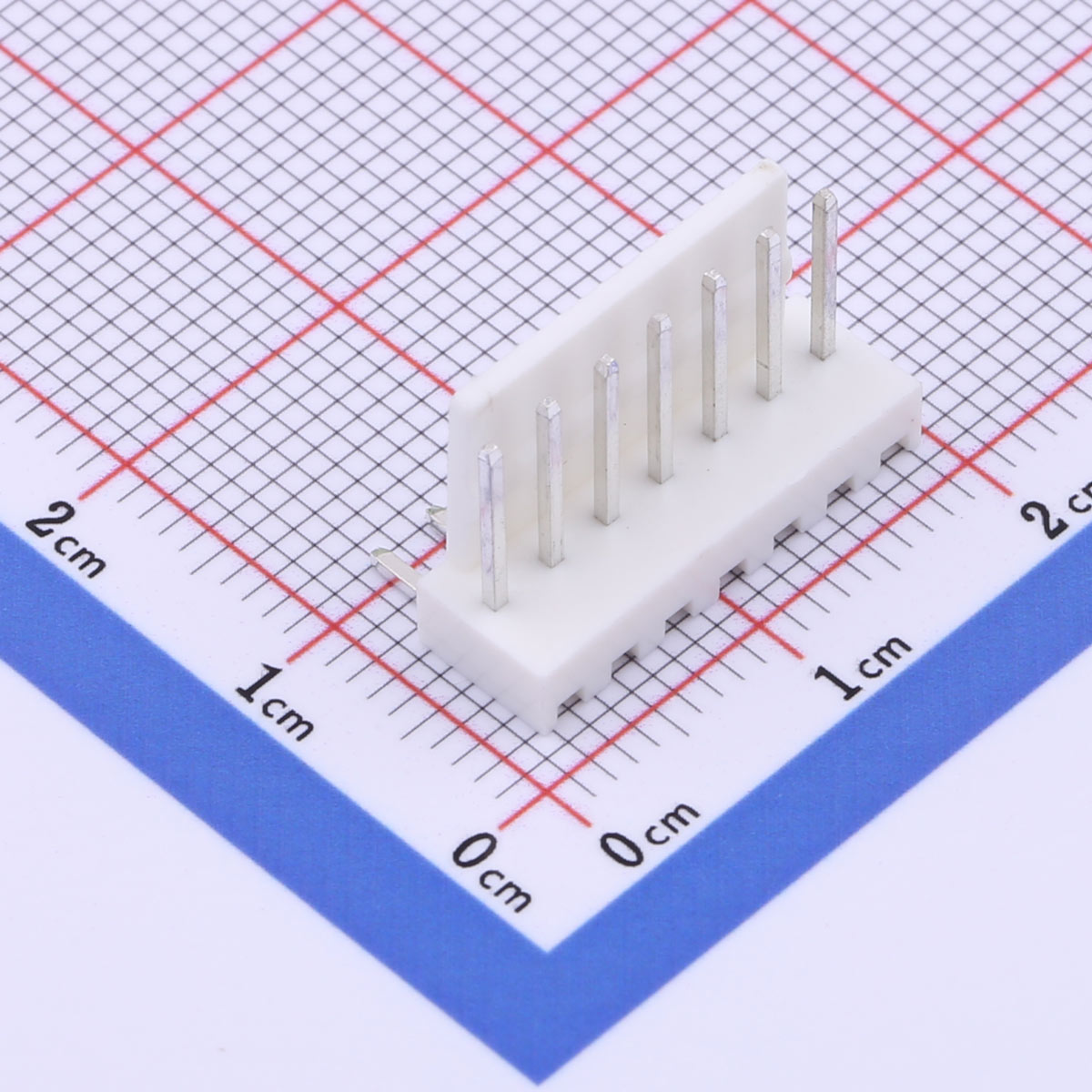

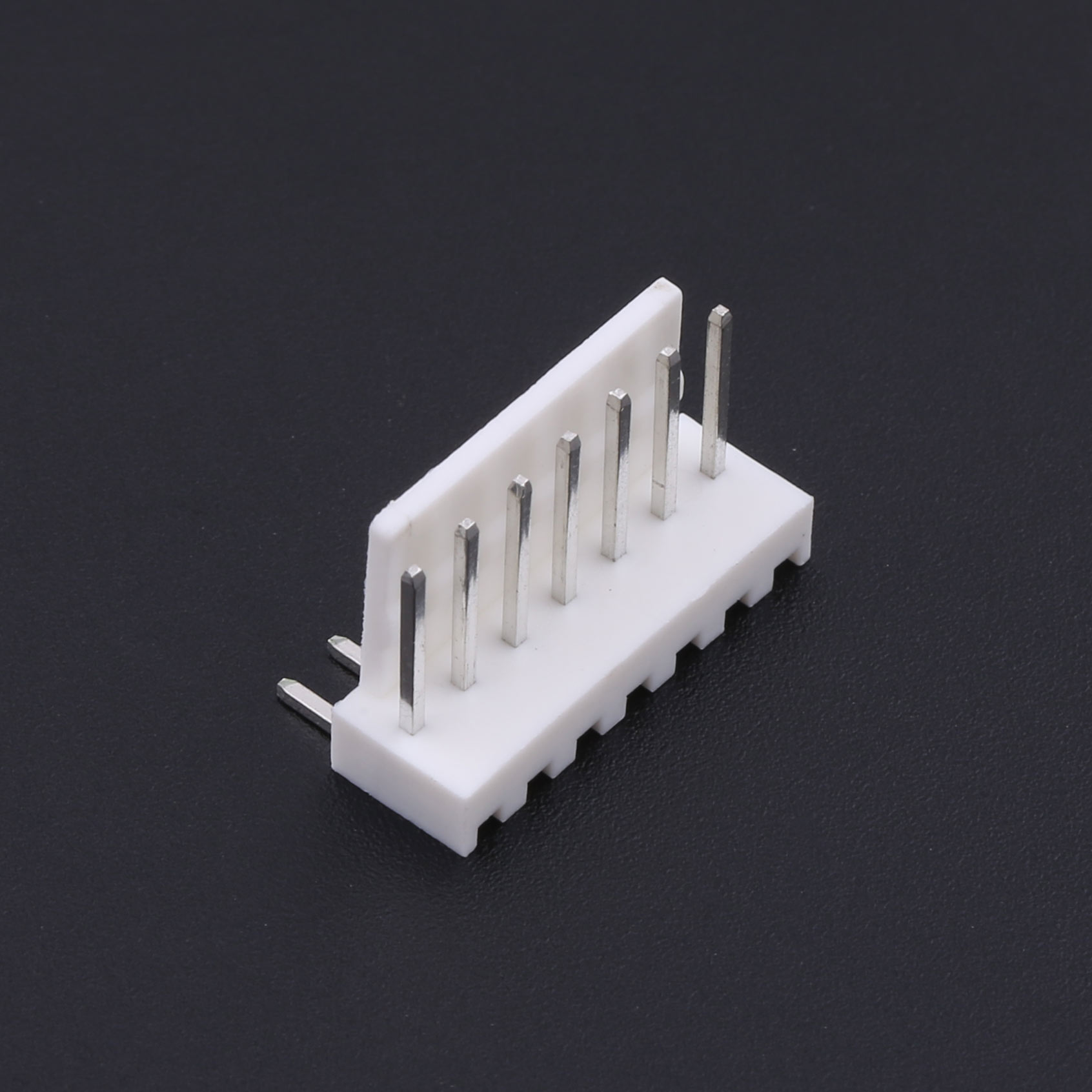

Wire-to-Board Connector, 2.54mm Pitch, 1x7P, KH-HX2.54-07PW

Wire-to-Board Connector, 2.54mm Pitch, 1x7P, KH-HX2.54-07PW

Current Rating: 4A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ ~ +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

Inquiry Datasheet

Product Details

Product Features
● 2.54mm pitch
● 1x7 single-row layout
● Right-angle mounting
● 4A / 250V AC/DC rating
● Temperature range: -25℃ to +85℃

Product Benefits
● Compact for limited PCB space
● Reliable electrical contact
● Performs in variable environments
● Max 20mΩ contact resistance
● Min 1000MΩ insulation resistance

Product Applications
● Smart home devices
● Security alarm systems
● Sensor modules
● Power control boards
● Educational electronics kits
