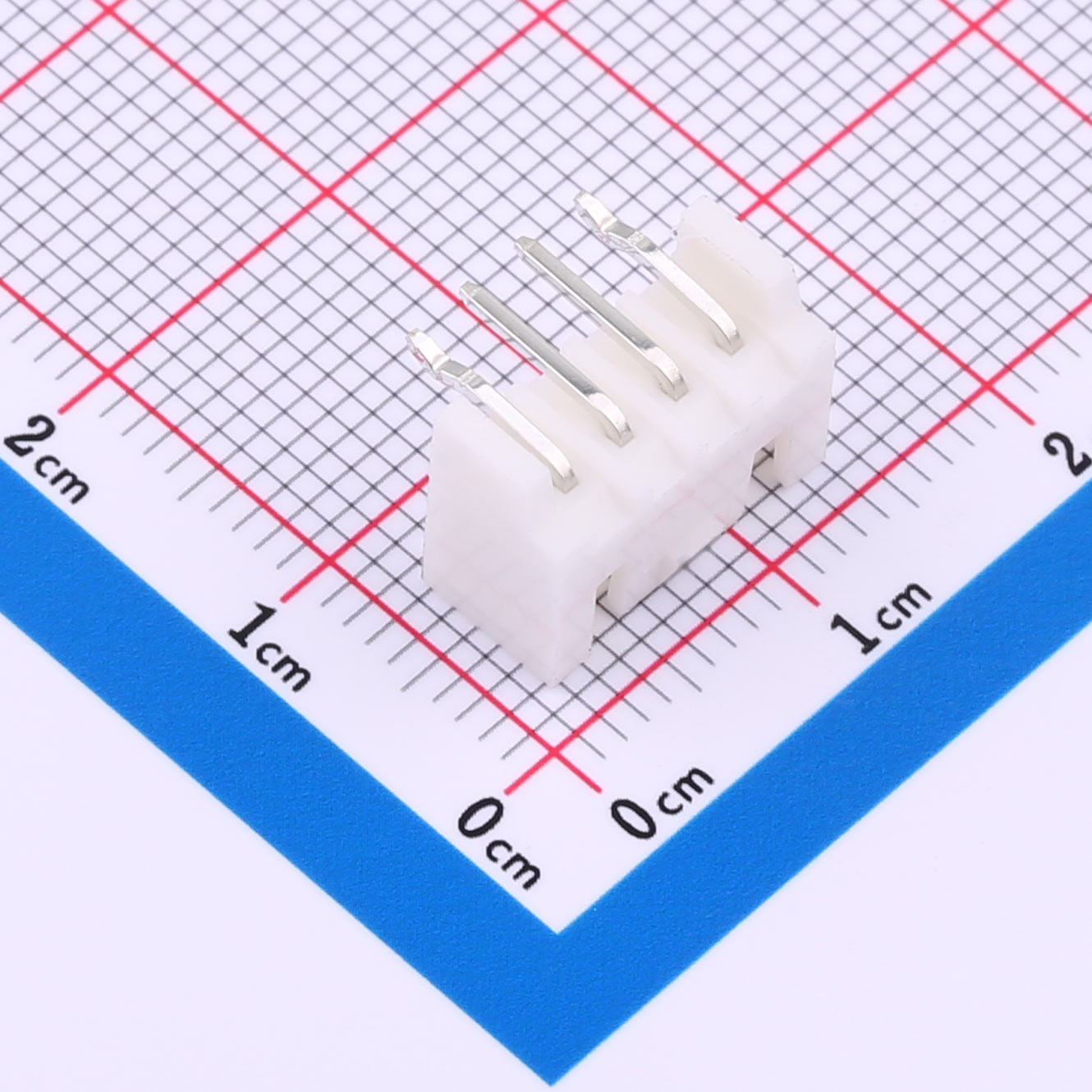

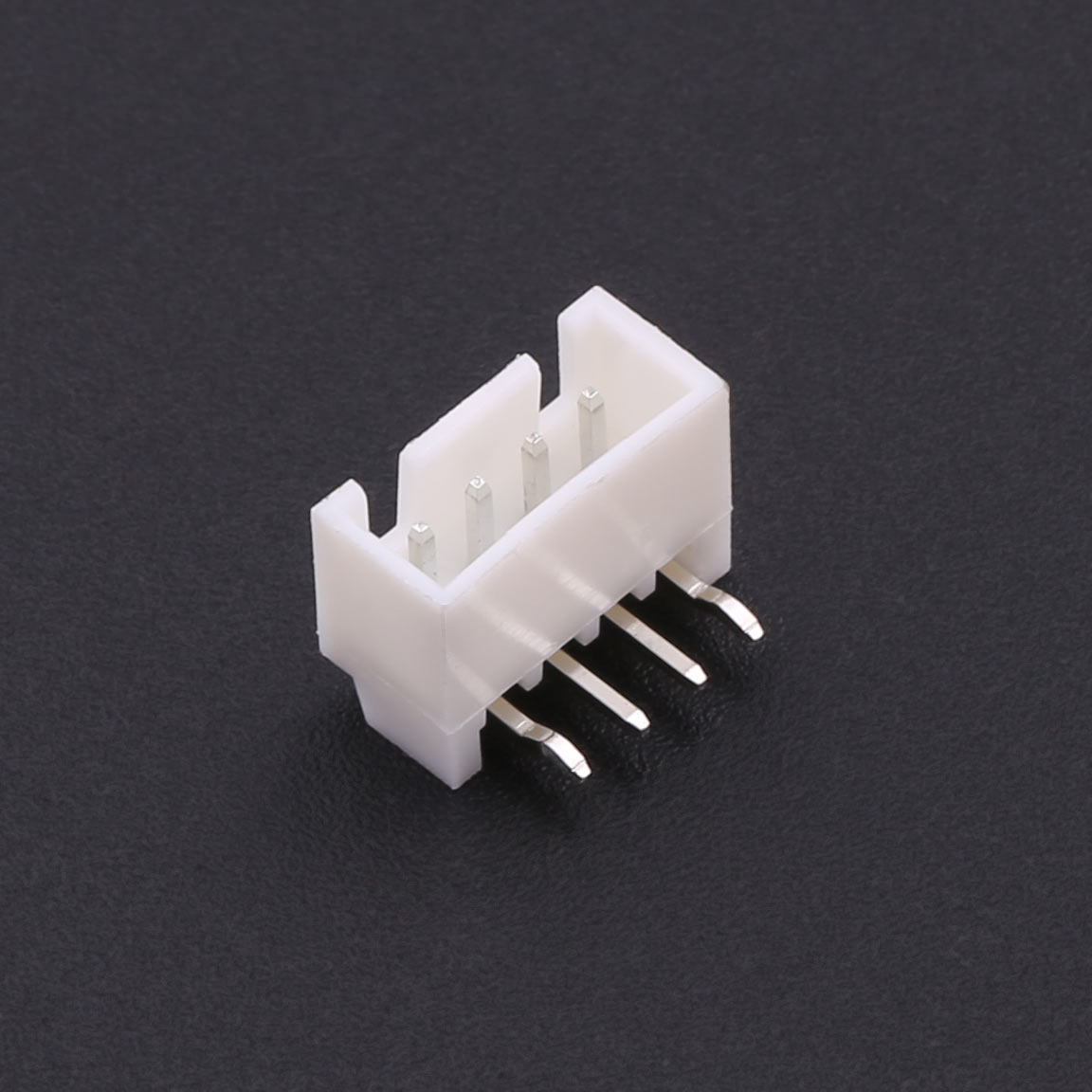

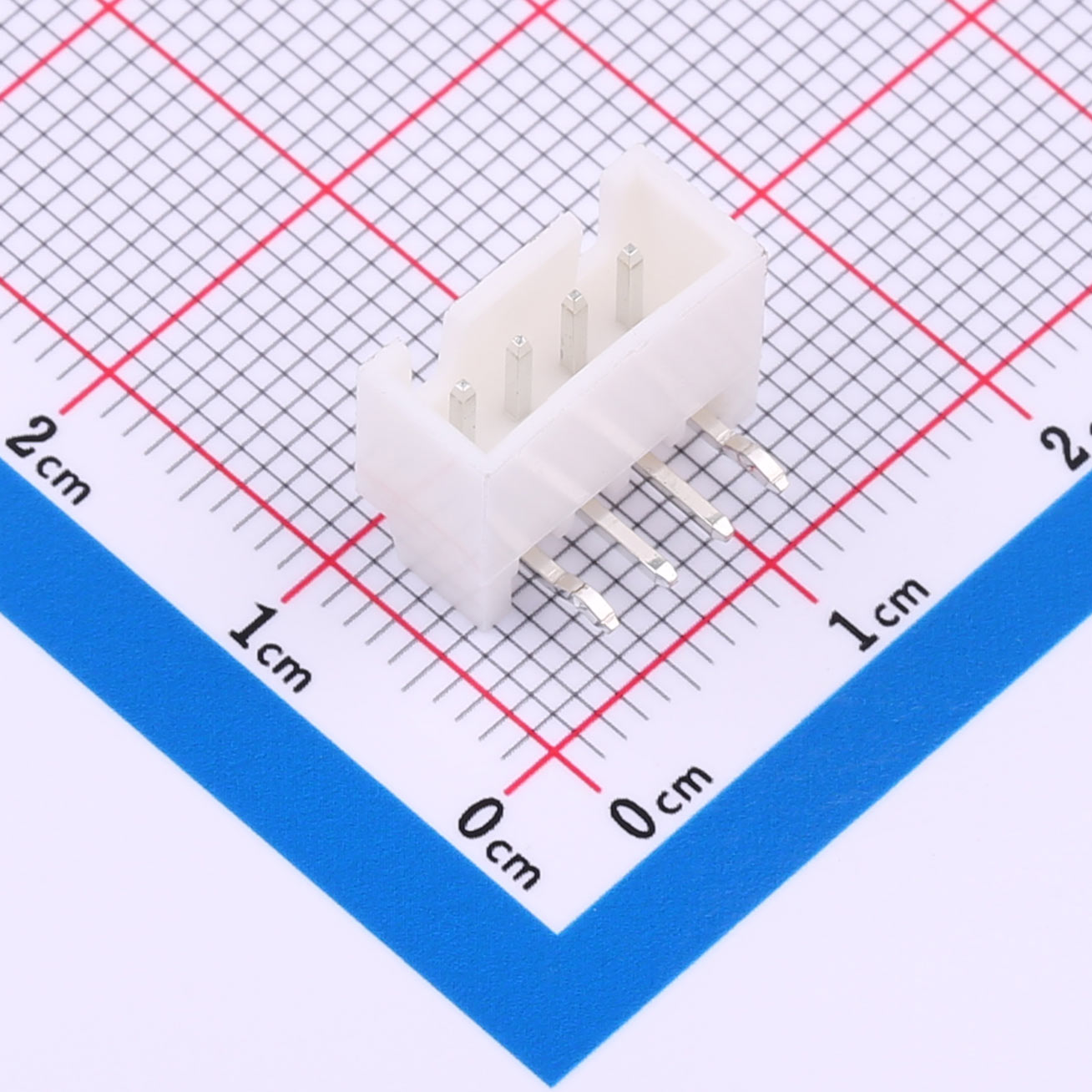

2.54mm Pitch Wire-to-Board Connector, 1x4P, Locating Angled Pin, KH-A2504-R-04AWD

2.54mm Pitch Wire-to-Board Connector, 1x4P, Locating Angled Pin, KH-A2504-R-04AWD

Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ ~ +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

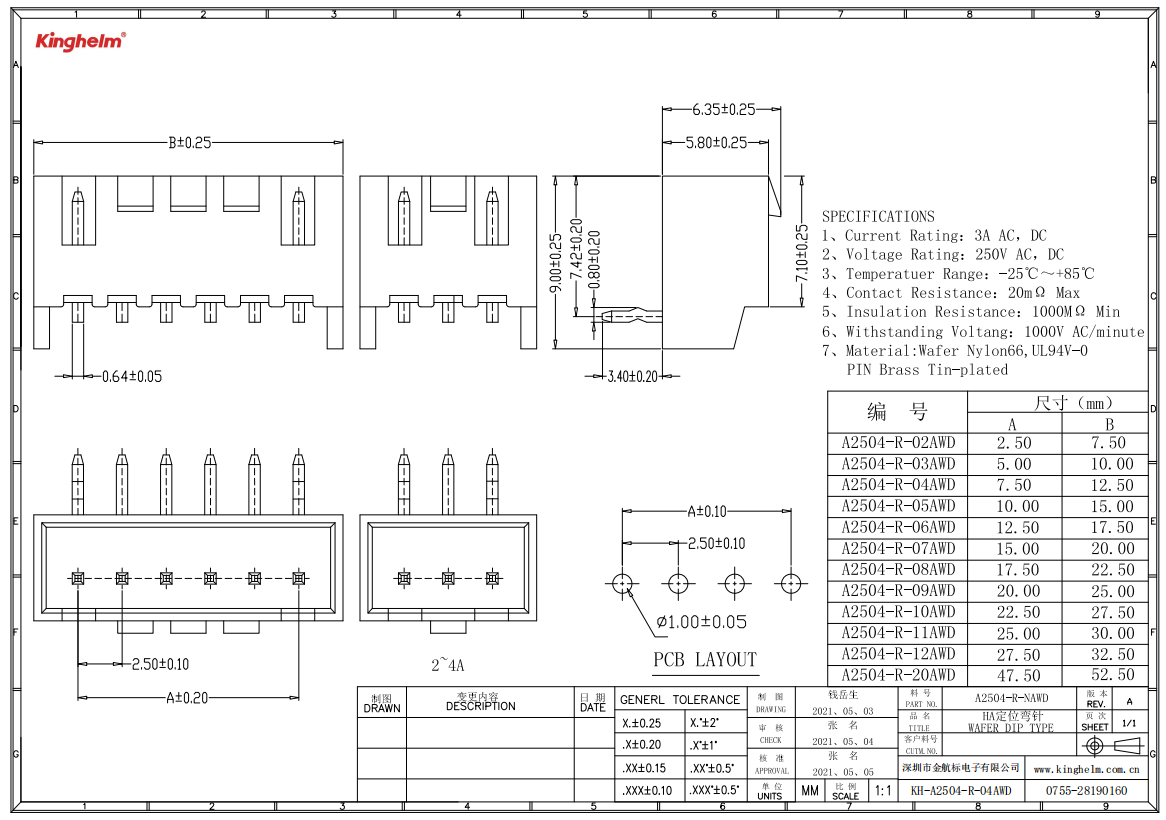

Inquiry Datasheet

Product Details

Product Features
● 2.54mm pitch for reliable wire-to-board connection
● 1x4P configuration for optimal space utilization
● Angled locating pin for precise alignment
● DIP type for easy PCB integration
● 3A AC/DC current rating
● 250V AC/DC voltage rating
● -25℃ to +85℃ temperature range
● 20mΩ Max contact resistance
● 1000MΩ Min insulation resistance

Product Benefits
● Ensures secure and stable connections
● Compact design for space-saving
● Handles high current and voltage loads
● Suitable for a wide range of temperatures
● Low contact resistance for better efficiency
● Strong insulation resistance for safety

Product Applications
● Consumer electronics
● Automotive systems
● Industrial control systems
● Power supply networks
● Home appliances
● Medical devices
