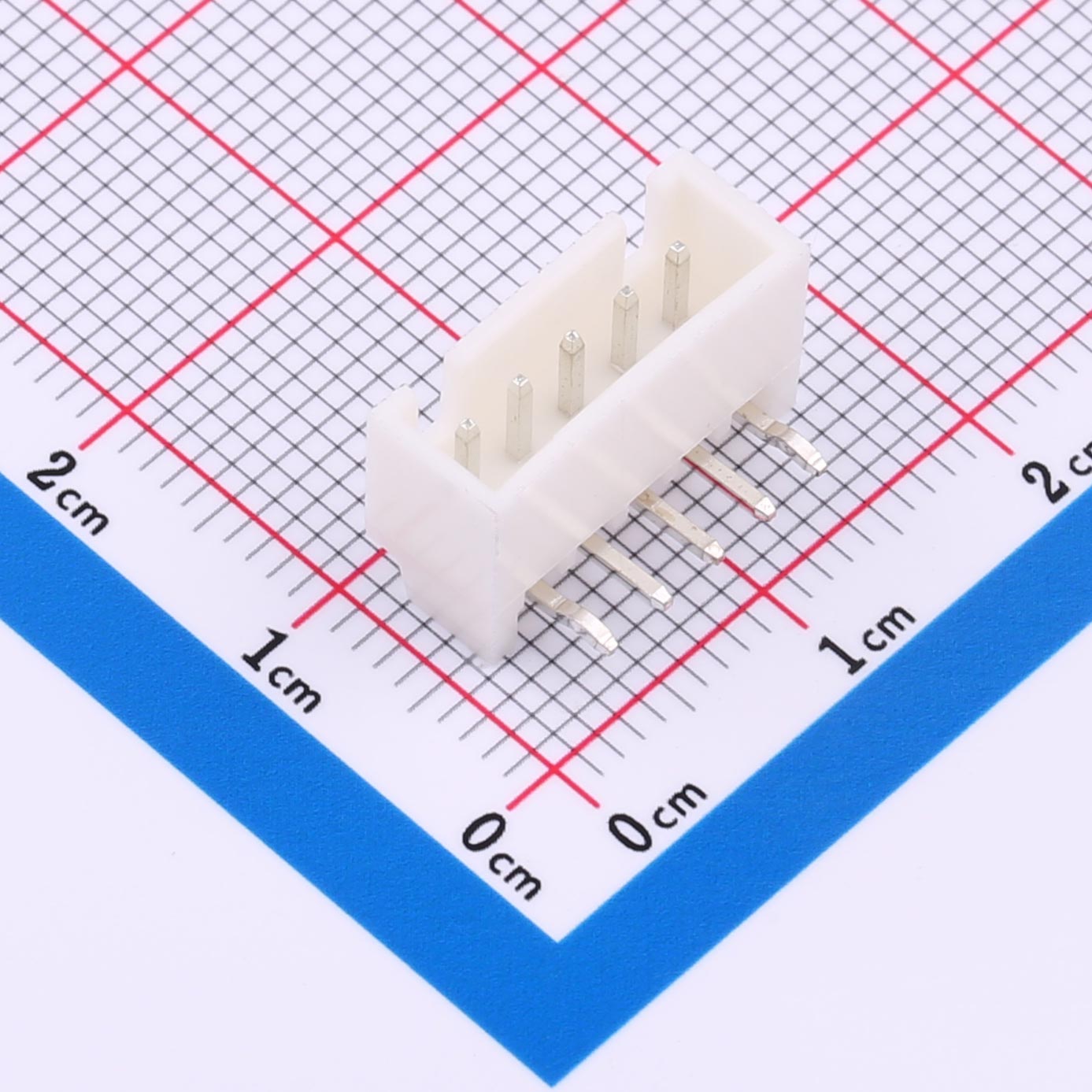

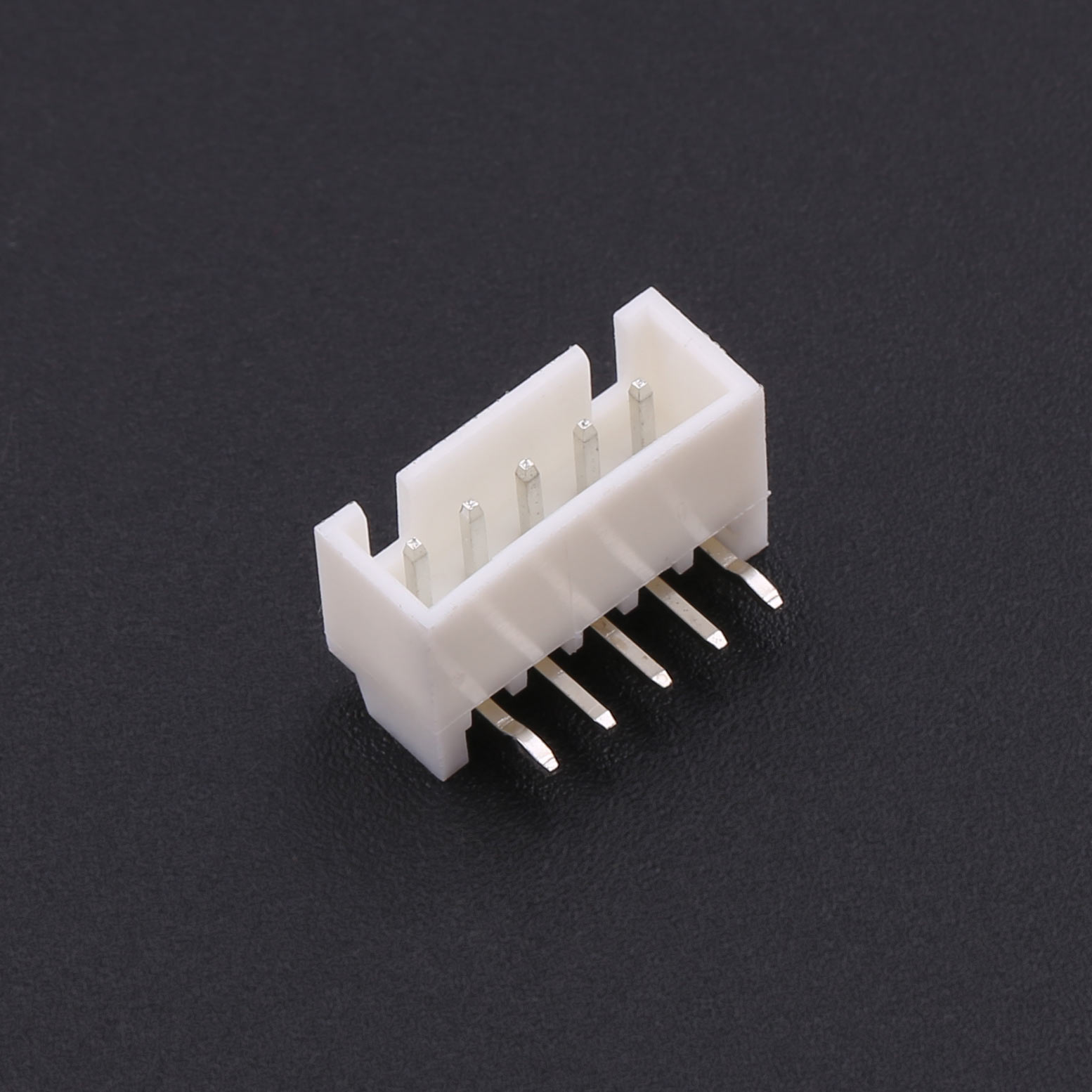

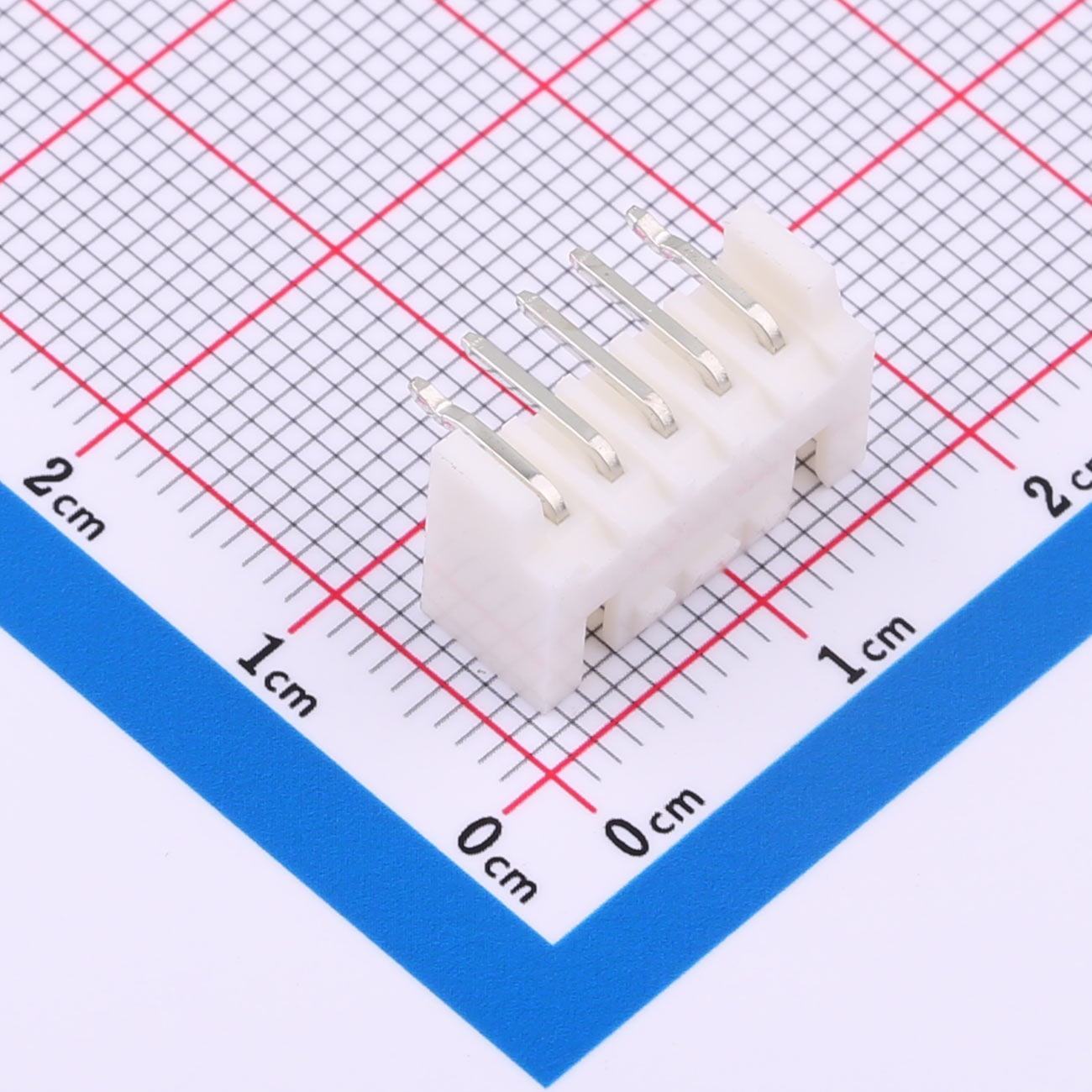

2.54mm Pitch Wire-to-Board Connector, 1x5P, Locating Angled Pin, KH-A2504-R-05AWD

2.54mm Pitch Wire-to-Board Connector, 1x5P, Locating Angled Pin, KH-A2504-R-05AWD

Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ ~ +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

Inquiry Datasheet

Product Details

Product Features
● 2.54mm pitch for solid wire-to-board connections
● 1x5P configuration for compact space-saving
● Angled locating pin for secure placement
● DIP type for easy PCB mounting
● 3A AC/DC current rating
● 250V AC/DC voltage rating
● -25℃ to +85℃ temperature range
● 20mΩ Max contact resistance
● 1000MΩ Min insulation resistance

Product Benefits
● Provides stable, secure connections
● Space-efficient design for small PCBs
● Supports high current and voltage requirements
● Reliable in a wide range of temperatures
● Low contact resistance for enhanced power transfer
● Excellent insulation for electrical safety

Product Applications
● Consumer electronics
● Automotive systems
● Industrial machinery
● Power distribution
● Household appliances
● Medical devices
