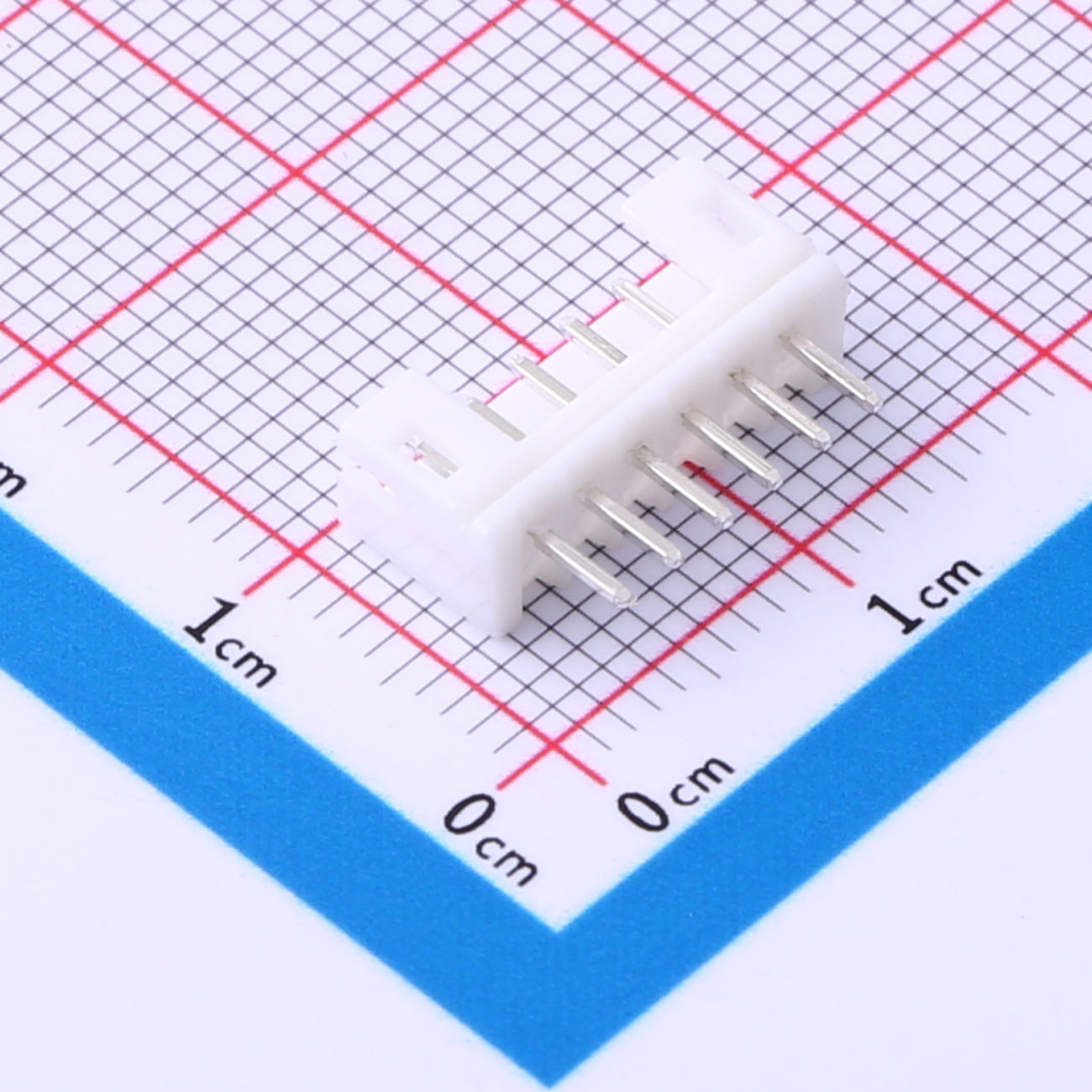

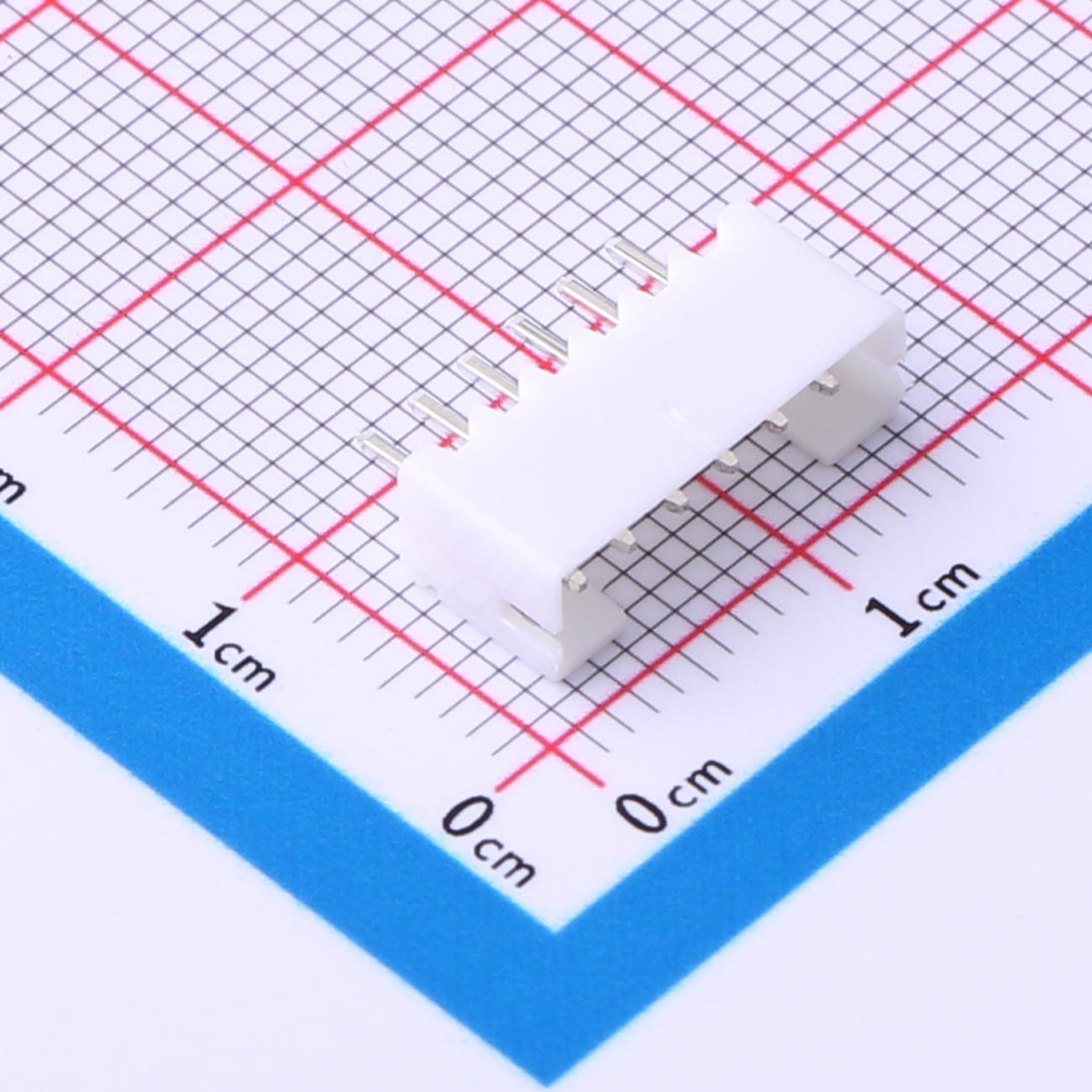

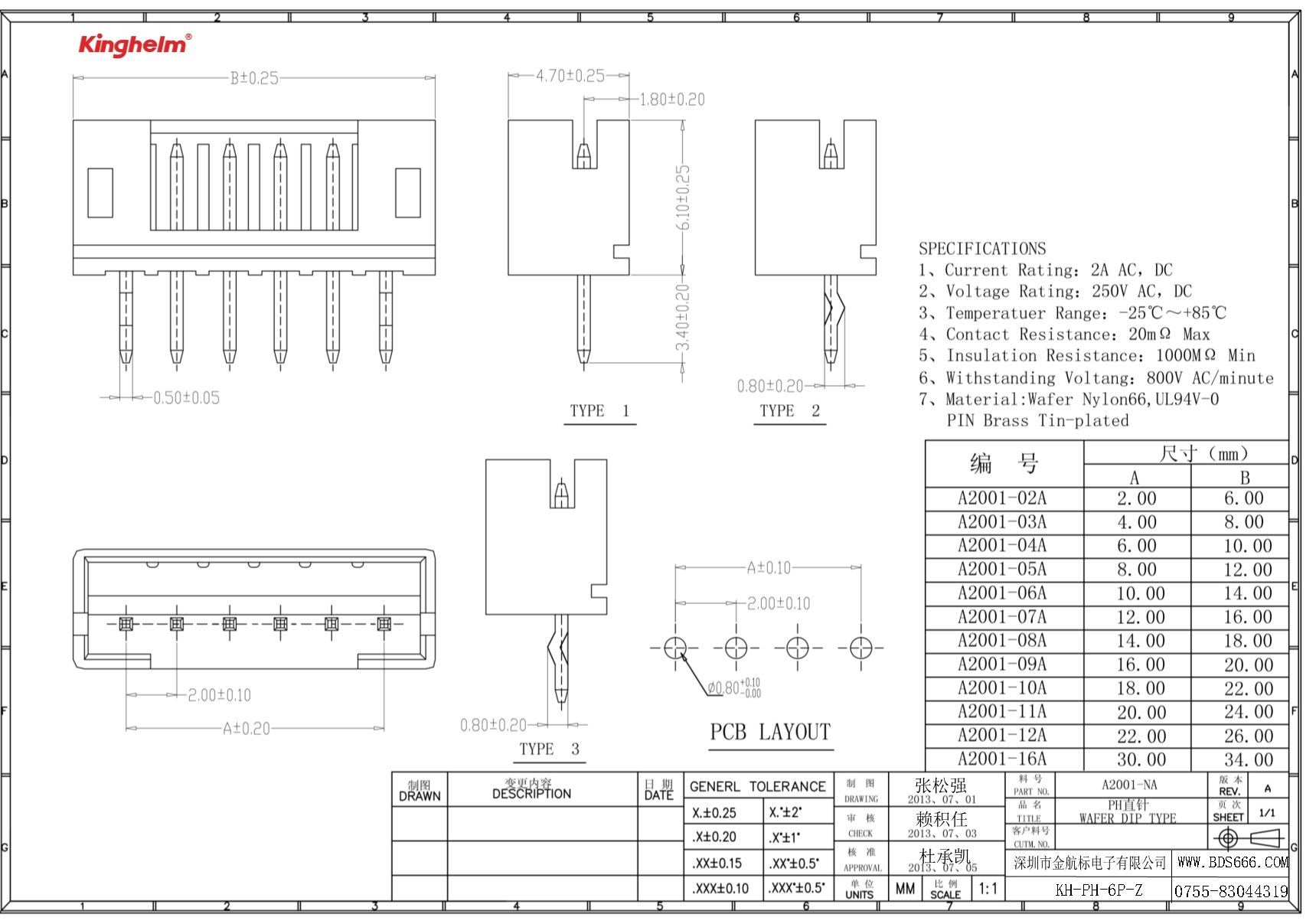

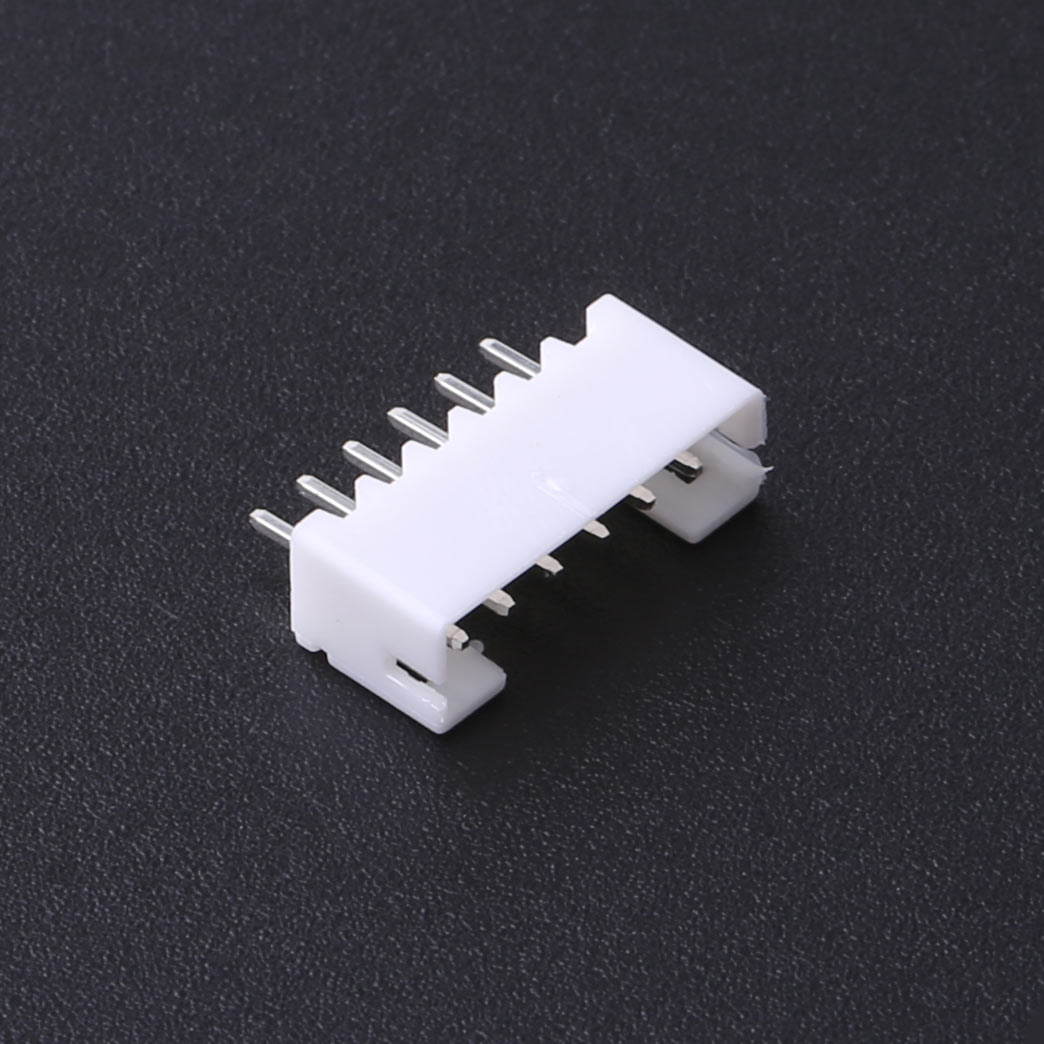

Wire-to-Board Connector, 2mm Pitch, 1x6P, KH-PH-6P-Z

Wire-to-Board Connector, 2mm Pitch, 1x6P, KH-PH-6P-Z

Current Rating: 2A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ ~ +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

Inquiry Datasheet

Product Details

Product Features

● 2.0mm pitch, single-row 6-pin structure
● Rated current: 2A AC/DC
● Voltage rating: 250V AC/DC
● Contact resistance ≤ 20mΩ
● Insulation resistance ≥ 1000MΩ
● Operating temperature: -25℃ to +85℃
● Plug-in type connector
● Compact design

Product Benefits
● Stable electrical contact
● High safety insulation
● Low power loss
● Reliable across temperature range
● Easy PCB assembly
● Space-efficient

Product Applications
● Consumer electronics
● LED lighting
● Office equipment
● Small appliances
● Communication devices
● Industrial controls
