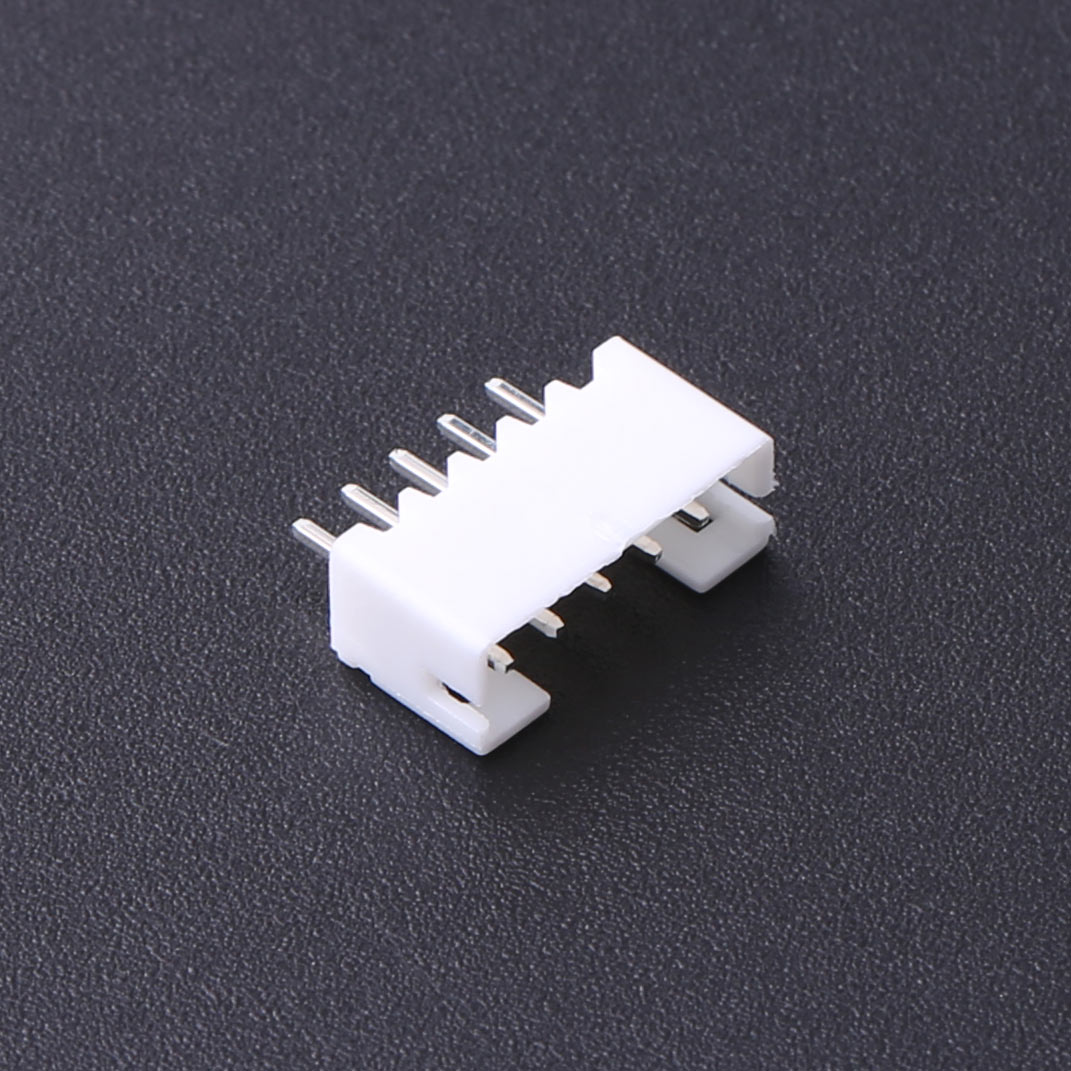

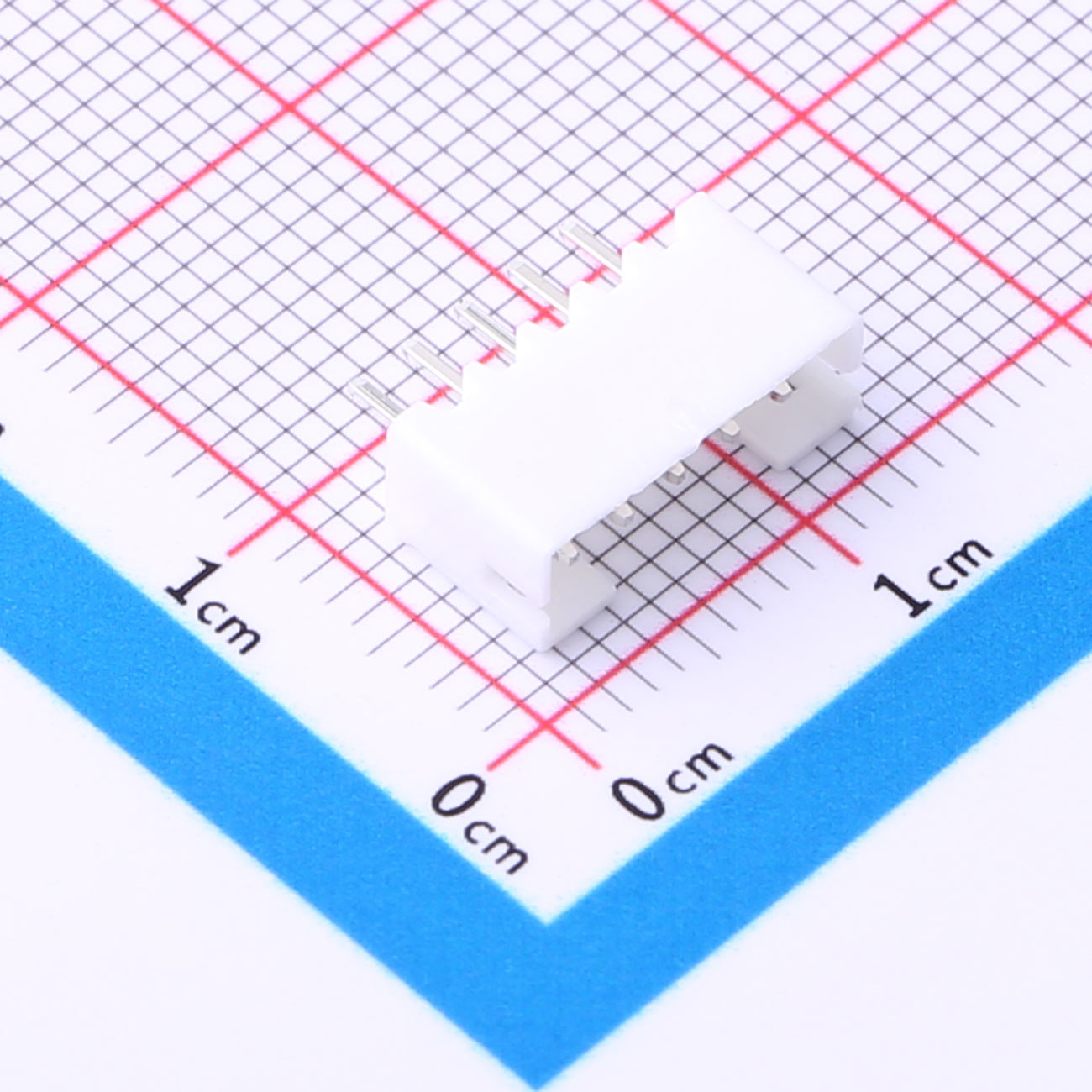

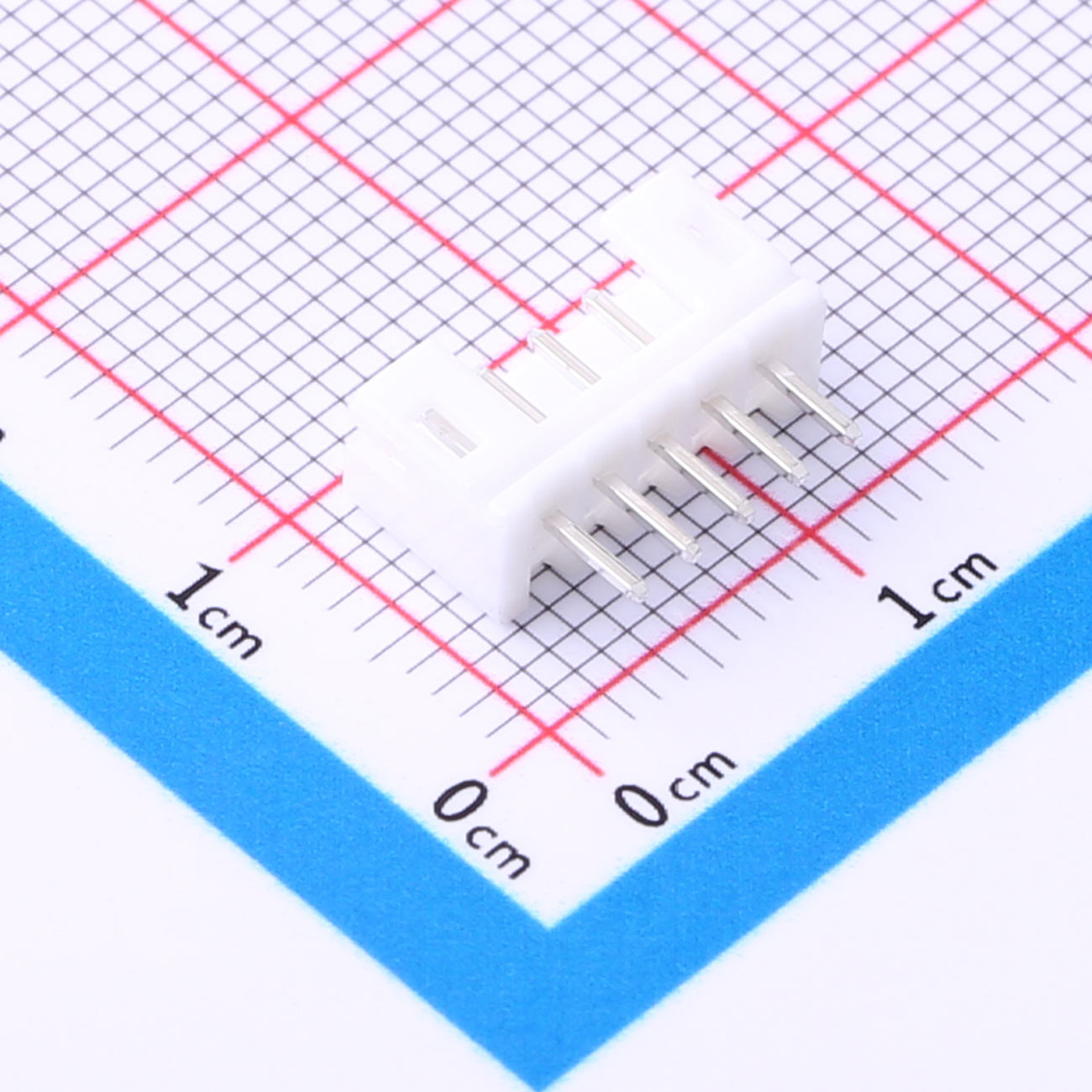

Wire-to-Board Connector, 2mm Pitch, 1x5P, KH-PH-5P-Z

Wire-to-Board Connector, 2mm Pitch, 1x5P, KH-PH-5P-Z

Current Rating: 2A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ ~ +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

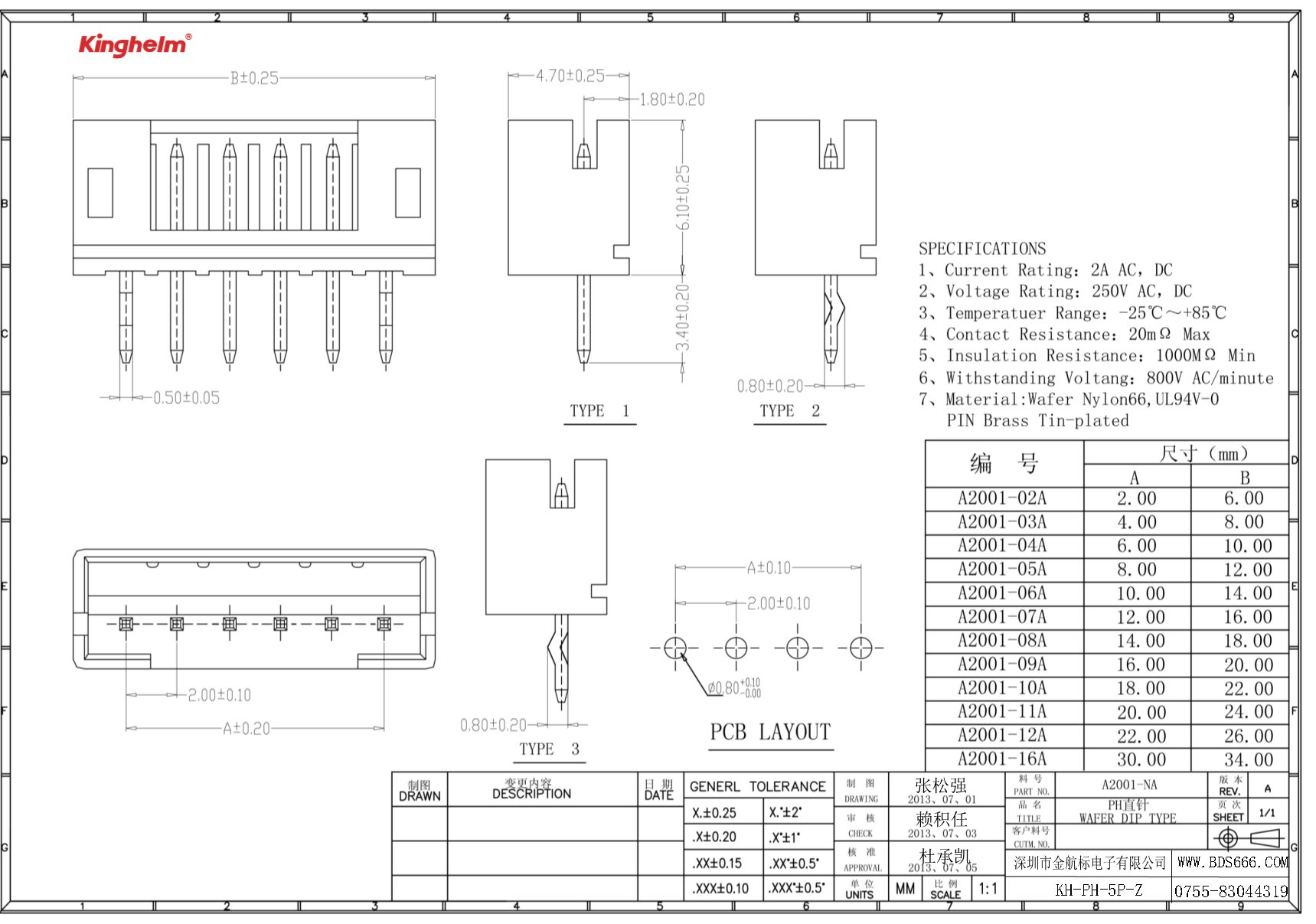

Inquiry Datasheet

Product Details

Product Features
● 2.0mm pitch, single-row 5-pin structure
● Current rating: 2A AC/DC
● Voltage rating: 250V AC/DC
● Contact resistance ≤ 20mΩ
● Insulation resistance ≥ 1000MΩ
● Temperature range: -25℃ to +85℃
● Plug-in type connection
● Compact footprint

Product Benefits
● Reliable electrical performance
● Strong insulation
● Low resistance for efficiency
● Wide temperature tolerance
● Easy installation on PCB
● Saves board space

Product Applications
● Consumer devices
● LED lights
● Office automation
● Household appliances
● Communication gear
● Industrial electronics
