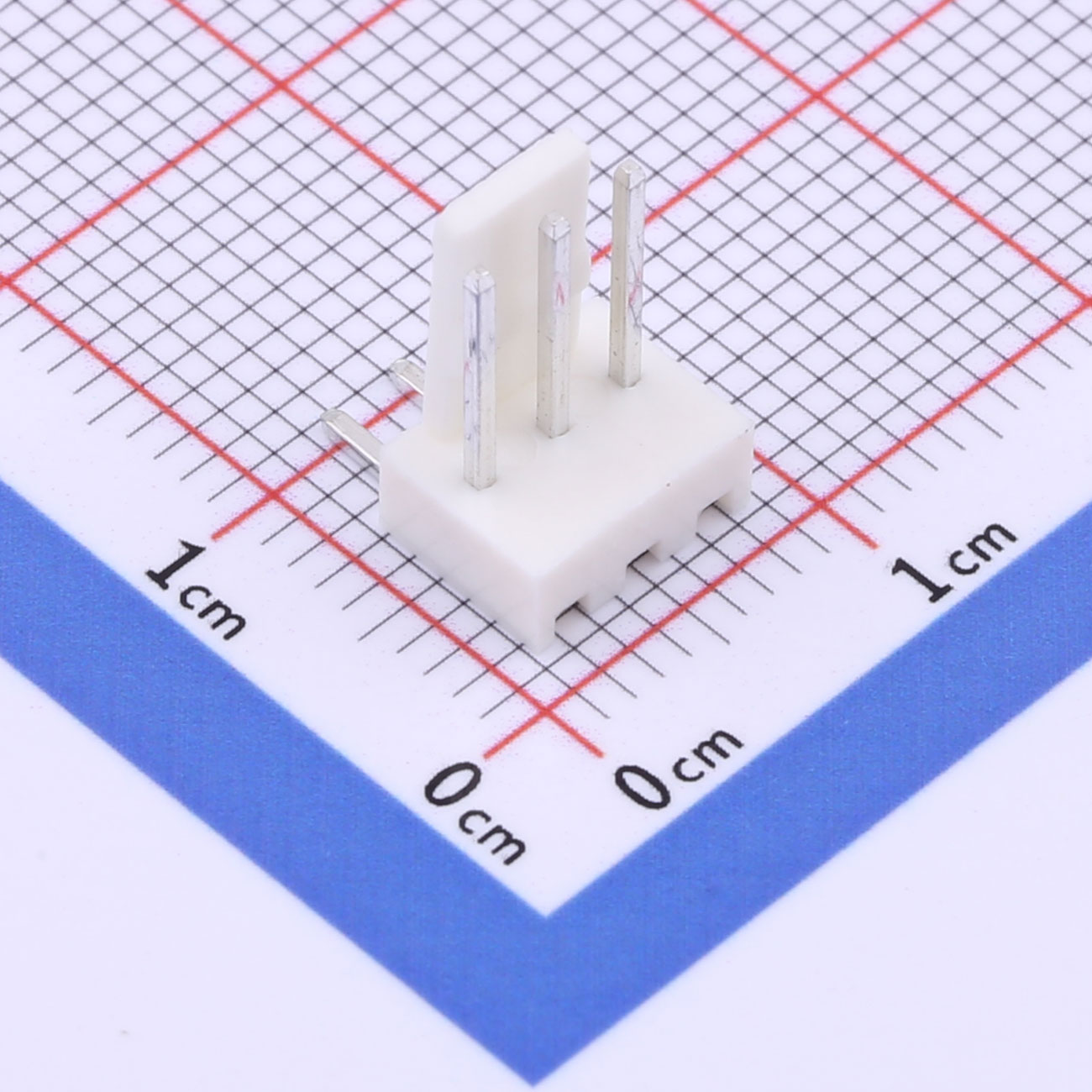

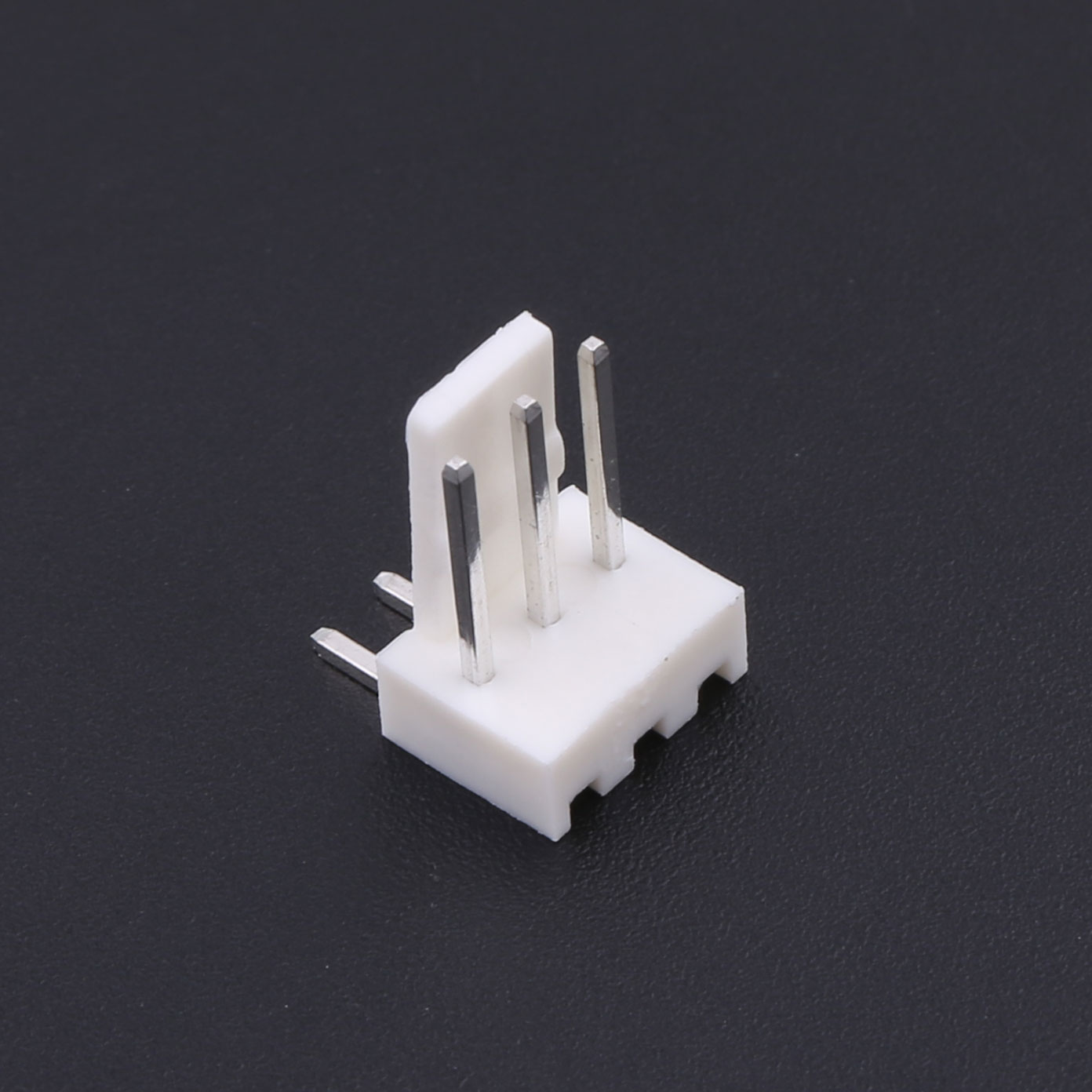

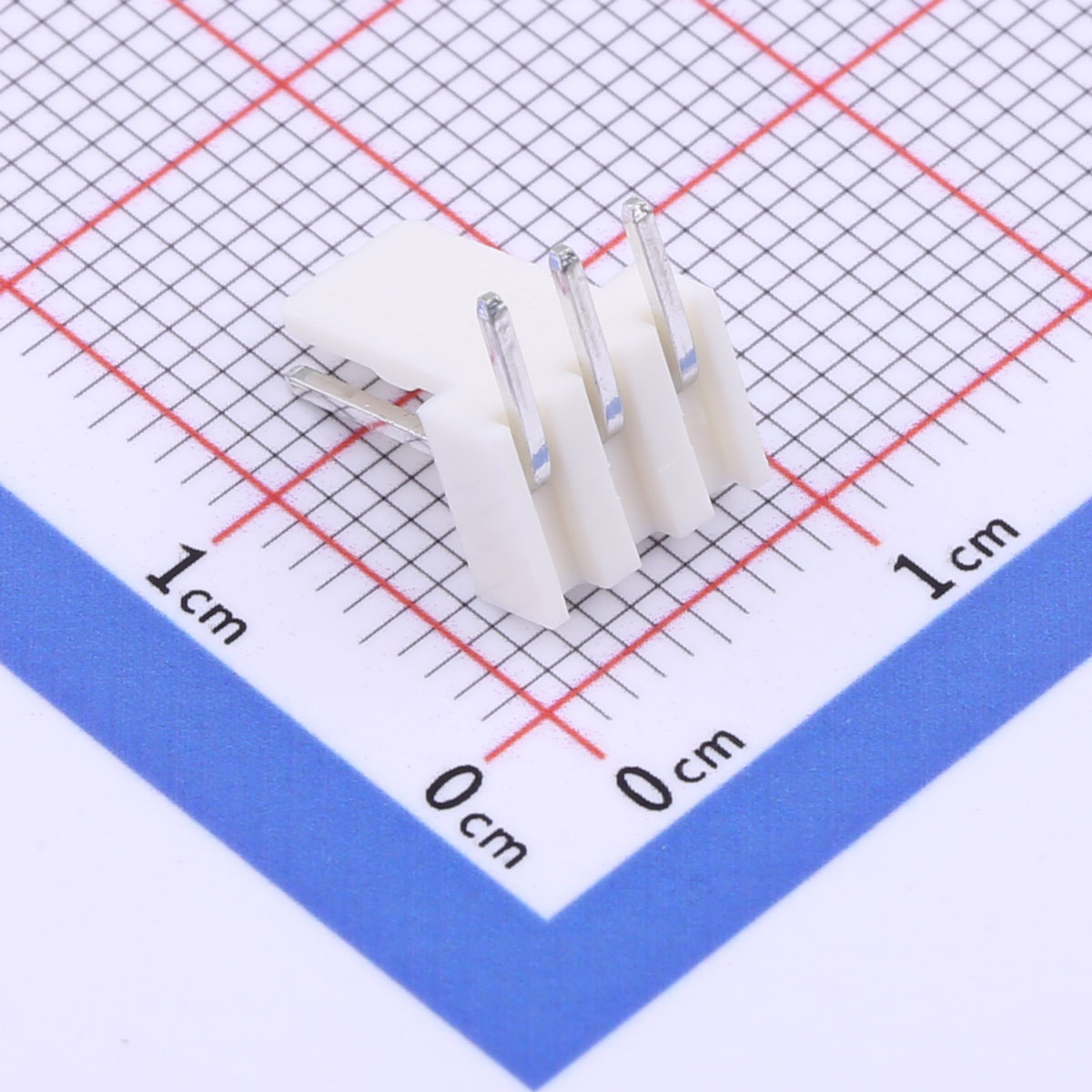

Wire-to-Board Connector, 2.54mm Pitch, 1x3P, KH-HX2.54-03PW

Wire-to-Board Connector, 2.54mm Pitch, 1x3P, KH-HX2.54-03PW

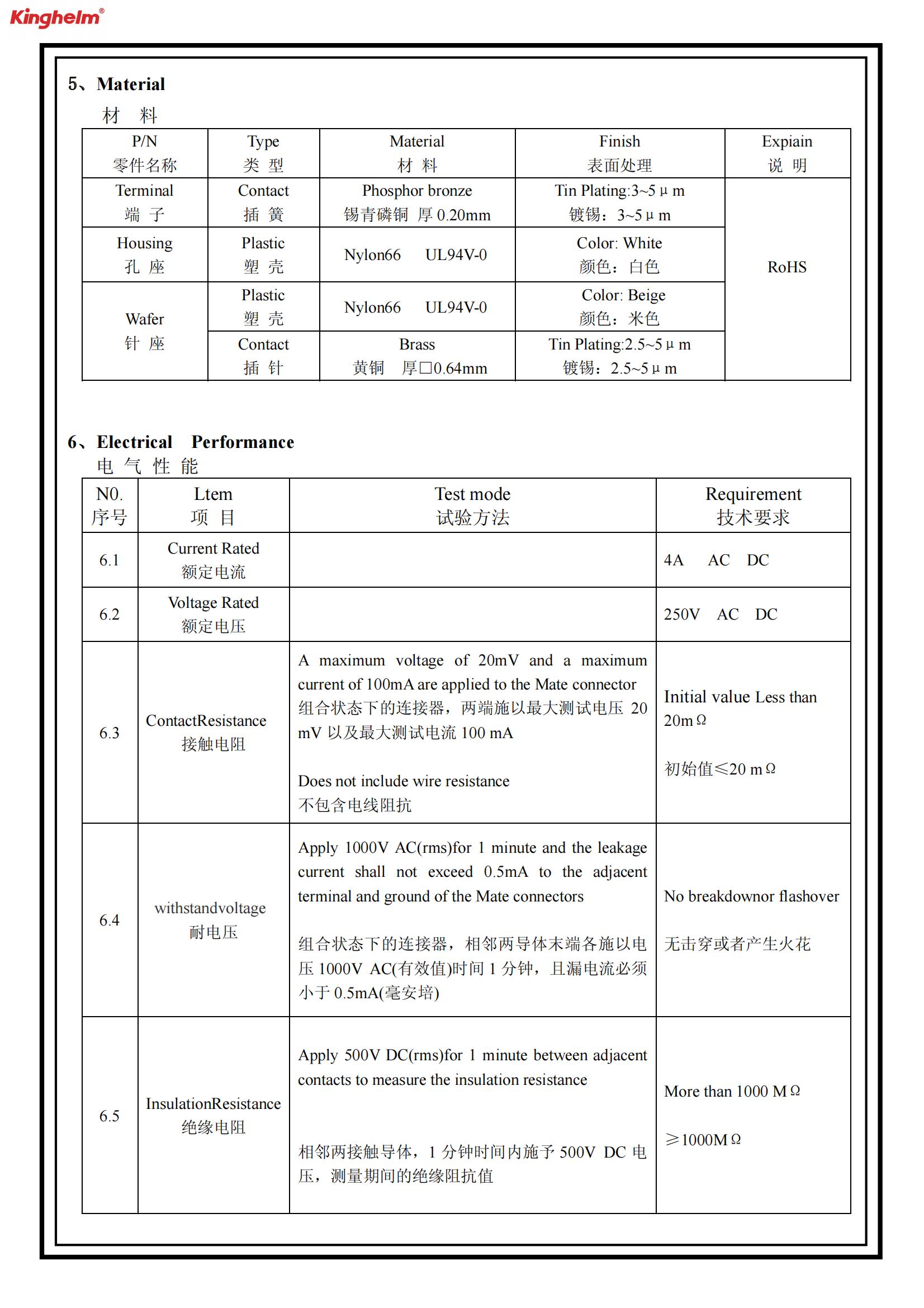

Current Rating: 4A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ ~ +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

Inquiry Datasheet

Product Details

Product Features
● 2.54mm pitch
● 1x3 single-row layout
● Right-angle mounting
● Rated 4A / 250V AC/DC
● -25℃ to +85℃ range

Product Benefits
● Ultra-compact size
● Quick and easy installation
● Long-term performance
● Excellent electrical insulation
● Reliable pin-to-pin spacing

Product Applications
● Signal transmission lines
● Relay modules
● Timing circuits
● Access control units
● Microcontroller breakout boards

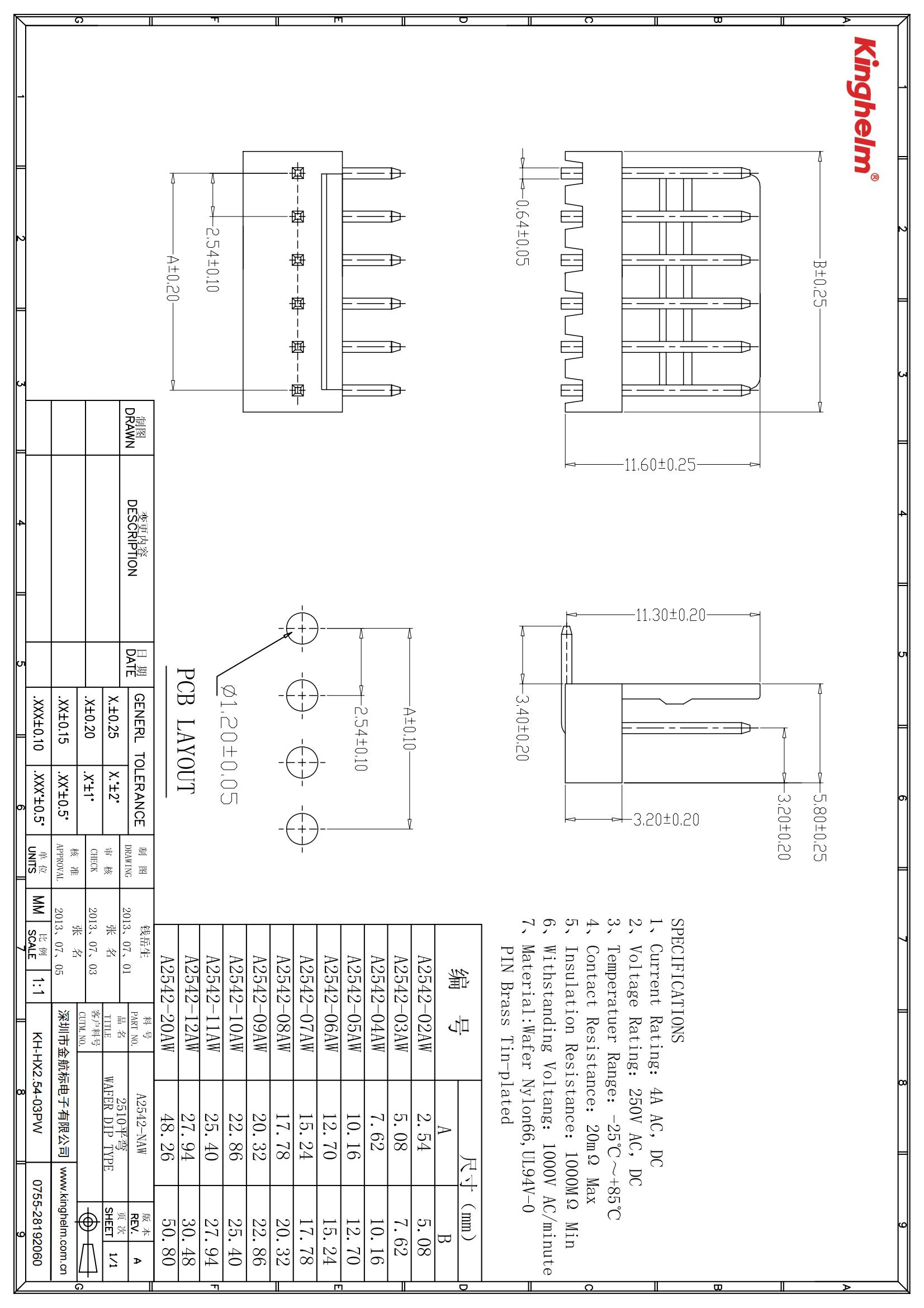

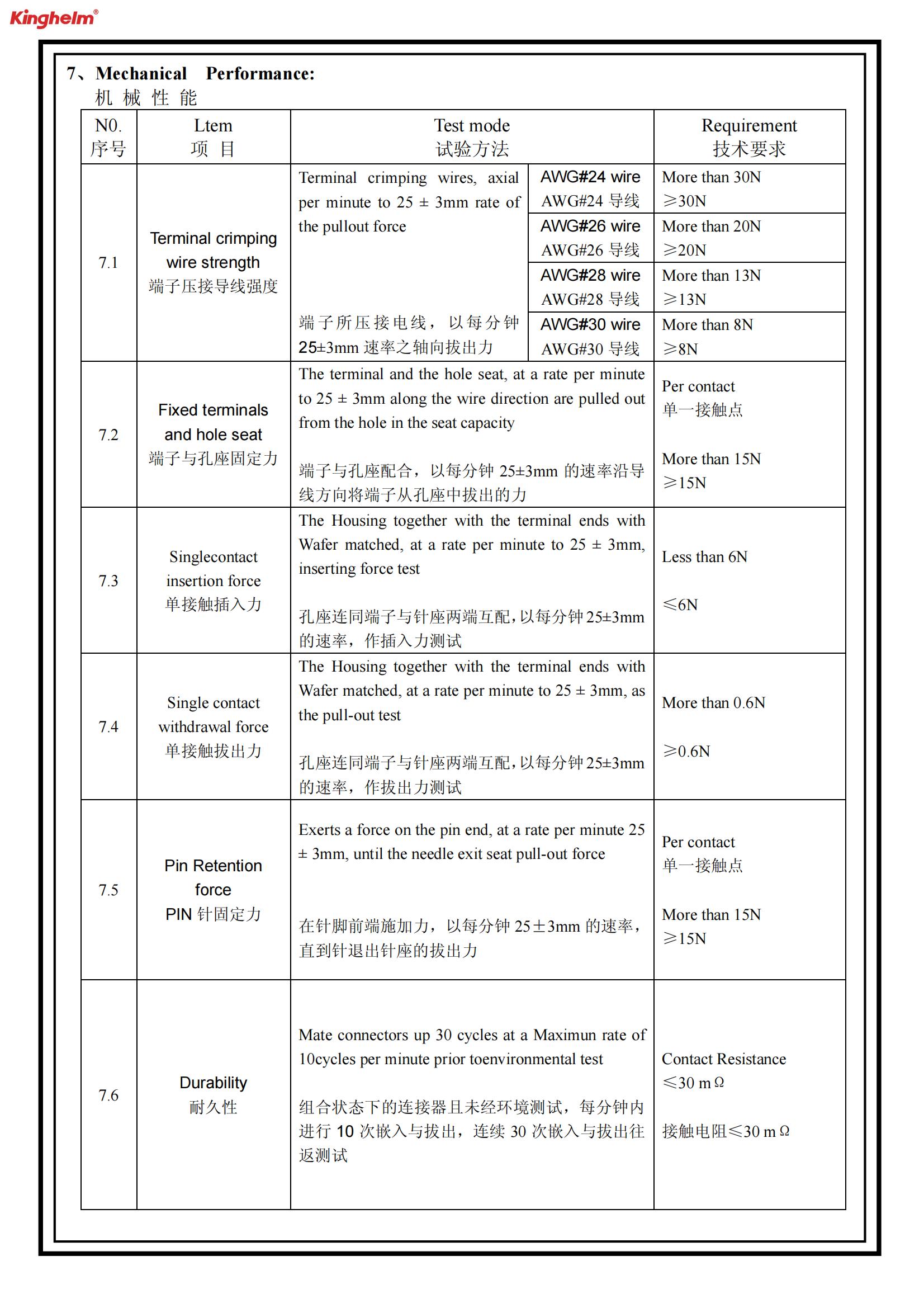

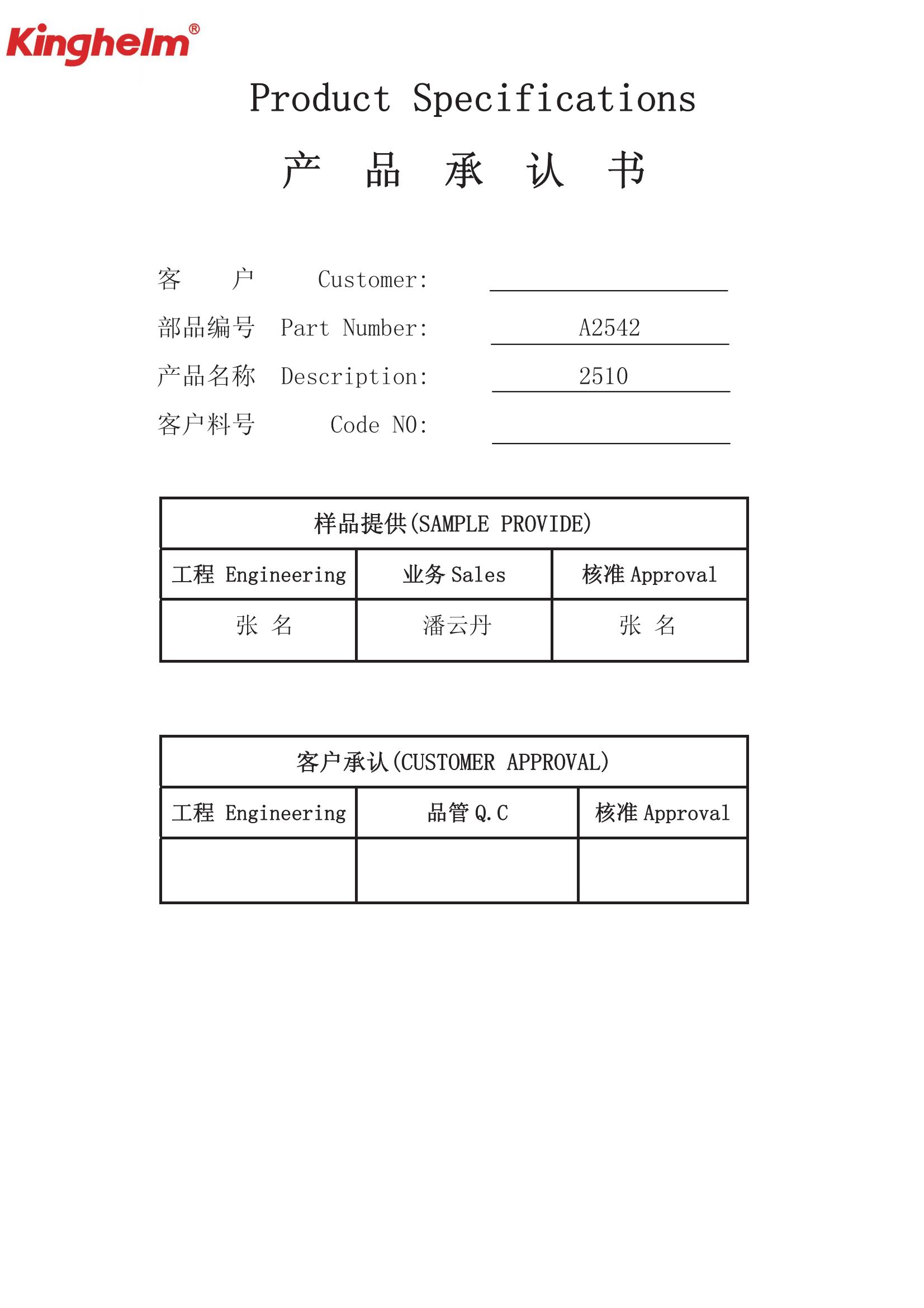

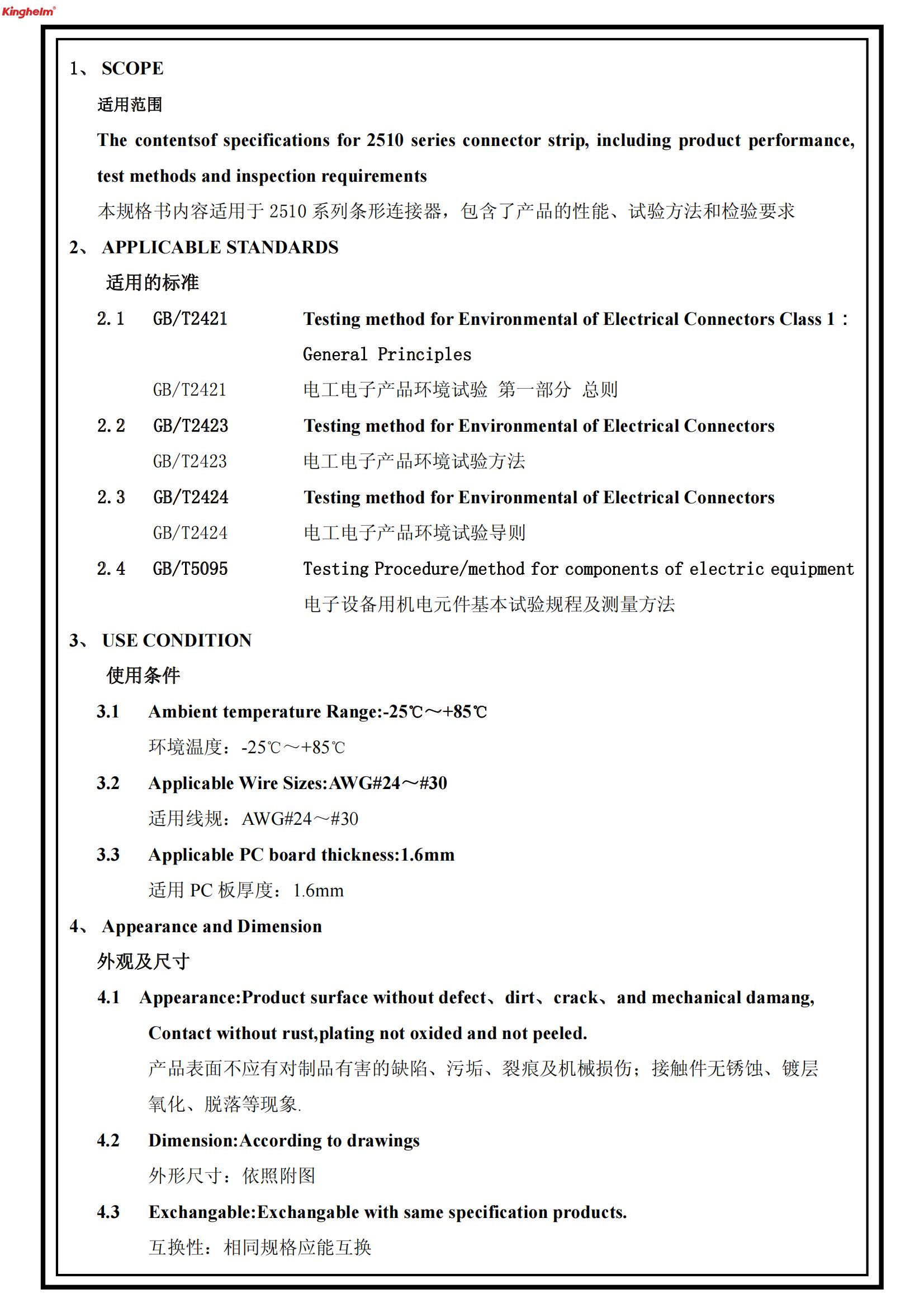

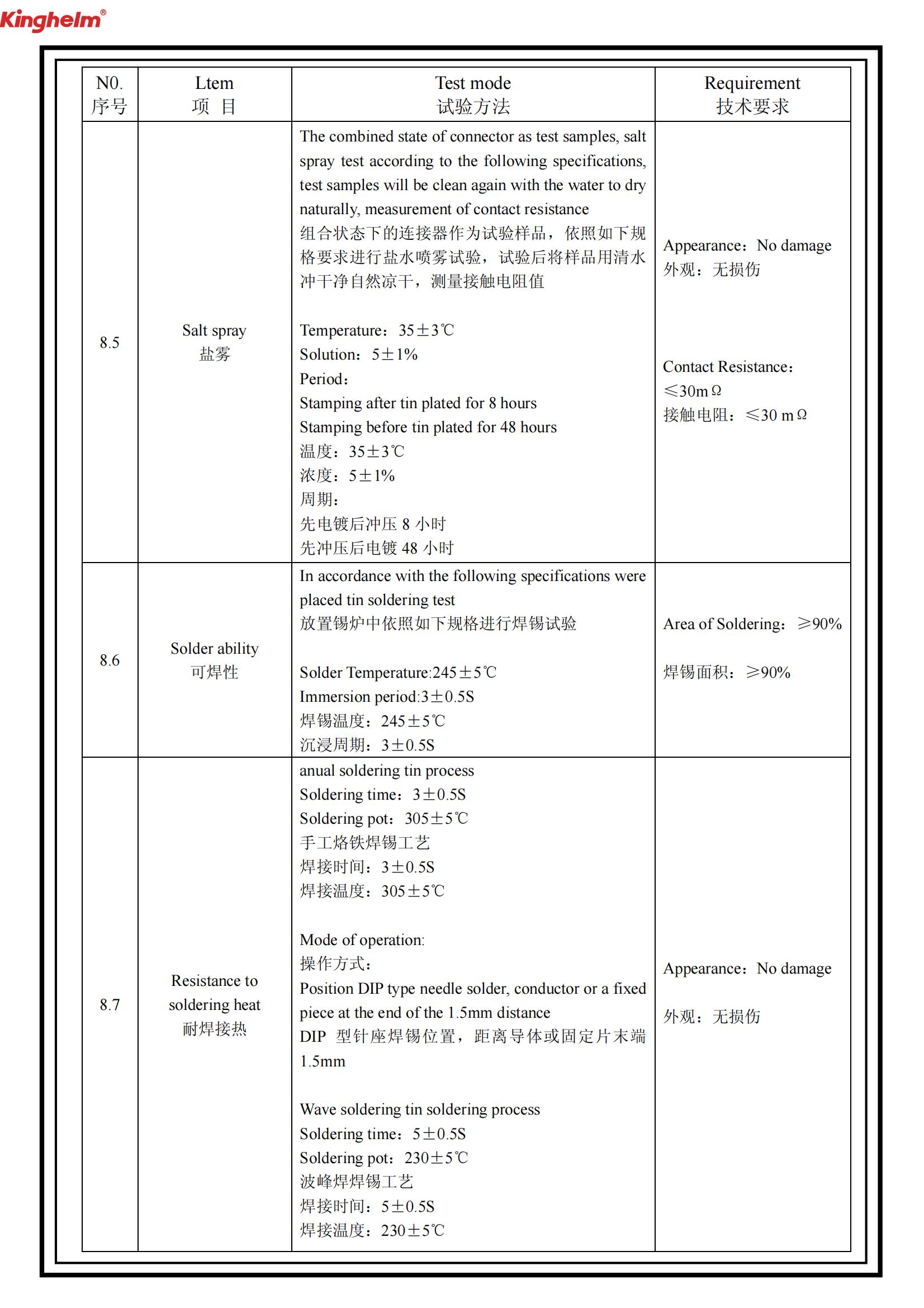

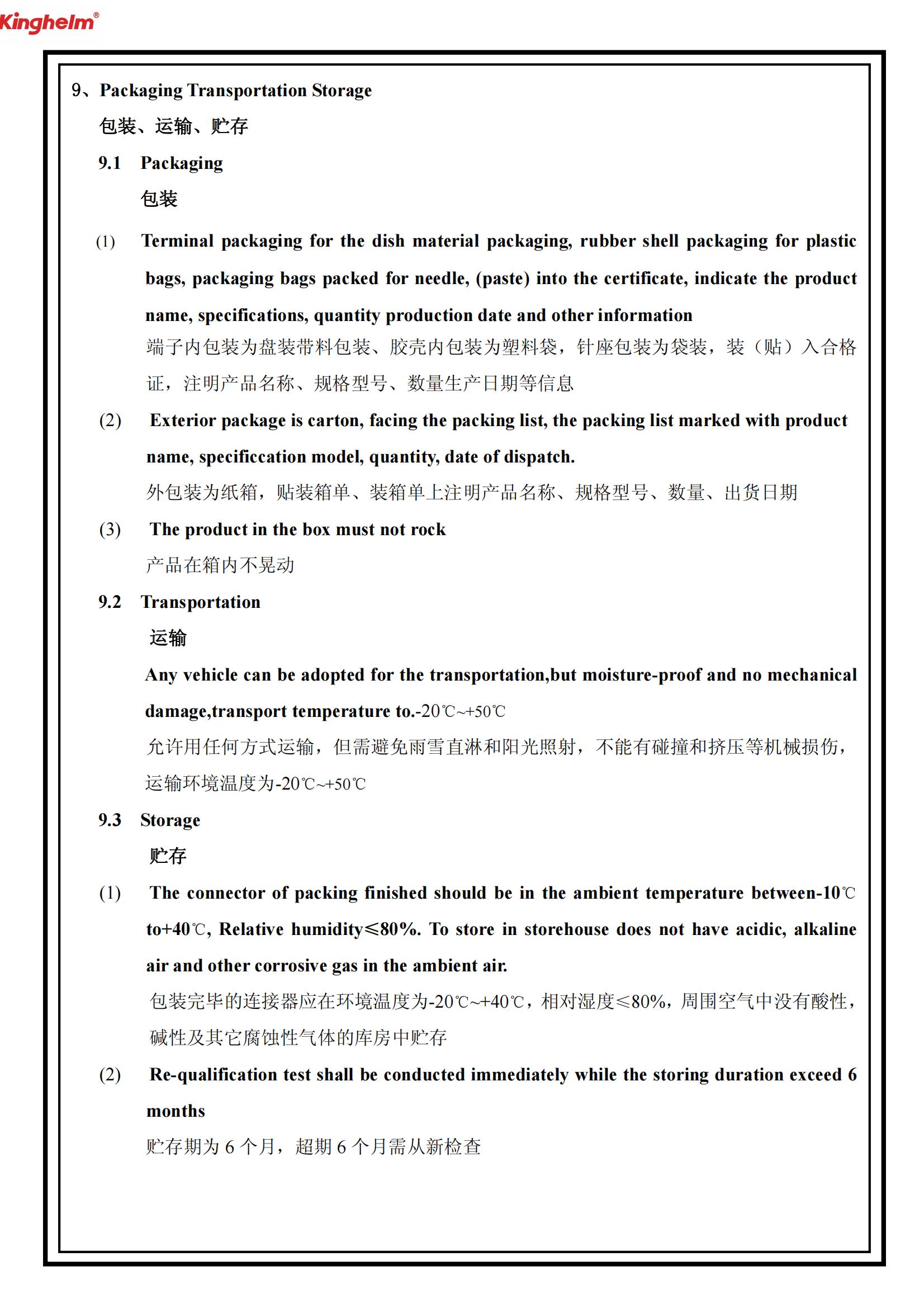

KH-HX2.54-03PW_00.jpg KH-HX2.54-03PW_01.jpg KH-HX2.54-03PW_02.jpg KH-HX2.54-03PW_03.jpg KH-HX2.54-03PW_04.jpg KH-HX2.54-03PW_05.jpg KH-HX2.54-03PW_06.jpg KH-HX2.54-03PW_07.jpg KH-HX2.54-03PW_08.jpg KH-HX2.54-03PW_09.jpg
