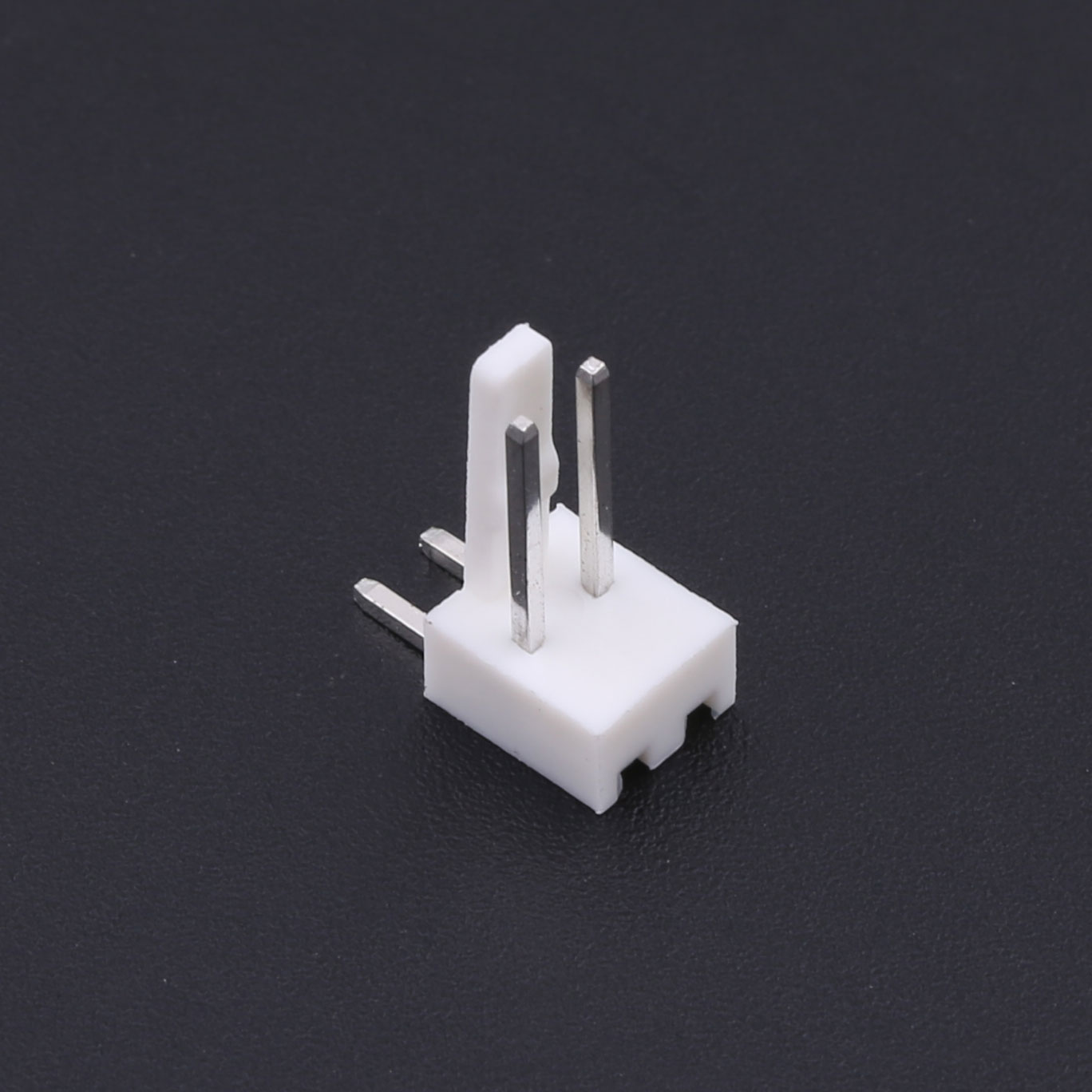

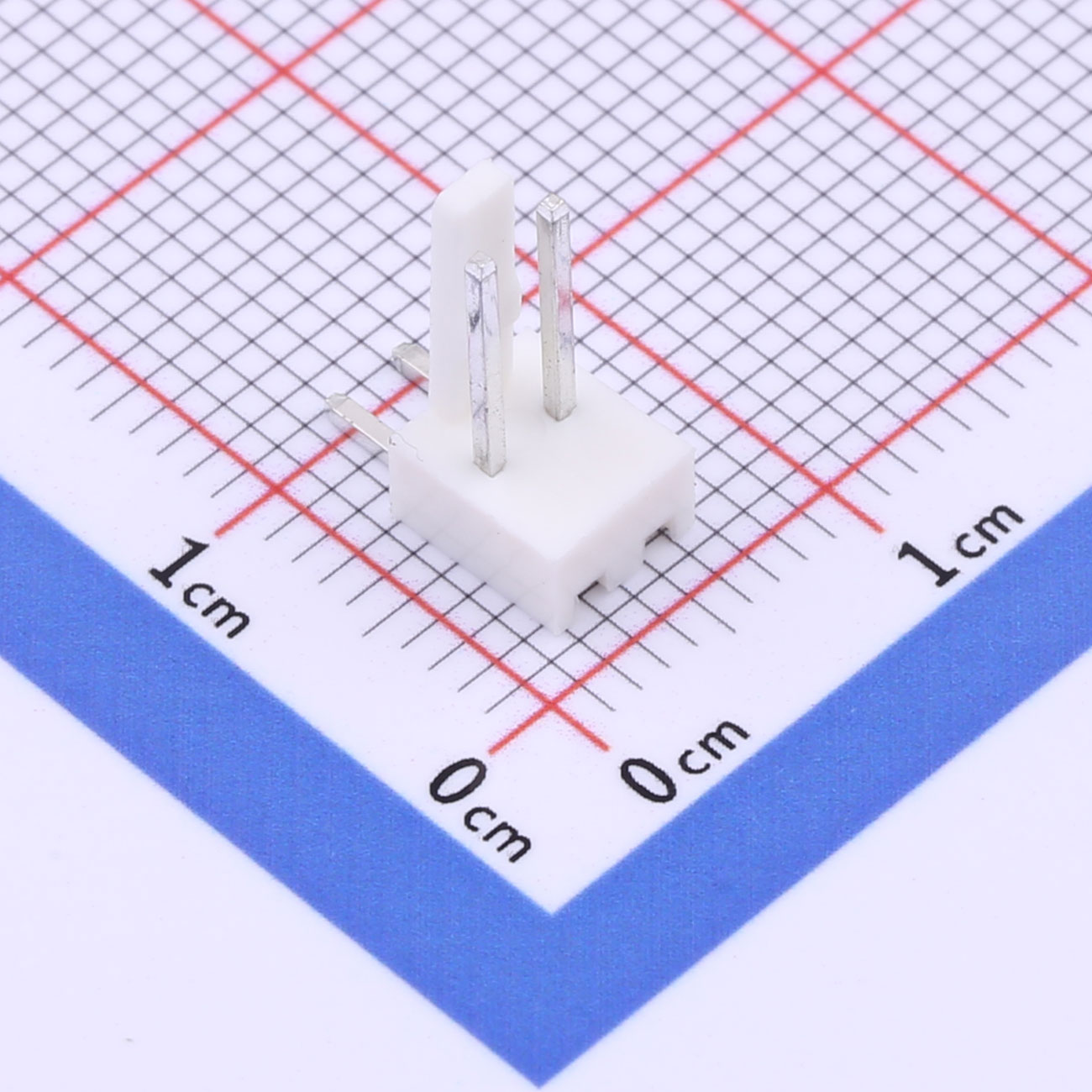

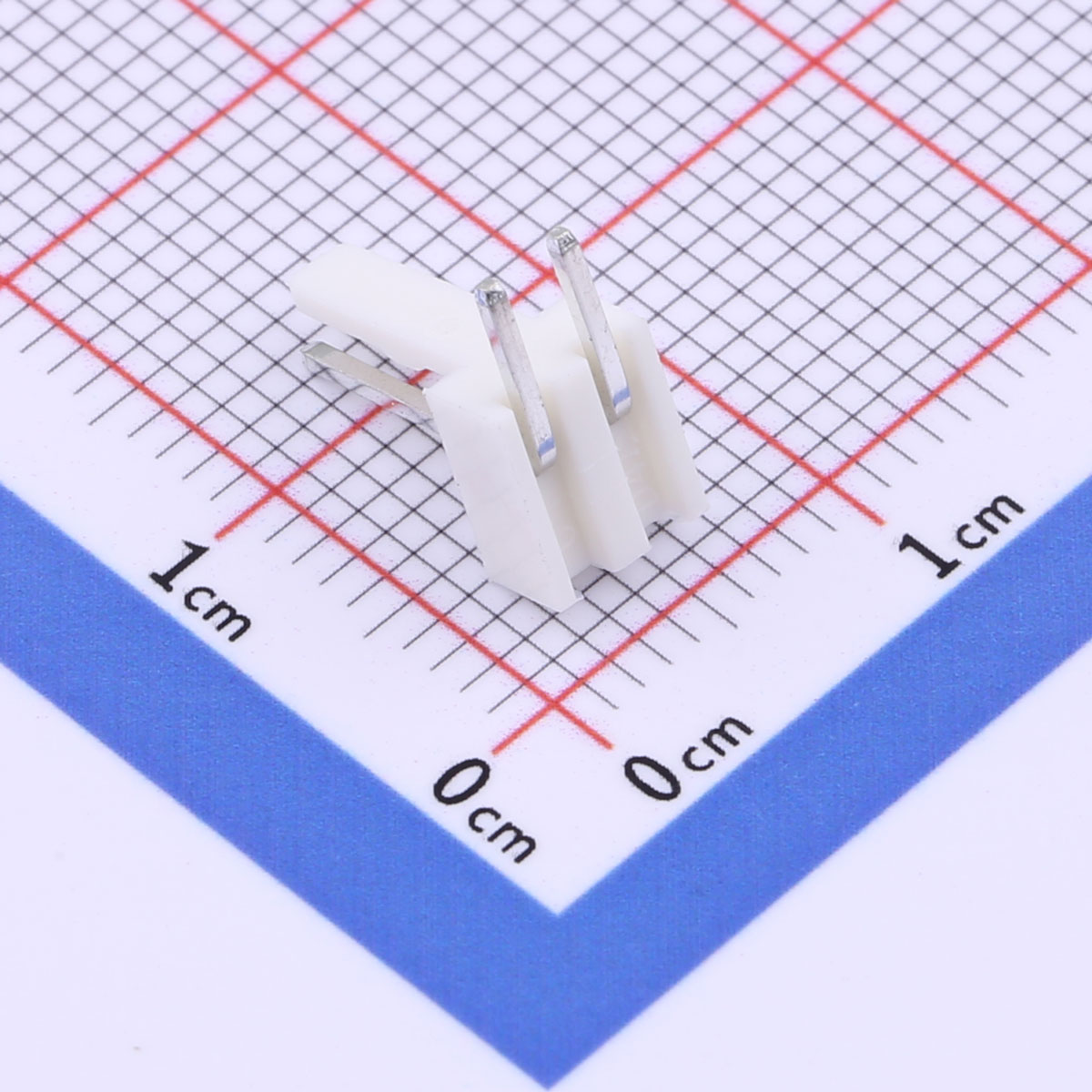

Wire-to-Board Connector, 2.54mm Pitch, 1x2P, KH-HX2.54-02PW

Wire-to-Board Connector, 2.54mm Pitch, 1x2P, KH-HX2.54-02PW

Current Rating: 4A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ ~ +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

Inquiry Datasheet

Product Details

Product Features
● 2.54mm pitch
● 1x2 single-row layout
● Right-angle mounting
● 4A / 250V AC/DC rating
● Operating temperature: -25℃ to +85℃

Product Benefits
● Simplest connector configuration
● Fast plug-in/plug-out
● Minimal board footprint
● High electrical reliability
● Cost-efficient

Product Applications
● Power switch connectors
● Reset button terminals
● Sensor trigger pins
● Mini LED power lines
● Low-power device links

KH-HX2.54-02PW_00.jpg KH-HX2.54-02PW_01.jpg KH-HX2.54-02PW_02.jpg KH-HX2.54-02PW_03.jpg KH-HX2.54-02PW_04.jpg KH-HX2.54-02PW_05.jpg KH-HX2.54-02PW_06.jpg KH-HX2.54-02PW_07.jpg KH-HX2.54-02PW_08.jpg KH-HX2.54-02PW_09.jpg
