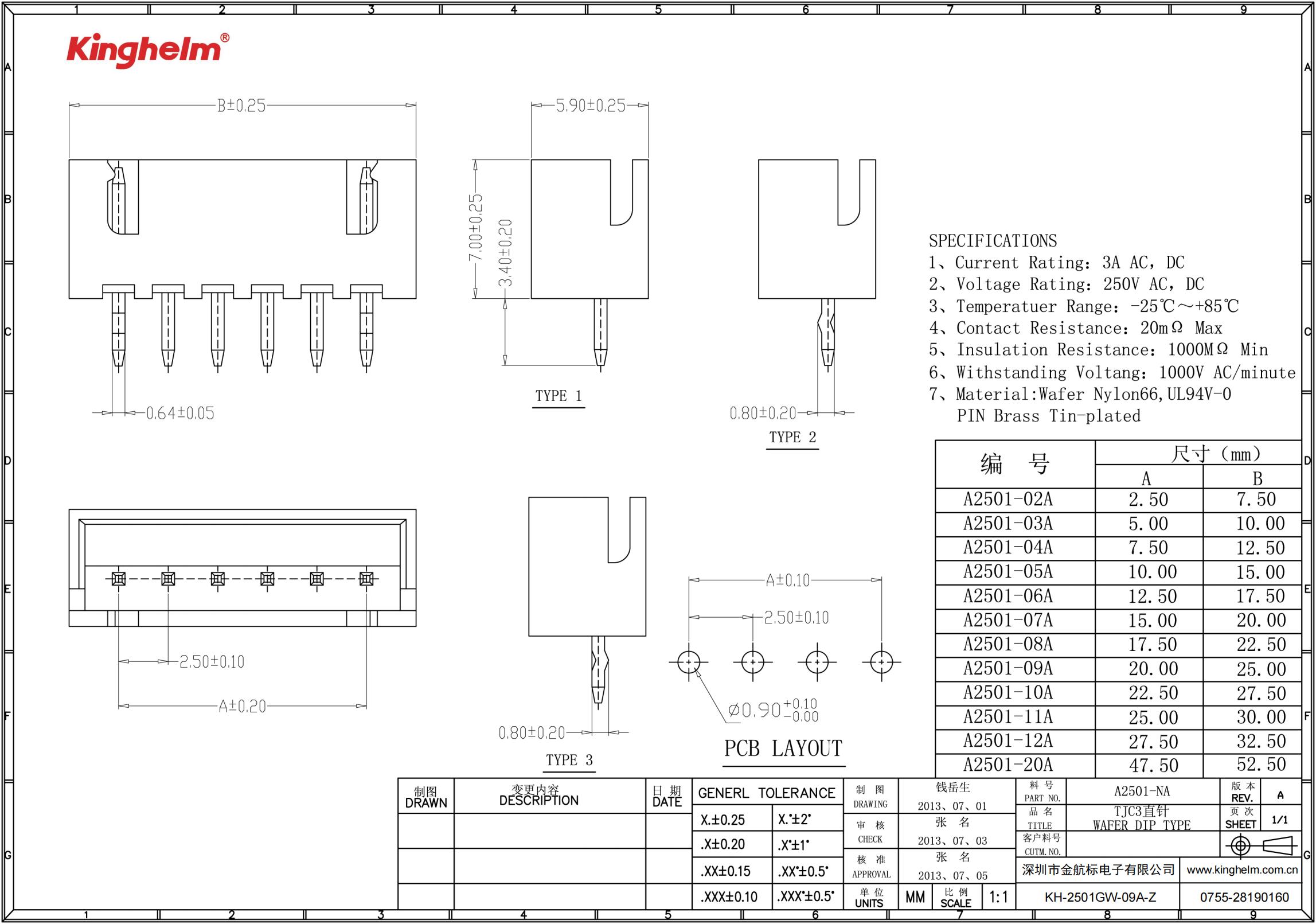

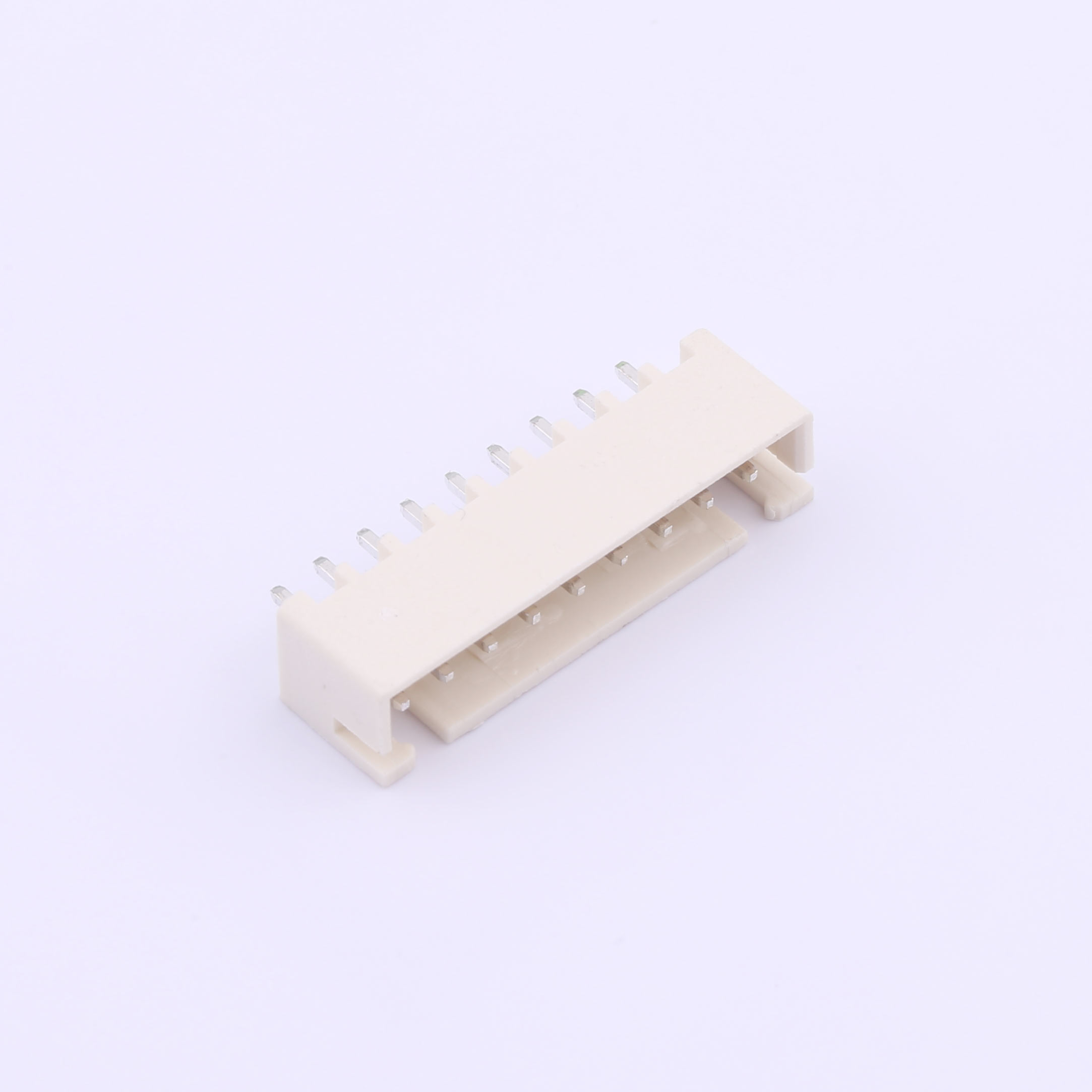

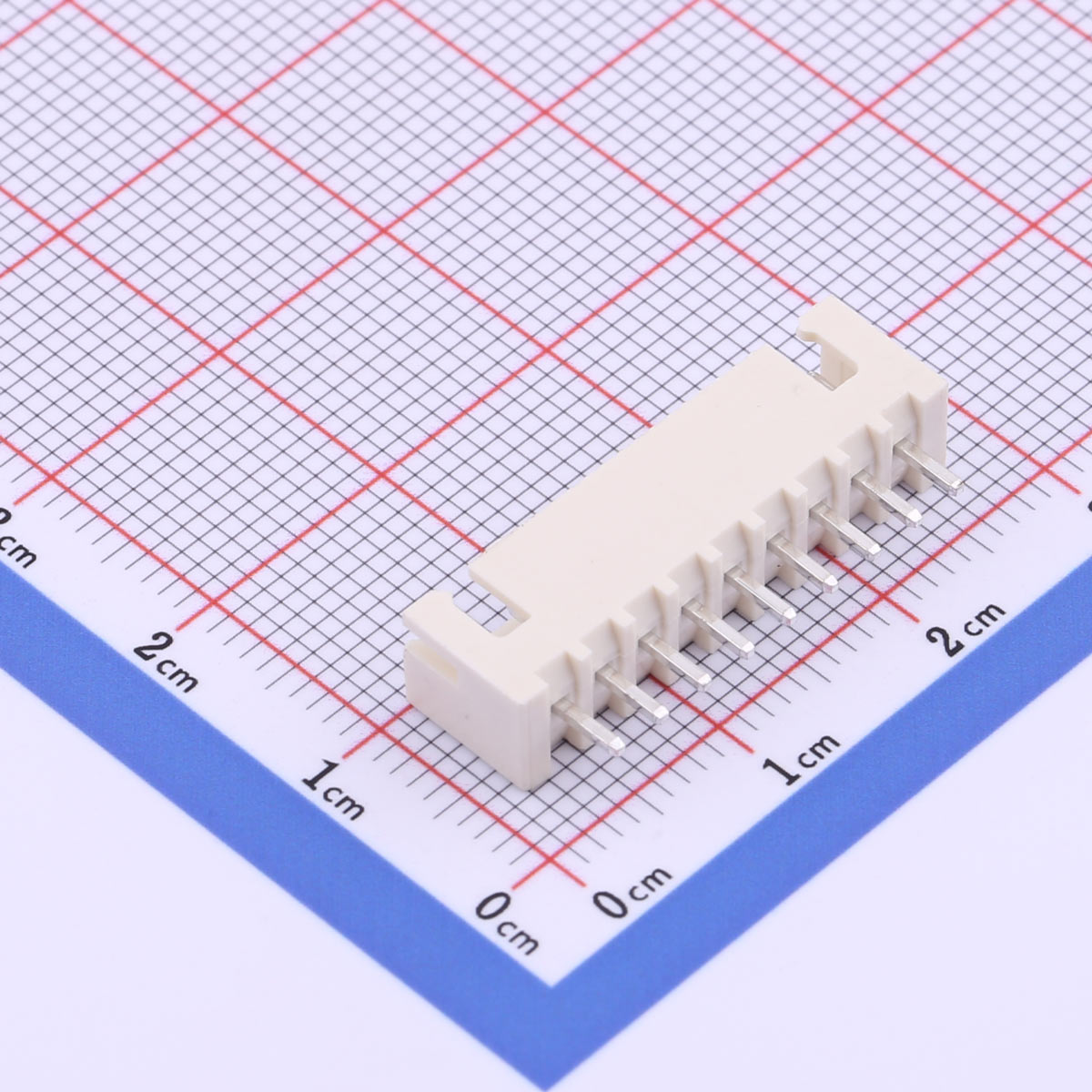

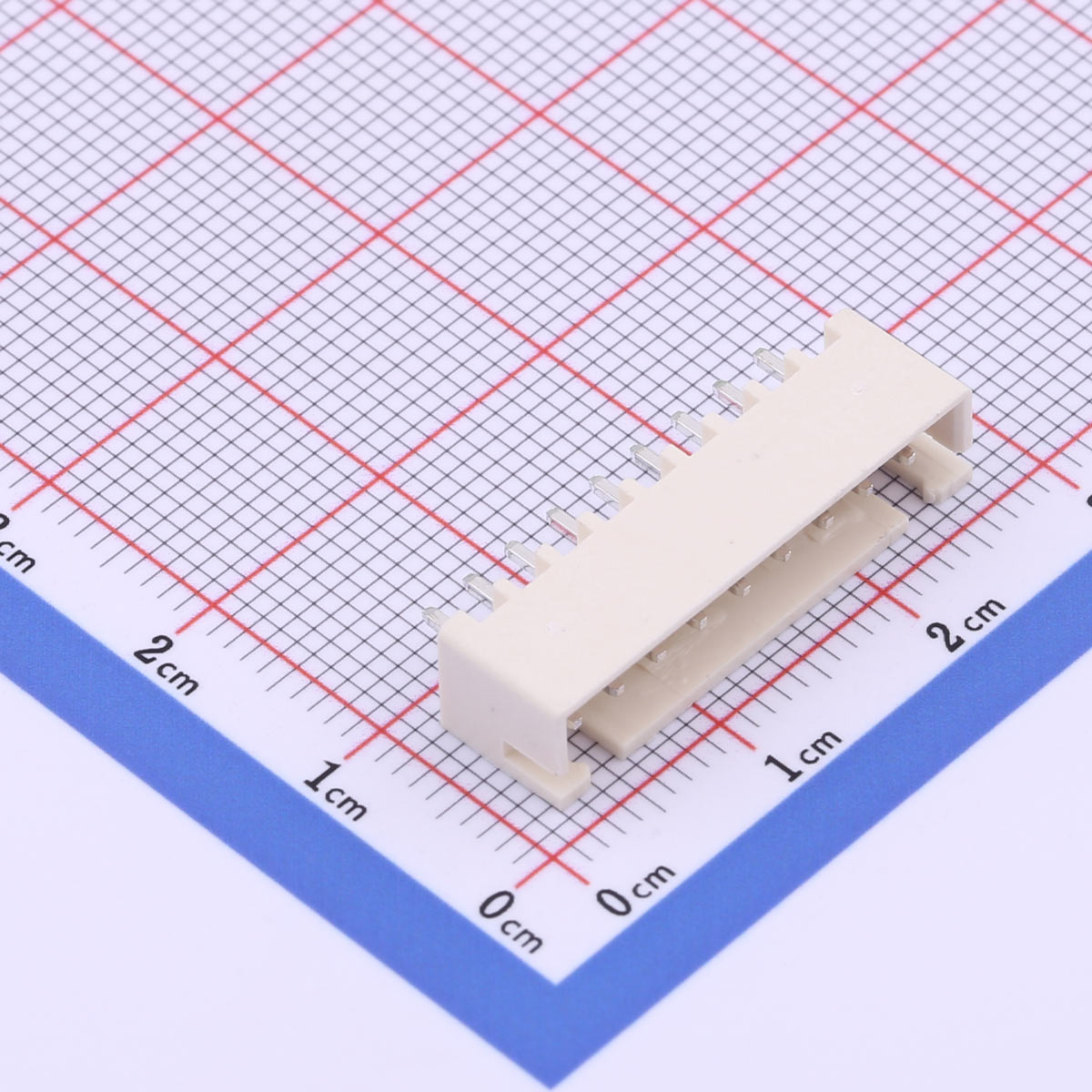

Wire-to-Board Connector, 2.5mm Pitch, 9P, KH-2501GW-09A-Z
Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25°C to +85°C
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.5mm pitch wire-to-board connector
● 9 positions single row
● Straight mounting type
● 3A 250V AC/DC rated
● Compatible with XH series
Product Benefits
● Space-efficient layout
● Stable power connection
● Easy assembly and removal
● High insulation reliability
● Good heat resistance
Product Applications
● LED lighting systems
● Consumer electronics
● Home automation devices
● Communication equipment
● Industrial controllers
