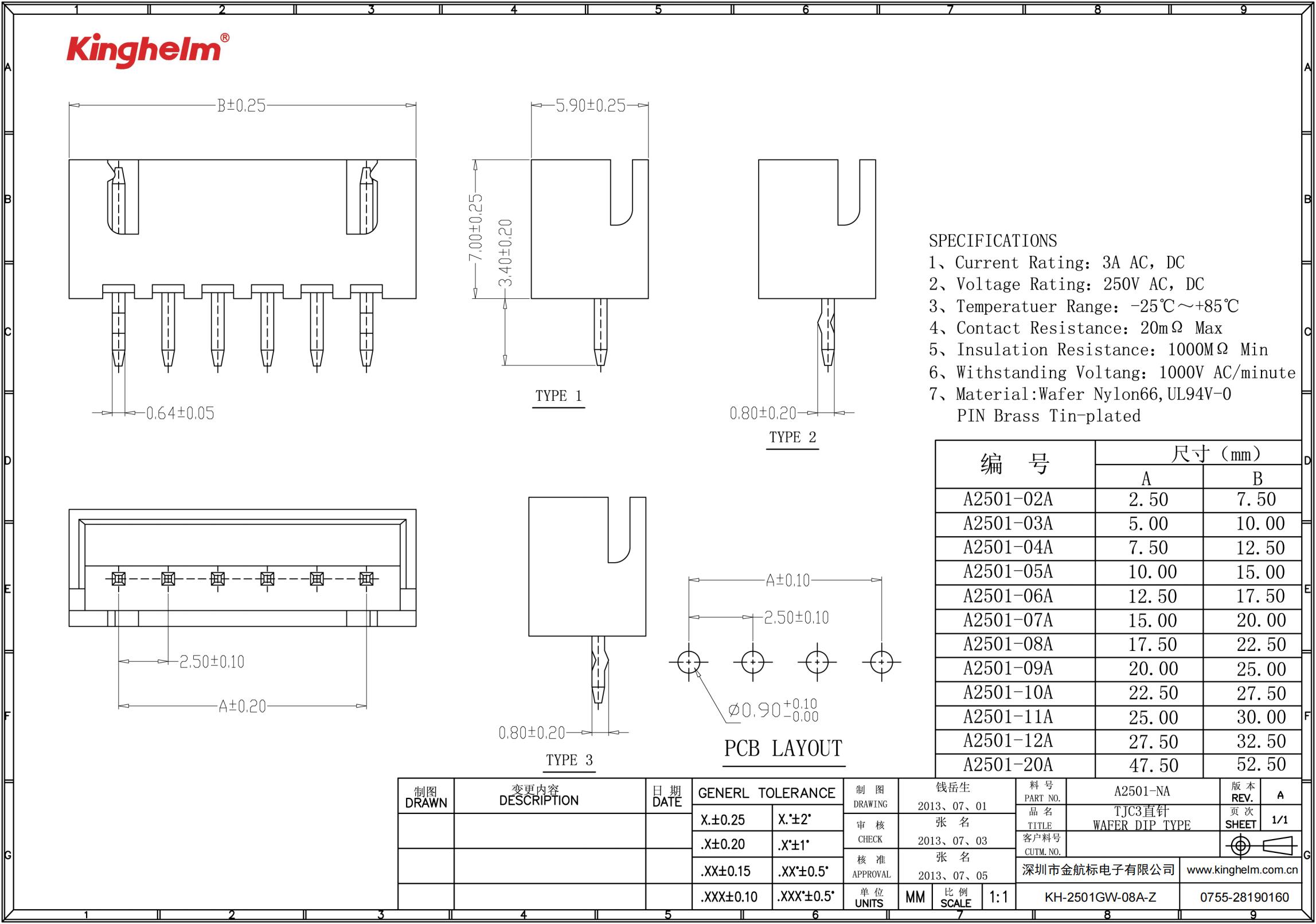

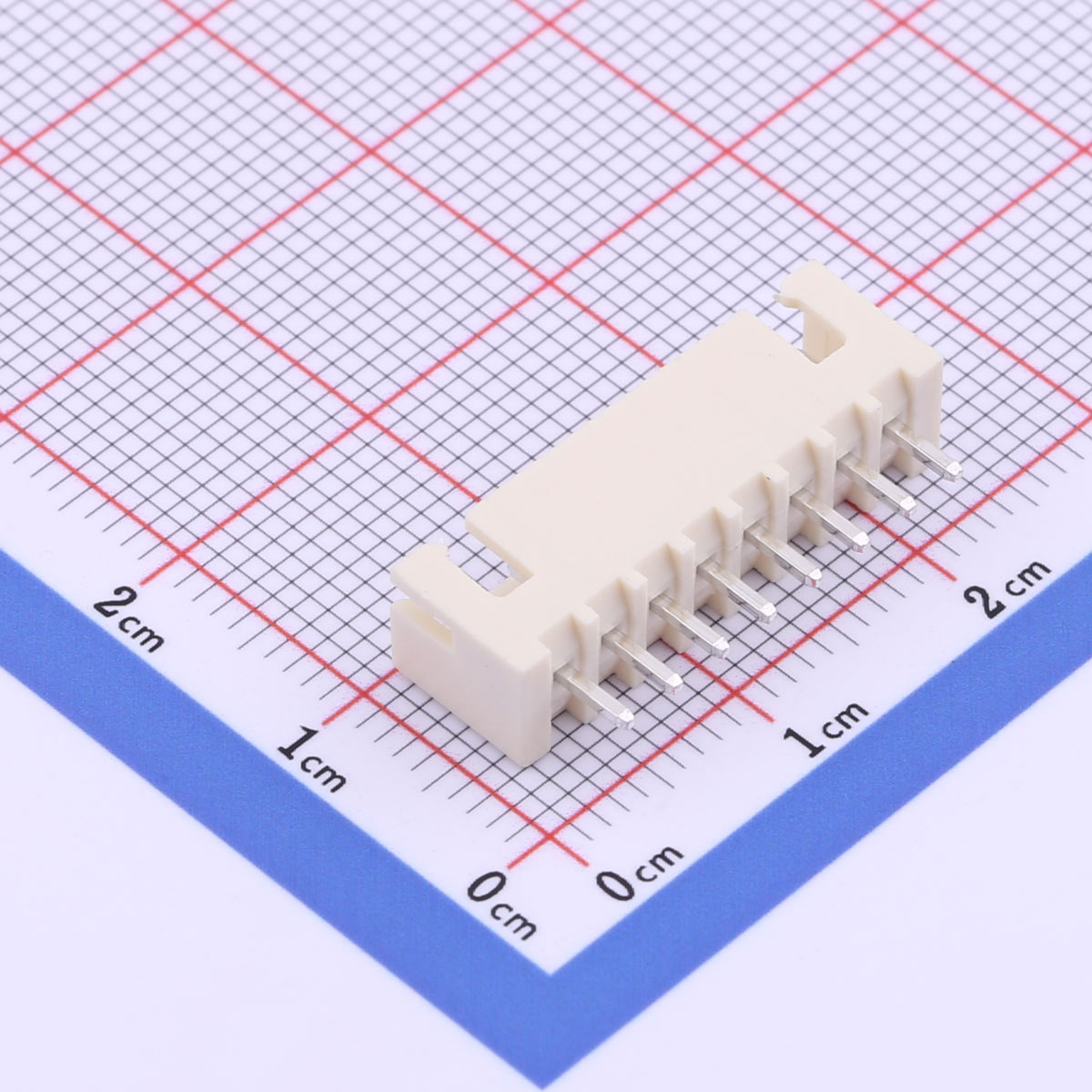

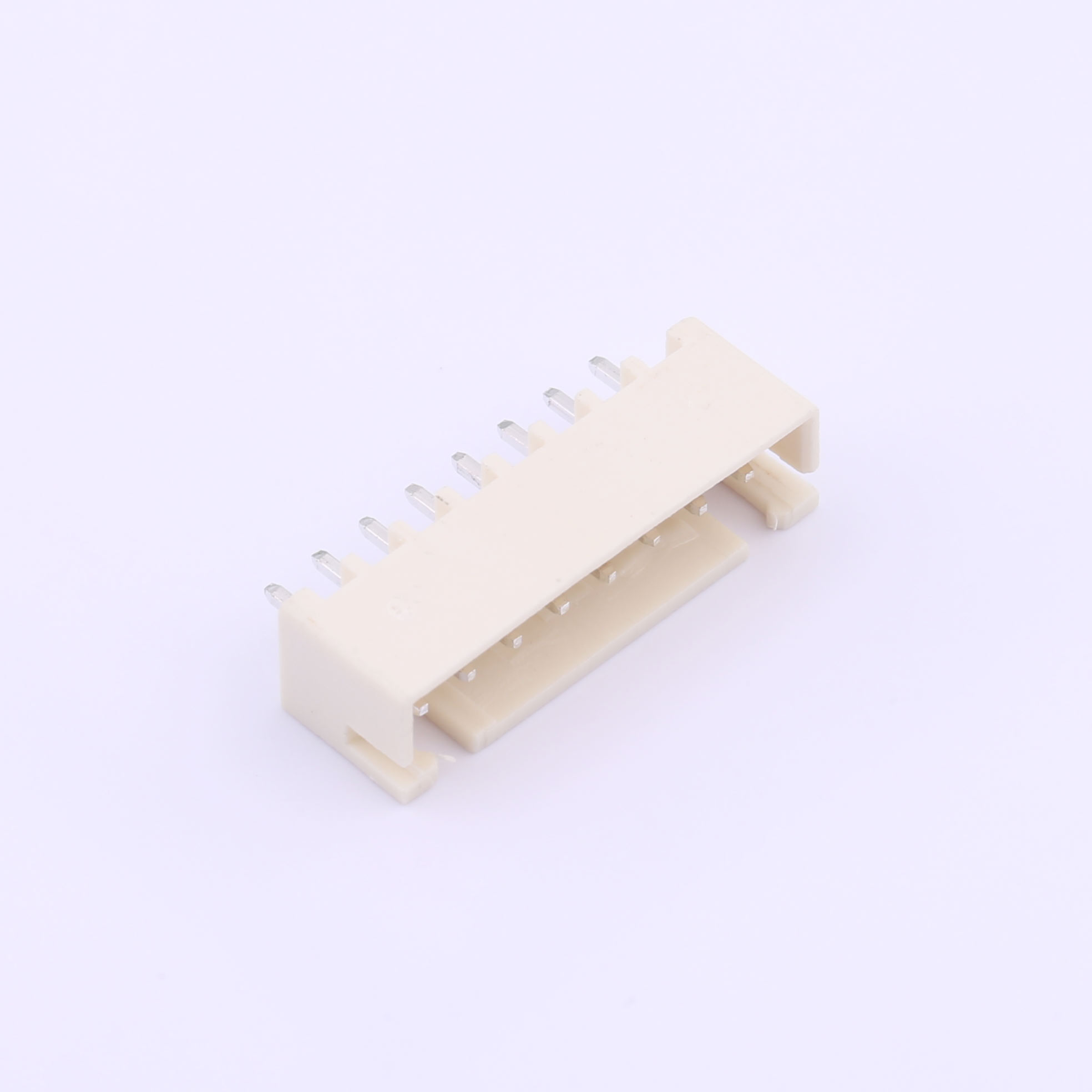

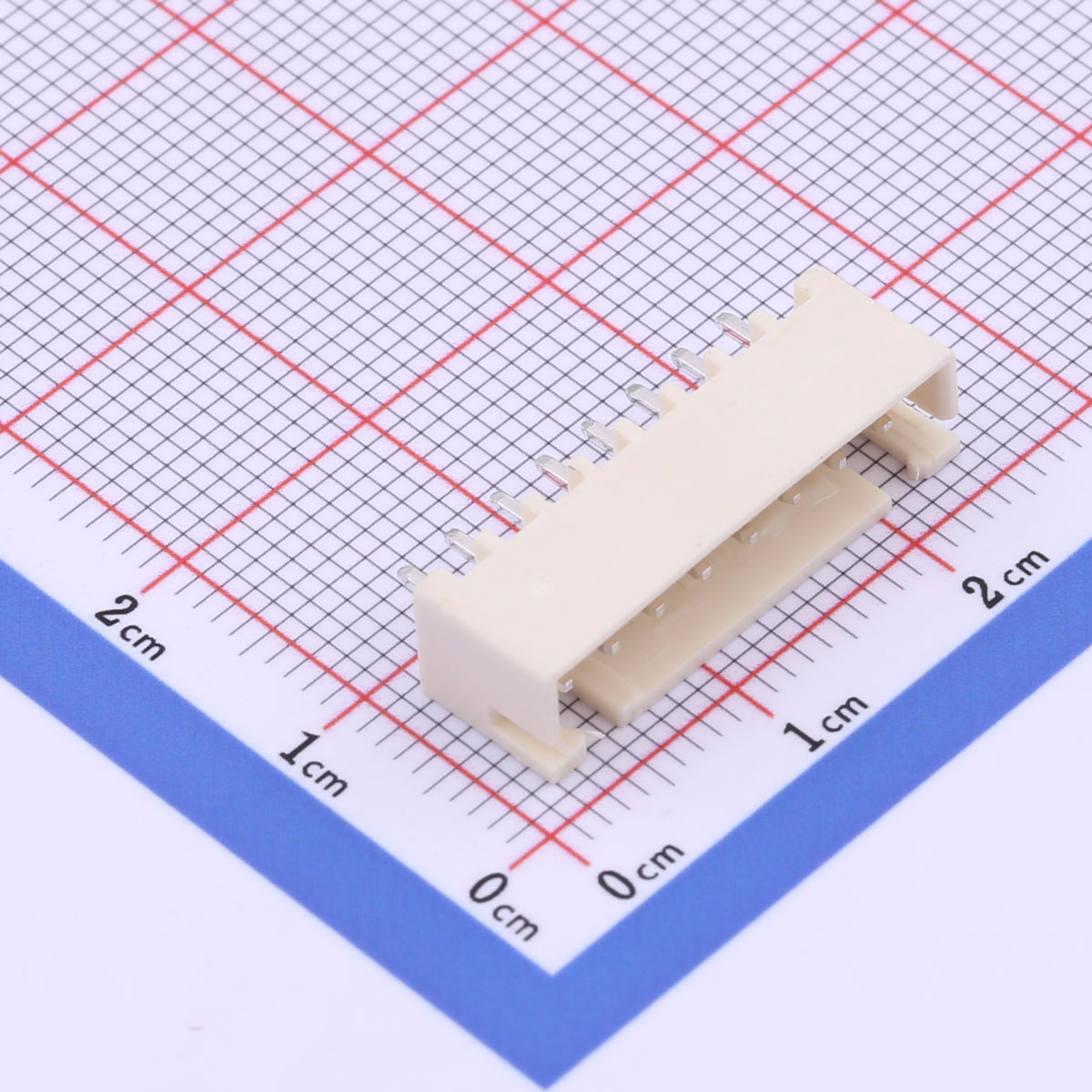

Wire-to-Board Connector, 2.5mm Pitch, 8P, KH-2501GW-08A-Z
Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25°C to +85°C
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.5mm pitch wire-to-board connector
● 8 positions single row
● Straight mounting configuration
● 3A 250V AC/DC rated
● Compatible with XH standard
Product Benefits
● Compact and lightweight
● Reliable electrical connection
● Quick installation process
● Resistant to temperature changes
● Suitable for limited-space designs
Product Applications
● LED drivers
● Consumer devices
● Industrial sensors
● Communication modules
● Control panels
