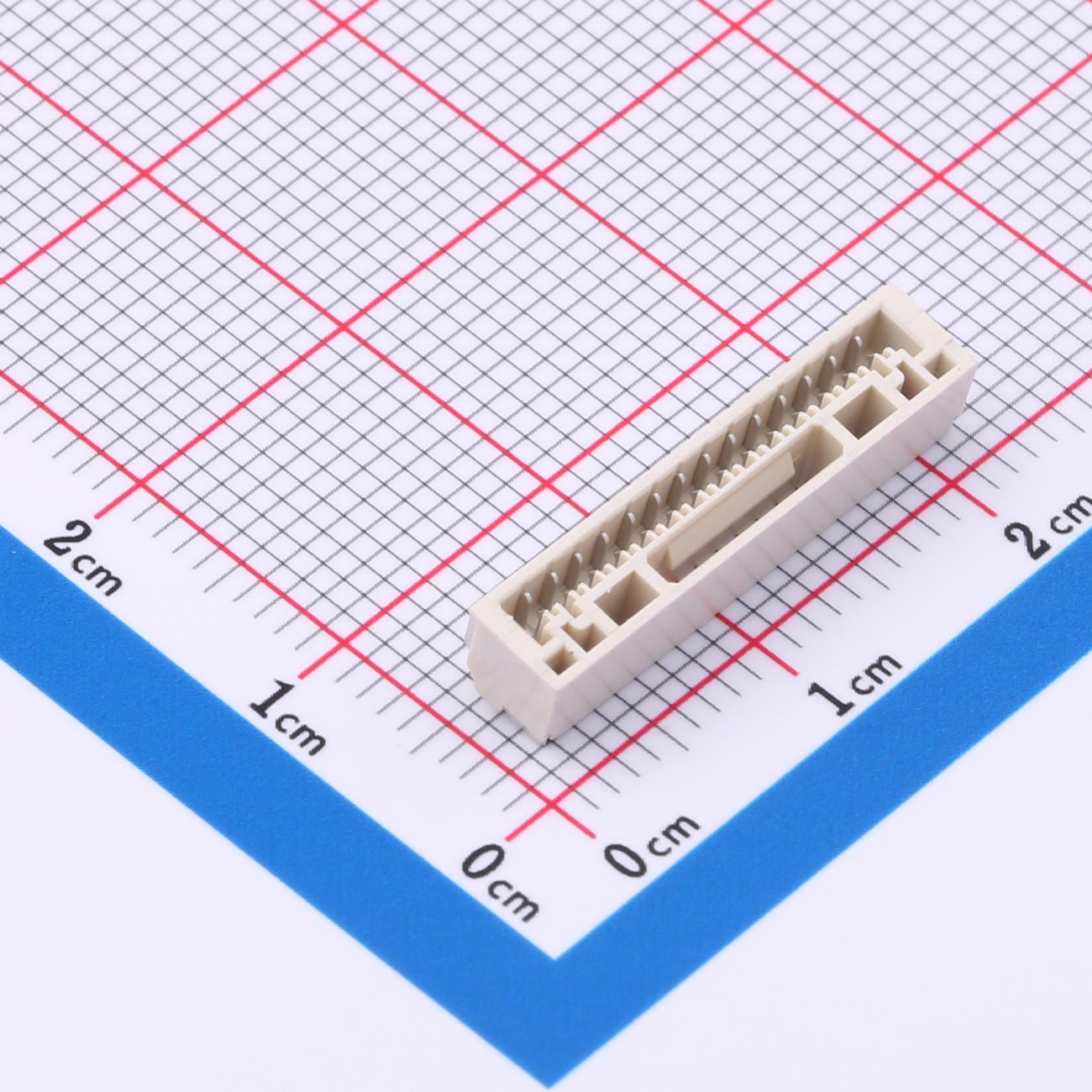

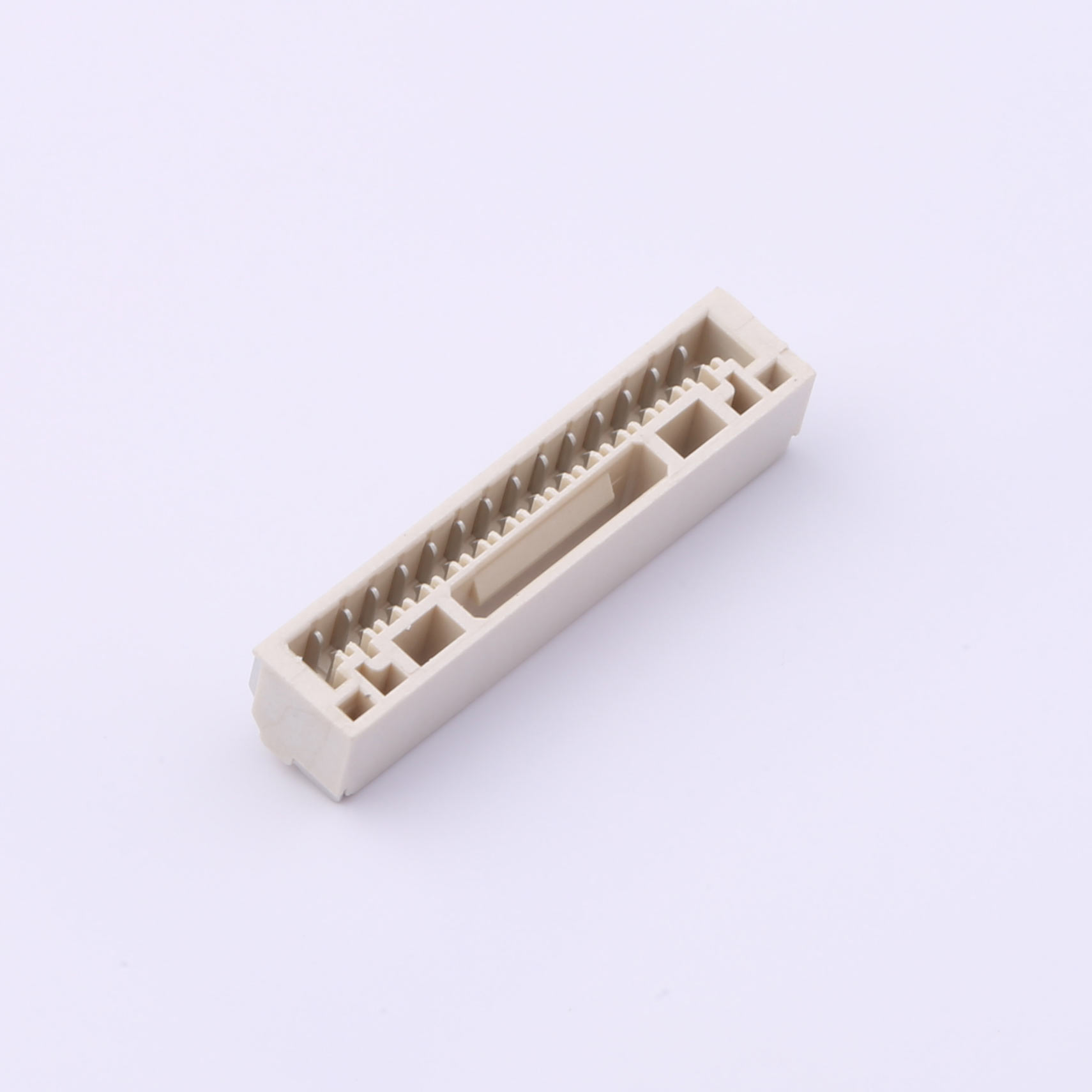

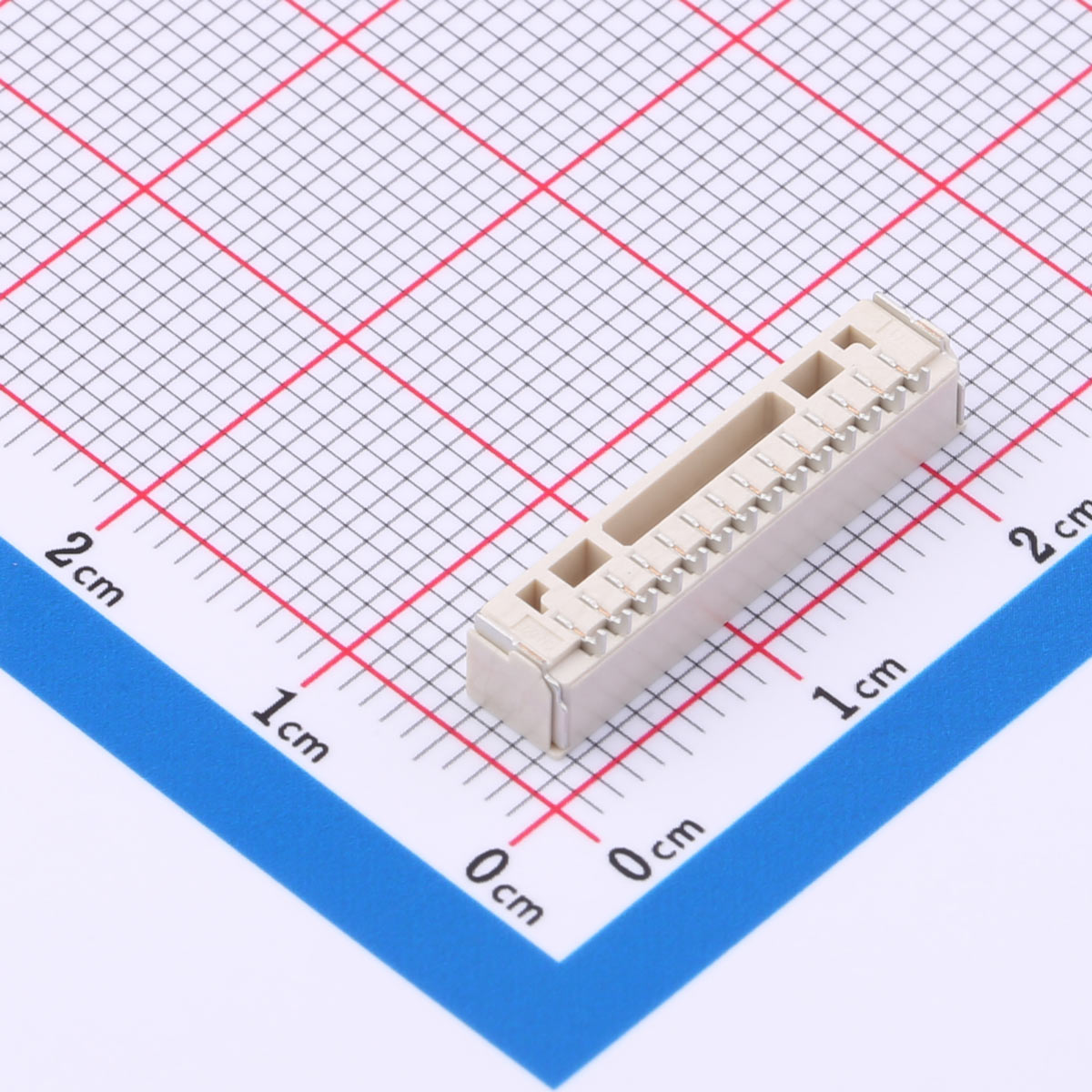

Wire-to-Board Connector, 1.25mm Pitch, 1x14P, SMD, KH-A1252RS-14P

Wire-to-Board Connector, 1.25mm Pitch, 1x14P, SMD, KH-A1252RS-14P

Current Rating: 1A AC,DC
Voltage Rating: 100V AC,DC
Temperature Range: -25°C to +85°C
Contact Resistance: 30mΩ Max
Insulation Resistance: 100MΩ Min

Inquiry Datasheet

Product Details

Product Features
● 1.25mm pitch, single row, 14 positions
● Surface Mount Device (SMD) type
● Horizontal mounting configuration
● Rated current: 1A AC/DC
● Rated voltage: 100V AC/DC
● Operating temperature: -25°C to +85°C
● Contact resistance: Max 30mΩ
● Insulation resistance: Min 100MΩ

Product Benefits
● Space-saving solution for dense circuit designs
● Stable connection with consistent signal performance
● Supports high-speed SMT assembly lines
● Horizontal layout optimizes board stacking
● Performs reliably across varied environments

Product Applications
● Wearable devices
● Smart home controllers
● LED display modules
● Handheld electronics
● Industrial automation controls
