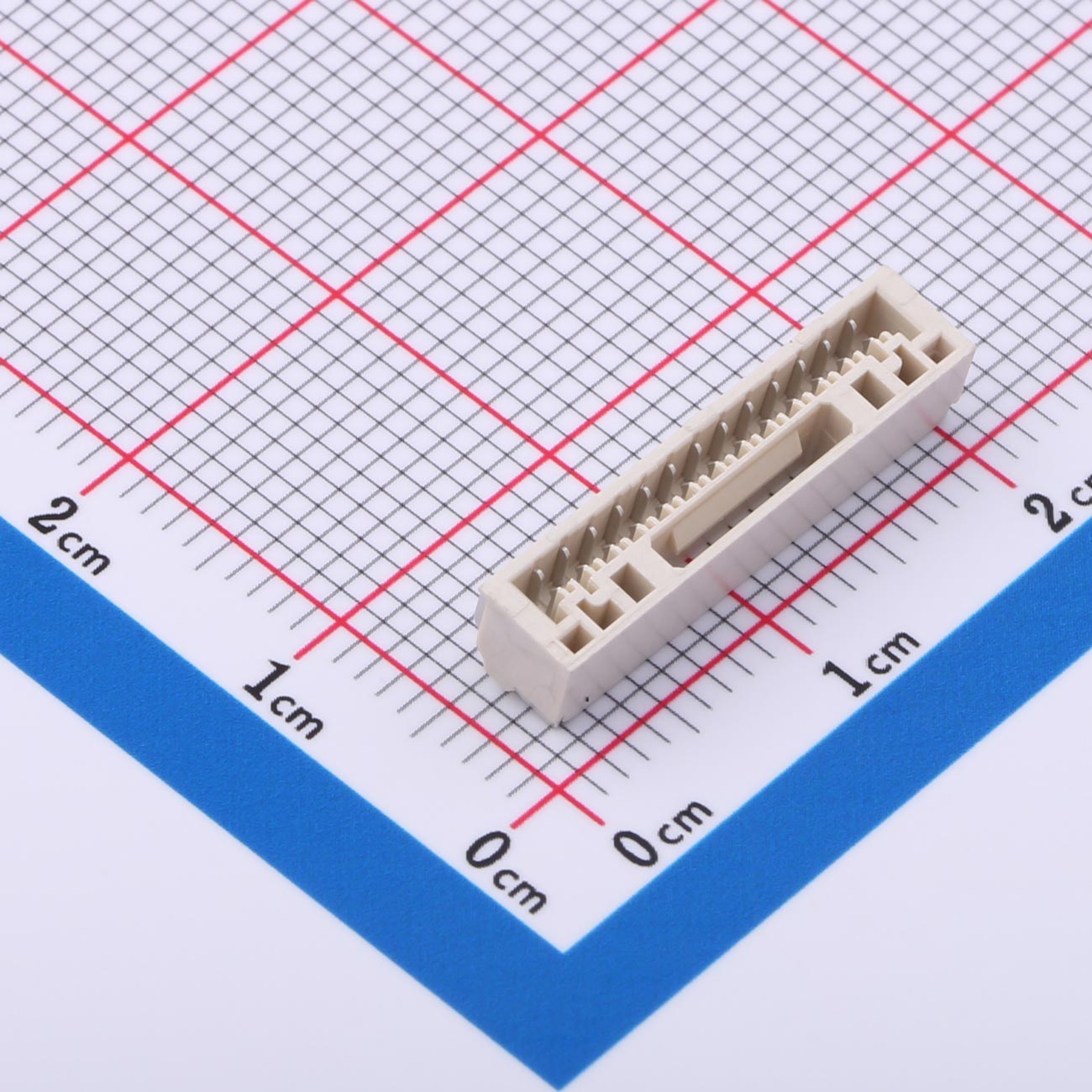

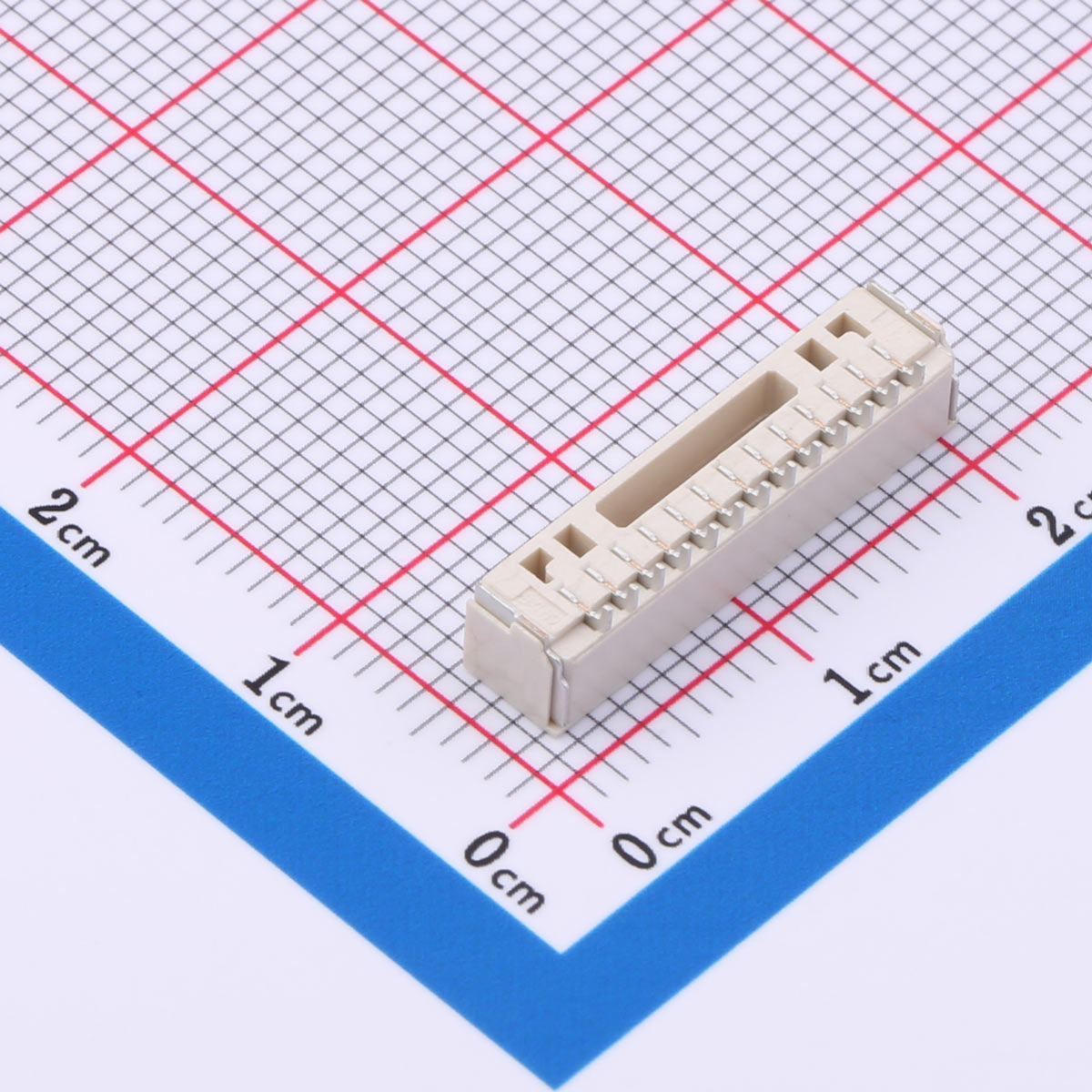

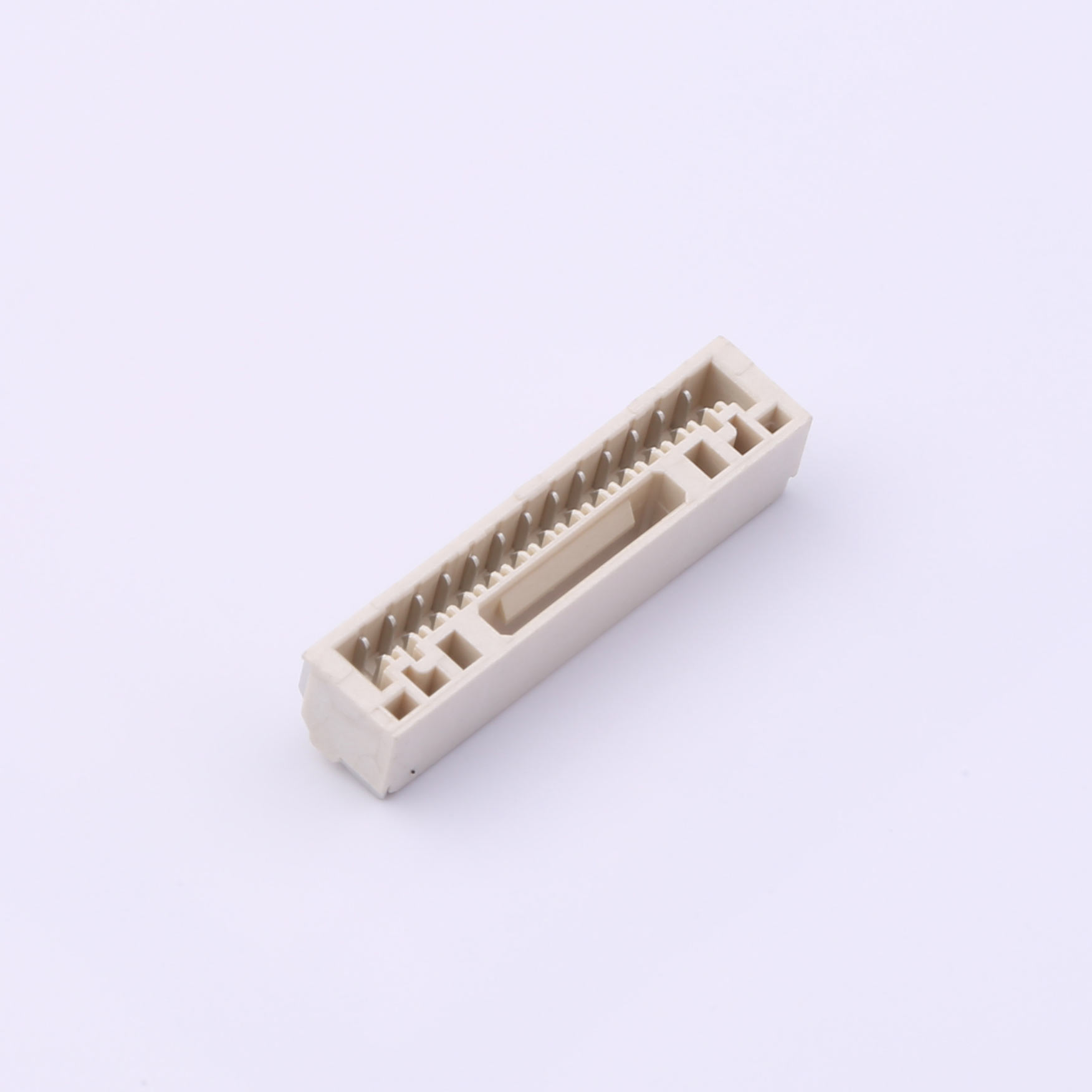

Wire-to-Board Connector, 1.25mm Pitch, 1x13P, SMD, KH-A1252RS-13P

Wire-to-Board Connector, 1.25mm Pitch, 1x13P, SMD, KH-A1252RS-13P

Current Rating: 1A AC,DC
Voltage Rating: 100V AC,DC
Temperature Range: -25°C to +85°C
Contact Resistance: 30mΩ Max
Insulation Resistance: 100MΩ Min

Inquiry Datasheet

Product Details

Product Features
● 1.25mm pitch, single row, 13 positions
● Surface Mount Device (SMD) type
● Horizontal mounting configuration
● Rated current: 1A AC/DC
● Rated voltage: 100V AC/DC
● Operating temperature: -25°C to +85°C
● Contact resistance: Max 30mΩ
● Insulation resistance: Min 100MΩ

Product Benefits
● Ideal for space-constrained designs
● Ensures reliable, low-resistance electrical connections
● Compatible with high-speed automated assembly
● Horizontal mounting saves vertical board space
● Resistant to environmental fluctuations for extended use

Product Applications
● Portable consumer electronics
● Networking equipment
● Automotive electronics
● Medical devices
● Small form-factor sensors
