Home -Product -Connector/Plug-in Unit -Onboard Connector -Wire-to-Board Connector -Wire-to-Board Connector, 2.54mm Pitch, 1x5P, KH-HX2.54-05PW
Wire-to-Board Connector, 2.54mm Pitch, 1x5P, KH-HX2.54-05PW Wire-to-Board Connector, 2.54mm Pitch, 1x5P, KH-HX2.54-05PW Wire-to-Board Connector, 2.54mm Pitch, 1x5P, KH-HX2.54-05PW

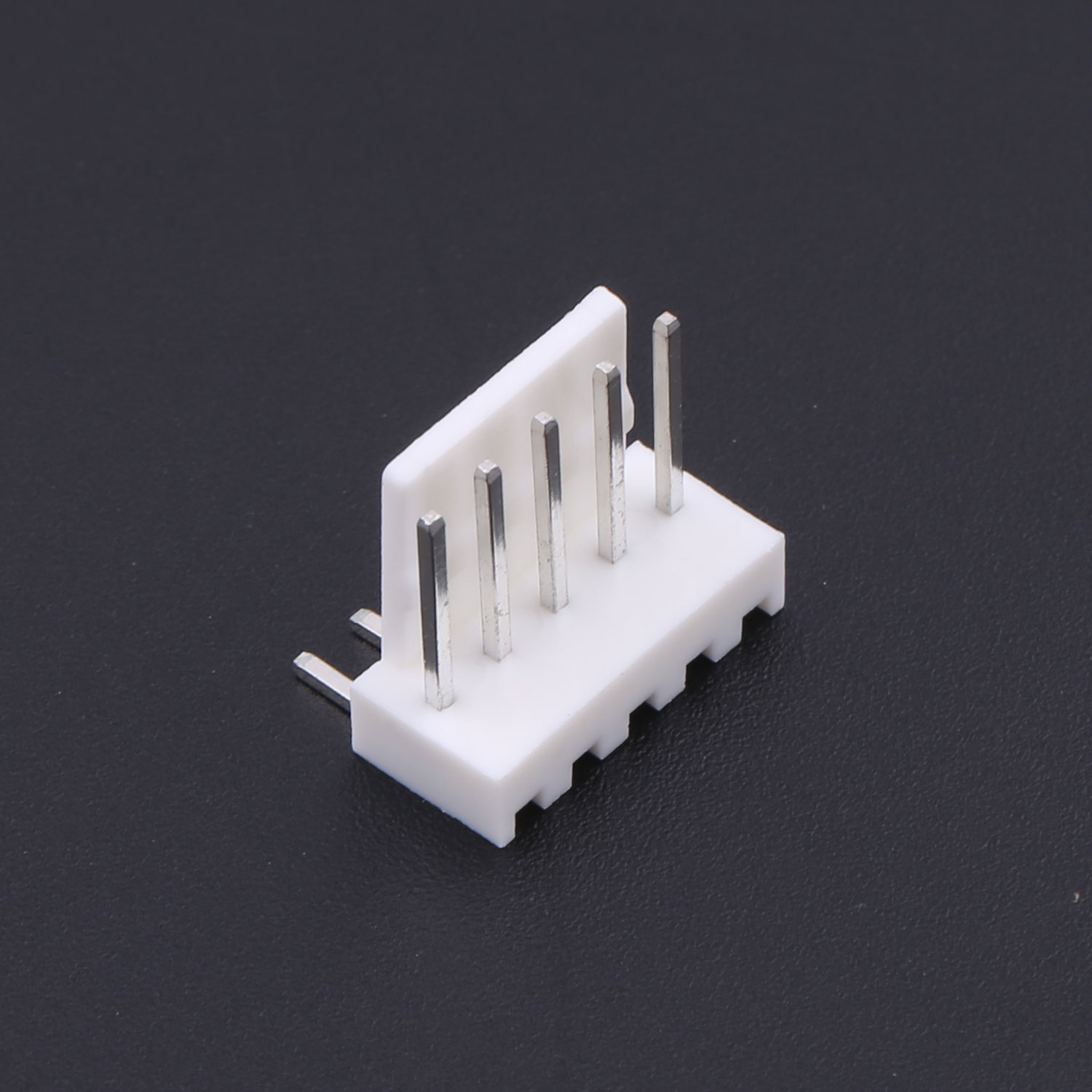

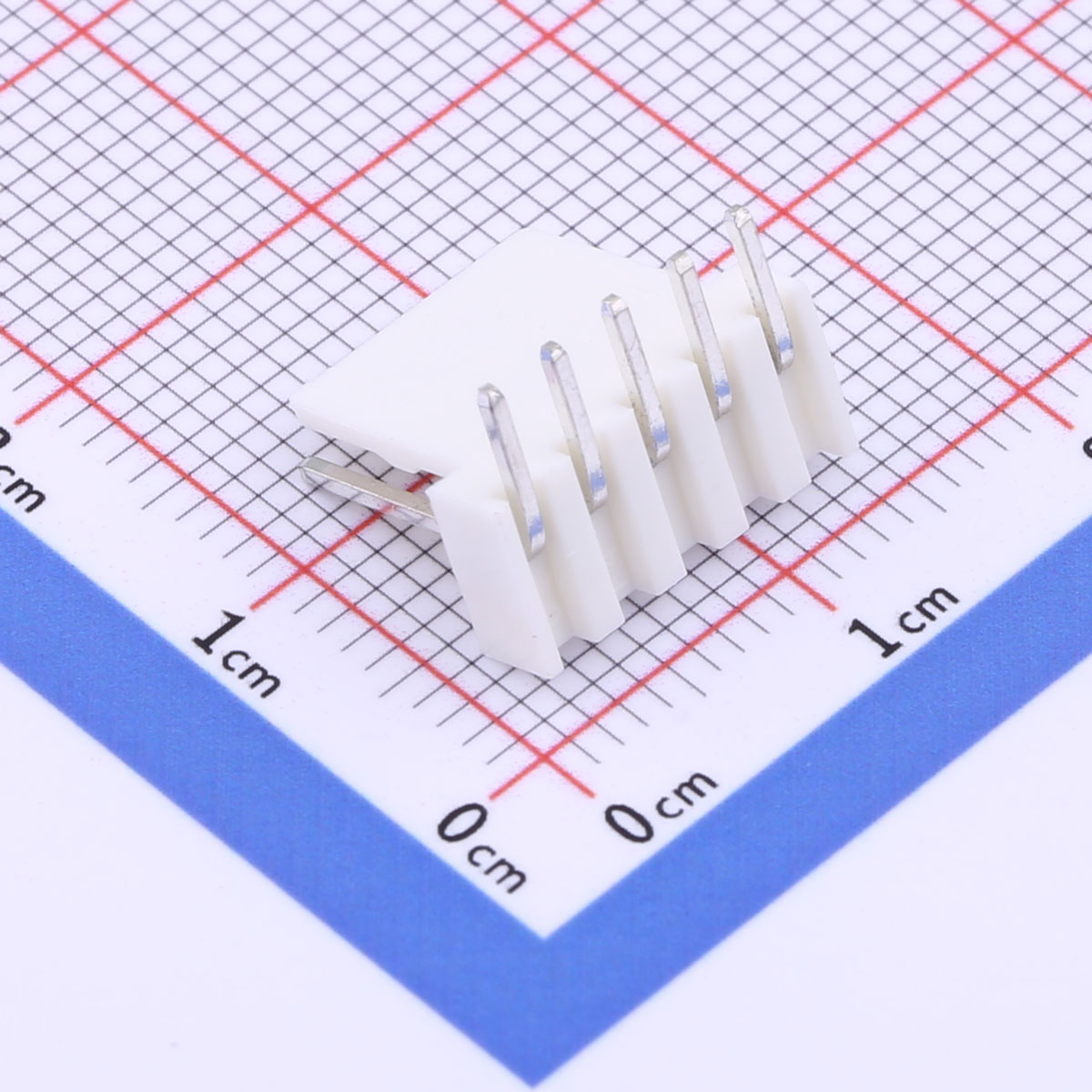

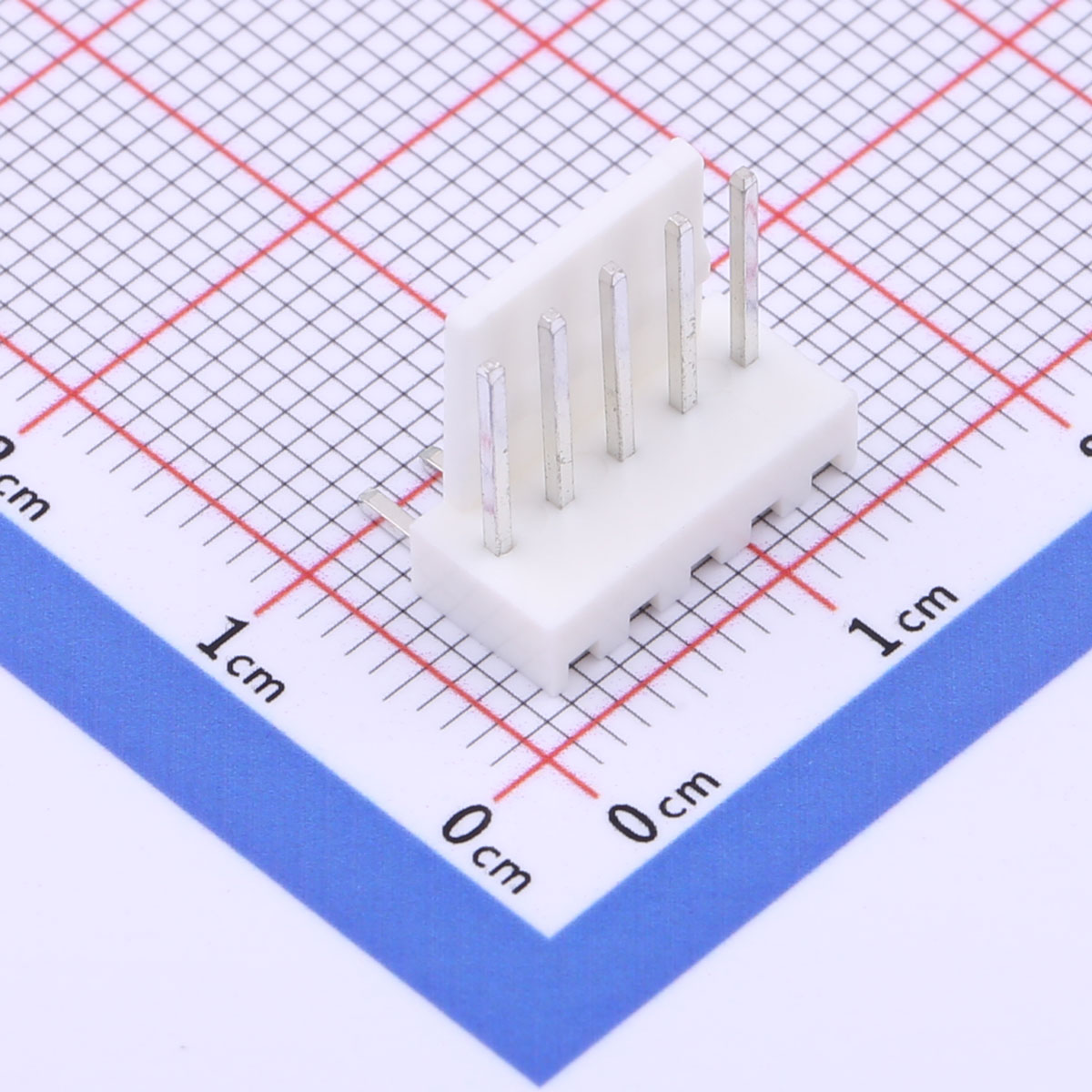

Wire-to-Board Connector, 2.54mm Pitch, 1x5P, KH-HX2.54-05PW
Current Rating: 4A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ ~ +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

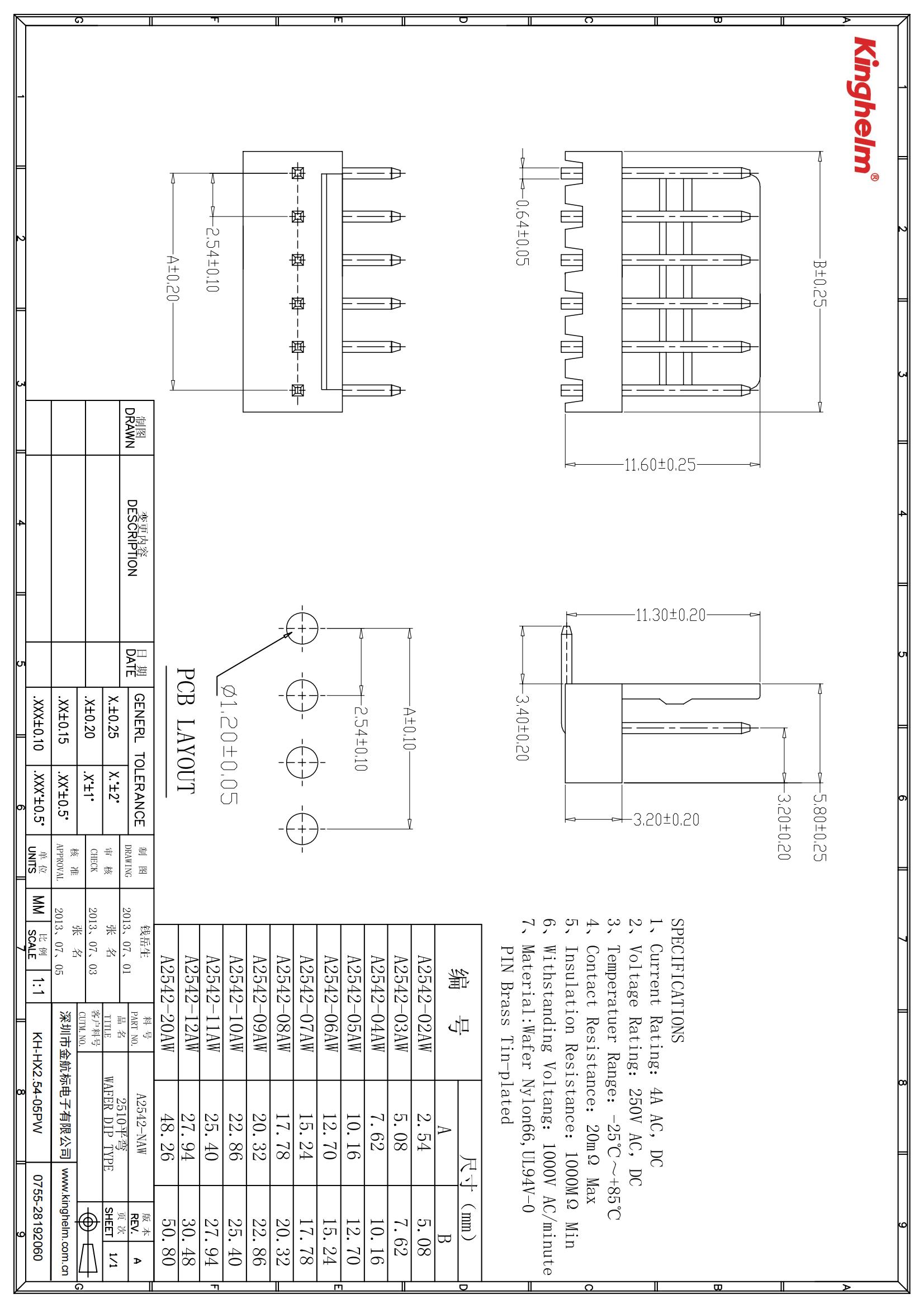

Inquiry Datasheet

Product Details

Product Features

● 2.54mm pitch
● 1x5 single-row layout
● Right-angle mounting
● 4A / 250V AC/DC rating
● -25℃ to +85℃ temperature range

Product Benefits
● Compact for small-scale designs
● Efficient signal integrity
● Reliable mechanical fit
● Max 20mΩ contact resistance
● RoHS-compliant materials

Product Applications
● Wearable electronics
● Compact control panels
● Sensor nodes
● Power converters
● Charging docks


Prev：Wire-to-Board Connector, 2.54mm Pitch, 1x6P, KH-HX2.54-06PW
Next：Wire-to-Board Connector, 2.54mm Pitch, 1x4P, KH-HX2.54-04PW
