Home -Product -Connector/Plug-in Unit -Onboard Connector -Wire-to-Board Connector -Wire-to-Board Connector, 2.54mm Pitch, 1x6P, KH-HX2.54-06PW
Wire-to-Board Connector, 2.54mm Pitch, 1x6P, KH-HX2.54-06PW Wire-to-Board Connector, 2.54mm Pitch, 1x6P, KH-HX2.54-06PW Wire-to-Board Connector, 2.54mm Pitch, 1x6P, KH-HX2.54-06PW

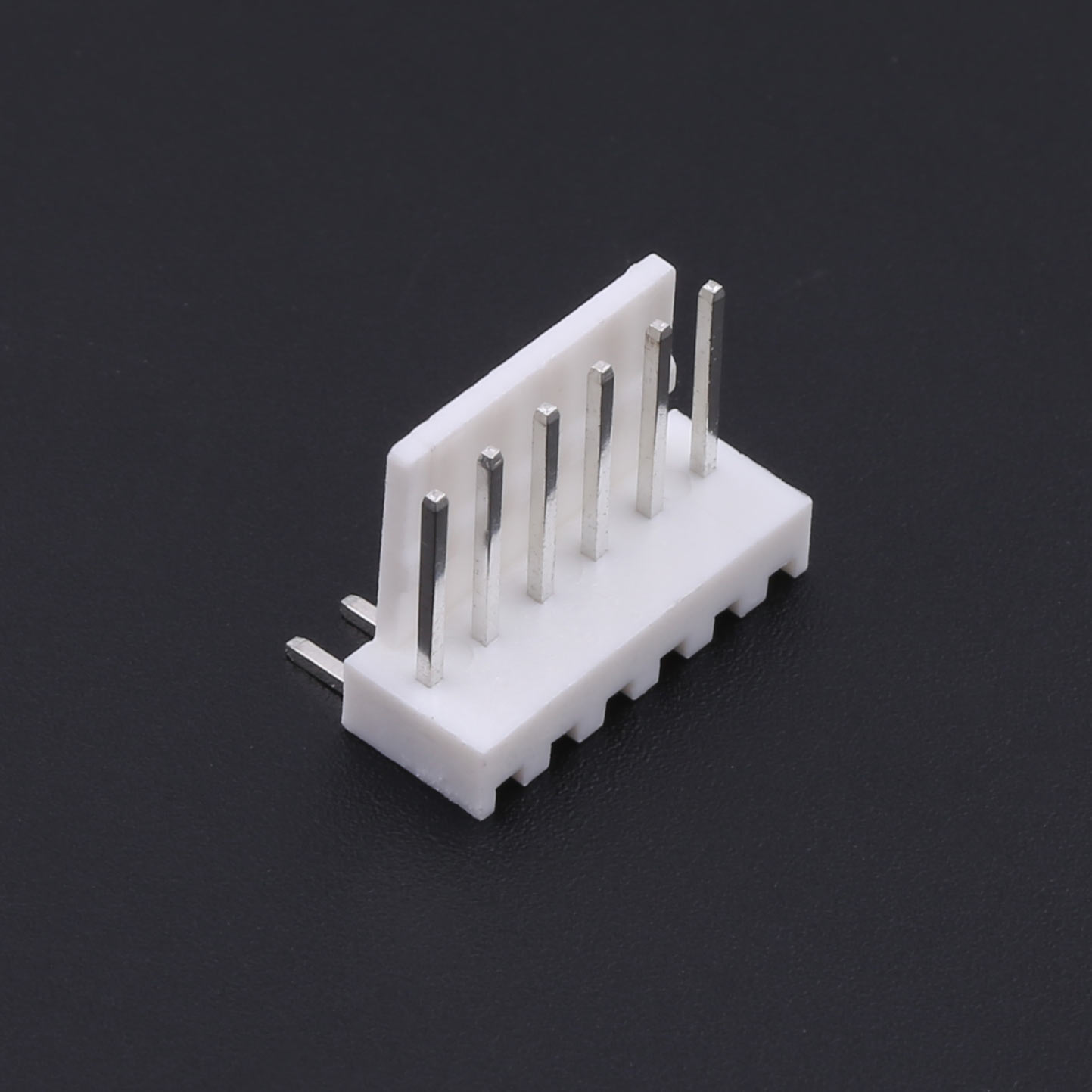

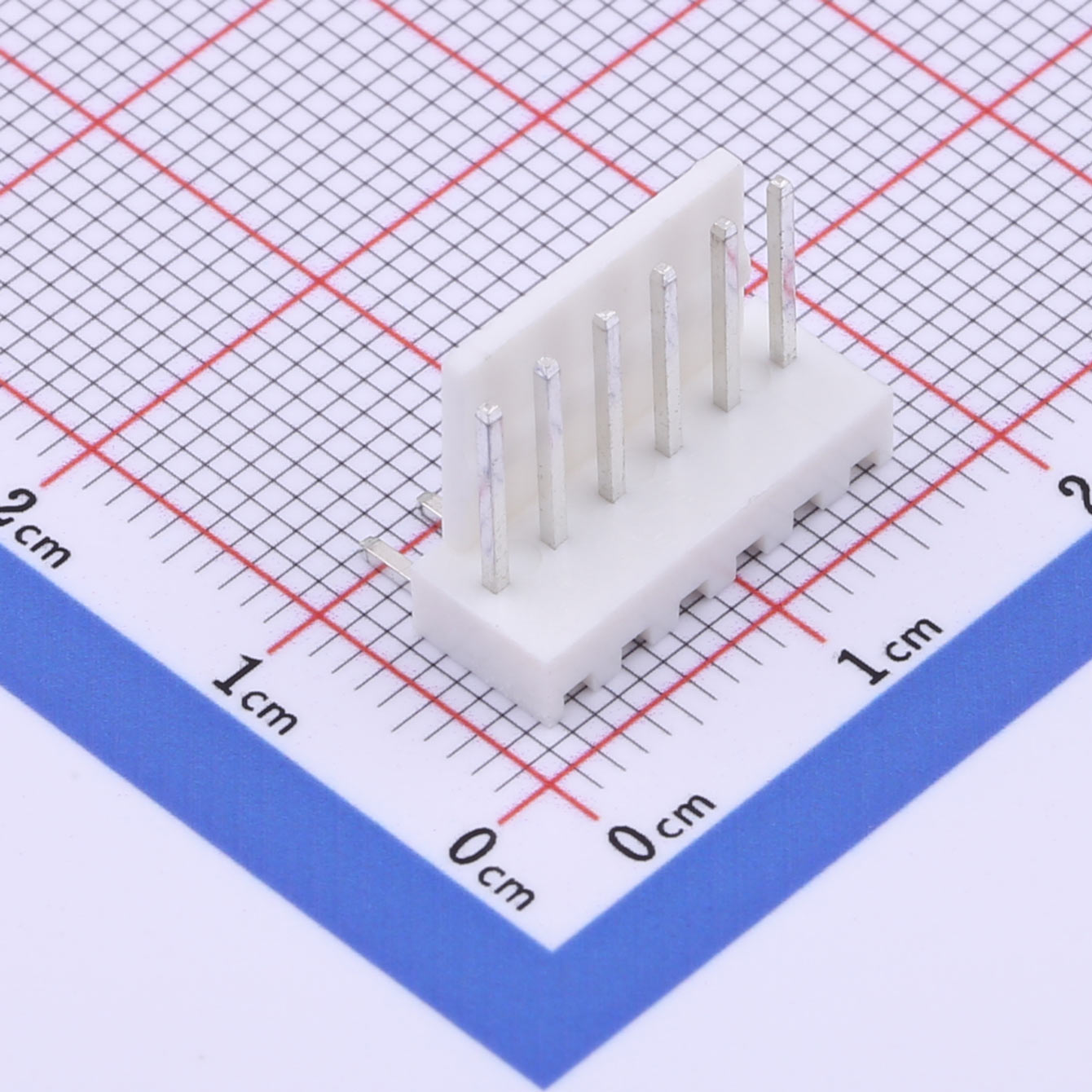

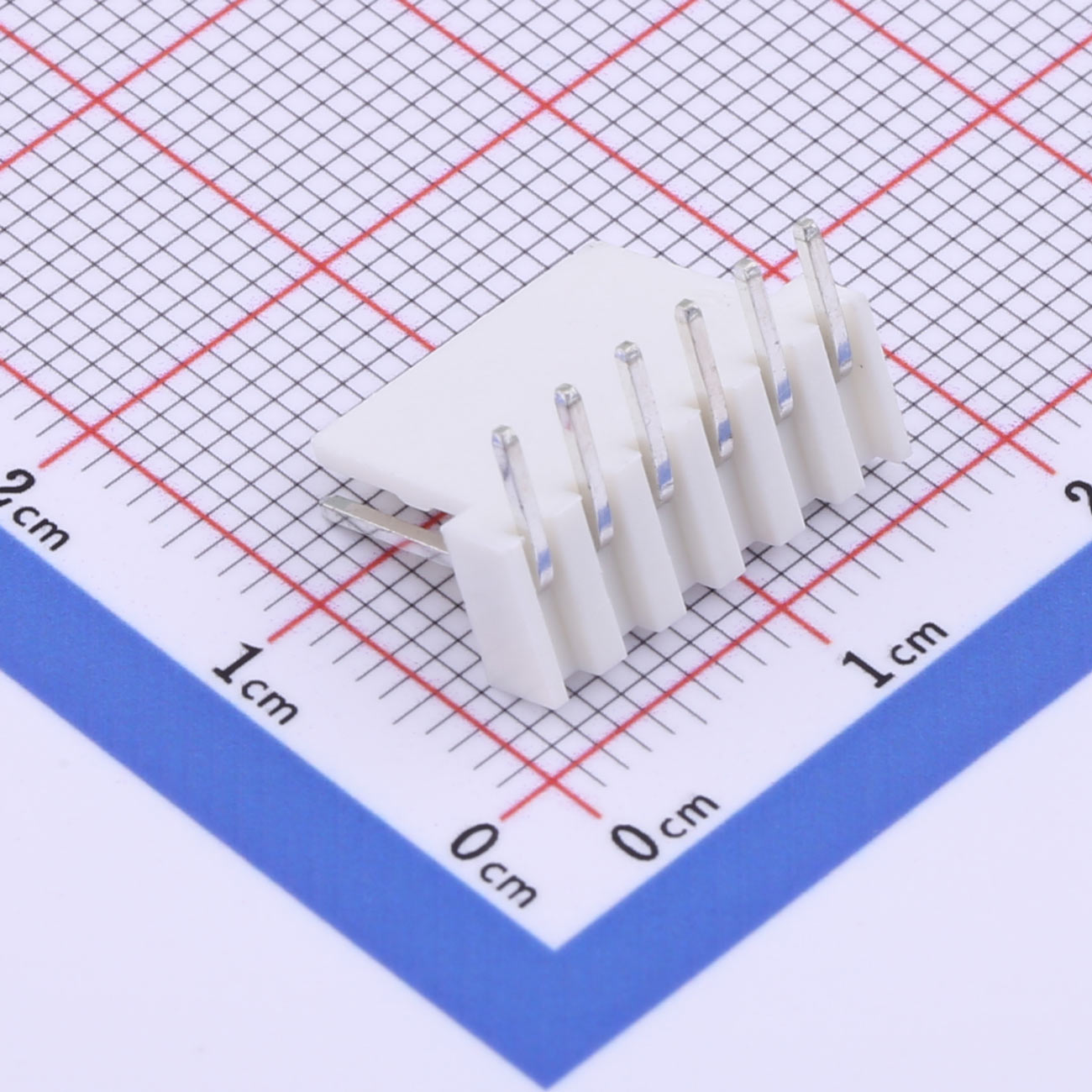

Wire-to-Board Connector, 2.54mm Pitch, 1x6P, KH-HX2.54-06PW
Current Rating: 4A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ ~ +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Inquiry Datasheet

Product Details

Product Features
● 2.54mm pitch
● 1x6 single-row layout
● Right-angle mounting
● 4A / 250V AC/DC rating
● -25℃ to +85℃ temperature range

Product Benefits
● Ideal for medium signal connections
● Stable current delivery
● Easy PCB integration
● Low contact resistance (≤20mΩ)
● High insulation resistance (≥1000MΩ)

Product Applications
● Motor control boards
● Industrial I/O modules
● Smart lighting systems
● Audio interface boards
● Home automation hubs
