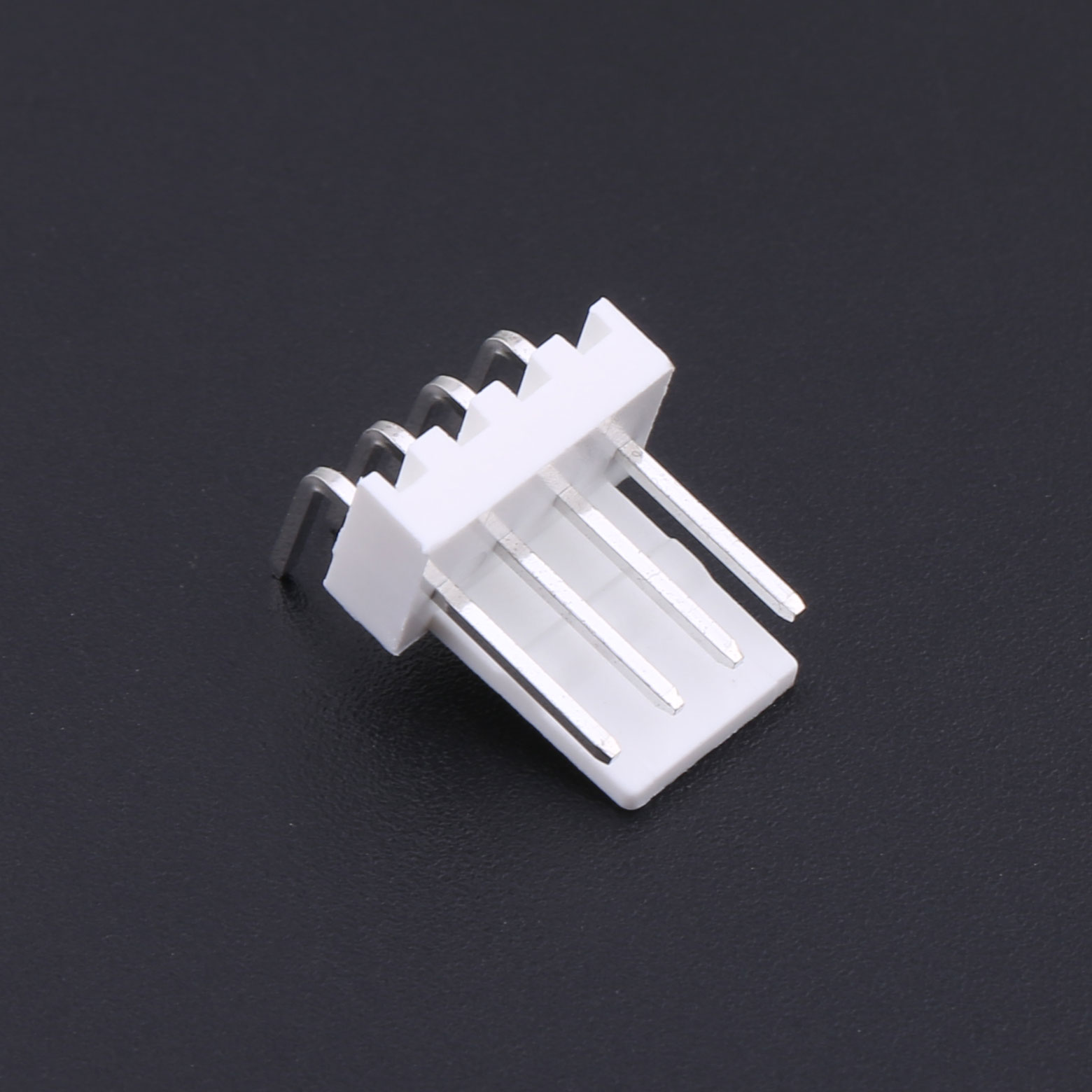

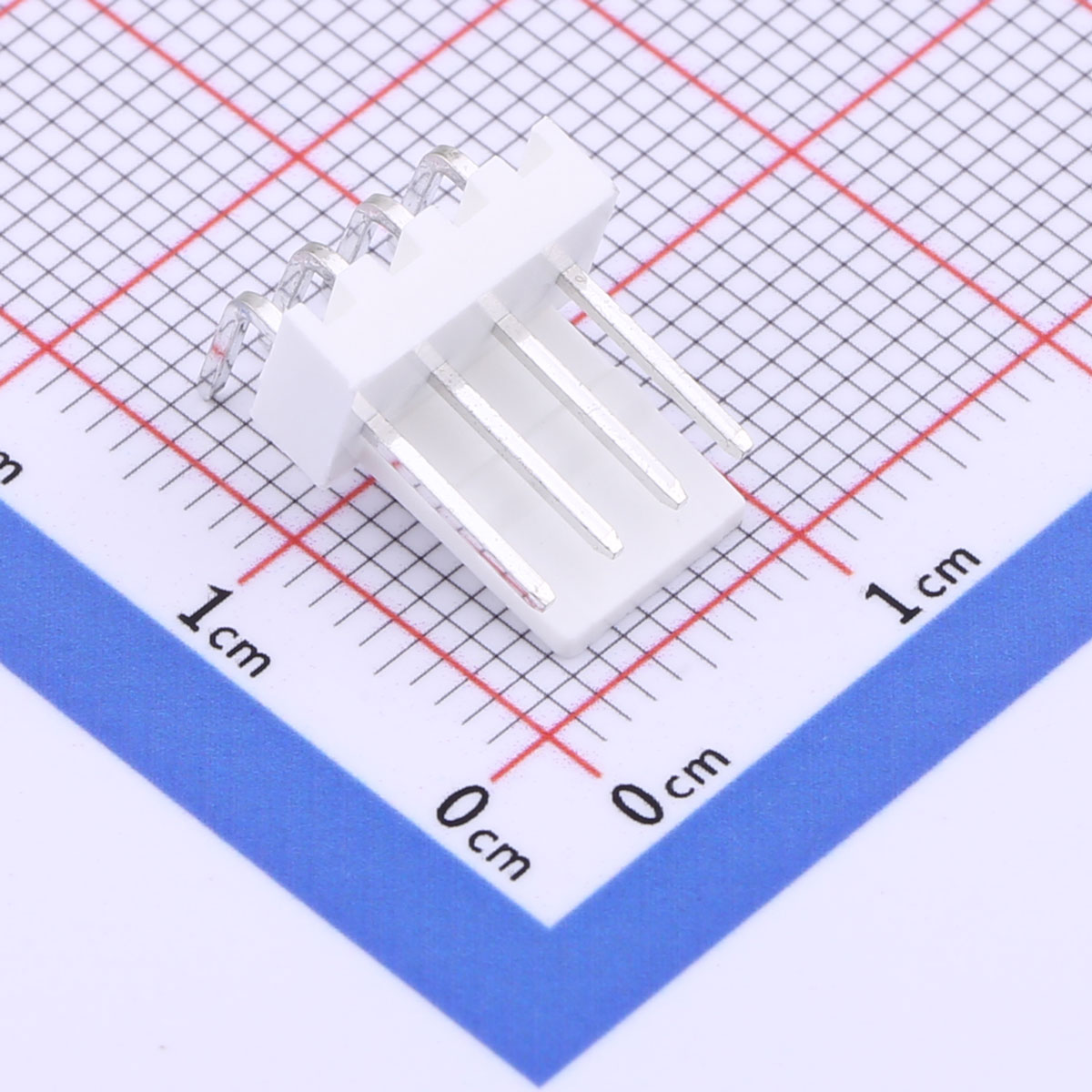

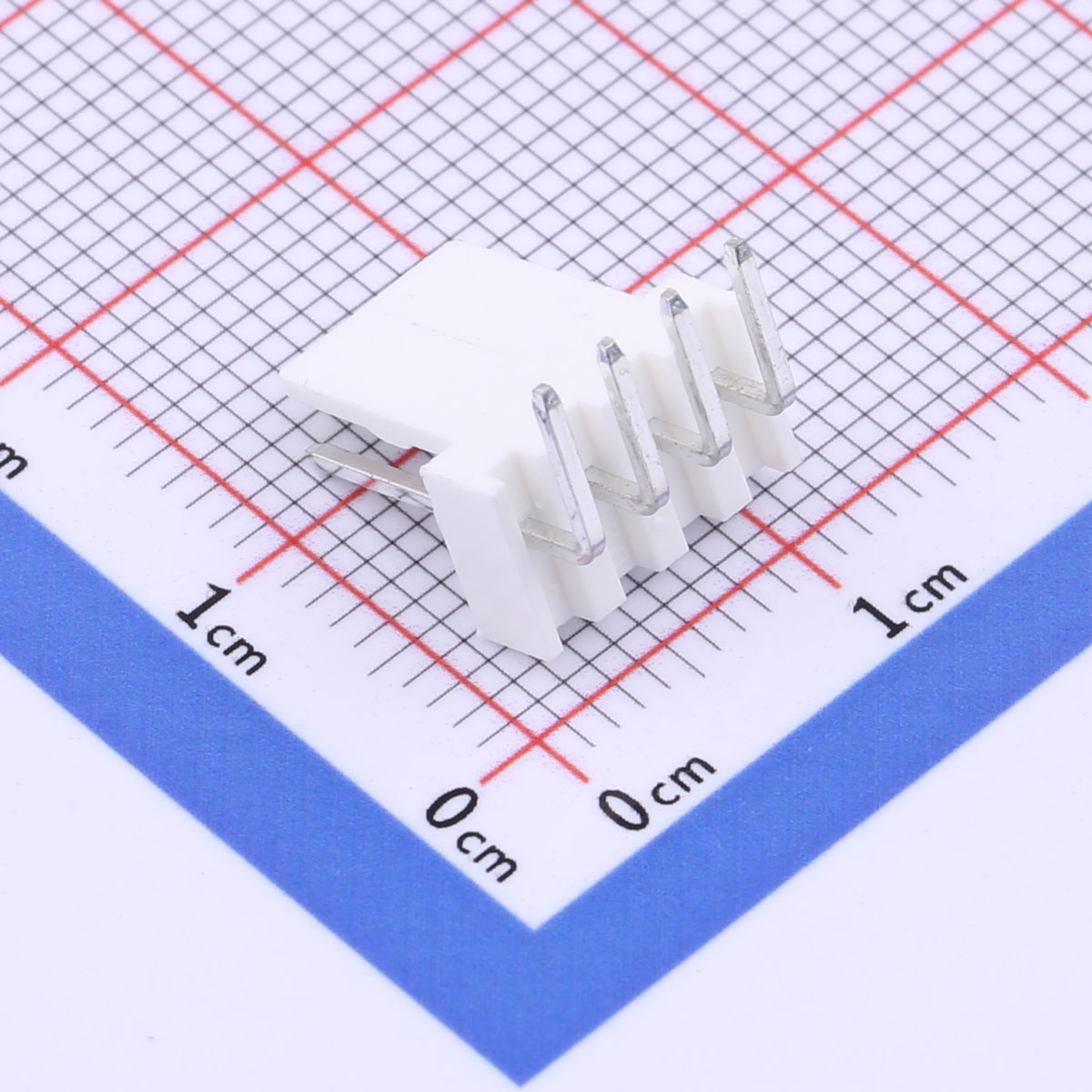

Wire-to-Board Connector, 2.54mm Pitch, 1x4P, KH-HX2.54-04GW

Wire-to-Board Connector, 2.54mm Pitch, 1x4P, KH-HX2.54-04GW

Current Rating: 4A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

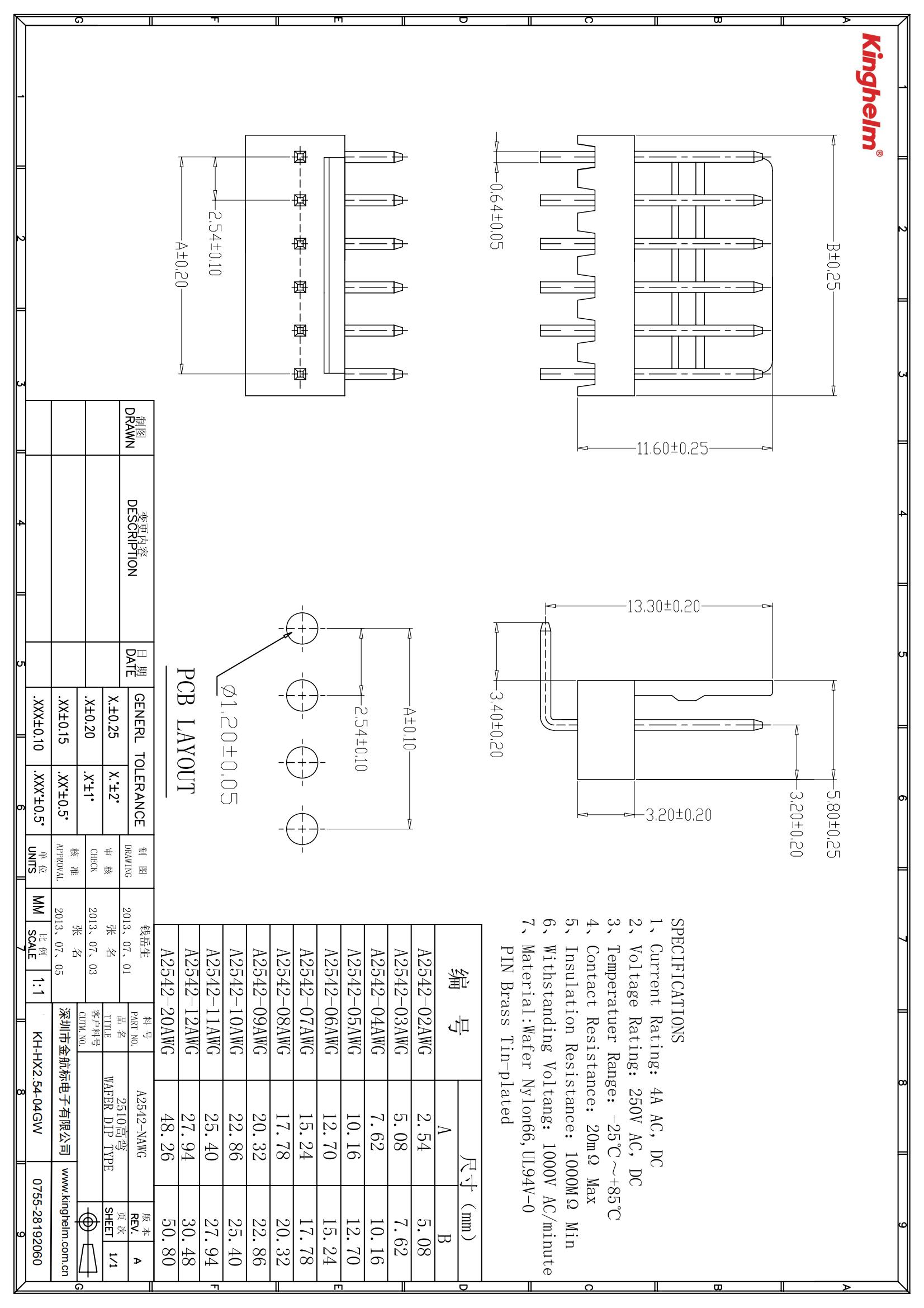

Inquiry Datasheet

Product Details

Product Features
● 4-pin, single-row layout
● 2.54mm pitch spacing
● Horizontal right-angle mount
● Rated 4A, 250V AC/DC
● RoHS-compliant construction

Product Benefits
● Ideal for compact designs
● Easy soldering and assembly
● Reliable performance in AC/DC use
● Good mechanical strength
● Enhanced contact durability

Product Applications
● Signal transmission boards
● Home appliance controls
● LED modules
● Embedded electronics
● DIY electronics kits
