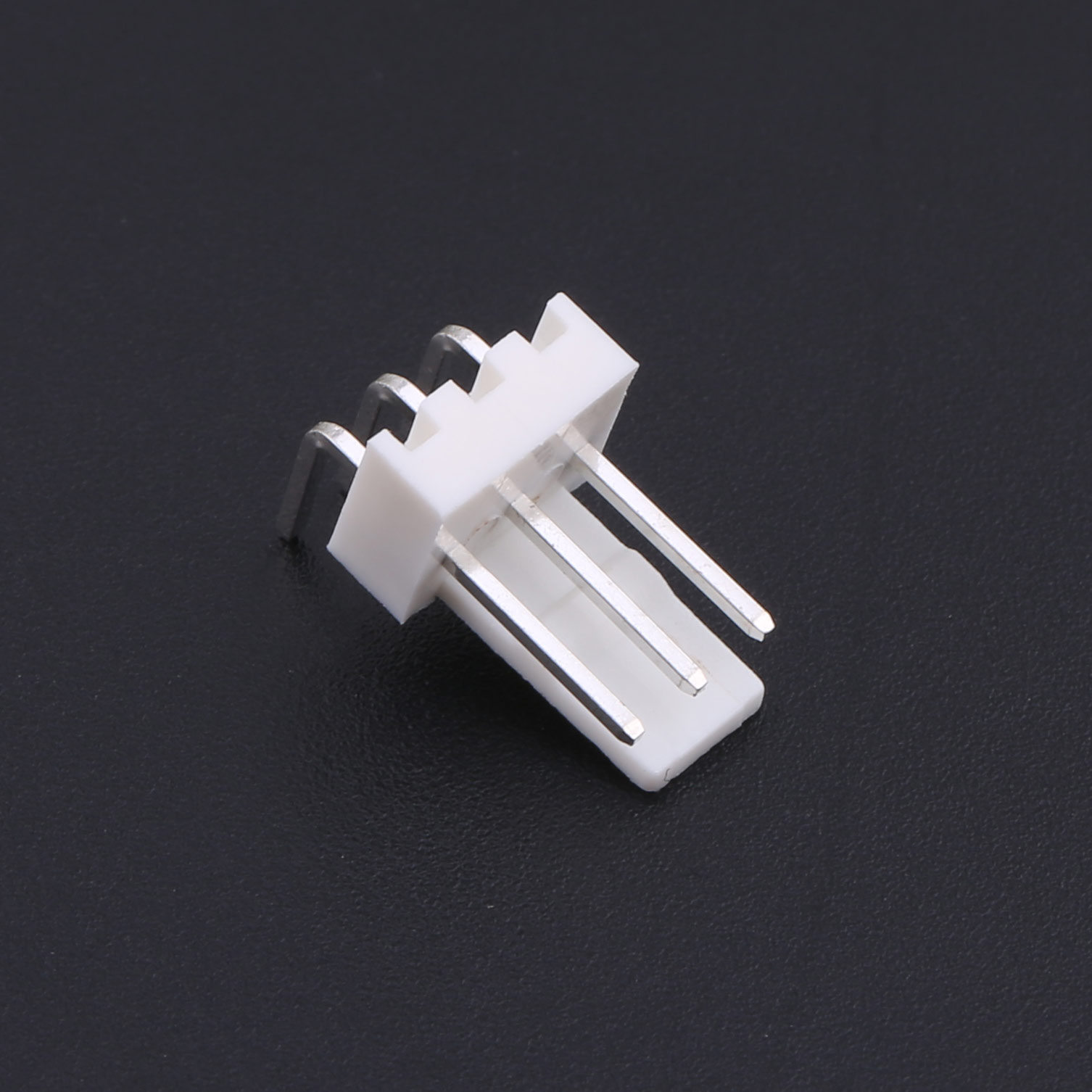

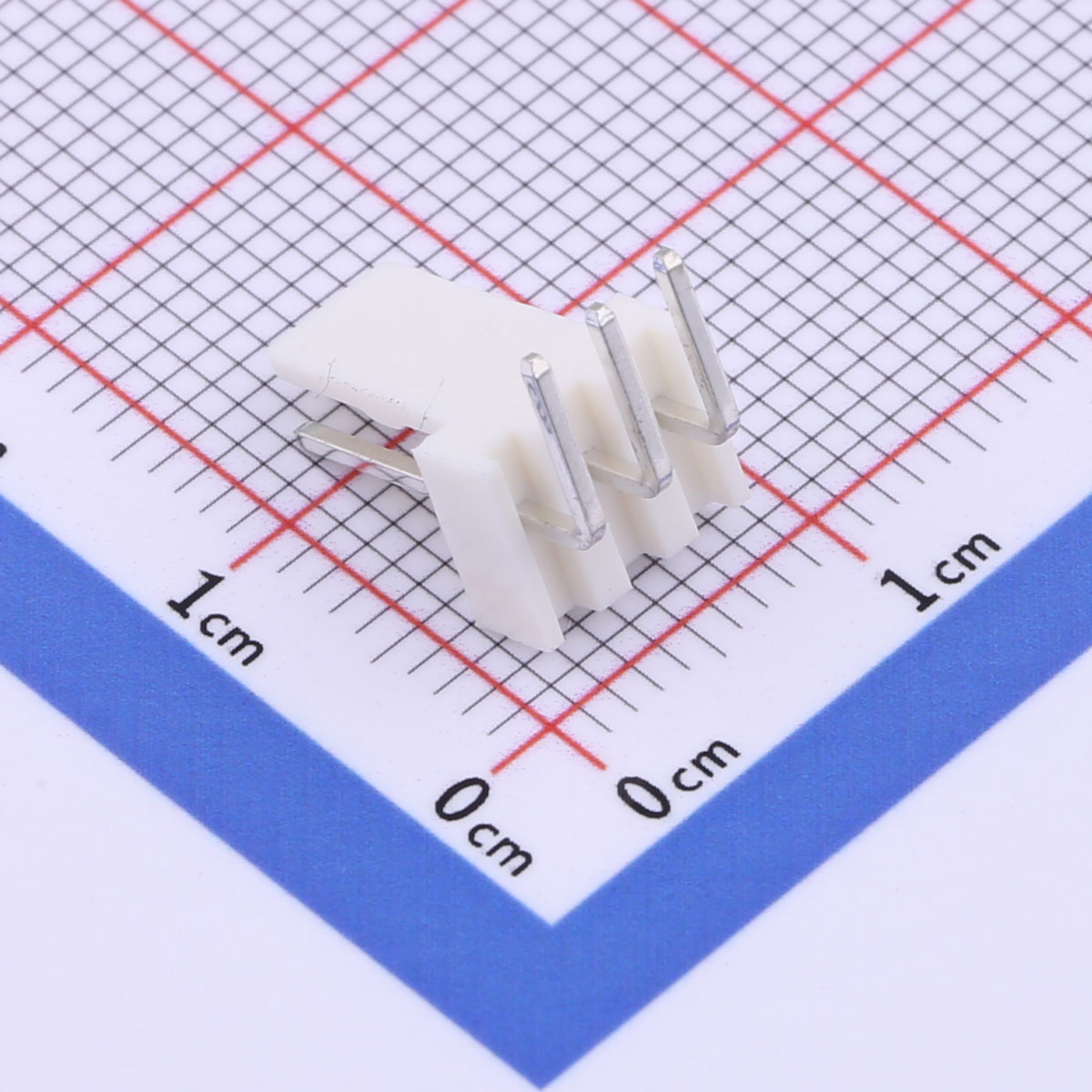

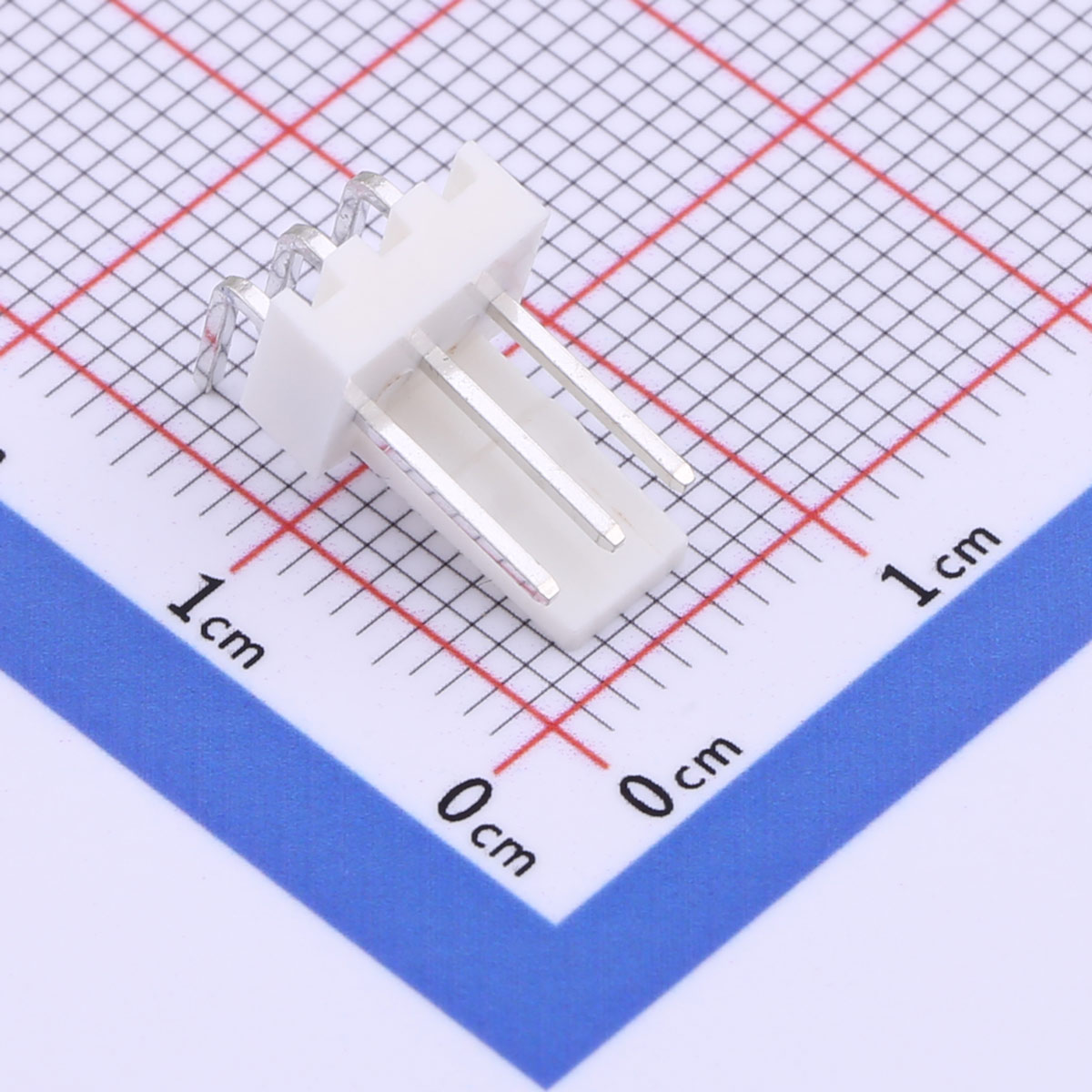

Wire-to-Board Connector, 2.54mm Pitch, 1x3P, KH-HX2.54-03GW

Wire-to-Board Connector, 2.54mm Pitch, 1x3P, KH-HX2.54-03GW

Current Rating: 4A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min

Inquiry Datasheet

Product Details

Product Features
● 3-pin, single-row connector
● 2.54mm pitch design
● Right-angle PCB mount
● 4A current, 250V voltage
● Lead-free and RoHS compliant

Product Benefits
● Space-saving connector
● Simple PCB routing
● Stable and secure connections
● Suitable for AC/DC signals
● Good resistance to corrosion

Product Applications
● Sensor modules
● Signal interface boards
● Home automation systems
● Consumer electronics
● Test and development boards
