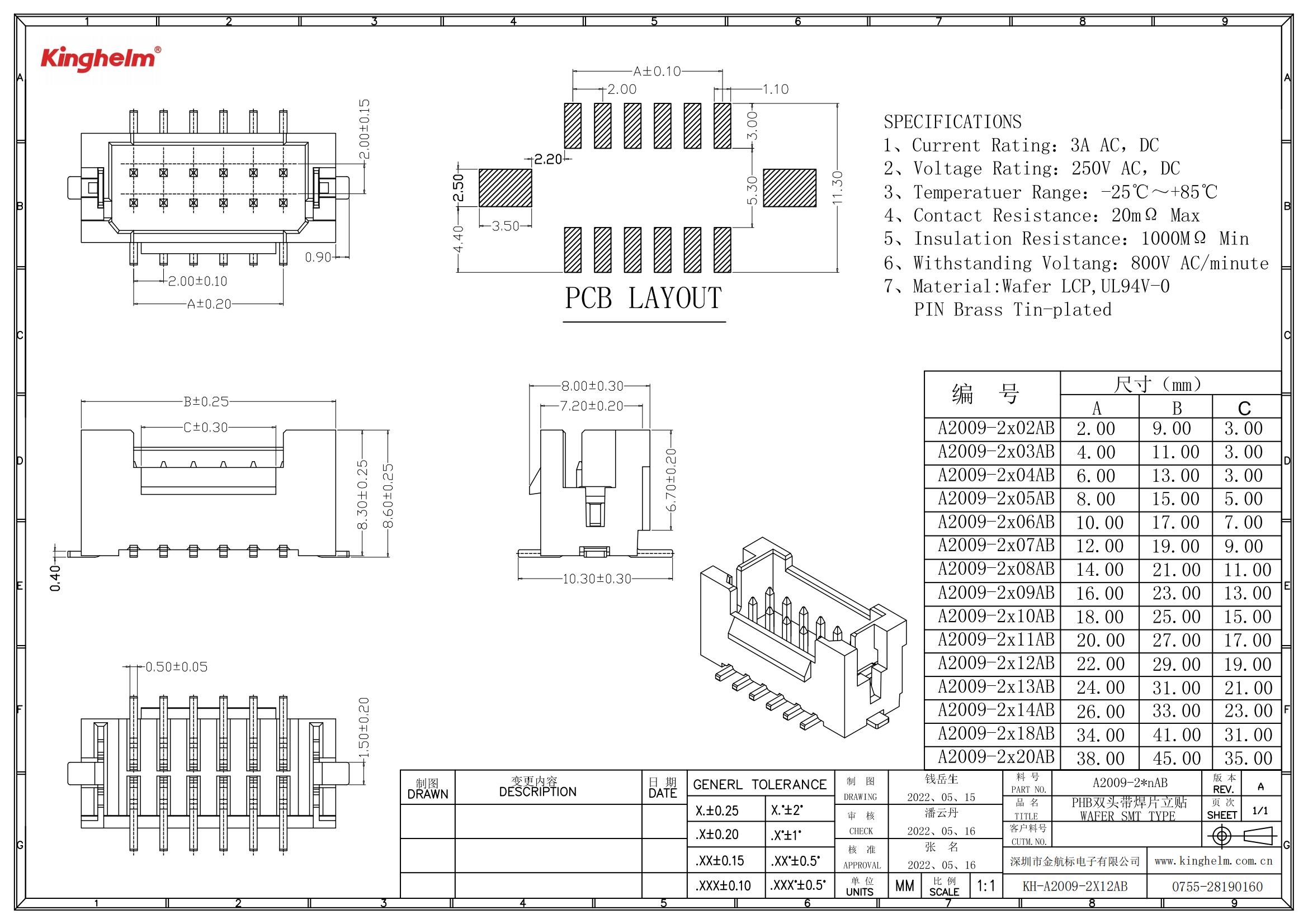

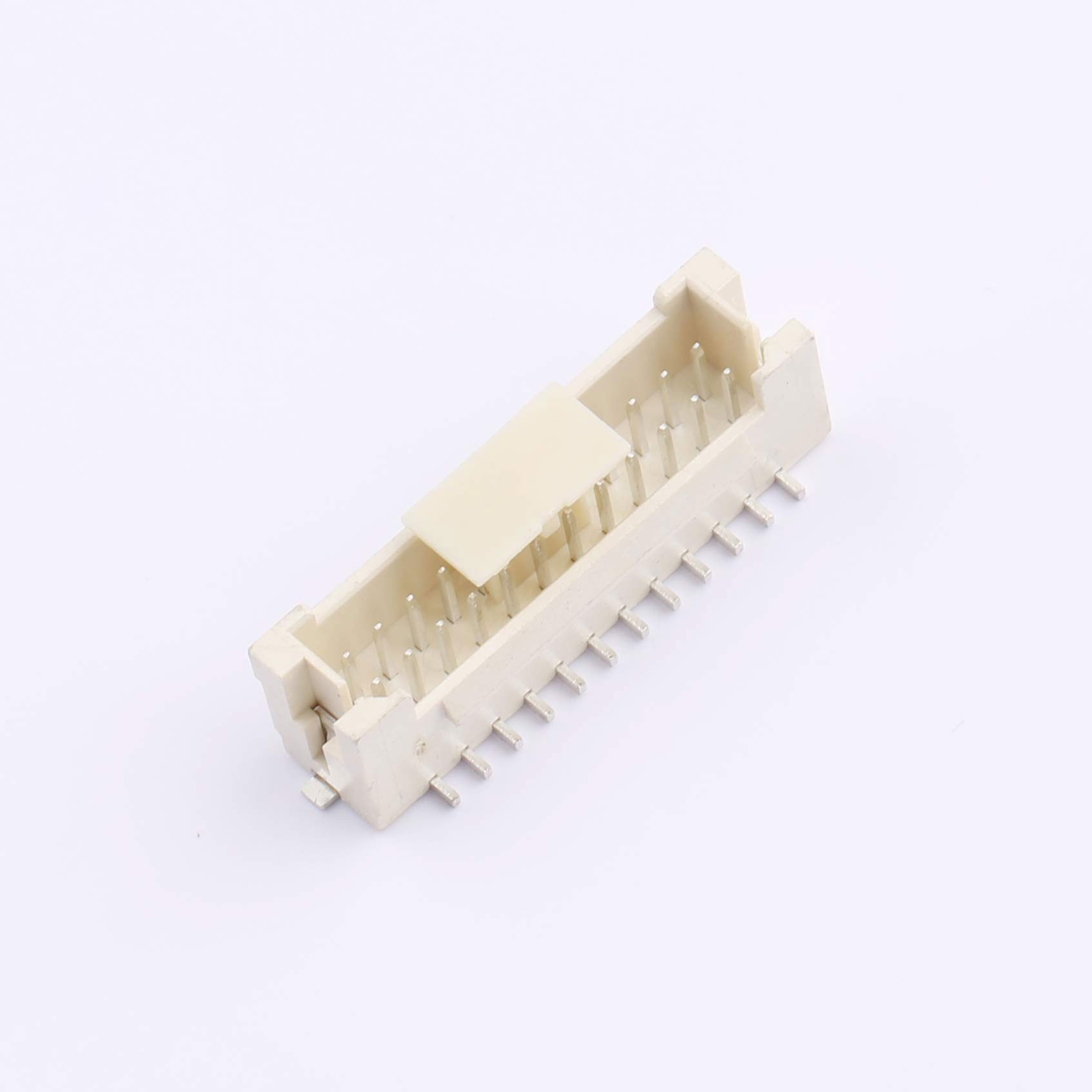

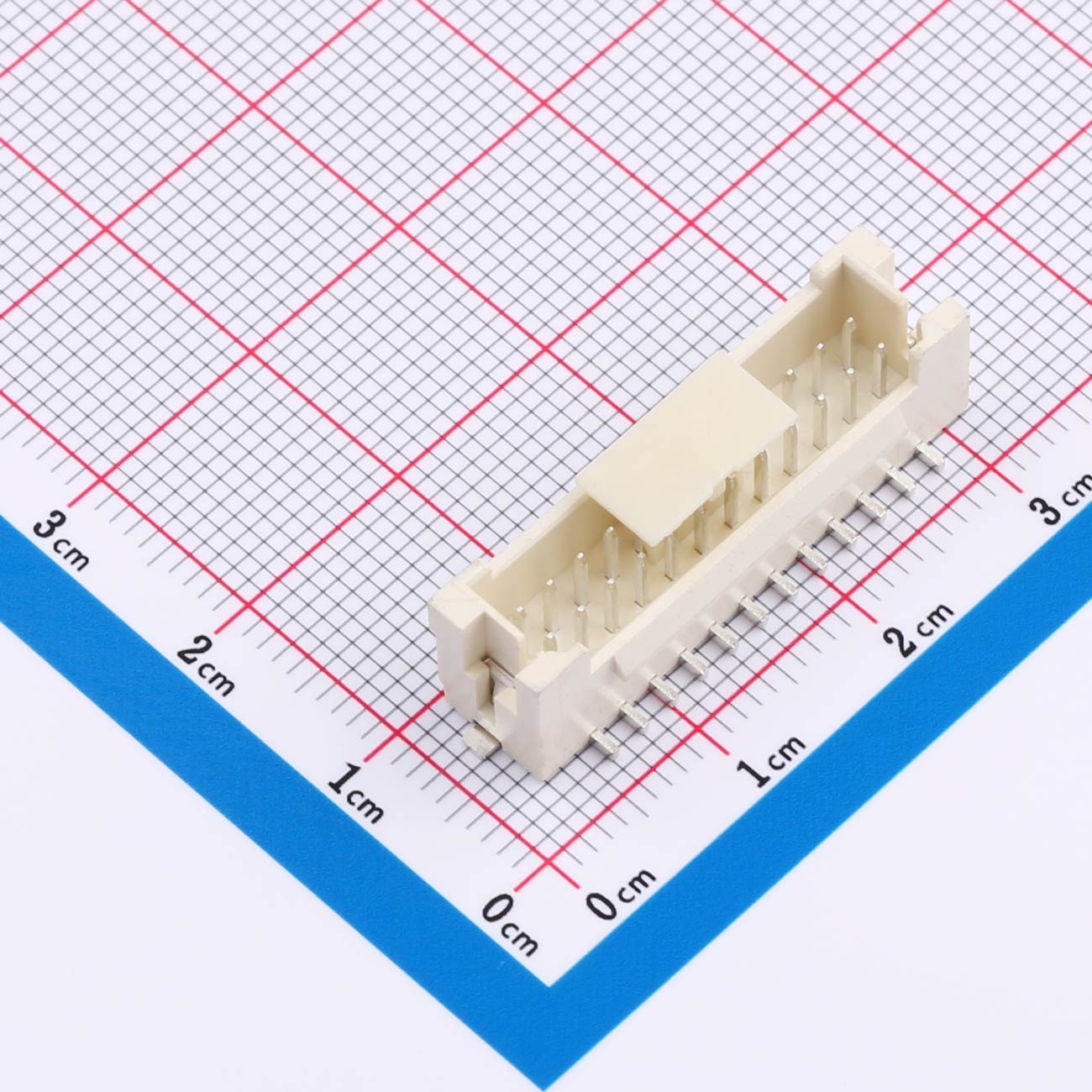

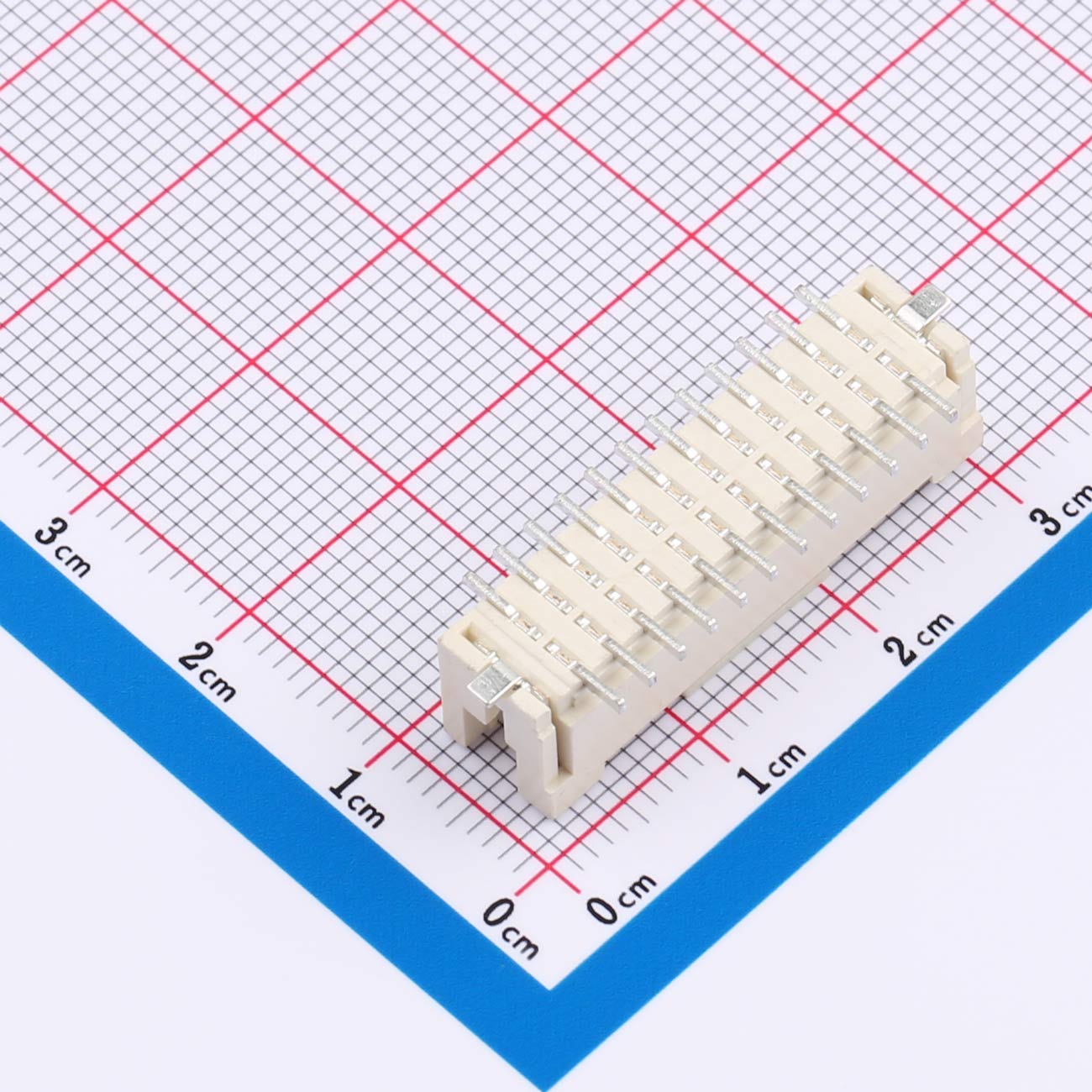

Wire-to-Board Connector, 2mm Pitch, 2x12P, Vertical SMT, KH-A2009-2X12AB
Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.00mm pitch
● 2x12 pin configuration
● 24 pins total
● Dual-row layout
● Vertical mounting type
● SMD package
Product Benefits
● 24-pin design ideal for modular connections
● Dual-row layout enhances connector strength
● Compact footprint for space-constrained PCBs
● SMT-friendly for high-efficiency assembly
Product Applications
● Smart lighting systems
● Access control units
● Communication modules
● Industrial sensors
