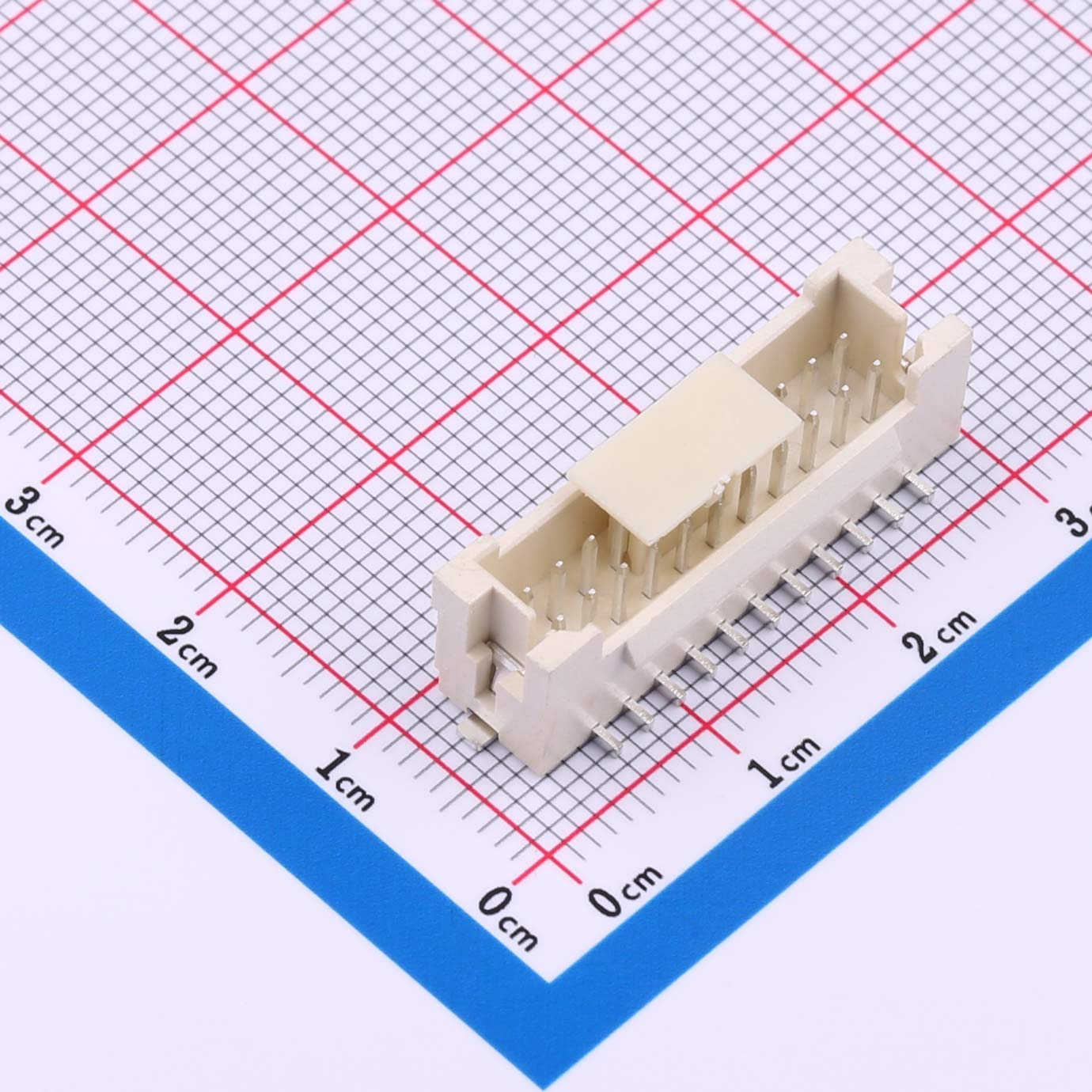

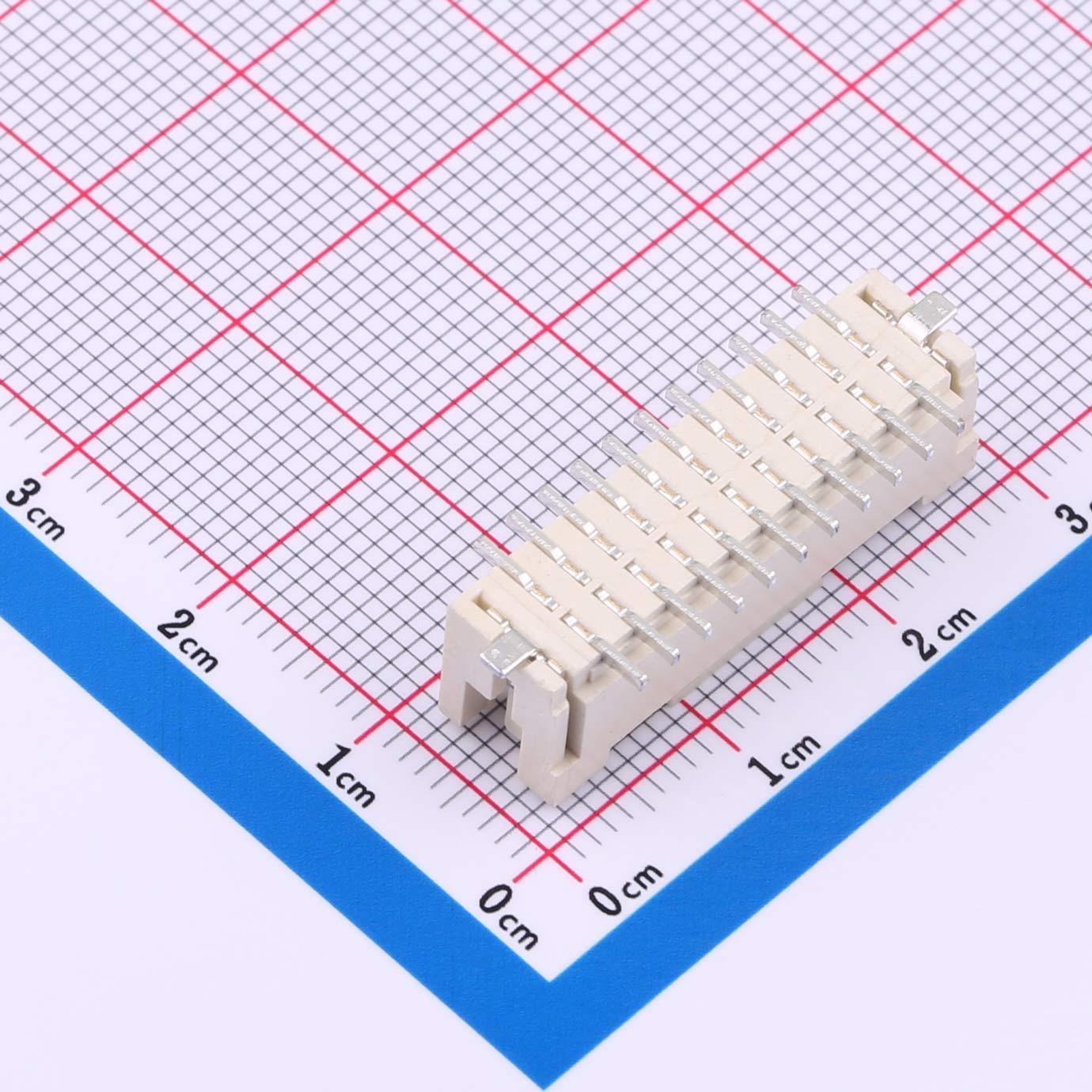

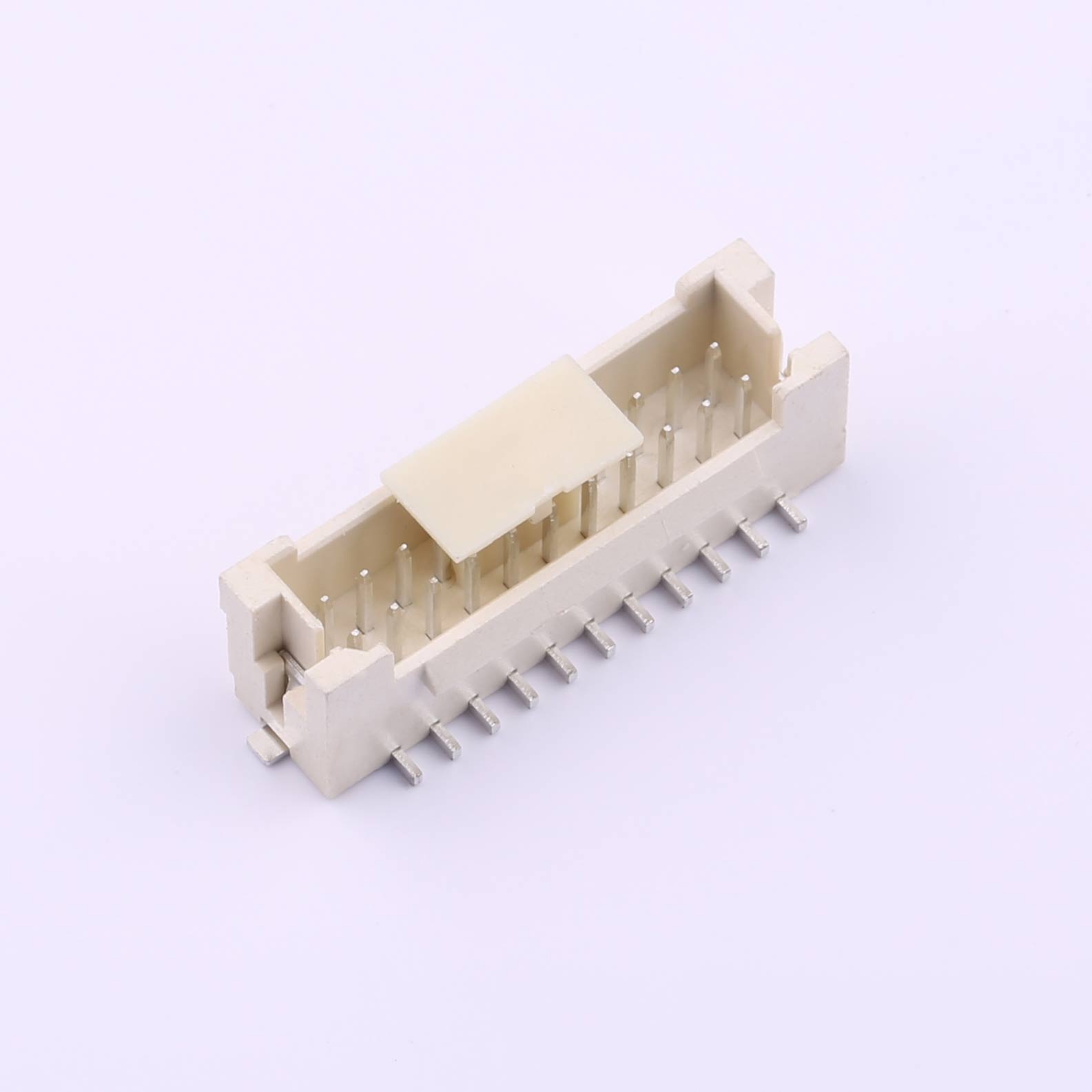

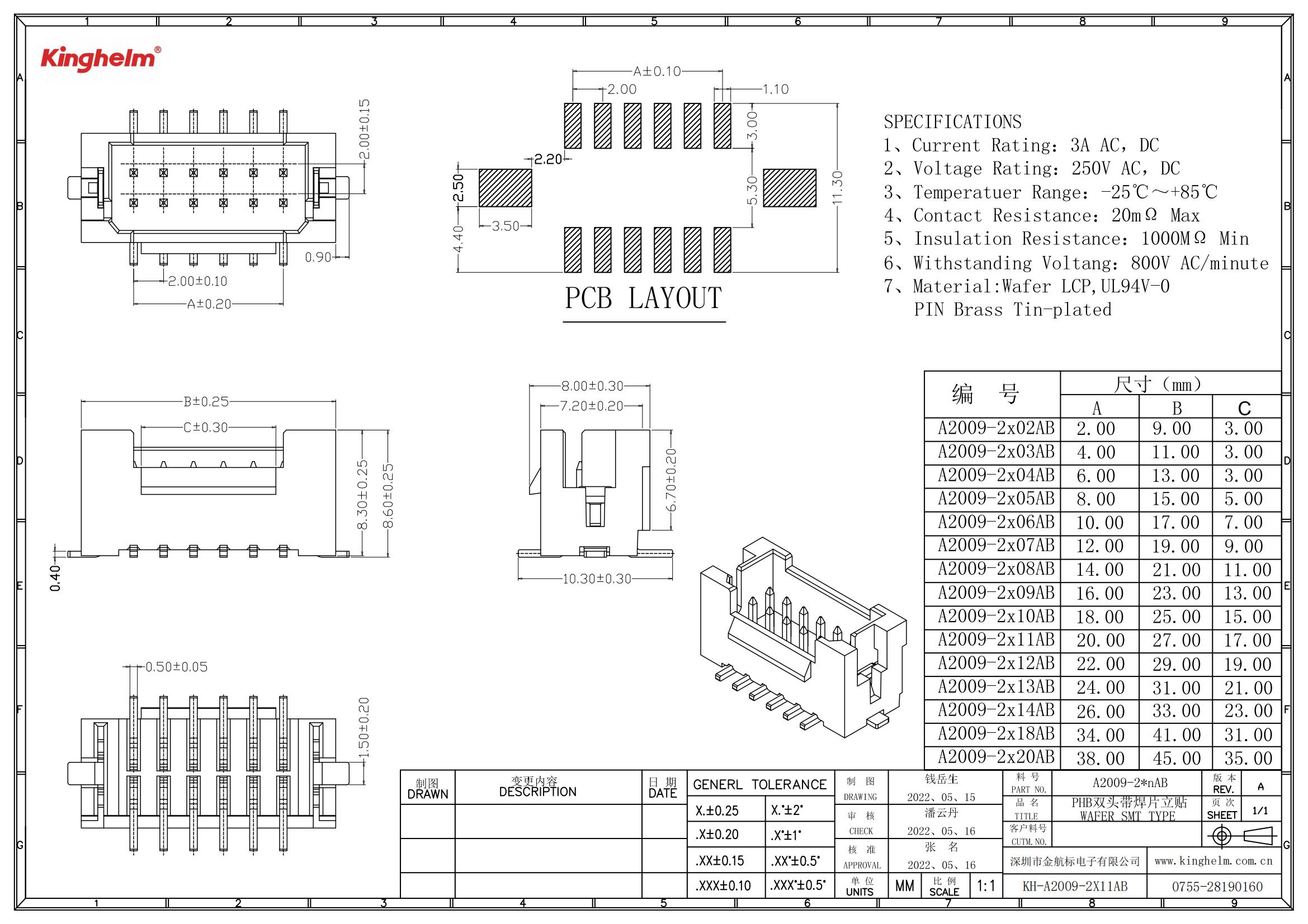

Wire-to-Board Connector, 2mm Pitch, 2x11P, Vertical SMT, KH-A2009-2X11AB
Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.00mm pitch
● 2x11 pin configuration
● 22 pins total
● Dual-row layout
● Vertical mounting type
● SMD package
Product Benefits
● Medium pin count for multifunctional signals
● Stable dual-row format ensures solid mating
● Efficient layout for medium-density boards
● Vertical SMT supports vertical daughterboards
Product Applications
● Embedded computing boards
● Control system interfaces
● Environmental monitoring modules
