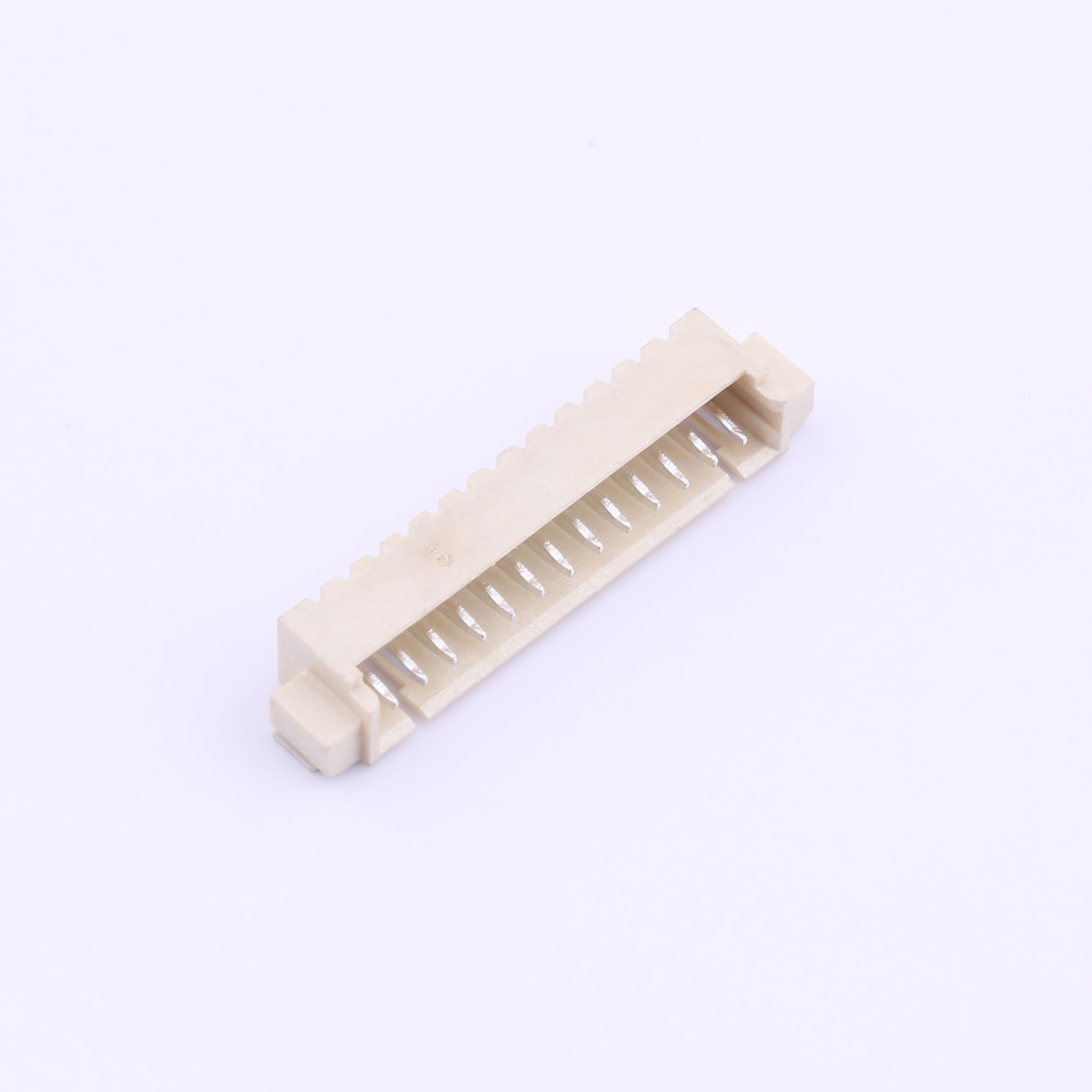

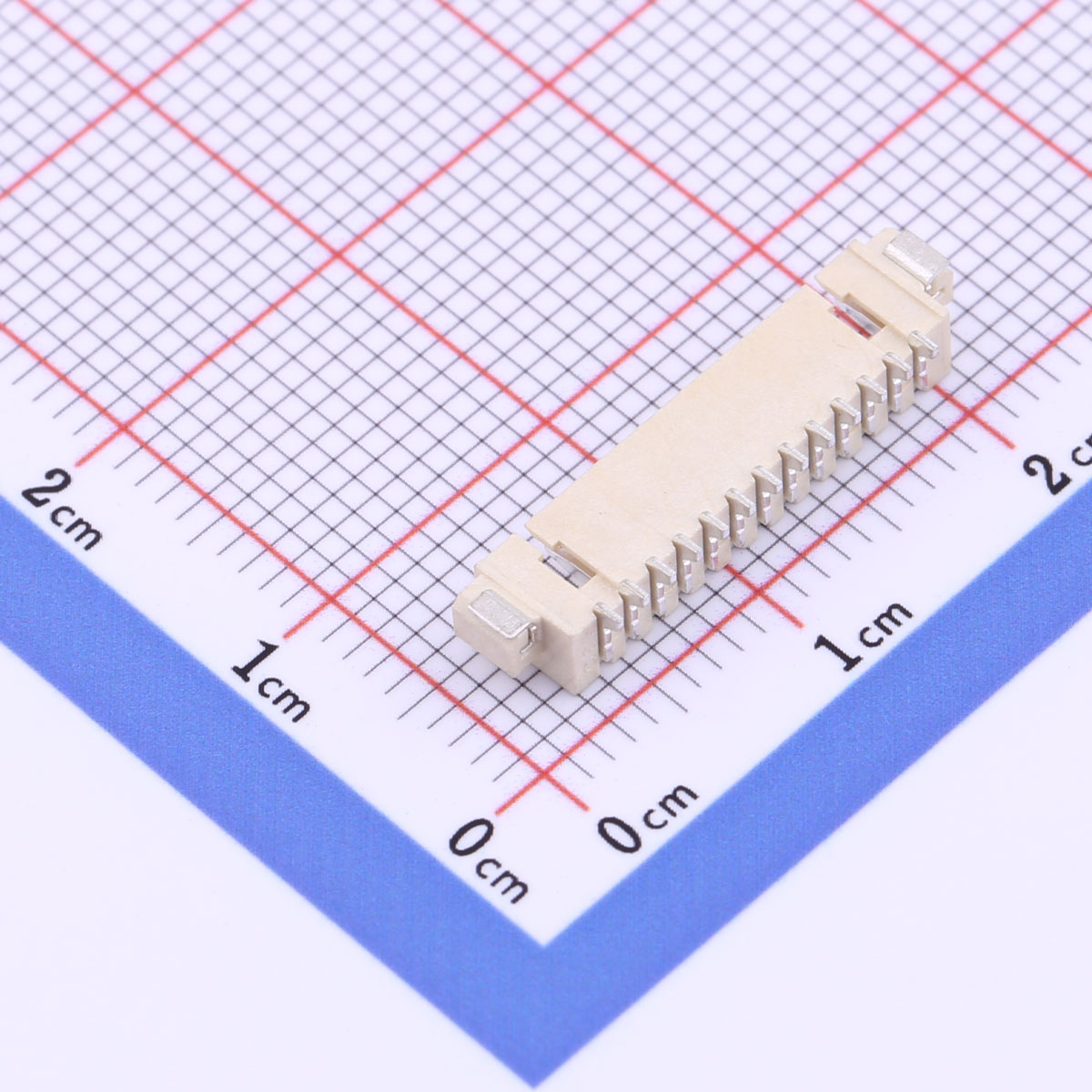

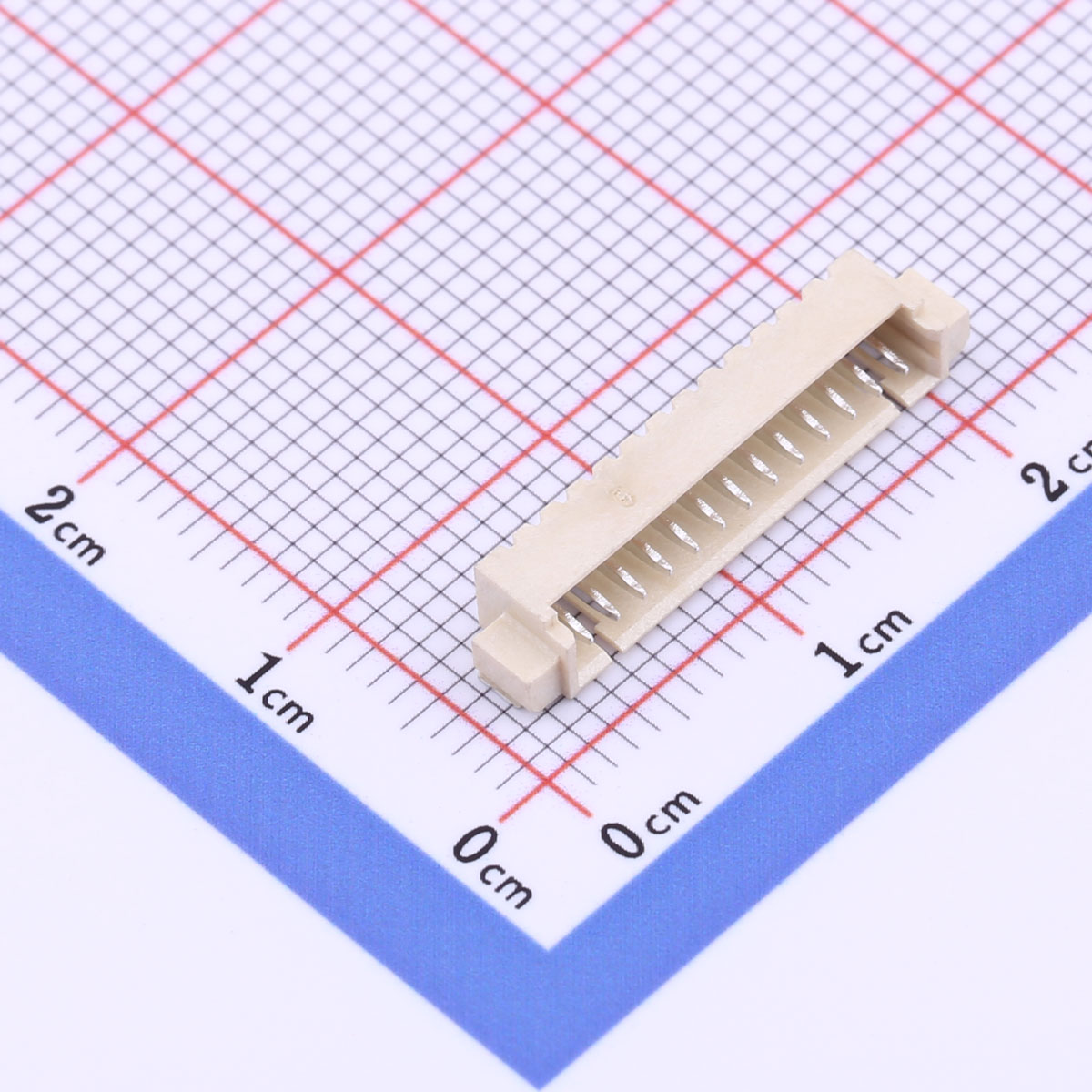

Wire-to-Board Connector/On-Board Connectors, 1.25mm Pitch, SMD, KH-A1251WF-13A

Wire-to-Board Connector/On-Board Connectors, 1.25mm Pitch, SMD, KH-A1251WF-13A

Current Rating: 1A AC/DC
Voltage Rating: 125V AC/DC
Temperature Range: -25°C to +85°C
Contact Resistance: 20mΩ Max
Insulation Resistance: 100MΩ Min

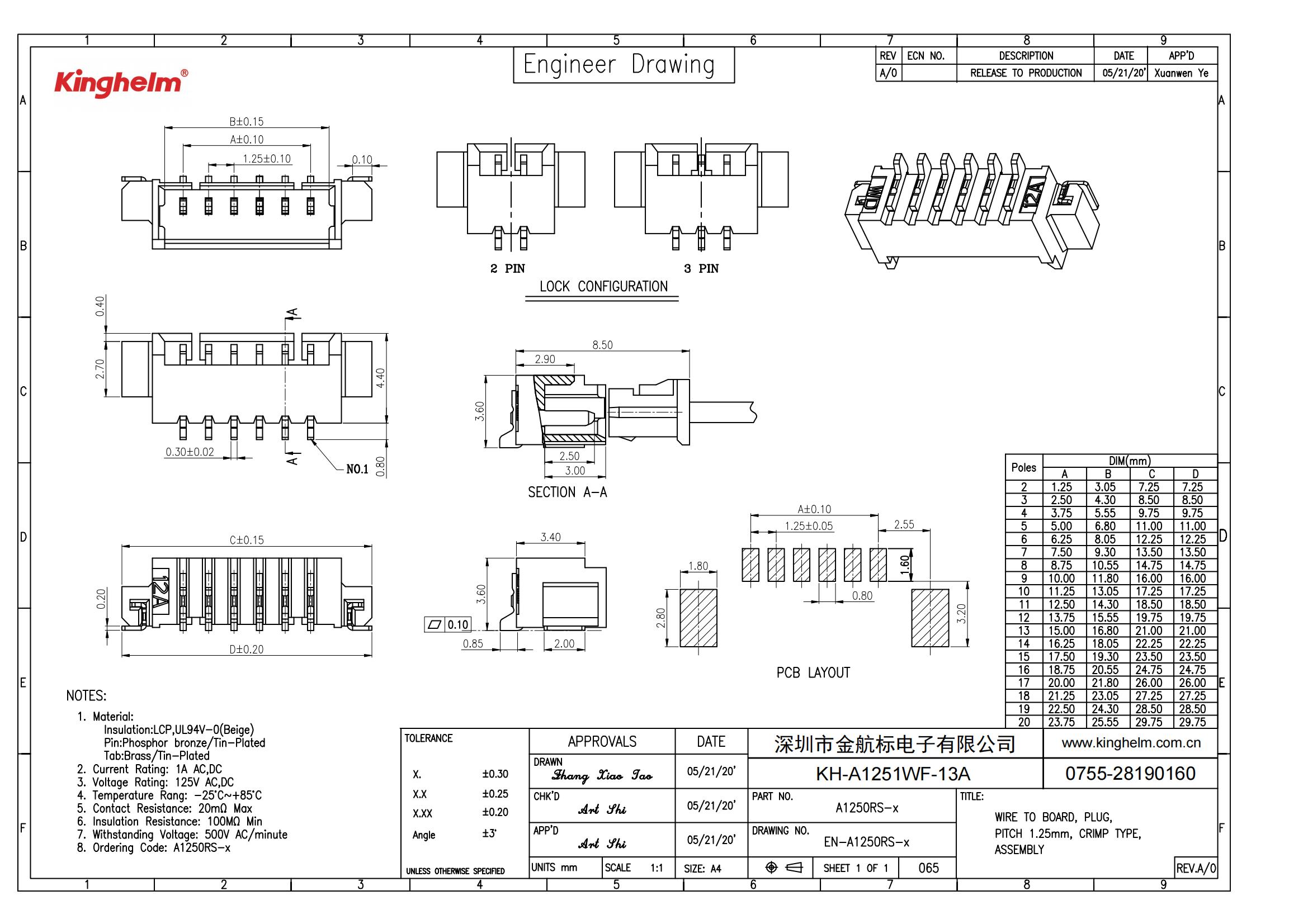

Inquiry Datasheet

Product Details

Product Features
● 1.25mm pitch compact design
● SMD surface mount horizontal type
● 13 pin configuration
● Phosphor bronze tin plated contacts
● Operating temperature range −25°C to +85°C

Product Benefits
● Space-saving design for dense PCB layouts
● Ensures stable power and signal connections
● Corrosion-resistant tin-plated pins
● Compatible with high-speed SMT processes
● Ideal for low current and signal applications

Product Applications
● Consumer electronics
● LED lighting modules
● Industrial automation systems
● Communication equipment
● Home appliances
